AeroDIODE makes laser diode solutions
Synchronization tools
What customers say? our product added value?
"The products make our development work much easier. It’s clear that AeroDIODE has carefully thought about what end users really need. The products are proving to be reliable, flexible, and easy to integrate into existing test beds. ”
" We ordered several products (including CCS, CCM, and TOMBAK) when I was leading a research group at DESY, Germany. They worked perfectly just as we expected. I continued to order these devices after returning to China and established new research efforts on developing novel ultrafast fiber lasers. Both my group members and I fully trust the product quality. The highly reliable performance of these products accelerates our experimental progress."
Previous
Next
"accelerates our progress"
"Efficient"
"Makes our work easier"
"Flexible"
"Easy To Integrate"
"Good Support"
Laser diode drivers

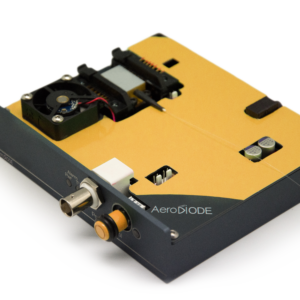

This laser diode driver generates CW and modulated optical signals from a Butterfly laser diode or any other form-factor. It is USB controlled with a GUI. Several libraries are available for system integration (Labview, DLLs, Python, Hexa etc.). It is also available at a board level for OEM integration (Board-level versions have a Minimum Order Quantity of 5 pieces)
This low noise laser diode driver is most useful only when the level of noise is a major constraint. Its noise level is comparable with industry lowest noise battery-based drivers. This makes it the most compact low noise laser diode driver with such performances.
This laser diode driver & temperature controller allows fully independent control of up to 8 laser diodes from CW down to very short pulses. It includes several functions such as one pulse generator and one very low noise current and modulation driver per laser diode.
Semiconductor Optical Amplifiers (SOA amplifiers), when driven in pulse regime with our pulsed SOA drivers become a high dynamic range fiber modulation solution available from 750 to 1700 nm. It is a lossless, high extinction ratio and potentially highly polarizing device.
This fiber laser diode driver integrates two laser diode drivers, 6 photodiode electronics, a pulse-picker synchronization tool and many other dedicated functionalities for nearly any type of fiber laser architecture.
TDLAS is a very modular laser diode driver which has been developed for demanding low noise applications like gas sensing. It contains a lot of functionalities such as internal and external modulation as well as many libraries for system integration.
This High Power Laser Diode driver is compatible with all multimode fiber coupled multi-emitter laser diodes from Nlight , Lumentum , IPG , Dilas etc.

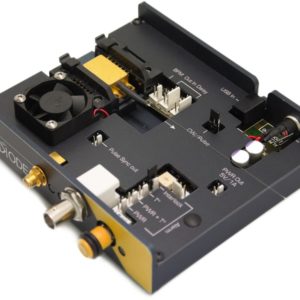

This pulsed laser diode driver generates any pulsed or CW optical signal from 1 ns to CW. The GUI software lets the user have total control of all module functions. It includes several libraries for software integration.
This high speed laser diode driver can generate any programmable pulse shape with down to 500 picosecond and 48 dB dynamic range. It includes many functionalities like gain switch peak suppression and 3 synchronized pulse delay generators.
Laser diode sources

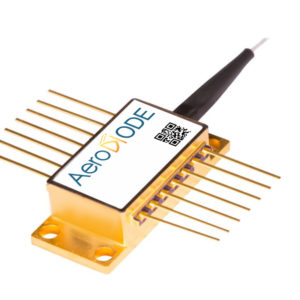

These fiber coupled 1030 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our low noise CW or high speed nanosecond pulsed drivers. Turn-key laser modules with TEC controller are also offered in an open or integrated version.
These fiber-coupled 1053nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our low noise CW or high speed nanosecond pulsed drivers. Turn-key laser modules with TEC controller are also offered in an open or integrated version.

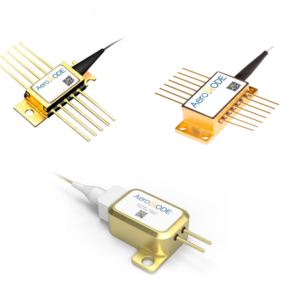

These fiber coupled 1064 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with low noise CW or high speed nanosecond pulsed drivers (scroll down to see all versions). These turn-key laser modules with TEC controller are offered in an open or integrated version.
These fiber-coupled 1290 nm laser diodes are offered as stock items or associated with a low noise CW or Pulsed Laser Diode Driver. All 4 models are single frequency versions (DFB laser diode) up to 120 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for Telecommunication or 3D-sensing R&D.
These fiber-coupled 1310 nm laser diodes are offered as stock items or associated with a low noise CW or Pulsed Laser Diode Driver. 4 models are single frequency versions (DFB laser diode) up to 190 mW and one model (Fabry-Pérot) is available up to 300 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for Telecommunication or 3D-sensing R&D.
These fiber-coupled 1390 nm laser diodes are offered as stock items or associated with a low noise CW or Pulsed Laser Diode Driver. All 3 models are single frequency versions up to 40 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for Telecommunication or 3D-sensing R&D.
These fiber-coupled 1450 nm laser diodes are offered as stock items or associated with either a CW or pulsed laser diode driver. 2 butterfly DFB models are single-frequency versions up to 40 mW. They are compatible with our low noise CW or high speed nanosecond pulsed drivers and this makes it an optimal solution for thermal superficial laser matter interaction systems or other pumping applications.
These fiber-coupled 1470 nm laser diodes are offered as stock items or associated with either a CW or pulsed laser diode driver. 2 butterfly DFB models are single-frequency versions up to 40 mW. They are compatible with our low noise CW or pulsed high speed nanosecond pulsed drivers and this makes it an optimal solution for thermal superficial laser matter interaction systems, IR camera lighting or Er3+-ions pumping.
These fiber-coupled 1480 nm laser diodes are offered as stock items or associated with either a CW or pulsed laser diode driver. 2 butterfly DFB models are single-frequency versions up to 40 mW. They are compatible with our low noise CW or pulsed high speed nanosecond pulsed drivers and this makes it an optimal solution for Er3+-ions pumping, thermal superficial laser matter interaction systems or IR camera lighting.
These fiber-coupled 1550 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. 5 DFB models are single-frequency versions up to 120 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for sensing applications like LIDAR Time-of-Flight, FMCW or 3D-sensing. Two multimode models are offered up to 30 W CW.
These fiber-coupled 1625 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. The 4 models are single frequency versions up to 100 mW CW and 150 mW pulsed. They are compatible with our high speed nanosecond pulsed drivers or ultra-low noise drivers and this makes it an optimal solution for fiber testing applications such as OTDR or CH4 Gas sensing.
These fiber-coupled 1650 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. The 4 models are single frequency versions up to 100 mW CW and 150 mW pulsed. They are compatible with our high speed nanosecond pulsed drivers or ultra-low noise drivers and this makes it an optimal solution for fiber testing applications such as OTDR or CH4 Gas sensing.
These fiber coupled 520 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. Our new 14-pin "DIL" package (with TEC) with its butterfly adaptation kit can be mounted on any Butterfly laser diode driver board. They are also compatible with our low noise CW or high speed nanosecond pulsed drivers.
These fiber coupled 660 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. Our new 14-pin "Hedgehog" (DIL) package (with TEC) with its butterfly adaptation kit can be mounted on any Butterfly laser diode driver board. They are also compatible with our low noise CW or high speed nanosecond pulsed drivers.
These fiber-coupled 785nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our ultra-low noise or high speed nanosecond pulsed drivers and our high power CW drivers with air cooling for the high power multimode laser diode versions.
These fiber-coupled 790nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW drivers with air cooling for the multimode high power laser diode versions.
These fiber-coupled 808 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW and pulsed drivers with air cooling for the multimode laser diode versions.
These fiber-coupled 830nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our ultra-low noise or high speed nanosecond pulsed drivers and our high power CW drivers with air cooling for the high power multimode laser diode versions.
These fiber-coupled laser diodes at 915 nm are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW drivers with air cooling for the multimode high power laser diode versions.
These fiber-coupled 940nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW drivers with air cooling for the multimode high power laser diode versions.
Fiber intensity modulators
This fiber optic modulator is a high speed (nanosecond), high dynamic range, high extinction ratio solution. It is a low noise and lossless device available from 750 to 1700 nm. Choose your wavelength on the datasheet table or table image above.
Semiconductor Optical Amplifiers (SOA amplifiers), when driven in pulse regime with our pulsed SOA drivers become a high dynamic range fiber modulation solution available from 750 to 1700 nm. It is a lossless, high extinction ratio and potentially highly polarizing device.
These fiber coupled acousto-optic modulators (AOM) are designed to offer an optimal solution for amplitude modulation of laser light in a single mode optical fiber. They are offered between 750 and 1750 nm (most models are in stock). These AOM’s are easy to implement and offer direct control of the timing, intensity, and temporal shape of the laser output down to a few nanoseconds.
Semiconductor Optical Amplifier (SOA) are offered as stock items or associated with a choice of low-noise CW or high-speed pulsed drivers. An SOA optical amplifier driven in CW or pulse mode operates as a full-range amplifier, full-range variable optical attenuator, a lossless high dynamic range amplitude modulator or an isolation switch.
Synchronization electronics
Pulse Picker is a synchronization tool to drive external modulating devices such as EOM, AOM, SOA etc. It has been designed to work with low level electrical or optical input pulse power. It includes 3 pulse picking modes (frequency divider, external triggering & high frequency clock, burst shaping) : see the detailed application note : Pulse-Picker
This pulse delay generator provides high frequency pulses, delays and bursts. It is an ideal testing and timing control instrument for electronics, lasers or camera setup.
Burst shaper is a synchronization tool to drive external modulating devices such as EOM, AOM, SOA etc. It has been especially designed to work with low level electrical or optical input pulses power. It is ideal to synchronize mode locked lasers to reach any pulse burst shape.
This compact delay generator is intended for use in embedded OEM applications. It is an ideal tool for timing and gating optoelectronics instruments such as cameras or lasers, or for applying picosecond-resolution time trims to special instruments.
Laser diode test systems
Life-test and qualification test system for laser diode reliability evaluation in CW or pulsed regime down to 1 nanosecond. Up to 112 fully independent fibered devices are electrically, thermally and optically tested according to several user-programmed test scenario.
This laser diode driver & temperature controller allows fully independent control of up to 8 laser diodes from CW down to very short pulses. It includes several functions such as one pulse generator and one very low noise current and modulation driver per laser diode.
