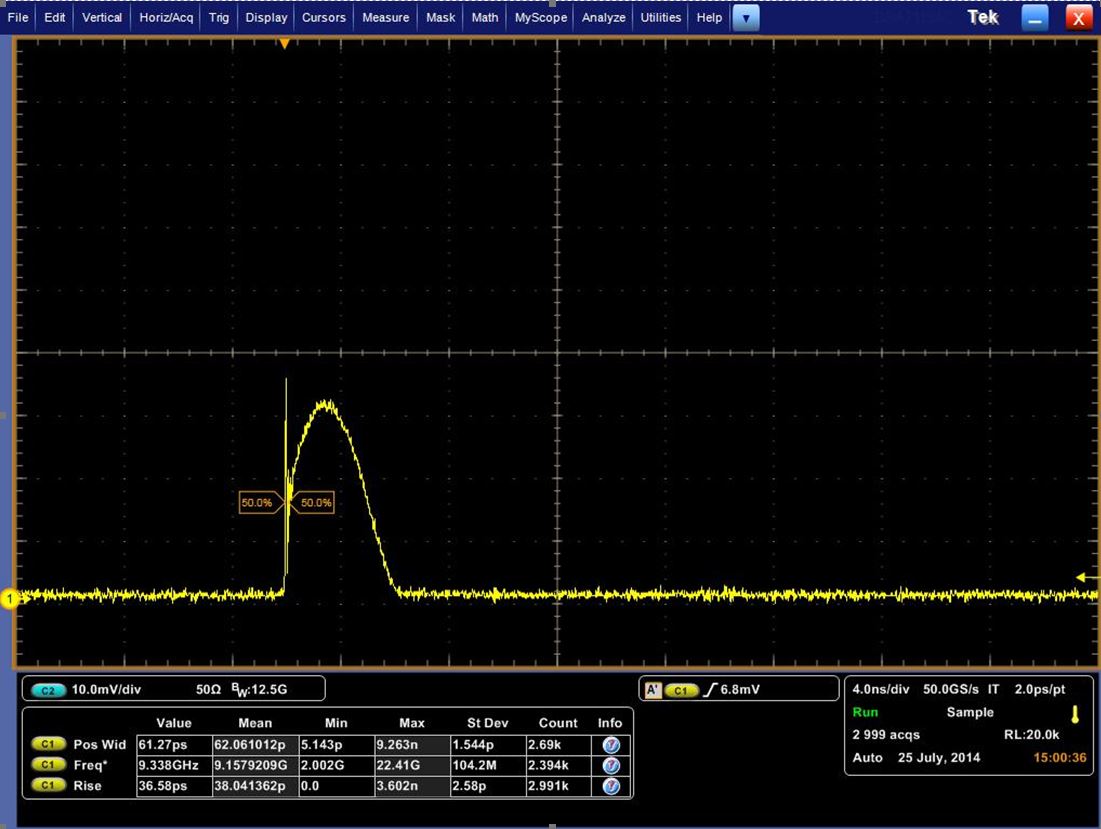

The 1070nm laser diode can reach high power in nanosecond pulse regime up to 675mW. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1070nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. See our tutorial on fiber coupled laser diodes for more information about the two technologies used here : Fabry Perrot and DFB.
From: 2 995€
All shippings with DHL Express
These 1070nm laser diodes are offered in 2 versions:
1070nm laser diode Key Features (scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:
For laser diode alone, click on the models in the table below.
For turn-key “1070nm diode+driver” solutions, see the Specs here: 1070nm laser diode Datasheet.
Laser Diode model | Technology | Wavelength | Typical linewidth* | Power (CW) (Typ) | Power (Pulse) | Form factor | Output fiber | Price | |
---|---|---|---|---|---|---|---|---|---|
Model 1 | Datasheet | Standard Fabry Perrot | 1070 ± 4nm | <1 nm* | 400mW | up to 675mW | 14 pin butterfly – type 1 | HI1060 or PM980 if option PM | Scroll down ! |
Model 2 | Datasheet | DFB | 1070 ± 2nm | ~ 200 kHz* | 70mW | up to 105mW |
Scroll down to see all configurations, prices and lead times. For best linewidth performances, an ultra-low noise driver is required. for example this one low noise laser diode driver

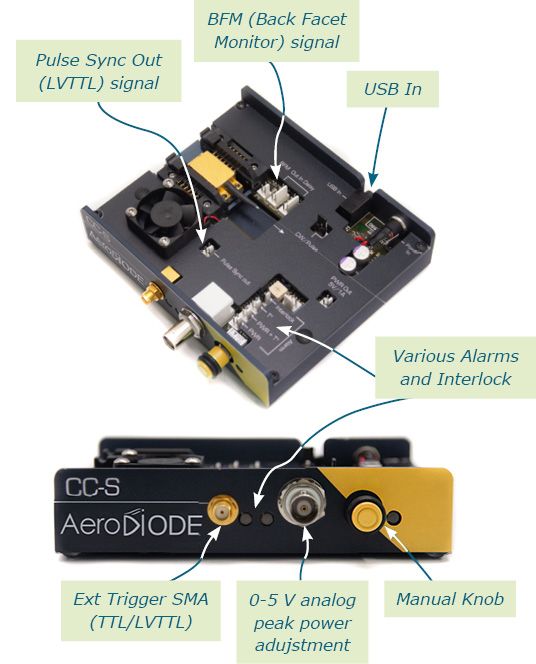

The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 1070nm laser diode & turn-key solutions work also in series with other products in our range like (see ordering information below for the various configurations with standard drivers):
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials:
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster.
Laser Diode model | Technology | Wavelength | Typical linewidth* | Power (CW) (Typ) | Power (Pulse) | Form factor | Output fiber | Price | |
---|---|---|---|---|---|---|---|---|---|
Model 1 | Datasheet | Standard Fabry Perrot | 1070 ± 4nm | <1 nm* | 400mW | up to 675mW | 14 pin butterfly - type 1 | HI1060 or PM980 if option PM | Scroll down ! |
Model 2 | Datasheet | DFB | 1070 ± 2nm | ~ 200 kHz* | 70mW | up to 105mW |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
---|---|---|---|---|---|---|---|
Model 1 (Fabry Pérot) diode alone PN : 1070LD-1-0-0 | 1070nm butterfly laser diode alone with FC/APC fiber connector and 900µm fiber protection coating. Up to 400mW CW optical power out of a singlemode fiber. Compatible with option: PM… Read more 1070nm butterfly laser diode alone with FC/APC fiber connector and 900µm fiber protection coating. Up to 400mW CW optical power out of a singlemode fiber. Compatible with option: PM fiber, option 1: narrow spectrum version and option 2: low power collimator - see options below. Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 2 995€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
OPTION : PM Fiber for model 1 PN : 1070LD-Option-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM980 fiber instead of a HI1060. Both the connector key and the light polarization are aligned along the slow axis (… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM980 fiber instead of a HI1060. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Other options are described at the bottom of the page. Less | 650€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry Pérot) with open CW driver PN : 1070LD-1-1-1 | Open CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible… Read more Open CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM fiber, option 1: narrow spectrum version and option 2: low power collimator - see options below. Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 5 240€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry Pérot) with open Pulsed & CW driver (standard version) PN : 1070LD-1-2-1 | Open Pulse & CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Open Pulse & CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option option: PM fiber, option 1: narrow spectrum version, option 2: low power collimator and option 3: 250MHz version - see options below. (1) Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 6 240€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry Pérot) with open Pulsed & CW driver (HP version) PN : 1070LD-1-3-1 | Open Pulse & CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Open Pulse & CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option option: PM fiber, option 1: narrow spectrum version, option 2: low power collimator and option 3: 250MHz version - see options below. (1) Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 7 290€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||

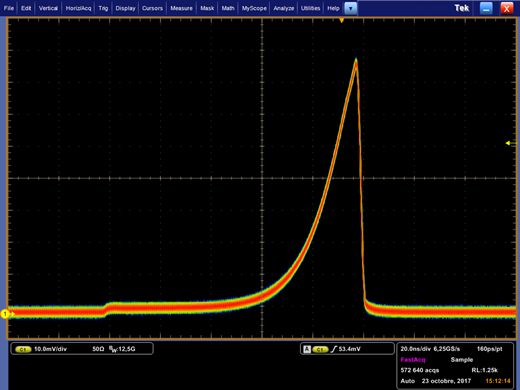

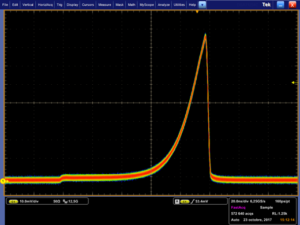

Model 1 (Fabry Pérot) with open high speed pulsed driver (User design pulse shape version) PN : 1070LD-1-5-1 | Open Pulsed driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Open Pulsed driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM fiber, option 1: narrow spectrum version and option 2: low power collimator - see options below. Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 7 990€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||

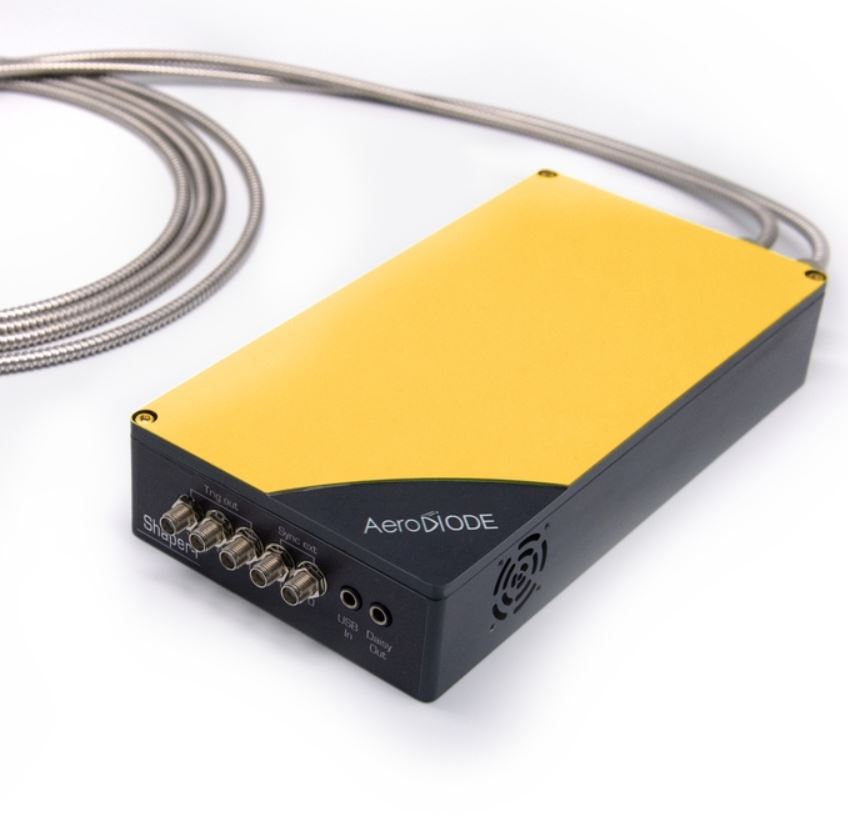

Model 1 (Fabry Pérot) with integrated CW driver PN : 1070LD-1-1-2 | Turn-key integrated CW laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Read more Turn-key integrated CW laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Compatible with option: PM fiber, option 1: narrow spectrum version, option 2: low power collimator and option 4: bench-top version- see options below. Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 6 440€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry Pérot) with integrated Pulsed & CW driver (standard version) PN : 1070LD-1-2-2 | Turn-key integrated laser diode module with butterfly 1070nm laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Read more Turn-key integrated laser diode module with butterfly 1070nm laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Compatible with option: PM fiber, option 1: narrow spectrum version, option 2: low power collimator, option 3: 250MHz version and option 4: bench-top version- see options below. Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 7 440€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry Pérot) with integrated Pulsed & CW driver (HP version) PN : 1070LD-1-3-2 | Turn-key integrated laser diode module with butterfly 1070nm laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Read more Turn-key integrated laser diode module with butterfly 1070nm laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Compatible with option: PM fiber, option 1: narrow spectrum version, option 2: low power collimator, option 3: 250MHz version and option 4: bench-top version- see options below. Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 8 490€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry Pérot) with integrated high speed pulsed driver (User design pulse shape version) PN : 1070LD-1-5-2 | Turn-key integrated pulsed laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Read more Turn-key integrated pulsed laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Compatible with option: PM fiber, option 1: narrow spectrum version and option 2: low power collimator - see options below. Note: When the FBG option is NOT chosen, the laser diode behaves as a standard Fabry-Perrot laser diode. The 1070nm wavelength is reached when stabilizing the laser diode chip between 30 and 35°C (all AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 9 190€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 2 (DFB) diode alone PN : 1070LD-2-0-0 | 1070nm butterfly laser diode alone with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM… Read more 1070nm butterfly laser diode alone with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 2 995€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
OPTION : PM Fiber for model 2 PN : 1070LD-Option-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining PM980 fiber instead of a HI1060. Both the connector key and the light polarization are aligned along the slow axis (… Read more With this OPTION, Model 2 is offered with a polarization maintaining PM980 fiber instead of a HI1060. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Other options are described at the bottom of the page. Less | 650€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with open CW driver PN : 1070LD-2-1-1 | Open CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible… Read more Open CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 5 240€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with Ultra-low noise open CW driver PN : 1070LD-2-LN-1 | Open ultra low noise CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Open ultra low noise CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 7 790€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with open Pulsed & CW driver (standard version) PN : 1070LD-2-2-1 | Open Pulse & CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Open Pulse & CW driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option option: PM fiber, option 2: low power collimator and option 3: 250MHz version - see options below. Less | 6 240€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with open high speed pulsed driver (User design pulse shape version) PN : 1070LD-2-5-1 | Open Pulsed driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Open Pulsed driver with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 7 990€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with integrated CW driver (standard noise performances) PN : 1070LD-2-1-2 | Turn-key integrated CW laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Read more Turn-key integrated CW laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Compatible with option: PM fiber, option 2: low power collimator and option 4: bench-top version- see options below. Less | 6 440€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with integrated CW Ultra-low Noise driver PN : 1070LD-2-LN-2 | Turn-key integrated ultra low noise CW laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. Read more Turn-key integrated ultra low noise CW laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating. A low noise driver is required for single-frequency applications. Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 8 990€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with integrated Pulsed & CW driver (standard version) PN : 1070LD-2-2-2 | Turn-key integrated laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Turn-key integrated laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Compatible with option: PM fiber, option 2: low power collimator, option 3: 250MHz version and option 4: bench-top version - see options below. Less | 7 440€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (DFB) with integrated high speed pulsed driver (User design pulse shape version) PN : 1070LD-2-5-2 | Turn-key integrated pulsed laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. Read more Turn-key integrated pulsed laser diode module with 1070nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating. User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulse width (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 9 190€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
OPTION 1 : Narrow spectrum version (Fiber Bragg Grating) for Model 1 PN : 1070LD-Option-FBG_SM | With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1m from the laser diode butterfly module. The small back-reflection generated by… Read more With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1m from the laser diode butterfly module. The small back-reflection generated by the FBG allows to get a very stable and narrow emission spectrum at the center wavelength of 1070nm. The center wavelength tolerance becomes 1070±0.5 nm instead of 1070±2 nm. It is not anymore possible to tune the wavelength by tuning the laser diode chip temperature as the FBG "locks" the wavelength at 1070nm. The spectrum and polarization are more stable when using a Bragg grating. Note that the FBG takes a few 10's ns to lock the wavelength. A very short pulse may not be locked efficiently during the first part of the pulse and the wavelength is the same as if there was no FBG during this part of the pulse. Less | 595€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
OPTION 2 : Low Power Collimator COL001 PN : 1070LD-Option-Collimator_SM | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 495€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
OPTION 3 : 250MHz repetition rate PN : 1070LD-Option-250MHz_SM | Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
OPTION 4 : Benchtop version PN : 1070LD-Option-Benchtop_SM | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
OPTION 5 : Multi-product GUI Touch screen PN : 1070LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks | Max: Min: 1 Step: 1 |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
