These single mode 1654nm laser diodes can reach high power in nanosecond pulse regime. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1650nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.
From: 1 345€
All shippings with DHL Express
Single-frequency 1654nm laser diode Key Features:
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:
For laser diode alone, click on the models in the table below.
For turn-key “1654nm diode+driver” solutions, see the Specs here: 1654nm laser diode Datasheet.
These 1654nm laser diodes combined with our high end flexible pulsed laser diode driver are an ideal tool for fiber tests tools such as OTDR or CH4 gas sensing.
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Typical linewidth* | Power (Pulse) | Current/ Voltage (typ) | Form factor | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|

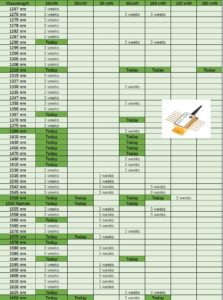

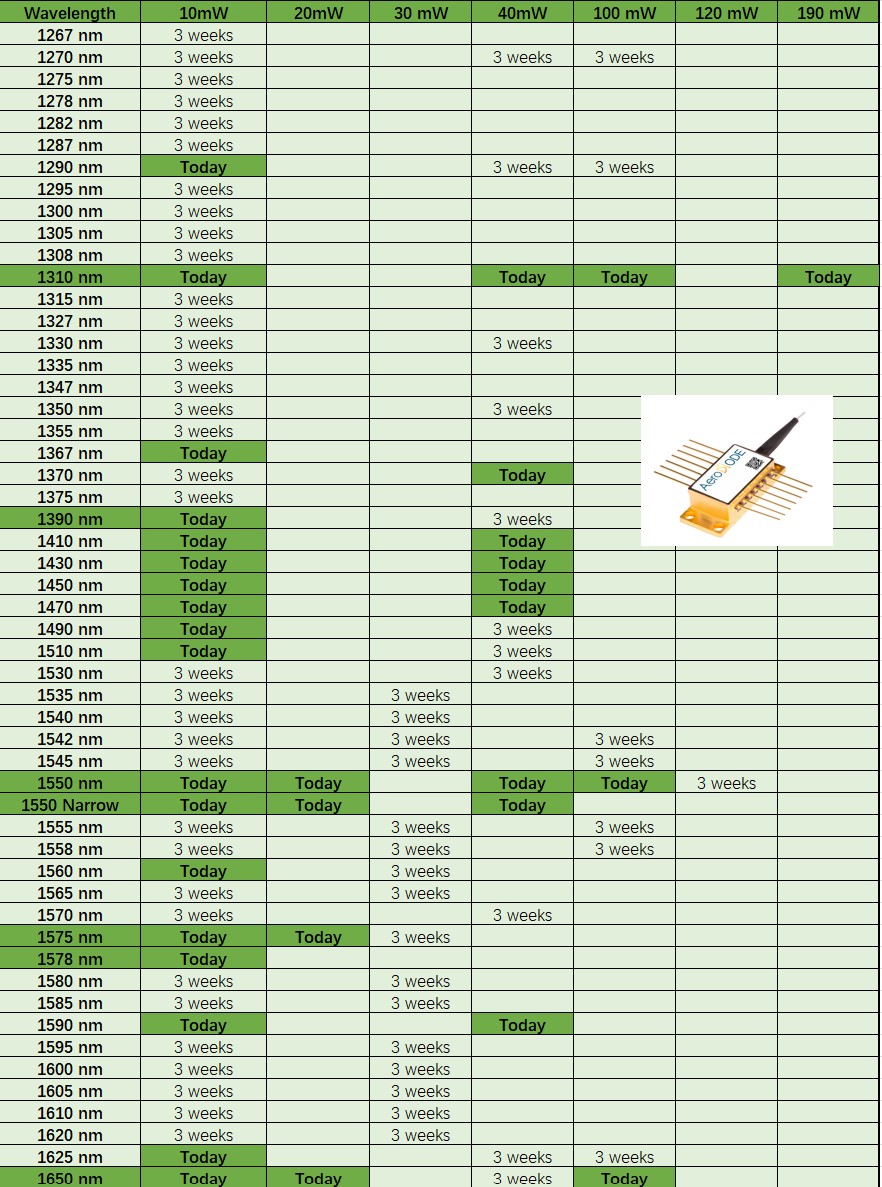

| Model 1 | Datasheet | 10 mW | DFB – singlemode | 1654 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) | < 2 MHz* | 15 mW | 70 mA/1.6 V | 14 pin butterfly-type 1 with isolator | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent | Scroll down ! |
| Model 2 | Datasheet | 20 mW | 30 mW | 150 mA/1.6 V | ||||||
| Model 3 | Datasheet | 40 mW | < 200 kHz* | 60 mW | 300 mA/1.6 V | |||||
| Model 4 | Datasheet | 100 mW | 150 mW | 700 mA/1.8 V |
*Scroll down to see all configurations, prices and lead times. For best linewidth performances, an ultra-low noise driver is required. for example this one : low noise laser diode driver.

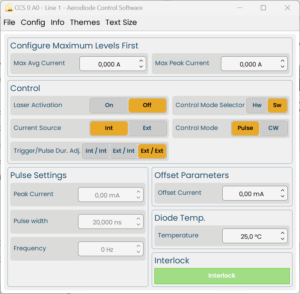

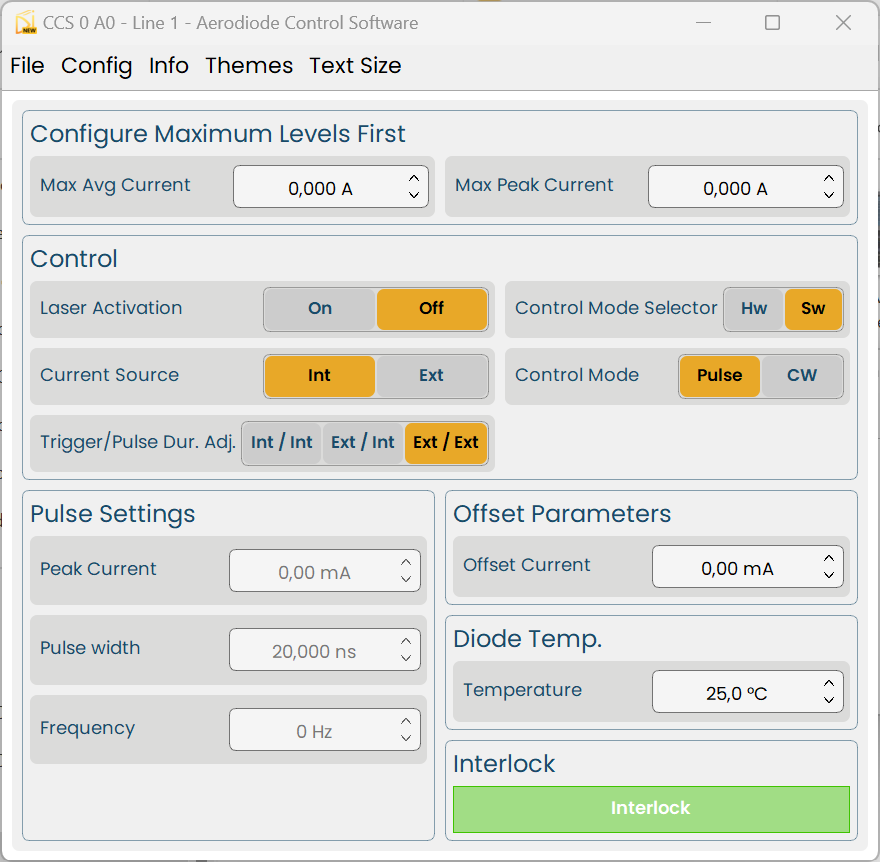

The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.).
These 1654 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models):
See our detailed tutorials for more information about the use of these laser diodes:
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster.
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Typical linewidth* | Power (Pulse) | Current/ Voltage (typ) | Form factor | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 mW | DFB - singlemode | 1654 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) | < 2 MHz* | 15 mW | 70 mA/1.6 V | 14 pin butterfly-type 1 with isolator | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent | Scroll down ! |
| Model 2 | Datasheet | 20 mW | 30 mW | 150 mA/1.6 V | ||||||
| Model 3 | Datasheet | 40 mW | < 200 kHz* | 60 mW | 300 mA/1.6 V | |||||
| Model 4 | Datasheet | 100 mW | 150 mW | 700 mA/1.8 V |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

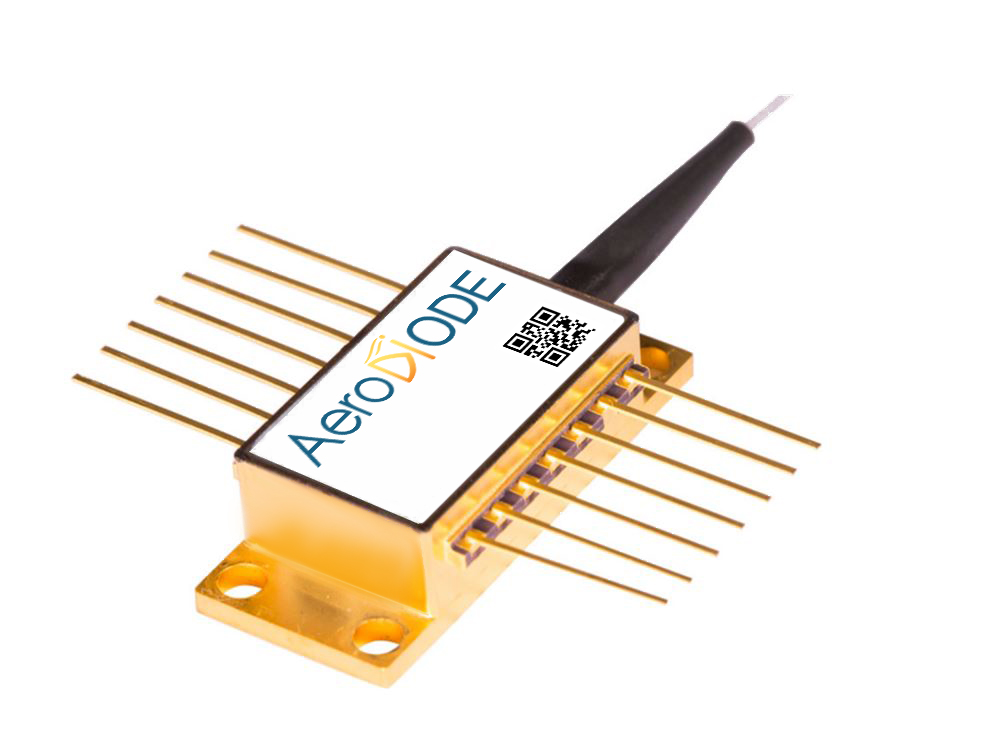

 | Model 1 (10 mW) PN : 1654LD-1-0-0 | 1654 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and… Read more 1654 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 1 345€ | Today | |||
 | OPTION : PM fiber for model 1 PN : 1654LD-Option-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 200€ | Today | |||
 | Model 1 (10 mW) with "CCS-CW" driver PN : 1654LD-1-1-1 | Open CW driver with 1654 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between… Read more Open CW driver with 1654 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 3 590€ | 2 - 5 days | |||
 | Model 1 (10 mW) with "CCS" driver PN : 1654LD-1-2-1 | Open Pulse & CW driver with 1654 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector ; Down to 1.5 ns pulse duration Pulsed power up to… Read more Open Pulse & CW driver with 1654 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector ; Down to 1.5 ns pulse duration Pulsed power up to 20 mW (typical value). Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version - see below).
Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 4 590€ | 2 - 5 days | |||
 | Model 1 (10 mW) with "Shaper" driver PN : 1654LD-1-3-1 | Open pulsed driver with 10 mW 1654 nm laser diode. Up to 20 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width… Read more Open pulsed driver with 10 mW 1654 nm laser diode. Up to 20 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 6 340€ | 1 - 2 weeks | |||
 | Model 1 (10 mW) within "CCSI-CW" module PN : 1654LD-1-1-2 | Turn-key integrated CW laser diode module at 1654 nm. CW power up to 10 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator)… Read more Turn-key integrated CW laser diode module at 1654 nm. CW power up to 10 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (Benchtop version) see below.
Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 4 790€ | 1 - 2 weeks | |||
| Model 1 (10 mW) within "CCSI" module PN : 1654LD-1-2-2 | Turn-key integrated laser diode module at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Pulsed… Read more Turn-key integrated laser diode module at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Pulsed power up to 20 mW (typical value). Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (Benchtop version) - see below. Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 5 790€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (20 mW) PN : 1654LD-2-0-0 | 1654 nm 20 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and… Read more 1654 nm 20 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 1 695€ | Today | |||
| OPTION : PM fiber for model 2 PN : 1654LD-Option-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the… Read more With this OPTION, Model 2 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 300€ | Today | |||
| Model 2 (20 mW) with "CCS-CW" driver PN : 1654LD-2-1-1 | Open CW driver with 1654 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 20 mW CW optical power. Also available in PM version and also available… Read more Open CW driver with 1654 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 20 mW CW optical power. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 3 940€ | 2 - 5 days | |||
| Model 2 (20 mW) with "CCS" driver PN : 1654LD-2-2-1 | Open Pulse & CW driver with 1654 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 20 mW CW optical power and, typically, 40 mW pulsed… Read more Open Pulse & CW driver with 1654 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 20 mW CW optical power and, typically, 40 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 4 940€ | 2 - 5 days | |||
| Model 2 (20 mW) with "Shaper" driver PN : 1654LD-2-3-1 | Open pulsed driver with 20 mW 1654 nm laser diode. Up to 40 mW pulsed (typical value). User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs… Read more Open pulsed driver with 20 mW 1654 nm laser diode. Up to 40 mW pulsed (typical value). User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 6 690€ | 2 - 5 days | |||
| Model 2 (20 mW) within "CCSI-CW" module PN : 1654LD-2-1-2 | Turn-key integrated CW laser diode module at 1654 nm. CW power up to 20 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm… Read more Turn-key integrated CW laser diode module at 1654 nm. CW power up to 20 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). and option 3 (Benchtop version).
Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 5 140€ | 1 - 2 weeks | |||
| Model 2 (20 mW) within "CCSI" module PN : 1654LD-2-2-2 | Turn-key integrated laser diode module at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 20 mW. Pulsed… Read more Turn-key integrated laser diode module at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 20 mW. Pulsed power up to 40 mW (typical value). Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 6 140€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 3 (40 mW) PN : 1654LD-3-0-0 | 1654 nm 40 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and… Read more 1654 nm 40 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 2 195€ | Today | |||
| OPTION : PM fiber for model 3 PN : 1654LD-Option-PM3 | With this OPTION, Model 3 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the… Read more With this OPTION, Model 3 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 350€ | 3 weeks | |||
| Model 3 (40 mW) with "CCS-CW" driver PN : 1654LD-3-1-1 | Open CW driver with 1654 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version and also… Read more Open CW driver with 1654 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 4 440€ | 2 - 5 days | |||
| Model 3 (40 mW) with "CCS" driver PN : 1654LD-3-2-1 | Open Pulse & CW driver with 1654 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 40 mW CW optical power. Pulsed power up to 80… Read more Open Pulse & CW driver with 1654 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 40 mW CW optical power. Pulsed power up to 80 mW (typical value) ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 5 440€ | 2 - 5 days | |||
| Model 3 (40 mW) with "Shaper" driver PN : 1654LD-3-3-1 | Open pulsed driver with 40 mW 1654 nm laser diode. Up to 80 mW pulsed (typical value). User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs… Read more Open pulsed driver with 40 mW 1654 nm laser diode. Up to 80 mW pulsed (typical value). User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 7 190€ | 2 - 5 days | |||
| Model 3 (40 mW) within "CCSI-CW" module PN : 1654LD-3-1-2 | Turn-key integrated CW laser diode module at 1654 nm. CW power up to 40 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm… Read more Turn-key integrated CW laser diode module at 1654 nm. CW power up to 40 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version).
Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 5 640€ | 1 - 2 weeks | |||
| Model 3 (40 mW) within "CCSI" module PN : 1654LD-3-2-2 | Turn-key integrated laser diode module at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Pulsed… Read more Turn-key integrated laser diode module at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Pulsed power up to 80 mW (typical value). Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 6 640€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 4 (100 mW) PN : 1654LD-4-0-0 | 1654 nm - 100 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version - contact us for these special versions. | 2 495€ | Today | |||
| OPTION : PM fiber for model 4 PN : 1654LD-Option-PM4 | With this OPTION, Model 4 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the… Read more With this OPTION, Model 4 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 400€ | Today | |||
| Model 4 (100 mW) with "CCS-CW" driver PN : 1654LD-4-1-1 | Open CW driver with 1654 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 100 mW CW optical power.
Also available in PM version - contact… Read more Open CW driver with 1654 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 100 mW CW optical power.
Also available in PM version - contact us for these special versions. Less | 4 740€ | 2 - 5 days | |||
| Model 4 (100 mW) with "CCS" driver PN : 1654LD-4-2-1 | Open Pulse & CW driver with 1654 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 100 mW CW optical power. Pulsed power up to… Read more Open Pulse & CW driver with 1654 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 100 mW CW optical power. Pulsed power up to 200 mW (typical value). Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version - contact us for these special versions. Less | 5 740€ | 2 - 5 days | |||
| Model 4 (100 mW) with "Shaper" driver PN : 1654LD-4-3-1 | Open pulsed driver with 100 mW 1654 nm Butterfly laser diode. Pulsed power up to 200 mW (typical value). User-design nanosecond pulse shape with 0.5 ns resolution and up to… Read more Open pulsed driver with 100 mW 1654 nm Butterfly laser diode. Pulsed power up to 200 mW (typical value). User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version - contact us for these versions. Less | 7 490€ | 2 - 5 days | |||
| Model 4 (100 mW) within "CCSI-CW" module PN : 1654LD-4-1-2 | Turn-key integrated CW laser diode module at 1654 nm. CW power up to 100 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3… Read more Turn-key integrated CW laser diode module at 1654 nm. CW power up to 100 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM fiber version - contact us for these versions. Less | 5 940€ | 1 - 2 weeks | |||
| Model 4 (100 mW) within "CCSI" module PN : 1654LD-4-2-2 | Turn-key integrated laser diode at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 100 mW. Pulsed power… Read more Turn-key integrated laser diode at 1654 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 100 mW. Pulsed power up to 200 mW (typical value) . Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM fiber version - contact us for these versions. Less | 6 940€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : Low Power Collimator COL002 PN : 1654LD-Option-Collimator_SM | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 495€ | 2 - 5 days | |||
 | OPTION 2 : 250MHz repetition rate PN : 1654LD-Option-250MHz_SM | 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz). This option is available for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules… Read more 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz). This option is available for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. Less | 995€ | 2 - 5 days | |||
 | OPTION 3 : Benchtop version PN : 1654LD-Option-Benchtop_SM | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 1 - 2 weeks | |||
 | OPTION 4 : Multi-product GUI Touch screen PN : 1654LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
