The single mode 450nm laser diodes can reach high power in nanosecond pulse regime up to 60mW. Most Turn-key diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 450nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 3 multimode versions are offered for CW emission up to 30W in a 105µm core multimode fiber (best brightness on the market at this wavelength).
From: 1 695€
All shippings with DHL Express
450nm laser diode Key Features (Scroll down to see all versions and prices) :
The singlemode 450nm laser diode (Model 1) can be purchased mounted on this CW laser diode driver. Scroll down to see all versions and prices.
For turn-key “diode+driver” solutions, see the Specs Tab or click here : 450nm laser diode Datasheet
| Laser Diode model | Power (CW) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor | Fiber connector | Output fiber | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 50mW | Butterfly singlemode Fabry-Pérot | 450±10nm | few nm | 140mA / 6V | 14 pin butterfly – type 1 | Yes – FC/APC | 3µm Singlemode (with PM OPTION) | Scroll down ! |
| Model 2 | Datasheet | 7W | Multimode mutli-emittors | 450±10nm | ~ 4nm | 2A / 14V | 37*34*13.25 | Yes – SMA | 105µm Multimode (NA=0.22) | |
| Model 3 | Datasheet | 20W | Multimode mutli-emittors | 450±10nm | ~ 3nm | 3A / 27V | 55.15*36*15.15 | Yes – SMA | 105µm Multimode (NA=0.22) | |
| Model 4 | datasheet | 30W | Multimode mutli-emittors | 450±10nm | ~ 4.5nm | 2.3A / 53.5V | 123.5*50*22 | Yes – SMA | 105µm Multimode (NA=0.22) |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 450nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Laser Diode model | Power (CW) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor | Fiber connector | Output fiber | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 50mW | Butterfly singlemode Fabry-Pérot | 450±10nm | few nm | 140mA / 6V | 14 pin butterfly - type 1 | Yes - FC/APC | 3µm Singlemode (with PM OPTION) | Scroll down ! |
| Model 2 | Datasheet | 7W | Multimode mutli-emittors | 450±10nm | ~ 4nm | 2A / 14V | 37*34*13.25 | Yes - SMA | 105µm Multimode (NA=0.22) | |
| Model 3 | Datasheet | 20W | Multimode mutli-emittors | 450±10nm | ~ 3nm | 3A / 27V | 55.15*36*15.15 | Yes - SMA | 105µm Multimode (NA=0.22) | |
| Model 4 | datasheet | 30W | Multimode mutli-emittors | 450±10nm | ~ 4.5nm | 2.3A / 53.5V | 123.5*50*22 | Yes - SMA | 105µm Multimode (NA=0.22) |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | Model 1 (50 mW) laser diode alone PN : 450LD-1-0-0 | 450nm butterfly laser diode alone. Up to 50mW CW. 3µm core (NA=0.12) fiber output with and FC/APC fiber connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power… Read more 450nm butterfly laser diode alone. Up to 50mW CW. 3µm core (NA=0.12) fiber output with and FC/APC fiber connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 1 695€ | 5 - 8 weeks | |||
 | Model 1 with "CCS-CW-HP2" driver PN : 450LD-1-HP2-1 | Open CW driver with 450nm butterfly laser diode and 3µm core (NA=0.12) fiber with FC/APC connector. Up to 50mW CW optical power. Compatible with OPTION 1: PM Fiber and OPTION 2: 3… Read more Open CW driver with 450nm butterfly laser diode and 3µm core (NA=0.12) fiber with FC/APC connector. Up to 50mW CW optical power. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 4 190€ | 5 - 8 weeks | |||
 | Model 1 with "CCS-HPP" driver PN : 450LD-1-HPP-1 | High Pulse Performance (HPP) pulse & CW open-frame driver with 450nm butterfly laser diode and 3µm core (NA=0.12) fiber output with FC/APC fiber connector. Up to 50mW CW and 60… Read more High Pulse Performance (HPP) pulse & CW open-frame driver with 450nm butterfly laser diode and 3µm core (NA=0.12) fiber output with FC/APC fiber connector. Up to 50mW CW and 60mW pulse optical power. Compatible with OPTION 1: PM Fiber and OPTION 2: 3 mm Low Power Optical Collimator (see below). Less | 7 340€ | 5 - 8 weeks | |||
 | Model 1 with "Shaper" driver PN : 450LD-1-SHAPER-1 | Open pulsed driver with 450nm butterfly laser diode and 3µm core (NA=0.12) fiber and FC/APC fiber connector. Up to 60mW Pulsed. User-design nanosecond pulse shape with 0.5ns resolution and… Read more Open pulsed driver with 450nm butterfly laser diode and 3µm core (NA=0.12) fiber and FC/APC fiber connector. Up to 60mW Pulsed. User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3 mm Low Power Optical Collimator (see below). Less | 6 340€ | 5 - 8 weeks | |||
 | Model 1 within "CCSI-CW-HP2" module PN : 450LD-1-HP2-2 | Turn-key integrated CW driver with 450nm singlemode laser diode. Up to 50mW CW optical power out of a 3µm core (NA=0.12). Metal protected fiber output with FC/APC output connector… Read more Turn-key integrated CW driver with 450nm singlemode laser diode. Up to 50mW CW optical power out of a 3µm core (NA=0.12). Metal protected fiber output with FC/APC output connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3 mm Low Power Optical Collimator (see below). Less | 5 390€ | 5 - 8 weeks | |||
 | Model 1 within "CCSI-HPP" module PN : 450LD-1-HPP-2 | Turn-key integrated High Pulse Performance (HPP) pulse & CW driver with 450nm singlemode laser diode. Up to 50mW CW and 60mW pulse. Metal protected fiber output with FC/APC output… Read more Turn-key integrated High Pulse Performance (HPP) pulse & CW driver with 450nm singlemode laser diode. Up to 50mW CW and 60mW pulse. Metal protected fiber output with FC/APC output connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 8 890€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1: PM fiber for Model 1 PN : OPTION-1 | With this OPTION, Model 1 is offered with a polarization maintaining PM fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). The maximum laser diode power is 40mW instead of 50mW in this case. The max output power is typically ~20% less than the laser diode with no option. Less | 300€ | 5 - 8 weeks | |||
 | OPTION 2: 3mm Optical Collimator PN : OPTION-2 | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 445€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 2 (7 W ) laser diode alone PN : 450LD-2-0-0 | High power laser diode emitting up to 7W at 450nm out of a 105µm (core) multimode laser diode (NA=0.22). SMA optical connector output. Compatible with OPTION 3: High Power Collimator (see… Read more High power laser diode emitting up to 7W at 450nm out of a 105µm (core) multimode laser diode (NA=0.22). SMA optical connector output. Compatible with OPTION 3: High Power Collimator (see below). Less | 1 695€ | 5 - 8 weeks | |||
 | Model 2 (7 W ) with "CCM-mini" driver PN : 450LD-2-MMD-1 | Open CW driver with 450nm multimode laser diode. Up to 7W CW optical power out of a 105µm multimode fiber (NA = 0.22) with an SMA optical connector. Compatible with OPTION 3: High… Read more Open CW driver with 450nm multimode laser diode. Up to 7W CW optical power out of a 105µm multimode fiber (NA = 0.22) with an SMA optical connector. Compatible with OPTION 3: High Power Collimator (see below). NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 390€ | 5 - 8 weeks | |||
 | Model 2 (7 W ) with "CCMI-mini" driver PN : 450LD-2-MMD-2 | Turn-key integrated CW driver with 450nm multimode laser diode. Up to 7W CW optical power out of a 105µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). Compatible with OPTION 3:… Read more Turn-key integrated CW driver with 450nm multimode laser diode. Up to 7W CW optical power out of a 105µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). Compatible with OPTION 3: High Power Collimator (see below). NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 6 590€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 3 (20 W ) laser diode alone PN : 450LD-3-0-0 | High power laser diode emitting up to 30W at 450nm out of a 105µm (core) multimode laser diode (NA=0.22). SMA optical connector output. Compatible with OPTION 3: High Power Collimator (see… Read more High power laser diode emitting up to 30W at 450nm out of a 105µm (core) multimode laser diode (NA=0.22). SMA optical connector output. Compatible with OPTION 3: High Power Collimator (see below). Less | 3 495€ | Today | |||
 | Model 3 (20 W ) with "CCM-HP" driver PN : 450LD-3-MMD-1 | Open CW driver with 450nm multimode laser diode. Up to 20W CW optical power out of a 105µm multimode fiber (NA = 0.22) with an SMA optical connector. Compatible with OPTION 3: High… Read more Open CW driver with 450nm multimode laser diode. Up to 20W CW optical power out of a 105µm multimode fiber (NA = 0.22) with an SMA optical connector. Compatible with OPTION 3: High Power Collimator (see below). NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 8 090€ | 1 - 2 weeks | |||

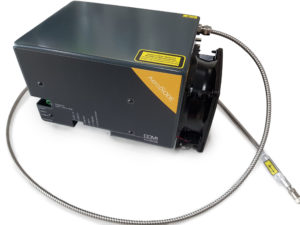

 | Model 3 (20W ) within "CCMI-HP" module PN : 450LD-3-MMD-2 | Turn-key integrated CW driver with 450nm multimode laser diode. Up to 20W CW optical power out of a 105µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). Compatible with OPTION 3:… Read more Turn-key integrated CW driver with 450nm multimode laser diode. Up to 20W CW optical power out of a 105µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). Compatible with OPTION 3: High Power Collimator (see below). NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 9 290€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 4 (30W ) laser diode alone PN : 450LD-4-0-0 | High power laser diode emitting up to 30W at 450nm out of a 105µm (core) multimode laser diode (NA=0.22). SMA optical connector output. Compatible with OPTION 3: High Power Collimator (see… Read more High power laser diode emitting up to 30W at 450nm out of a 105µm (core) multimode laser diode (NA=0.22). SMA optical connector output. Compatible with OPTION 3: High Power Collimator (see below). Less | 5 495€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 3: High Power Collimator PN : OPTION-3 | 12mm beam high power collimator for SMA connectors. | 495€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
