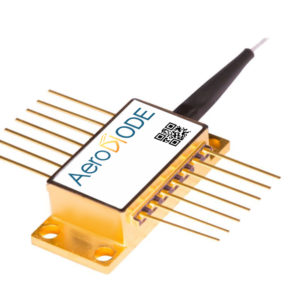

The 780nm laser diode is offered in 1 model: single-frequency DFB. Turn-key diode + driver solutions are optimized for low noise CW emission or optimized pulsed performances with pulse width lengths down to 1 nanosecond.
From: 2 995€
All shippings with DHL Express
780 nm laser diode Key Features (Scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.

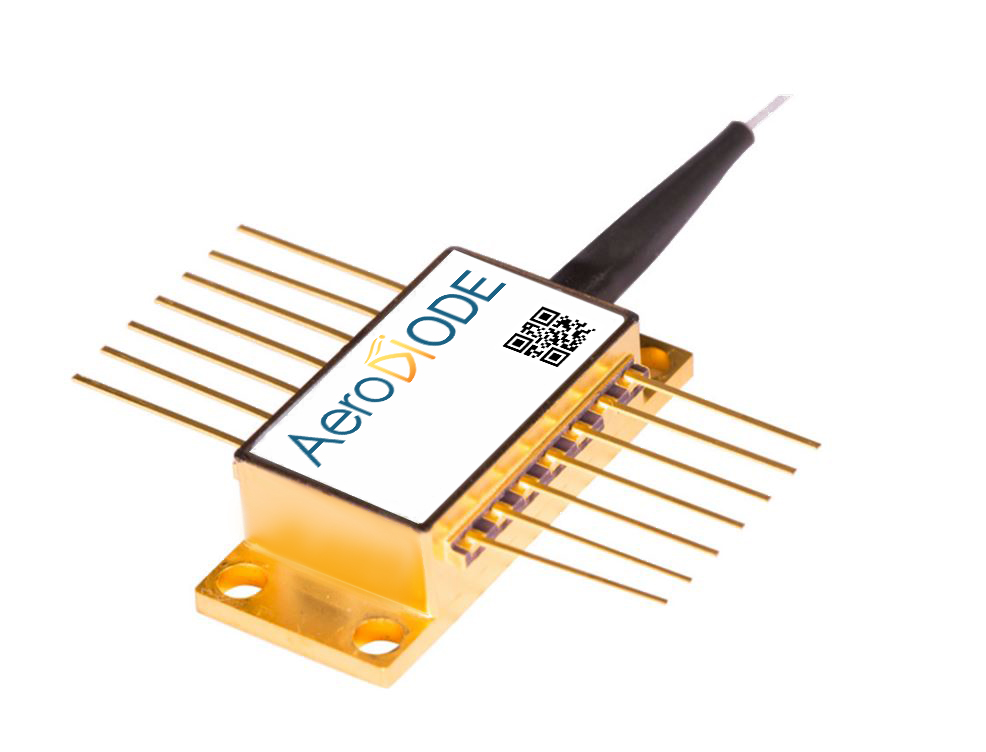

These DFB 780 nm laser diode devices have the Bragg grating wavelength stabilization section directly integrated onto the laser diode chip section. This provides a narrower emission wavelength in the 100 kHz range (i.e. ~10-6nm) instead of ~0.1 nm for a standard Fabry Pérot with Bragg grating. The wavelength is tunable by adjusting the TEC temperature or adjusting the level of current. It is thus possible to enter it in a control loop to target an atomic transition.
| Laser Diode model | Power (CW) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | |
|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 30 mW | Butterfly – Singlemode & Single Frequency | 780.0±1 nm | 200 kHz single frequency | 150 mA / 2.0 V | 14 pin butterfly – type 1 | Yes – FC/APC | 5 µm singlemode Hi780 (PM780 with PM OPTION) |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python, LINUX etc.)
These 780nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models):
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials:
AeroDIODE products leverage proprietary, cutting edge technologies such as these 780 nm laser diode have been under development in the ALPhANOV technology center for over 15 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Laser Diode model | Power (CW) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | |
|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 30 mW | Butterfly - Singlemode & Single Frequency | 780.0±1 nm | 200 kHz single frequency | 150 mA / 2.0 V | 14 pin butterfly - type 1 | Yes - FC/APC | 5 µm singlemode Hi780 (PM780 with PM OPTION) |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | Model 1 (30 mW-Single-frequency DFB) laser diode alone PN : 780LD-1-0-0 | 780nm single-frequency DFB butterfly laser diode alone. Up to 30 mW CW out of fiber. Hi780 fiber output with FC/APC fiber connector.
Compatible with OPTION: PM Fiber and OPTION 1:… Read more 780nm single-frequency DFB butterfly laser diode alone. Up to 30 mW CW out of fiber. Hi780 fiber output with FC/APC fiber connector.
Compatible with OPTION: PM Fiber and OPTION 1: Low power collimator - see options below. Less | 2 995€ | Contact Us | |||
 | OPTION : PM fiber for Model 1 PN : 780LD-Option-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM780 fiber instead of a standard Hi780. Both the connector key and the light polarization are aligned along the… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM780 fiber instead of a standard Hi780. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 650€ | Contact Us | |||
 | Model 1 with "CCS-CW" driver PN : 780LD-1-1-1 | Open CW driver with 780 nm butterfly single-frequency DFB laser diode and Hi780 fiber output with FC/APC fiber connector. Up to 30 mW CW optical power.
Compatible with OPTION: PM… Read more Open CW driver with 780 nm butterfly single-frequency DFB laser diode and Hi780 fiber output with FC/APC fiber connector. Up to 30 mW CW optical power.
Compatible with OPTION: PM fiber and OPTION 1: Low power collimator
Note : for narrow linewidth operation down to the sub-MHz range, prefer the CCS-Low Noise below. Less | 5 240€ | Contact Us | |||
 | Model 1 with "CCS-Low Noise" driver PN : 780LD-1-LN-1 | Open CW driver with 780 nm butterfly single-frequency DFB laser diode and Hi780 fiber output with FC/APC fiber connector. Up to 30 mW CW optical power and down to typical… Read more Open CW driver with 780 nm butterfly single-frequency DFB laser diode and Hi780 fiber output with FC/APC fiber connector. Up to 30 mW CW optical power and down to typical 200 kHz linewidth. The open frame driver can be used with other diodes up to 500mA for optimized ultra-low noise operation.
Compatible with OPTION: PM fiber and OPTION 1: Low power collimator. Less | 7 790€ | Contact Us | |||
 | Model 1 with "CCS" driver PN : 780LD-1-2-1 | Open Pulse & CW driver with single-frequency 780 nm butterfly laser diode and Hi780 bare fiber output. Up to 30 mW CW optical power and 50 mW pulsed ; Down… Read more Open Pulse & CW driver with single-frequency 780 nm butterfly laser diode and Hi780 bare fiber output. Up to 30 mW CW optical power and 50 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate.
Note : the narrow linewidth is broadened when the laser diode is used in short pulse mode.
Compatible with OPTION: PM fiber, OPTION 1: 3mm collimator and OPTION 2: 250 MHz version. Less | 6 240€ | Contact Us | |||
 | Model 1 within "CCSI-CW" module PN : 780LD-1-1-2 | Turn-key integrated CW single-frequency DFB laser diode module at 780nm. CW power up to 30mW. HI780 metal protected fiber output with FC/APC output connector.
Compatible with OPTION: PM fiber, OPTION 1:… Read more Turn-key integrated CW single-frequency DFB laser diode module at 780nm. CW power up to 30mW. HI780 metal protected fiber output with FC/APC output connector.
Compatible with OPTION: PM fiber, OPTION 1: Low power collimator and OPTION 3: Benchtop version.
Note : for narrow linewidth operation down to the sub-MHz range, select the CCSI-Low Noise version below. Less | 6 440€ | Contact Us | |||
 | Model 1 within "CCSI-Low Noise" module PN : 780LD-1-LN-2 | Turn-key integrated CW single-frequency DFB laser diode module at 780nm. CW power up to 30mW and down to typical 200 kHz linewidth. . HI780 metal protected fiber output with FC/APC… Read more Turn-key integrated CW single-frequency DFB laser diode module at 780nm. CW power up to 30mW and down to typical 200 kHz linewidth. . HI780 metal protected fiber output with FC/APC output connector.
Compatible with OPTION: PM fiber, OPTION 1: Low power collimator and OPTION 3: Bench top version. Less | 8 990€ | Contact Us | |||
| Model 1 within "CCSI" module PN : 780LD-1-2-2 | Turn-key integrated single-frequency DFB laser diode module at 780nm for Pulse and CW emission. Hi780 metal protected fiber output with FC/APC output connector. CW output power up to 30mW and… Read more Turn-key integrated single-frequency DFB laser diode module at 780nm for Pulse and CW emission. Hi780 metal protected fiber output with FC/APC output connector. CW output power up to 30mW and pulse up to 200mW. Down to 1.5ns pulse duration. Up to 4MHz pulse repetition rate.
Note : the narrow linewidth is broadened when the laser diode is used in short pulse mode.
Compatible with OPTION: PM fiber, OPTION 1: 3mm collimator, OPTION 2: 250MHz version and OPTION 3: Bench top version. Less | 7 440€ | Contact Us | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : Low Power Collimator COL007 & COL011 PN : 780LD-Option-Collimator_SM | Small form factor 3mm beam diameter optical collimator with AR coatings.
Compatible with laser diodes model 1 to 4: laser diode alone or laser diode + driver solutions. | 495€ | 1 - 2 weeks | |||
 | OPTION 2 : 250MHz repetition rate PN : 780LD-Option-250MHz_SM | Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. Compatible with… Read more Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. Compatible with laser diodes model 1 to 3. Less | 995€ | 2 - 5 days | |||
 | OPTION 3 : Benchtop version PN : 780LD-Option-Benchtop_SM | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Compatible with laser diodes model 1 to 3. Less | 495€ | 1 - 2 weeks | |||
 | OPTION 4 : Multi-product GUI Touch screen PN : 780LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
