The single mode 915 nm laser diodes can reach high power in nanosecond pulse regime up to 400 mW. Most Turn-key diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 915 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 7 multimode versions are offered for CW emission up to 300 W in a 200 µm core multimode fiber or up to 250 W in a 135 µm core fiber or 160 W in a 105 µm core fiber.
From: 345€
All shippings with DHL Express

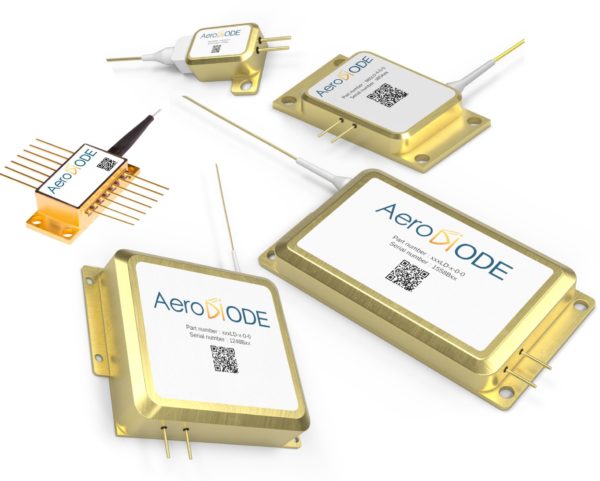

915 nm laser diode Key Features (Scroll down to see all configurations and prices) :
| Laser Diode model | Power (CW) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor | Fiber connector | Output fiber core | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 300 mW | Butterfly single mode | 915±6 nm (±0.5 nm with FBG OPTION-2) | ~ 0.1 nm | 650 mA /1.7 V | 14 pin butterfly – type 1 | FC/APC (Optional) | 5 µm singlemode Hi1060 (PM980 with PM OPTION-1) | Scroll down ! |
| Model 2 | Datasheet | 10 W | Multimode single emitter | 915±10 nm | ~ 3 nm | 11 A /1.6 V | 31*17*6.1 | Yes – SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 3 | Datasheet | 30 W | Multimode multi-emitter | 915±10 nm | ~ 6 nm | 12 A /4.8 V | 25*43*11 | Yes – SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 4 | Datasheet | 70 W | Multimode multi-emitter | 915±10 nm | ~ 6 nm | 12 A /11 V | 48 * 75 * 16 | Yes – SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 5 | Datasheet | 160 W | Multimode multi-emitter | 915±10 nm | ~ 6 nm | 13 A /27V | 80*80*25 | Yes – SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 6 | Datasheet | 250 W | Multimode multi-emitter | 915±10 nm | ~ 5 nm | 18 A/27V | 141*55*18 | Yes – SMA905 HP | 135 µm Multimode (NA=0.22) | |
| Model 7 | Datasheet | 300 W | Multimode multi-emitter | 915±10 nm | ~5 nm | 19 A/32V | 141*55*18 | Yes – SMA905 HP | 200 µm Multimode (NA=0.22) |
For turn-key “diode+driver” solutions, see the Specs Tab or click here : 915nm laser diode Datasheet

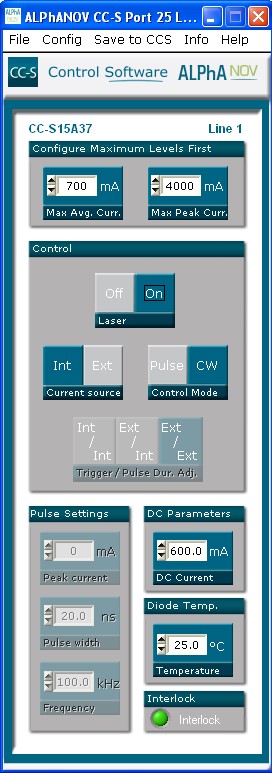

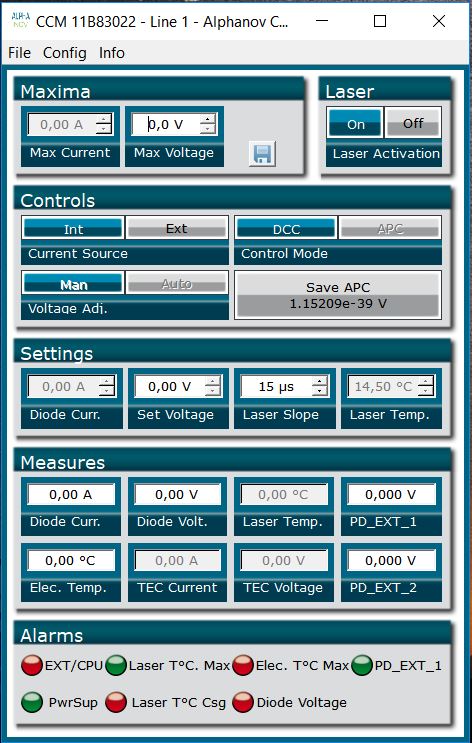

The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)

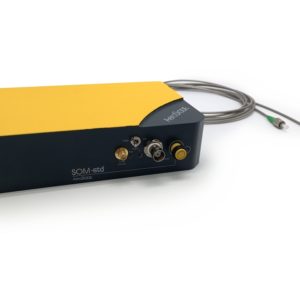

These 915nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| 915 nm Laser diode + driver solutions : | |||||
|---|---|---|---|---|---|
| 915 nm Laser Diode version : | Laser Driver version : | ||||
| CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version) | Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) | User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs) | Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version) |
||
| Output Power (CW regime (typ) | 1- Singlemode 300 mW | 300 mW | No | Not compatible | |
| 2-6 : Multimode 10 W / 30 W / 70 W / 160 W or 185 W | Not compatible | Respectively 10 W / 30 W / 70 W / 160 W or 185 W | |||
| Output power - Pulse regime (typ) | 1 - Singlemode 300 mW | No | 400 mW | Not compatible | |
| 2-5 : Multimode 10 W / 30W / 70 W /160 W or 185 W | Not compatible | Respectively 10 W / 30 W / 70 W / 160 W or 185 W | |||
| User design nanosecond pulse shape (integrated AWG) | No (CW driver) | No (On-Off driver) | Yes | No | |
| Laser diode T° range | 15 - 50 °C | 15 - 40 °C | |||
| Pulse duration (Ext pulse trigger) | 0.5 ns - CW | 0.5 ns - 8 µs | 10 µs - CW | ||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | No | |||
| Typ rise/fall time ; Min pulse duration | 3 (ns/A) ; 1.5 ns | < 1 (ns/A) ; 1.5 ns | few µsec | ||
| Internal rep rate adjustment | 1 Hz - 4 MHz (250 MHz option) | 1 Hz - 20 MHz | No | ||
| Temporal jitter | < 25 ps | < 2 ns | |||
| Adjustable CW current offset in pulse regime | No | No | Yes (external mode) | ||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python | ||||
| Power supply | 110-220 V power supply is included | This product requires a 24 V power supply | |||
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

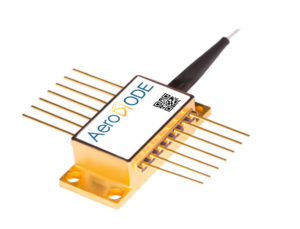

 | Model 1 (300 mW) laser diode alone PN : 915LD-1-0-0 | 915 nm butterfly laser diode alone . Up to 300 mW CW. Hi1060 fiber output with 900µm buffer and FC/APC fiber connector (PM980 if PM option). Compatible with OPTION 1 : PM Fiber, OPTION 2 (… Read more 915 nm butterfly laser diode alone . Up to 300 mW CW. Hi1060 fiber output with 900µm buffer and FC/APC fiber connector (PM980 if PM option). Compatible with OPTION 1 : PM Fiber, OPTION 2 (Narrow emission with FBG) and OPTION-3 (3 mm collimator) . Less | 2 195€ | Today | |||
 | Model 1 with "CCS-CW" driver PN : 915LD-1-1-1 | Open CW driver with 915 nm butterfly laser diode and Hi1060 fiber with 900µm buffer and FC/APC fiber connector. Up to 300 mW CW optical power. Compatible with OPTION-1 (PM fiber)… Read more Open CW driver with 915 nm butterfly laser diode and Hi1060 fiber with 900µm buffer and FC/APC fiber connector. Up to 300 mW CW optical power. Compatible with OPTION-1 (PM fiber), OPTION-2 (Narrow emission spectrum with FBG) and OPTION-3 (3 mm collimator. Less | 4 290€ | 2 - 5 days | |||

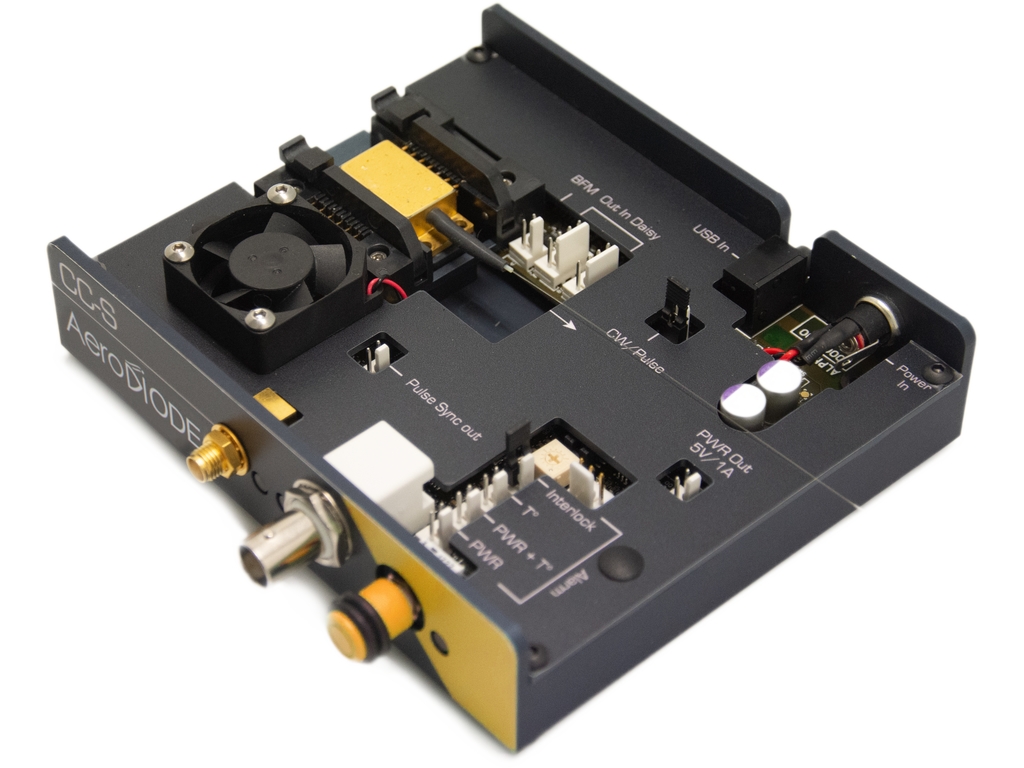

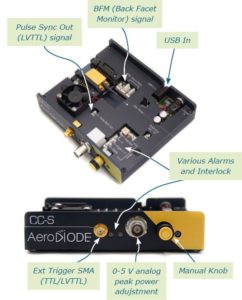

 | Model 1 with "CCS" driver PN : 915LD-1-2-1 | Open Pulse & CW driver with 915 nm butterfly laser diode and Hi1060 fiber with 900µm buffer and FC/APC fiber connector. Up to 300 mW CW optical power and 500 mW pulsed ;… Read more Open Pulse & CW driver with 915 nm butterfly laser diode and Hi1060 fiber with 900µm buffer and FC/APC fiber connector. Up to 300 mW CW optical power and 500 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (PM fiber), OPTION-3 (3 mm collimator) and OPTION-4 (250 MHz version). Less | 5 190€ | 2 - 5 days | |||
 | Model 1 with "Shaper" driver PN : 915LD-1-3-1 | Open pulsed driver with 915 nm butterfly laser diode and Hi1060 fiber with 900µm buffer and FC/APC fiber connector. Up to 400 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution… Read more Open pulsed driver with 915 nm butterfly laser diode and Hi1060 fiber with 900µm buffer and FC/APC fiber connector. Up to 400 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION-1 (PM fiber) and option-2 (3 mm collimator). Less | 7 190€ | 2 - 5 days | |||

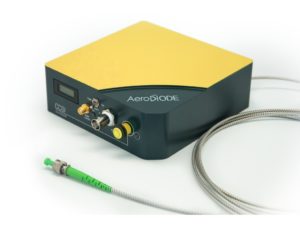

 | Model 1 within "CCSI-CW" module PN : 915LD-1-1-2 | Turn-key integrated CW laser diode module at 915 nm. CW power up to 300 mW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION-1 (PM fiber), OPTION-2 (Narrow… Read more Turn-key integrated CW laser diode module at 915 nm. CW power up to 300 mW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION-1 (PM fiber), OPTION-2 (Narrow emission spectrum with FBG), OPTION-3 (3 mm collimator) and OPTION-5 (Benchtop version). Less | 5 490€ | 1 - 2 weeks | |||
| Model 1 within "CCSI" module PN : 915LD-1-2-2 | Turn-key integrated laser diode module at 915 nm for Pulse and CW emission. Hi1060 metal protected fiber output with FC/APC output connector. CW output power up to 300 mW and pulse… Read more Turn-key integrated laser diode module at 915 nm for Pulse and CW emission. Hi1060 metal protected fiber output with FC/APC output connector. CW output power up to 300 mW and pulse up to 400 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (PM fiber), OPTION-3 (3 mm collimator), OPTION-4 (250 MHz version) and OPTION-5 (Benchtop version). Less | 6 390€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : PM fiber for Model 1 PN : OPTION-1 | With this OPTION, Model 1 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 350€ | Today | |||

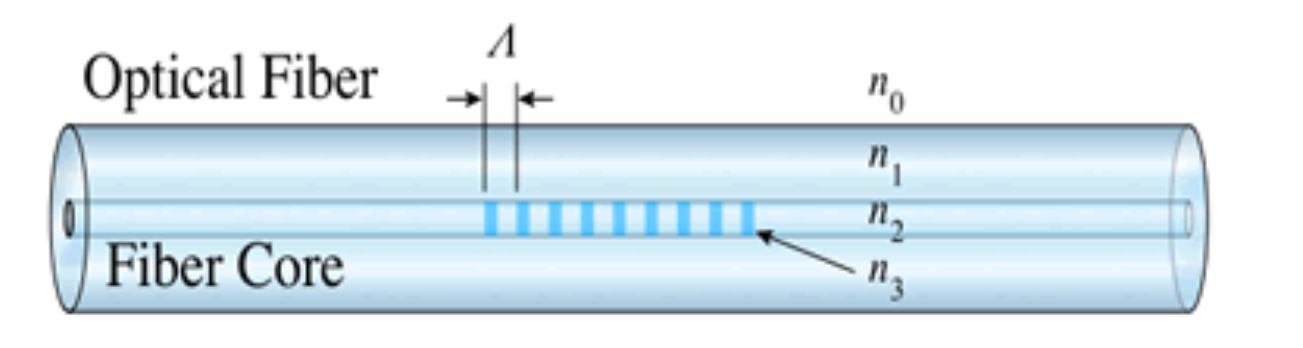

 | OPTION 2 : Narrow spectrum version (FBG-Fiber Bragg Grating) PN : OPTION-2 | With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it is not possible to… Read more With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it is not possible to see it as the fiber has a 900 µm fiber buffer). The small back-reflection generated by the FBG allows to get a very stable and narrow emission spectrum at the center wavelength of 915 nm. The center wavelength tolerance becomes 915±0.5 nm instead of 915±5 nm. It is not anymore possible to tune the wavelength by tuning the laser diode chip temperature as the FBG "locks" the wavelength at 915 nm. Less | 495€ | 2 - 5 days | |||
 | OPTION 3 : 3 mm optical collimator PN : OPTION-3 | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 445€ | 2 - 5 days | |||
 | OPTION 4 : 250 MHz repetition rate PN : OPTION-4 | Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | Today | |||
 | OPTION 5 : Benchtop version PN : OPTION-5 | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 2 (10 W ) laser diode alone PN : 915LD-2-0-0 | High power laser diode emitting up to 10 W at 915 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see… Read more High power laser diode emitting up to 10 W at 915 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see below). Purchase orders under $1000/1000 € are subject to an automatic processing charge of 200 €/$ 250. Less | 345€ | Today | |||

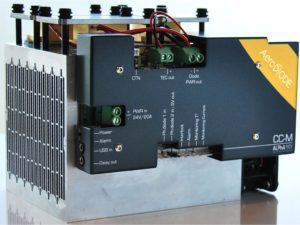

 | Model 2 (10 W ) with "CCM" driver PN : 915LD-2-4-1 | Open CW driver with 915 nm multimode laser diode. Up to 10 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High… Read more Open CW driver with 915 nm multimode laser diode. Up to 10 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 4 040€ | 1 - 2 weeks | |||

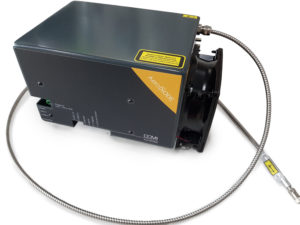

 | Model 2 (10 W ) with "CCMI" driver PN : 915LD-2-4-2 | Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 10 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector… Read more Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 10 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 6 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 240€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |

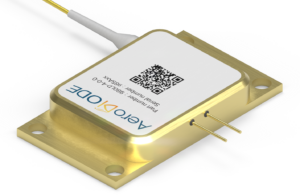

 | Model 3 (30 W ) laser diode alone PN : 915LD-3-0-0 | High power laser diode emitting up to 30 W at 915 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see… Read more High power laser diode emitting up to 30 W at 915 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see below). Purchase orders under $1000/1000 € are subject to an automatic processing charge of 200 €/$ 250. Less | 595€ | 3 - 4 weeks | |||
| Model 3 (30 W ) with "CCM" driver PN : 915LD-3-4-1 | Open CW driver with 915 nm multimode laser diode. Up to 30 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High… Read more Open CW driver with 915 nm multimode laser diode. Up to 30 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 4 290€ | 3 - 4 weeks | |||
| Model 3 (30 W ) within "CCMI" module PN : 915LD-3-4-2 | Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 30 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector… Read more Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 30 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 6 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 490€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 4 (70 W ) laser diode alone PN : 915LD-4-0-0 | High power laser diode emitting up to 70 W at 915 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see… Read more High power laser diode emitting up to 70 W at 915 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see below) and OPTION 7 : high power SMA connector with mode stripper. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 1 495€ | Today | |||
| Model 4 (70 W ) with "CCM" driver PN : 915LD-4-4-1 | Open CW driver with 915 nm multimode laser diode. Up to 70 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High… Read more Open CW driver with 915 nm multimode laser diode. Up to 70 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator and OPTION 7 : high power SMA connector with mode stripper (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 5 190€ | 1 - 2 weeks | |||
| Model 4 (70 W) within "CCMI" module PN : 915LD-4-4-2 | Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 70 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector… Read more Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 70 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 6 : high power collimator and OPTION 7 : high power SMA connector with mode stripper. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 6 390€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |

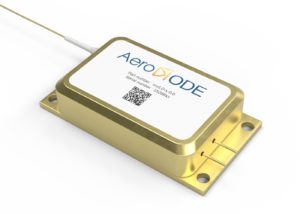

 | Model 5 (160 W ) laser diode alone PN : 915LD-5-0-0 | High power laser diode emitting up to 160 W at 915 nm out of a 106 (core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible OPTION 6 : High Power Collimator (see below)… Read more High power laser diode emitting up to 160 W at 915 nm out of a 106 (core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible OPTION 6 : High Power Collimator (see below) and OPTION 7 : high power SMA connector with mode stripper. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 2 345€ | 5 - 8 weeks | |||
 | Model 5 (160 W ) with "CCM" driver PN : 915LD-5-4-1 | Open CW driver with 915 nm multimode laser diode. Up to 140 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High… Read more Open CW driver with 915 nm multimode laser diode. Up to 140 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 6 : High Power Collimator (see below) and OPTION 7 : high power SMA connector with mode stripper. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 6 640€ | 5 - 8 weeks | |||
| Model 5 (160 W) within "CCMI" module PN : 915LD-5-4-2 | Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 160 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector… Read more Turn-key integrated CW driver with 915 nm multimode laser diode. Up to 160 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 6 : high power collimator and OPTION 7 : high power SMA connector with mode stripper. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 7 840€ | 5 - 8 weeks | |||
 | New : 915HPHS - High power nanosecond PN : 915HPHS-1/2/3 | High power pulsed laser diode module emitting at 910 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 250 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ;… Read more High power pulsed laser diode module emitting at 910 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 250 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. Less | 10 495€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 6 (250 W ) laser diode alone PN : 915LD-6-0-0 | High power laser diode emitting up to 250 W at 915 nm out of a 135(core)/155/250/900 µm multimode laser diode (NA = 0.22). High power SMA connector. Compatible with OPTION 6 : High Power Collimator (see… Read more High power laser diode emitting up to 250 W at 915 nm out of a 135(core)/155/250/900 µm multimode laser diode (NA = 0.22). High power SMA connector. Compatible with OPTION 6 : High Power Collimator (see below) and OPTION 7 : high power SMA connector with mode stripper. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 1 495€ | 5 - 8 weeks | |||
| New : 915HPHS - High power nanosecond PN : 915HPHS-1/2/3 | High power pulsed laser diode module emitting at 910 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 250 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ;… Read more High power pulsed laser diode module emitting at 910 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 250 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. Less | 10 495€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 7 (300 W ) laser diode alone PN : 915LD-7-0-0 | High power laser diode emitting up to 300 W at 915 nm out of a 200(core)/240/900 µm multimode laser diode (NA = 0.22). High power SMA connector. Compatible with OPTION 6 (High Power Collimator (see… Read more High power laser diode emitting up to 300 W at 915 nm out of a 200(core)/240/900 µm multimode laser diode (NA = 0.22). High power SMA connector. Compatible with OPTION 6 (High Power Collimator (see below) and OPTION 7 : high power SMA connector with mode stripper. NOTE : The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-7 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 1 695€ | Today | |||
| New : 915HPHS - High power nanosecond PN : 915HPHS-1/2/3 | High power pulsed laser diode module emitting at 910 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 250 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ;… Read more High power pulsed laser diode module emitting at 910 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 250 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. Less | 10 495€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 6 : High Power Collimator PN : OPTION-6 | 12 mm beam high power collimator for SMA connectors. Compatible with laser diodes model 2 to 6 : laser diode alone or laser diode + driver solutions. | 495€ | Today | |||
 | OPTION 7 : High power connector with mode stripper PN : OPTION-7 | Special SMA high power connector for multimode laser diodes. This option which replaces the standard SMA connectors is relevant for applications where a significant level of light back reflection can… Read more Special SMA high power connector for multimode laser diodes. This option which replaces the standard SMA connectors is relevant for applications where a significant level of light back reflection can happen like micromachining. It is compatible with laser diodes model 5 (70 W) and above : laser diode alone or laser diode + driver. Less | 995€ | 3 - 4 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
