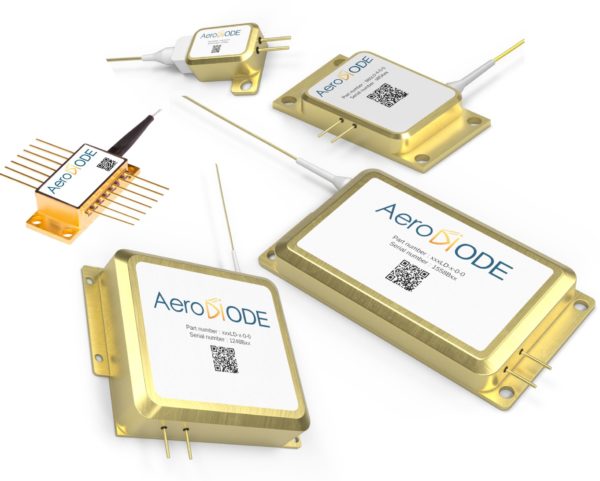

3 multimode versions are offered for CW emission up to 60 W. They are coupled in a 106 µm core multimode fiber (NA=0.22).
From: 995€
All shippings with DHL Express
969 nm laser diode Key Features (scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:
For laser diode alone, click on the models in the table below.
For turn-key “969 nm laser diode+driver” solutions, see the following datasheet: 969 nm laser diode Datasheet
| Models | Datasheets | Power CW (Pulse) | Technology | Center Wavelength | Emission Bandwidth (typ) | Current / Voltage (typ) | Form factor (mm) | Fiber connector | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 W | Multimode single emitter | 969±0.5 nm | ~ 0.5 nm | 12A / 1.6V | 14*17*6.1 | SMA905 | 106 µm Multimode (NA=0.22) | Scroll down ! |
| Model 2 | Datasheet | 30 W | 12A / 4.8V | 25*43*11.6 |
||||||
| Model 3 | Datasheet | 60 W | ~ 0.7 nm | 12A / 11V | 48 * 80 * 16 |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 969 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models):
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials for more information about the use of these laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Models | Datasheets | Power CW (Pulse) | Technology | Center Wavelength | Emission Bandwidth (typ) | Current / Voltage (typ) | Form factor (mm) | Fiber connector | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 W | Multimode single emitter | 969±0.5 nm | ~ 0.5 nm | 12A / 1.6V | 14*17*6.1 | SMA905 | 106 µm Multimode (NA=0.22) | Scroll down ! |
| Model 2 | Datasheet | 30 W | 12A / 4.8V | 25*43*11.6 |
||||||
| Model 3 | Datasheet | 60 W | ~ 0.7 nm | 12A / 11V | 48 * 80 * 16 |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

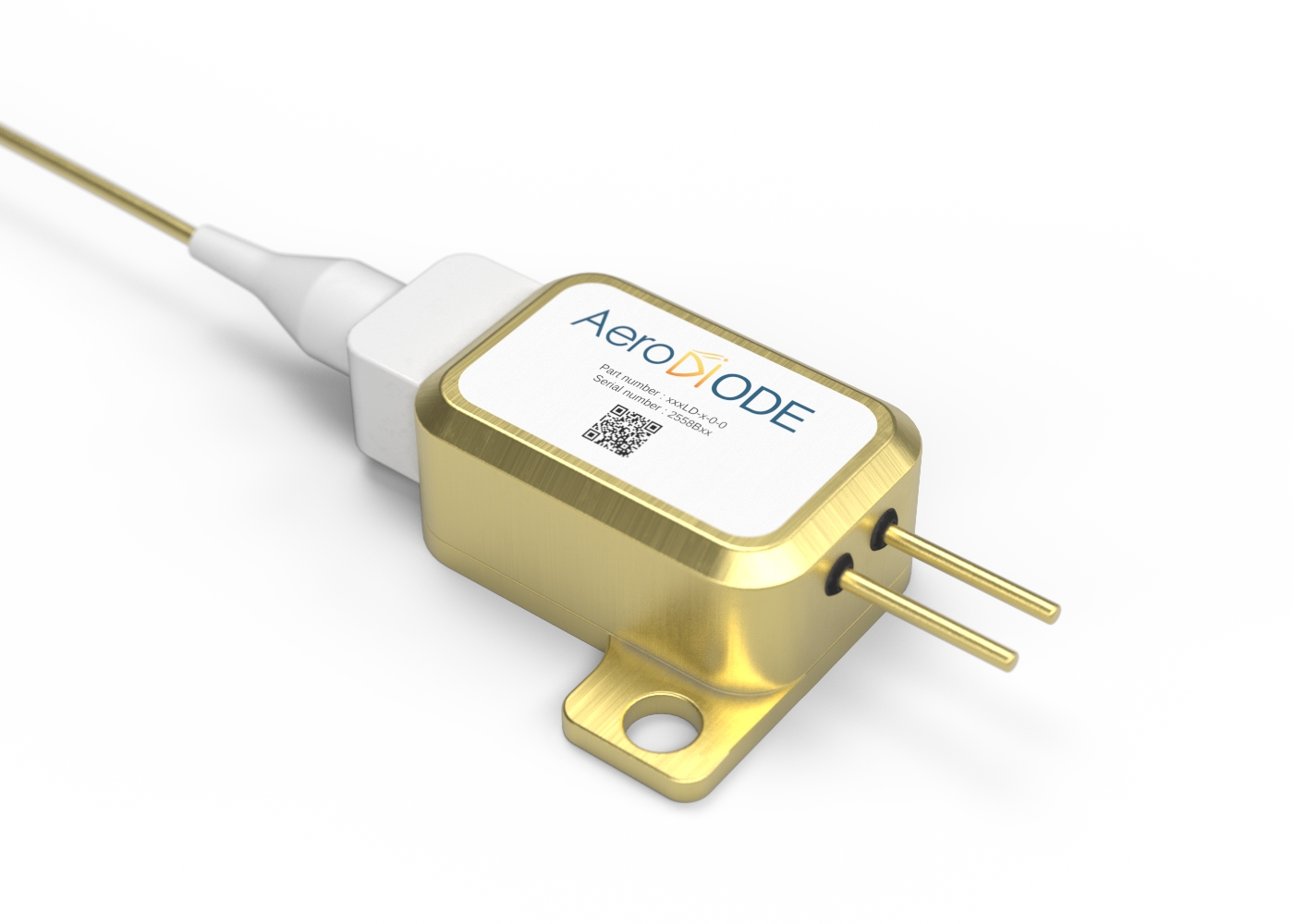

 | Model 1 (10 W ) laser diode alone PN : 969LD-1-0-0 | High power laser diode emitting up to 10W at 969nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Compatible with OPTION-1: High Power Collimator (see below)… Read more High power laser diode emitting up to 10W at 969nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Compatible with OPTION-1: High Power Collimator (see below). Purchase orders under $1000/1000 € are subject to an automatic processing charge of 200 €/$ 250. Less | 995€ | Today | |||

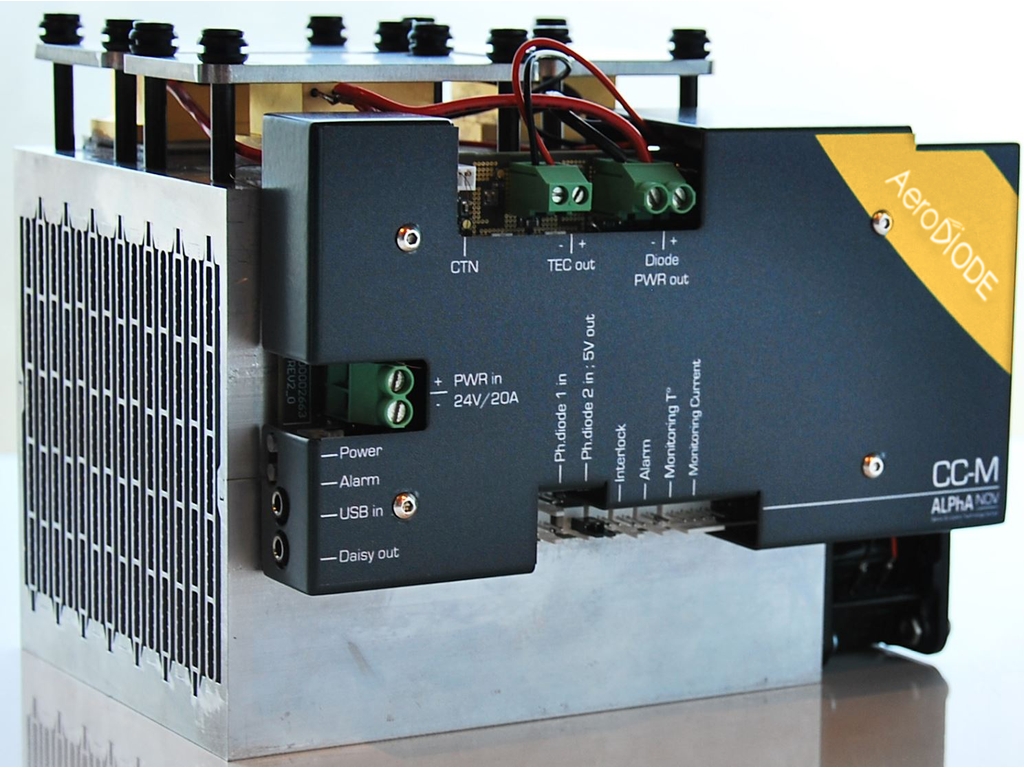

 | Model 1 (10 W ) with "CCM" driver PN : 969LD-1-4-1 | Open CW driver with 969nm multimode laser diode. Up to 10W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1:… Read more Open CW driver with 969nm multimode laser diode. Up to 10W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High Power Collimator (see below).
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 4 690€ | 1 - 2 weeks | |||

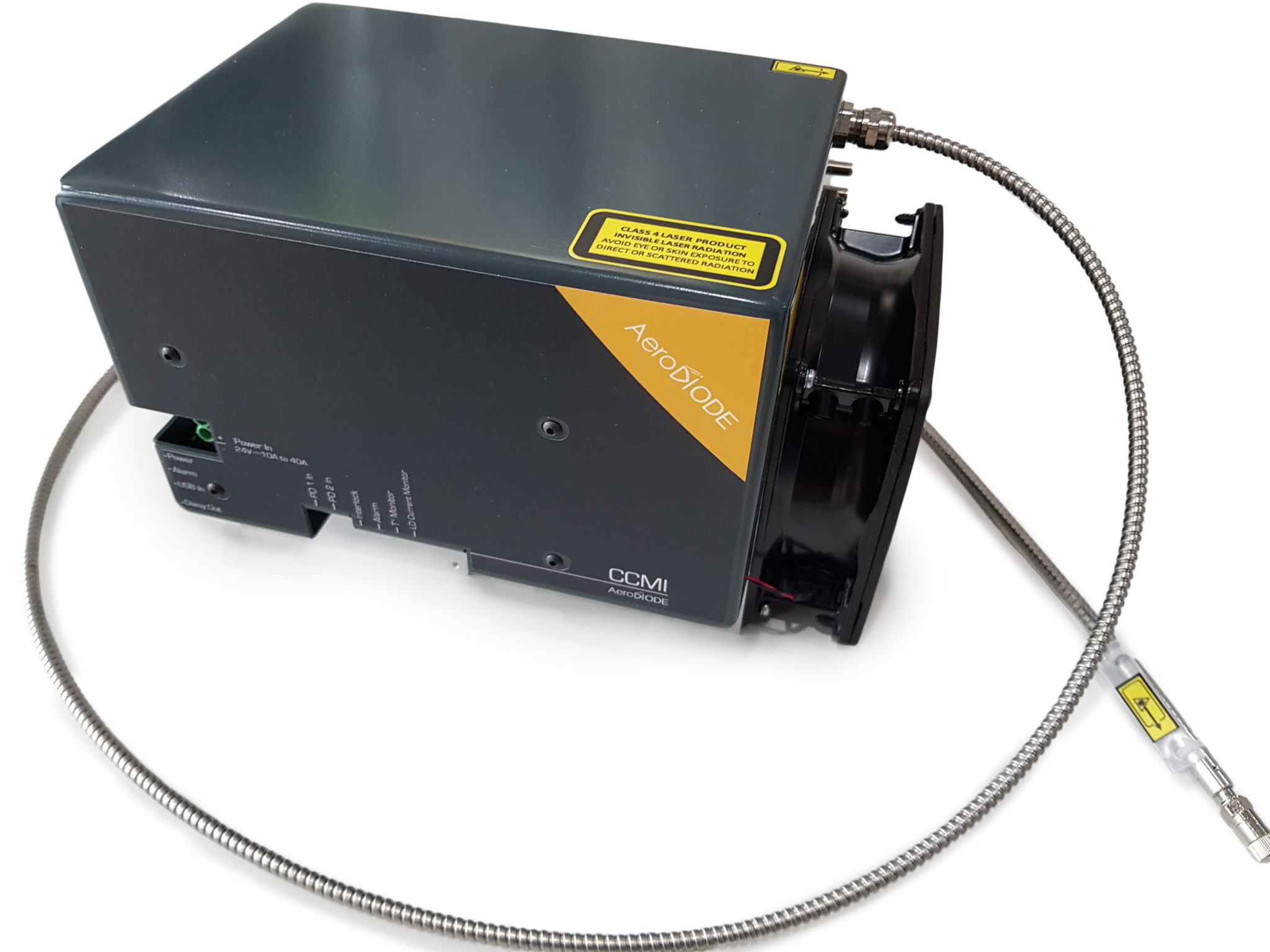

 | Model 1 (10 W ) with "CCMI" driver PN : 969LD-1-4-2 | Turn-key integrated CW driver with 969nm multimode laser diode. Up to 10 W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High… Read more Turn-key integrated CW driver with 969nm multimode laser diode. Up to 10 W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included.
Compatible with OPTION-1: high power collimator.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 890€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 2 (30 W ) laser diode alone PN : 969LD-2-0-0 | High power laser diode emitting up to 30W at 969nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High Power Collimator (see below).
Purchase… Read more High power laser diode emitting up to 30W at 969nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High Power Collimator (see below).
Purchase orders under $1000/1000€ are subject to an automatic processing charge of 200€/$ 250. Less | 2 195€ | Today | |||
| Model 2 (30 W ) with "CCM" driver PN : 969LD-2-4-1 | Open CW driver with 969nm multimode laser diode. Up to 30W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High… Read more Open CW driver with 969nm multimode laser diode. Up to 30W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High Power Collimator (see below).
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 890€ | 1 - 2 weeks | |||
| Model 2 (30 W ) within "CCMI" module PN : 969LD-2-4-2 | Turn-key integrated CW driver with 968nm multimode laser diode. Up to 30W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power… Read more Turn-key integrated CW driver with 968nm multimode laser diode. Up to 30W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included.
Compatible with OPTION-1: High Power Collimator.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 7 090€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |

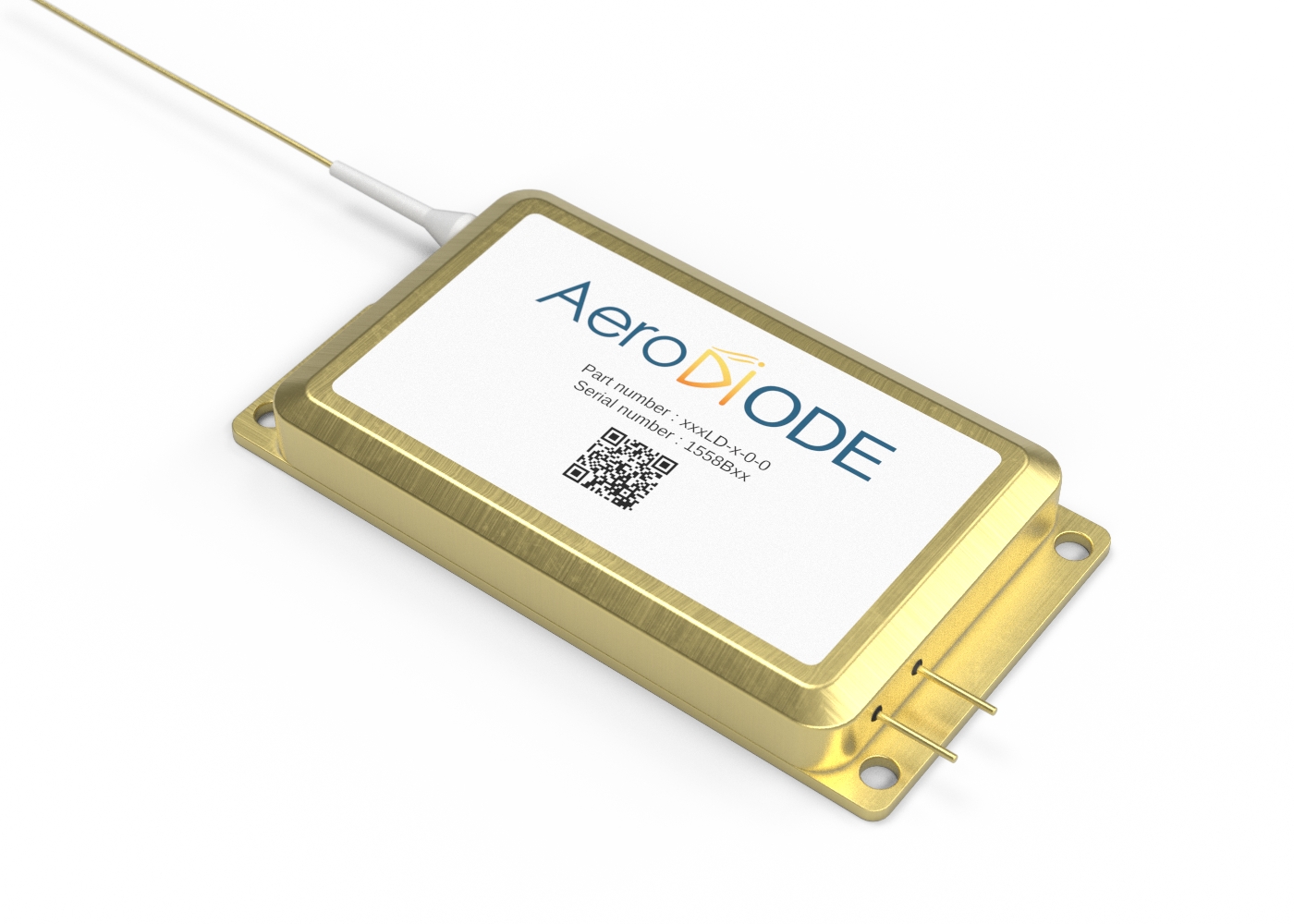

 | Model 3 (60 W ) laser diode alone PN : 969LD-3-0-0 | High power laser diode emitting up to 60W at 969nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High Power Collimator and OPTION-2:… Read more High power laser diode emitting up to 60W at 969nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High Power Collimator and OPTION-2: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-2 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 3 995€ | Today | |||
| Model 3 (60 W ) with "CCM" driver PN : 969LD-3-4-1 | Open CW driver with 969nm multimode laser diode. Up to 60W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High… Read more Open CW driver with 969nm multimode laser diode. Up to 60W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-1: High Power Collimator and OPTION-2: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-2 is strongly recommended for applications having some minimum levels of back-reflections like machining applications.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 8 290€ | 1 - 2 weeks | |||
| Model 3 (60 W) within "CCMI" module PN : 969LD-3-4-2 | Turn-key integrated CW driver with 969nm multimode laser diode. Up to 60W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power… Read more Turn-key integrated CW driver with 969nm multimode laser diode. Up to 60W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included.
Compatible with OPTION-1: High Power Collimator and OPTION-2: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-2 is strongly recommended for applications having some minimum levels of back-reflections like machining applications.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 9 490€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : High Power Collimator COL010 PN : 969LD-Option-Collimator_MM | 12mm beam high power collimator for SMA connectors. 36mm focal length. AR treatment covering 960-1150nm. High damage threshold in CW and pulse mode. Compatible with laser diodes model 1 to 3… Read more 12mm beam high power collimator for SMA connectors. 36mm focal length. AR treatment covering 960-1150nm. High damage threshold in CW and pulse mode. Compatible with laser diodes model 1 to 3 : laser diode alone or laser diode + driver solutions. Less | 545€ | Today | |||
 | OPTION 2 : High power connector with mode stripper PN : 969LD-Option-Connector_MM | Special SMA high power connector for multimode laser diodes. This option which replaces the standard SMA connectors is relevant for applications where a significant level of light back reflection can… Read more Special SMA high power connector for multimode laser diodes. This option which replaces the standard SMA connectors is relevant for applications where a significant level of light back reflection can happen like micromachining. It is compatible with laser diode model 3 (60 W) : laser diode alone or laser diode + driver. Less | 1 095€ | 3 - 4 weeks | |||
 | OPTION 3 : Multi-product GUI Touch screen PN : 969LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
