Most Turn-key 976 nm laser diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 976 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal and can reach high power in nanosecond pulse regime up to 1500 mW. 5 multimode versions are offered for CW emission up to 140 W in a 106 µm core multimode fiber (NA=0.22). Every laser diode has it own optical connector : FC/APC for singlemode version, high power SMA905 for multimode versions.
From: 595€
All shippings with DHL Express
976 nm laser diode Key Features (scroll down to see all configurations and prices) :
| Laser Diode model | Power (CW) | Technology | Center Wavelength | Emission Bandwidth (typ) | Power (Pulse) | Current/ Voltage (typ) | Form factor | Fiber connector | Output fiber core | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 500 mW | Butterfly with PM fiber & Bragg grating (FBG) | 976±0.5 nm | ~ 0.1 nm | 1000 mW | 1A/1.7V | 14 pin butterfly-type 1 | FC/APC (Optional) | 5 µm singlemode PM980 | Scroll down ! |
| Model 2 | Datasheet | 1000 mW | Butterfly with PM fiber & Bragg grating (FBG) | 976±0.5 nm | ~ 0.1 nm | 1500 mW | 1.6A/1.8V | 14 pin butterfly-type 1 | FC/APC (Optional) | 5 µm singlemode PM980 | |
| Model 3 | Datasheet | 10 W | Multimode single emitter | 976±0.5 nm | ~ 0.5 nm | 10 W | 12A/1.6V | 8.5*14*6.1 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 4 | Datasheet | 30 W | Multimode multi-emitter | 976±0.5 nm | ~ 0.5 nm | 30 W | 12A/4.8V | 43*25*11 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 5 | Datasheet | 60 W | Multimode multi-emitter | 976±0.5 nm | ~ 0.5 nm | 60 W | 12A/12V | 80*48*16 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 6 | Datasheet | 100 W | Multimode multi-emitter | 976±1 nm | ~ 1 nm | 100 W | 12.5A/16V | 80*80*25 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 7 | Datasheet | 140 W | Multimode multi-emitter | 976±1 nm | ~ 1 nm | 140 W | 13A/22.5V | 80*80*25 | SMA905 | 106 µm Multimode (NA=0.22) |
Product Datasheets :
The GUI software of the optional drivers lets the user have total control of all module functions. These turn-key solutions include several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 976 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials for more information about the use of these laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| 976 nm Laser diode + driver solutions : | |||||
|---|---|---|---|---|---|
| 976 nm Laser Diode version : | Laser Driver version : | ||||
| CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version) | Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) | User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs) | Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version) |
||
| Output Power (CW regime (typ) | 1- Singlemode 500 mW | 500 mW | 500 mW | No | Not compatible |
| 2- Singlemode 1000 mW | 900 mW | 450 mW (std)/ 900 mW (UHP version) | No | Not compatible | |
| 3-6 : Multimode 10 W / 30 W / 60 W / 140 W or 180 W | Not compatible | Respectively 10 W / 30 W / 60 W / 140 W or 180 W | |||
| Output power - Pulse regime (typ) | 1 - Singlemode 500 mW | No | 1000 mW | 800 mW | Not compatible |
| 2- Singlemode 1000 mW | No | 1500 mW | 900 mW | ||
| 3-6 : Multimode 10 W / 30 W / 60 W / 140 W or 180 W | Not compatible | Respectively 10 W / 30 W / 60 W / 140 W or 180 W | |||
| User design nanosecond pulse shape (integrated AWG) | No (CW driver) | No (On-Off driver) | Yes | No | |
| Laser diode T° range | 15 - 50 °C | 15 - 40 °C | |||
| Pulse duration (Ext pulse trigger) | 0.5 ns - CW | 0.5 ns - 8 µs | 10 µs - CW | ||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | No | |||
| Typ rise/fall time ; Min pulse duration | 3 (ns/A) ; 1.5 ns | < 1 (ns/A) ; 1 ns | few µsec | ||
| Internal rep rate adjustment | 1 Hz - 4 MHz (250 MHz option) | 1 Hz - 20 MHz | No | ||
| Temporal jitter | < 20 ps | < 2 ns | |||
| Adjustable CW current offset in pulse regime | (Optional) | No | Yes (extrenal mode) | ||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python | ||||
| Power supply | 110/220 V power supply is included | This module requires an external 24 V power supply | |||
Part NumberDescriptionAvalaible | Add to cart |
|---|---|

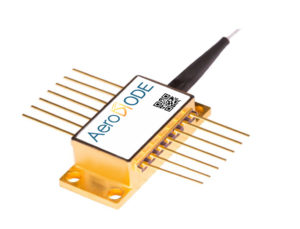

Ref: Model 1 (500 mW), Shipping: Today, PN: 976LD-1-0-0 976 nm butterfly laser diode alone with PM980 bare fiber output. Up to 500 mW CW. Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3 mm beam collimator). Today | |
Ref: Model 1 (500 mW) with "CCS-CW-HP" driver, Shipping: 2 - 5 days, PN: 976LD-1-1-1 Open CW driver with 976 nm butterfly laser diode with PM980 fiber. Up to 500 mW CW optical power. Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3 mm beam collimator). 2 - 5 days | |
Ref: Model 1 (500 mW) with "CCS" driver, Shipping: 2 - 5 days, PN: 976LD-1-2-1 Open Pulse & CW driver with 976 nm butterfly laser diode with PM980 fiber. Up to 500 mW CW optical power and 1000 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (Fiber connector),OPTION-2 (3 mm beam collimator) and OPTION 3 (250 MHz version - see below). 2 - 5 days | |
Ref: Model 1 (500 mW) with "Shaper" driver, Shipping: 2 - 5 days, PN: 976LD-1-3-1 Open pulsed driver with 976 nm butterfly singlemode laser diode with PM980 fiber. Up to 800 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3 mm beam collimator). 2 - 5 days | |
Ref: Model 1 (500 mW) within "CCSI-CW-HP" module, Shipping: 2 - 5 days, PN: 976LD-1-1-2 Turn-key integrated CW laser diode module at 976 nm. CW power up to 500 mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (3 mm collimator) and OPTION-5 (benchtop version). 2 - 5 days | |
Ref: Model 1 (500 mW) within "CCSI" module, Shipping: 2 - 5 days, PN: 976LD-1-2-2 Turn-key integrated laser diode module at 976 nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 500 mW and pulse up to 1000 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-2 (3 mm collimator), OPTION-3 (250 MHz version) and OPTION-4 (Benchtop version). 2 - 5 days | |
Ref: Model 2 (1000 mW), Shipping: Today, PN: 976LD-2-0-0 976 nm butterfly laser diode alone with with PM980 bare fiber output. Up to 1000 mW CW. Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3 mm beam collimator). Today | |
Ref: Model 2 (1000 mW) with "TDLAS" CW driver, Shipping: 2 - 5 days, PN: 976LD-2-TDLAS-1 High-end and low noise open CW driver with 976 nm butterfly laser diode with PM980 fiber. Up to 1000 mW CW optical power. Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3 mm beam collimator). 2 - 5 days | |
Ref: Model 2 (1000 mW) with "CCS" driver, Shipping: 2 - 5 days, PN: 976LD-2-2-1 Open Pulse & CW driver with 976 nm butterfly laser diode with PM980 fiber. Up to 450mW CW optical power and 1500 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (Fiber connector), OPTION-2 (3 mm beam collimator) and OPTION -3 (250 MHz version). 2 - 5 days | |
Ref: Model 2 (1000 mW) with "Shaper" driver, Shipping: 2 - 5 days, PN: 976LD-2-3-1 Open pulsed driver with 976 nm butterfly singlemode laser diode with PM980 fiber. Up to 900 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3 mm beam collimator). 2 - 5 days | |
Ref: Model 2 (1000 mW) within "CCSI-TDLAS" CW module, Shipping: 2 - 5 days, PN: 976LD-2-TDLAS-2 High end, low noise and turn-key integrated CW laser diode module at 976 nm. CW power up to 1000 mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (3 mm collimator) and OPTION-4 (benchtop version). 2 - 5 days | |
Ref: Model 2 (1000 mW) within "CCSI" module, Shipping: 2 - 5 days, PN: 976LD-2-2-2 Turn-key integrated laser diode module at 976 nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 500 mW and pulse up to 1500 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-2 (3 mm collimator), OPTION-3 (250 MHz version) and OPTION-4 (Benchtop version). 2 - 5 days | |
Ref: OPTION 1 : Fiber connector, Shipping: 2 - 5 days, PN: OPTION-1 FC/APC fiber connector and 900µm fiber protection coating. For Model 1 and Model 2 laser diodes alone only as it is already included for all singlemode diode+driver configurations. 2 - 5 days | |
Ref: OPTION 2 : 3 mm optical collimator, Shipping: 2 - 5 days, PN: OPTION-2 Small form factor 3 mm beam diameter optical collimator with AR coatings. 2 - 5 days | |
Ref: OPTION 3 : 250 MHz repetition rate, Shipping: 2 - 5 days, PN: OPTION-3 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. 2 - 5 days | |
Ref: OPTION 4 : Benchtop version, Shipping: 2 - 5 days, PN: OPTION-4 All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. 2 - 5 days | |
Ref: Model 3 (10 W ) laser diode alone, Shipping: Today, PN: 976LD-3-0-0 High power laser diode emitting up to 10 W at 976 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 connector (Kink free power : 10 W , nominal power : 9 W). Compatible with OPTION-5 : High Power Collimator (see below). Purchase orders under $1000/1000 € are subject to an automatic processing charge of 200 €/$ 250. Today | |
Ref: Model 3 (10 W ) with "CCM" driver, Shipping: 2 - 5 days, PN: 976LD-3-4-1 Open CW driver with 976 nm multimode laser diode. Up to 10 W CW optical power out of a 105(c ore)/125/250/900 µm multimode fiber (NA=0.22) with SMA905 fiber connector. (Kink free power : 10 W , nominal power : 9 W). Compatible with OPTION 4 : High Power Collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 2 - 5 days | |

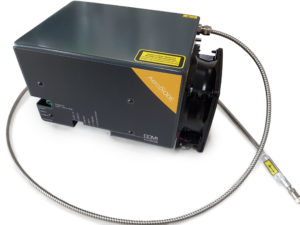

Ref: Model 3 (10 W ) with "CCMI" driver, Shipping: 1 - 2 weeks, PN: 976LD-3-4-2 Turn-key integrated CW driver with 976 nm multimode laser diode. Up to 10 W CW optical power out of a 105 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). (Kink free power : 10 W , nominal power : 9 W). High power SMA905 connector is included. Compatible with OPTION 4 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 1 - 2 weeks | |
Ref: Model 4 (30 W ) laser diode alone, Shipping: Today, PN: 976LD-4-0-0 High power laser diode emitting up to 30 W at 976 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 high power fiber connector. (Kink free power : 30 W / nominal power : 27 W). Compatible with OPTION-5 : High Power Collimator. Today | |
Ref: Model 4 (30 W ) with "CCM" driver, Shipping: 2 - 5 days, PN: 976LD-4-4-1 Open CW driver with 976 nm multimode laser diode. Up to 30 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22) with SMA 905 high power fiber connector. (Kink free power : 30 W / nominal power : 27 W). Compatible with OPTION-5 : High Power Collimator. 2 - 5 days | |
Ref: Model 4 (30 W ) within "CCMI" module, Shipping: 1 - 2 weeks, PN: 976LD-4-4-2 Turn-key integrated CW driver with 976 nm multimode laser diode. Up to 30 W CW optical power out of a 105 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). (Kink free power : 30 W, nominal power : 27 W). High power SMA905 fiber connector is included. Compatible with OPTION-5 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 1 - 2 weeks | |
Ref: Model 5 (60 W ) laser diode alone, Shipping: 3 - 4 weeks, PN: 976LD-5-0-0 High power laser diode emitting up to 60 W at 976 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 high power fiber connector. Compatible with OPTION-5 : High Power Collimator. 3 - 4 weeks | |
Ref: Model 5 (60 W ) with "CCM" driver, Shipping: 3 - 4 weeks, PN: 976LD-5-4-1 Open frame CW driver with 976 nm multimode laser diode. Up to 60 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22) with SMA 905 high power fiber connector. Compatible with OPTION-5 : High Power Collimator. 3 - 4 weeks | |
Ref: Model 5 (60 W) within "CCMI" module, Shipping: 3 - 4 weeks, PN: 976LD-5-4-2 Turn-key integrated CW driver with 976 nm multimode laser diode. Up to 60 W CW optical power out of a 106 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power SMA905 fiber connector is included. Compatible with OPTION-5 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 3 - 4 weeks | |
Ref: Model 6 (100W ) laser diode alone, Shipping: Today, PN: 976LD-6-0-0 High power laser diode emitting up to 100 W at 976 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 high power fiber connector. Special version with high locking range : the laser diodes lock well at 976 nm with a very narrow emission spectrum between 60 and 100% of its nominal power. Compatible with OPTION-5 : High Power Collimator. Today | |
Ref: Model 6 (100W ) with "CCM" driver, Shipping: 2 - 5 days, PN: 976LD-6-4-1 Open frame CW driver with 976 nm multimode laser diode. Up to 100 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22) with SMA 905 high power fiber connector. Special version with high locking range : the laser diodes lock well at 976 nm with a very narrow emission spectrum between 60 and 100% of its nominal power. Compatible with OPTION-5 : High Power Collimator. 2 - 5 days | |
Ref: Model 6 (100W) within "CCMI" module, Shipping: 1 - 2 weeks, PN: 976LD-6-4-2 Turn-key integrated CW driver with 976 nm multimode laser diode. Up to 100 W CW optical power out of a 105 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power SMA905 fiber connector is included. Special version with high locking range : the laser diodes lock well at 976 nm with a very narrow emission spectrum between 60 and 100% of its nominal power. Compatible with OPTION-5 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 1 - 2 weeks | |
Ref: Model 7 (140W ) laser diode alone, Shipping: Today, PN: 976LD-7-0-0 High power laser diode emitting up to 140 W at 976 nm out of a 106(core)/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 high power fiber connector. Compatible with OPTION-5 : High Power Collimator. Today | |
Ref: Model 7 (140W ) with "CCM" driver, Shipping: 1 - 2 weeks, PN: 976LD-7-4-1 Open frame CW driver with 976 nm multimode laser diode. Up to 140 W CW optical power out of a 106(core)/125/250/900 µm multimode fiber (NA=0.22) with SMA 905 high power fiber connector. Compatible with OPTION-5 : High Power Collimator. 1 - 2 weeks | |
Ref: Model 7 (140W) within "CCMI" module, Shipping: 1 - 2 weeks, PN: 976LD-7-4-2 Turn-key integrated CW driver with 976 nm multimode laser diode. Up to 140 W CW optical power out of a 105 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power SMA905 fiber connector is included. Compatible with OPTION-5 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 1 - 2 weeks | |
Ref: OPTION 5 : High Power Collimator, Shipping: 1 - 2 weeks, PN: OPTION-5 12 mm beam high power collimator for SMA connectors. 36 mm focal length. AR treatment covering 960-1150 nm. High damage threshold in CW and pulse mode. Compatible with laser diodes model 3 to 5 : laser diode alone or laser diode + driver solutions. 1 - 2 weeks | |
Ref: OPTION-6 : High Power connector with mode stripper, Shipping: 9 - 12 weeks, PN: OPTION-6 Special SMA high power connector for multimode laser diodes. This option which replaces the standard SMA connectors is relevant for applications where a significant level of light back reflection can happen like for micromachining applications. It is compatible with laser diodes model 5 (60 W) and above : laser diode alone or laser diode + driver solutions. 9 - 12 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
