The single mode 981 nm laser diodes can reach high power in nanosecond pulse regime up to 1500 mW. Most Turn-key diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 981nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 4 multimode versions are offered for CW emission up to 150 W. They are coupled in a 106 µm core multimode fiber (NA=0.22) up to 140 W.
From: 995€
All shippings with DHL Express
981 nm laser diode Key Features (scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:

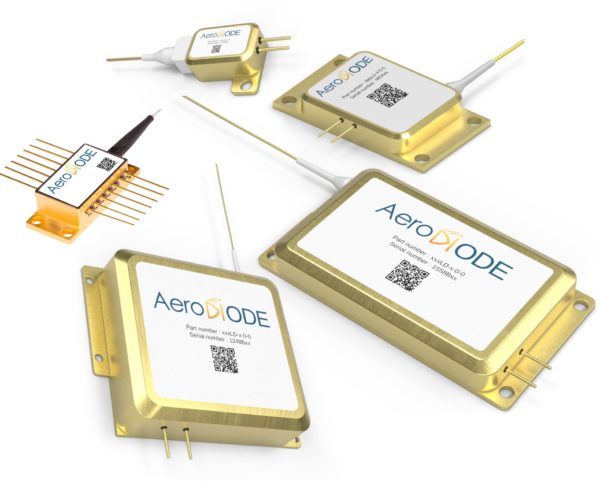

For laser diode alone, click on the models in the table below.
For turn-key “981 nm laser diode+driver” solutions, see the following datasheet: 981 nm laser diode Datasheet
| Models | Datasheets | Power CW (Pulse) | Technology | Center Wavelength | Emission Bandwidth (typ) | Current / Voltage (typ) | Form factor (mm) | Fiber connector | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 500 mW (1000 mW) | Butterfly with Bragg grating (FBG) | 981±1 nm | ~ 0.1 nm | 800mA / 1.9V | 14 pin butterfly-type 1 | FC/APC (Optional) | 5 µm singlemode PM980 | Scroll down ! |
| Model 2 | Datasheet | 1000 mW (1500 mW) | Butterfly with Bragg grating (FBG) | 981±1 nm | ~ 0.1 nm | 1.6A / 2V | 14 pin butterfly-type 1 | FC/APC (Optional) | 5 µm singlemode PM980 |
|
| Model 3 | Datasheet | 10 W | Multimode single emitter | 981±0.5 nm | ~ 0.5 nm | 12A / 1.6V | 14*17*6.1 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 4 | Datasheet | 30 W | Multimode single emitter | 981±0.5 nm | ~ 0.5 nm | 12A / 4.8V | 25*43*11.6 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 5 | Datasheet | 60 W | Multimode single emitter | 976±0.5 nm | ~ 0.7 nm | 12A / 11V | 48 * 80 * 16 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 6 | Datasheet | 140 W | Multimode single emitter | 976±1 nm | ~ 0.7 nm | 13A / 22.5V | 80*80*24.8 | SMA905 | 106 µm Multimode (NA=0.22) |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 981 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models):
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials for more information about the use of these laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Models | Datasheets | Power CW (Pulse) | Technology | Center Wavelength | Emission Bandwidth (typ) | Current / Voltage (typ) | Form factor (mm) | Fiber connector | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 500 mW (1000 mW) | Butterfly with Bragg grating (FBG) | 981±1 nm | ~ 0.1 nm | 800mA / 1.9V | 14 pin butterfly-type 1 | FC/APC (Optional) | 5 µm singlemode PM980 | Scroll down ! |
| Model 2 | Datasheet | 1000 mW (1500 mW) | Butterfly with Bragg grating (FBG) | 981±1 nm | ~ 0.1 nm | 1.6A / 2V | 14 pin butterfly-type 1 | FC/APC (Optional) | 5 µm singlemode PM980 |
|
| Model 3 | Datasheet | 10 W | Multimode single emitter | 981±0.5 nm | ~ 0.5 nm | 12A / 1.6V | 14*17*6.1 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 4 | Datasheet | 30 W | Multimode single emitter | 981±0.5 nm | ~ 0.5 nm | 12A / 4.8V | 25*43*11.6 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 5 | Datasheet | 60 W | Multimode single emitter | 976±0.5 nm | ~ 0.7 nm | 12A / 11V | 48 * 80 * 16 | SMA905 | 106 µm Multimode (NA=0.22) | |
| Model 6 | Datasheet | 140 W | Multimode single emitter | 976±1 nm | ~ 0.7 nm | 13A / 22.5V | 80*80*24.8 | SMA905 | 106 µm Multimode (NA=0.22) |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

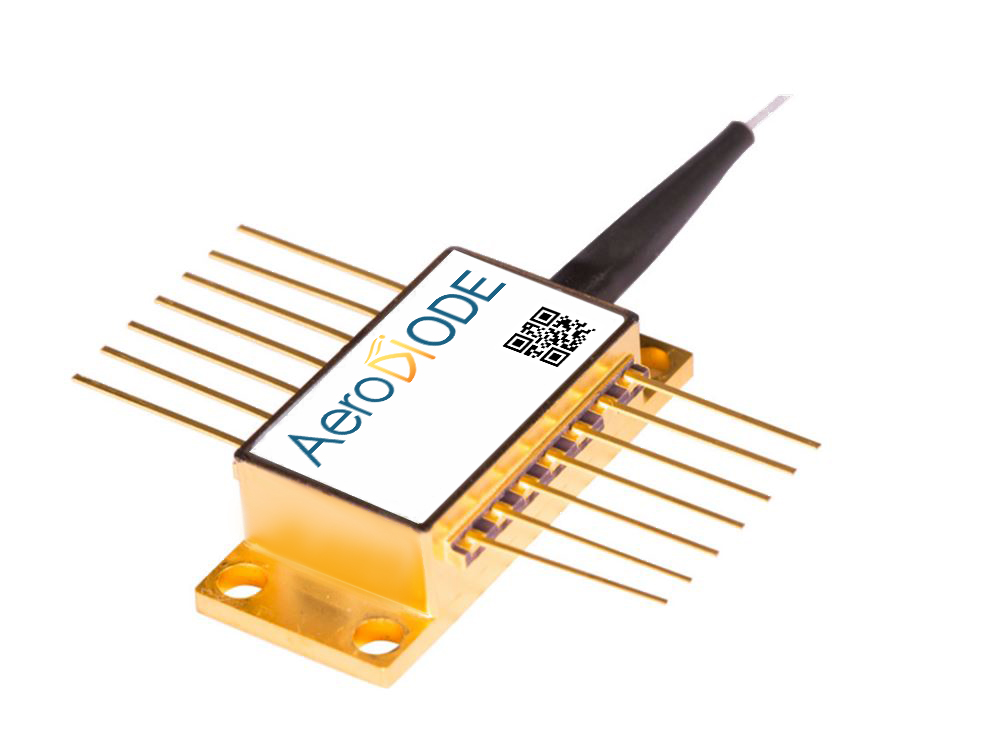

 | Model 1 (500 mW) PN : 981LD-1-0-0 | 981 nm butterfly laser diode alone. Up to 500 mW CW. PM980 PM bare fiber output . Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3 mm beam collimator). | 1 345€ | Today | |||
 | Model 1 (500 mW) with "CCS-CW" driver PN : 981LD-1-1-1 | Open CW driver with 981nm butterfly laser diode and PM980 fiber output. Up to 500mW CW optical power. Compatible with OPTION-2 (3mm beam collimator). | 3 590€ | 2 - 5 days | |||

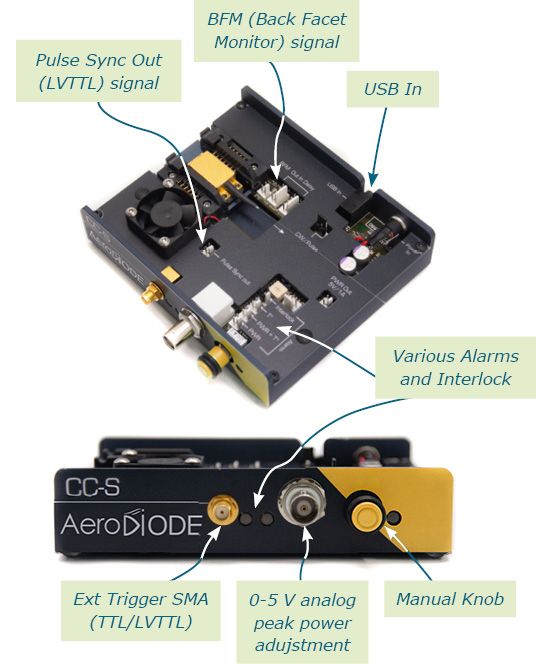

 | Model 1 (500 mW) with "CCS" driver PN : 981LD-1-2-1 | Open Pulse & CW driver with 981nm butterfly laser diode and PM980 fiber output. Up to 500mW CW optical power and 1000mW pulsed ; Down to 1.5ns pulse duration ;… Read more Open Pulse & CW driver with 981nm butterfly laser diode and PM980 fiber output. Up to 500mW CW optical power and 1000mW pulsed ; Down to 1.5ns pulse duration ; Up to 4MHz pulse repetition rate. Compatible with OPTION-2 (3mm beam collimator) and OPTION-3 (250 MHz version). Less | 4 590€ | 2 - 5 days | |||
 | Model 1 (500 mW) with "Shaper" driver PN : 981LD-1-3-1 | Open pulsed driver with 981nm butterfly singlemode laser diode with PM980 fiber. Up to 800mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulsewidth (The… Read more Open pulsed driver with 981nm butterfly singlemode laser diode with PM980 fiber. Up to 800mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with OPTION-2 (3mm beam collimator). Less | 6 340€ | 2 - 5 days | |||
 | Model 1 (500 mW) within "CCSI-CW" module PN : 981LD-1-1-2 | Turn-key integrated CW laser diode module at 981nm. CW power up to 500mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (3mm collimator) and OPTION-4 (benchtop… Read more Turn-key integrated CW laser diode module at 981nm. CW power up to 500mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (3mm collimator) and OPTION-4 (benchtop version). Less | 4 790€ | 2 - 5 days | |||
| Model 1 (500 mW) within "CCSI" module PN : 981LD-1-2-2 | Turn-key integrated laser diode module at 981nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 500mW and pulse up… Read more Turn-key integrated laser diode module at 981nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 500mW and pulse up to 1000mW. Down to 1.5ns pulse duration. Up to 4MHz pulse repetition rate. Compatible with OPTION-2 (3mm collimator), OPTION-3 (250MHz version) and OPTION-4 (Benchtop version). Less | 5 790€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (1000 mW) PN : 981LD-2-0-0 | 981nm butterfly laser diode alone. Up to 1000mW CW. PM980 PM bare fiber output. Compatible with OPTION-1 (Fiber connector) and OPTION-2 (3mm beam collimator). | 1 995€ | Today | |||
 | Model 2 (1000 mW) with "TDLAS" CW driver PN : 981LD-2-TDLAS-1 | High-end and low noise open CW driver with 981nm butterfly laser diode with PM980 fiber. Up to 1000mW CW optical power. Compatible with OPTION-2 (3mm beam collimator). | 5 990€ | 2 - 5 days | |||
| Model 2 (1000 mW) with "CCS" driver PN : 981LD-2-2-1 | Open Pulse & CW driver with 981nm butterfly laser diode and PM980 PM fiber output with FC/APC fiber connector. Up to 450mW CW optical power and 1500mW pulsed ; Down… Read more Open Pulse & CW driver with 981nm butterfly laser diode and PM980 PM fiber output with FC/APC fiber connector. Up to 450mW CW optical power and 1500mW pulsed ; Down to 1.5ns pulse duration ; Up to 4MHz pulse repetition rate. Compatible with OPTION-2 (3mm beam collimator).) and option-3 (250MHz version). Less | 5 240€ | 2 - 5 days | |||
| Model 2 (1000 mW) with "Shaper" driver PN : 981LD-2-3-1 | Open pulsed driver with 981nm butterfly singlemode laser diode with PM980 fiber output with FC/APC fiber connector. Up to 900mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and… Read more Open pulsed driver with 981nm butterfly singlemode laser diode with PM980 fiber output with FC/APC fiber connector. Up to 900mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulse width (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with OPTION-2 (3mm beam collimator). Less | 6 990€ | 2 - 5 days | |||
 | Model 2 (1000 mW) within "CCSI-TDLAS" CW module PN : 981LD-2-TDLAS-2 | High end, low noise and turn-key integrated CW laser diode module at 981nm. CW power up to 1000mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2… Read more High end, low noise and turn-key integrated CW laser diode module at 981nm. CW power up to 1000mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (3mm collimator) and OPTION-4 (benchtop version). Less | 7 190€ | 2 - 5 days | |||
| Model 2 (1000 mW) within "CCSI" module PN : 981LD-2-2-2 | Turn-key integrated laser diode module at 981nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 450mW and pulse up… Read more Turn-key integrated laser diode module at 981nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 450mW and pulse up to 1500mW. Down to 1.5ns pulse duration. Up to 4MHz pulse repetition rate. Compatible with OPTION-2 (3mm beam collimator), OPTION-3 (250MHz version) and OPTION-4 (benchtop version). Less | 6 440€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 3 (10 W ) laser diode alone PN : 981LD-3-0-0 | High power laser diode emitting up to 10W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Compatible with OPTION-5: High Power Collimator (see below)… Read more High power laser diode emitting up to 10W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Compatible with OPTION-5: High Power Collimator (see below). Purchase orders under $1000/1000 € are subject to an automatic processing charge of 200 €/$ 250. Less | 995€ | Today | |||

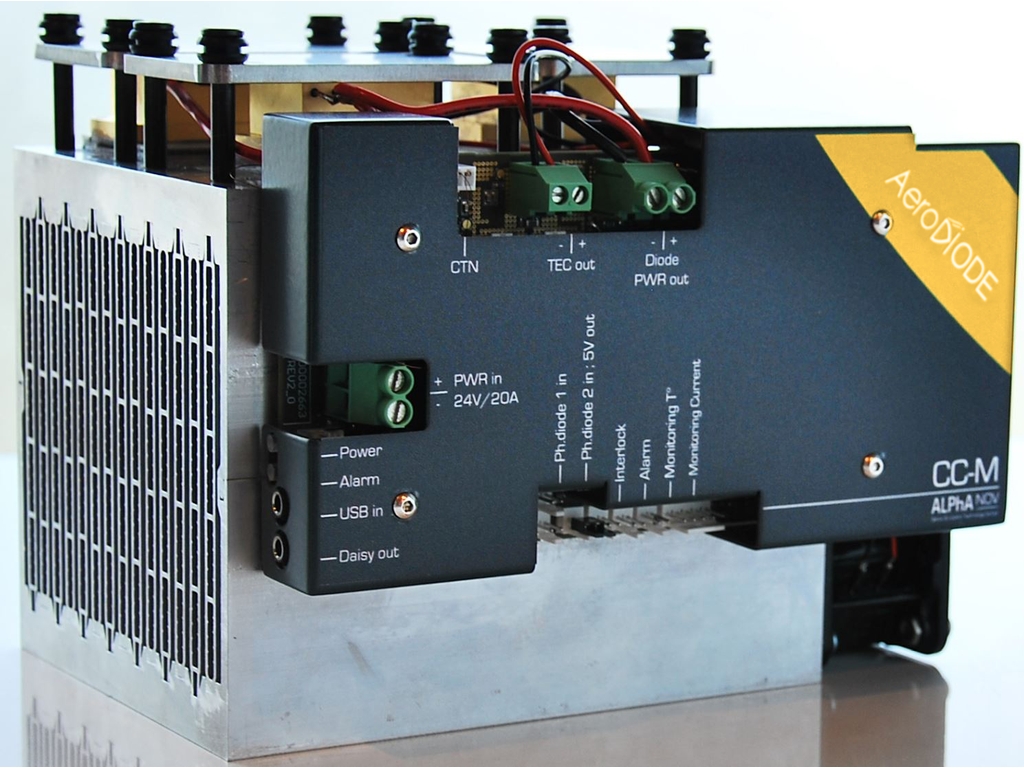

 | Model 3 (10 W ) with "CCM" driver PN : 981LD-3-4-1 | Open CW driver with 981nm multimode laser diode. Up to 10W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5:… Read more Open CW driver with 981nm multimode laser diode. Up to 10W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High Power Collimator (see below).
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 4 690€ | 1 - 2 weeks | |||

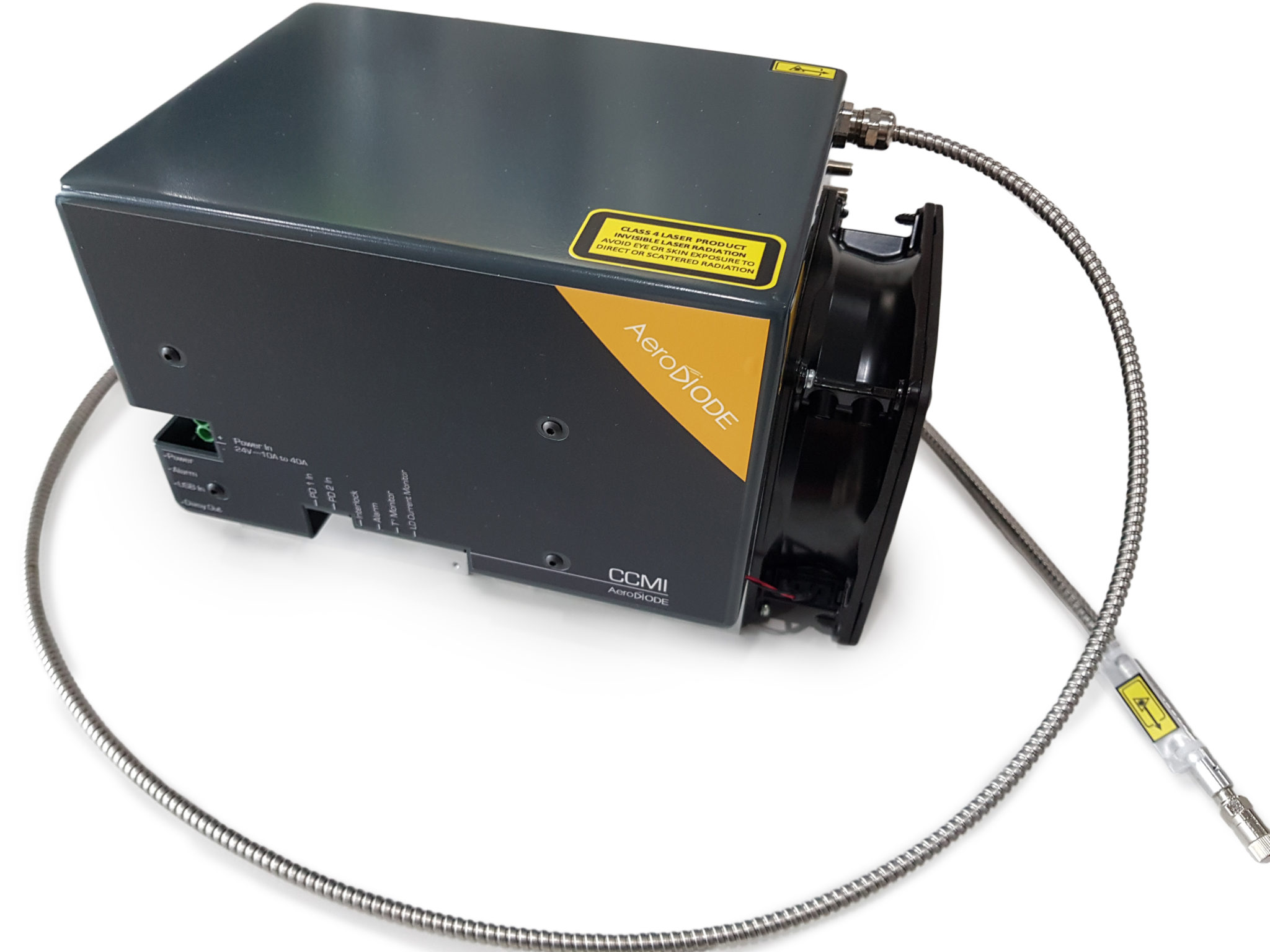

 | Model 3 (10 W ) with "CCMI" driver PN : 981LD-3-4-2 | Turn-key integrated CW driver with 981nm multimode laser diode. Up to 10 W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High… Read more Turn-key integrated CW driver with 981nm multimode laser diode. Up to 10 W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included.
Compatible with OPTION-5: high power collimator.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 890€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 4 (30 W ) laser diode alone PN : 981LD-4-0-0 | High power laser diode emitting up to 30W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Part number: 980LD-4-0-0 (see Datasheet).
Compatible with OPTION-5:… Read more High power laser diode emitting up to 30W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Part number: 980LD-4-0-0 (see Datasheet).
Compatible with OPTION-5: High Power Collimator (see below).
Purchase orders under $1000/1000€ are subject to an automatic processing charge of 200€/$ 250. Less | 2 195€ | Today | |||
| Model 4 (30 W ) with "CCM" driver PN : 981LD-4-4-1 | Open CW driver with 981nm multimode laser diode. Up to 30W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High… Read more Open CW driver with 981nm multimode laser diode. Up to 30W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High Power Collimator (see below).
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 890€ | 1 - 2 weeks | |||
| Model 4 (30 W ) within "CCMI" module PN : 981LD-4-4-2 | Turn-key integrated CW driver with 981nm multimode laser diode. Up to 30W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power… Read more Turn-key integrated CW driver with 981nm multimode laser diode. Up to 30W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION-5: High Power Collimator. NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 7 090€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 5 (60 W ) laser diode alone PN : 981LD-5-0-0 | High power laser diode emitting up to 60W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Compatible with OPTION-5: High Power Collimator and OPTION-6:… Read more High power laser diode emitting up to 60W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector. Compatible with OPTION-5: High Power Collimator and OPTION-6: High power connector with mode stripper (see below). NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-6 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 3 995€ | Today | |||
| Model 5 (60 W ) with "CCM" driver PN : 981LD-5-4-1 | Open CW driver with 981nm multimode laser diode. Up to 60W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High… Read more Open CW driver with 981nm multimode laser diode. Up to 60W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High Power Collimator and OPTION-6: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-6 is strongly recommended for applications having some minimum levels of back-reflections like machining applications.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 8 290€ | 1 - 2 weeks | |||
| Model 5 (60 W) within "CCMI" module PN : 981LD-5-4-2 | Turn-key integrated CW driver with 981nm multimode laser diode. Up to 60W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power… Read more Turn-key integrated CW driver with 981nm multimode laser diode. Up to 60W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included.
Compatible with OPTION-5: High Power Collimator and OPTION-6: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-6 is strongly recommended for applications having some minimum levels of back-reflections like machining applications.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 9 490€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 6 (140 W ) laser diode alone PN : 981LD-6-0-0 | High power laser diode emitting up to 140W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High Power Collimator and OPTION-6:… Read more High power laser diode emitting up to 140W at 981nm out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High Power Collimator and OPTION-6: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-6 is strongly recommended for applications having some minimum levels of back-reflections like machining applications. Less | 5 495€ | 5 - 8 weeks | |||
| Model 6 (140 W ) with "CCM" driver PN : 981LD-6-4-1 | Open CW driver with 981nm multimode laser diode. Up to 140W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High… Read more Open CW driver with 981nm multimode laser diode. Up to 140W CW optical power out of a 106(core)/125/900µm multimode fiber (NA=0.22). High power SMA905 optical connector.
Compatible with OPTION-5: High Power Collimator and OPTION-6: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-6 is strongly recommended for applications having some minimum levels of back-reflections like machining applications.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 9 790€ | 5 - 8 weeks | |||
| Model 6 (140 W) within "CCMI" module PN : 981LD-6-4-2 | Turn-key integrated CW driver with 981nm multimode laser diode. Up to 140W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power… Read more Turn-key integrated CW driver with 981nm multimode laser diode. Up to 140W CW optical power out of a 106µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included.
Compatible with OPTION-5: High Power Collimator and OPTION-6: High power connector with mode stripper (see below).
NOTE: The SMA905 connector here is only supplied for testing purposes before splicing the fiber. OPTION-6 is strongly recommended for applications having some minimum levels of back-reflections like machining applications.
NOTE: CCM and CCMI are 24V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 10 990€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : Fiber connector PN : 981LD-Option-Connector_SM | FC/APC fiber connector and 900 µm fiber protection coating. For Model 1 or Model 2 singlemode laser diodes only. | 145€ | 2 - 5 days | |||
 | OPTION 2 : Low Power Collimator COL001 PN : 981LD-Option-Collimator_SM | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 495€ | 2 - 5 days | |||
 | OPTION 3 : 250 MHz repetition rate PN : 981LD-Option-250MHz_SM | 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | 2 - 5 days | |||
 | OPTION 4 : Benchtop version PN : 981LD-Option-Benchtop_SM | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 2 - 5 days | |||
 | OPTION 5 : High Power Collimator COL010 PN : 981LD-Option-Collimator_MM | 12mm beam high power collimator for SMA connectors. 36mm focal length. AR treatment covering 960-1150nm. High damage threshold in CW and pulse mode. Compatible with laser diodes model 3 to 6… Read more 12mm beam high power collimator for SMA connectors. 36mm focal length. AR treatment covering 960-1150nm. High damage threshold in CW and pulse mode. Compatible with laser diodes model 3 to 6 : laser diode alone or laser diode + driver solutions. Less | 545€ | Today | |||
 | OPTION 6 : High power connector with mode stripper PN : 981LD-Option-Connector_MM | Special SMA high power connector for multimode laser diodes. This option which replaces the standard SMA connectors is relevant for applications where a significant level of light back reflection can… Read more Special SMA high power connector for multimode laser diodes. This option which replaces the standard SMA connectors is relevant for applications where a significant level of light back reflection can happen like micromachining. It is compatible with laser diodes model 5 (60 W) and above : laser diode alone or laser diode + driver. Less | 1 095€ | 3 - 4 weeks | |||
 | OPTION 7 : Multi-product GUI Touch screen PN : 981LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
