This high speed driver with integrated TEC controller delivers precision nanosecond pulses which are generated internally by an on-board AWG (Arbitrary Waveform Generator). It is compatible with most of the laser diode form factors (Butterfly, TO etc.). Direct laser diode modulation is an alternative to EOM or AOM external modulation. See our fiber modulator basics tutorial for more information.
From: 4 995€
All shippings with DHL Express
High speed laser diode driver KEY FEATURES :
|
|
|
|
|

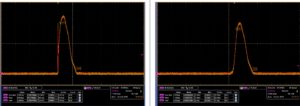

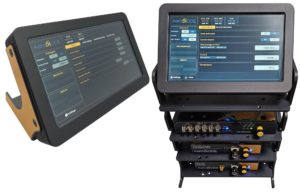

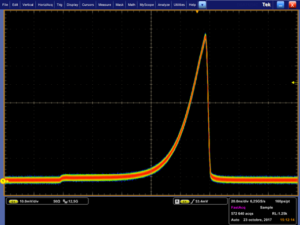

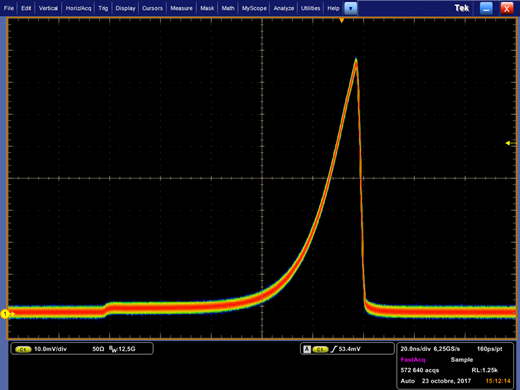

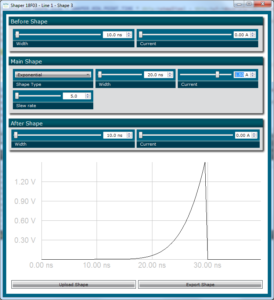

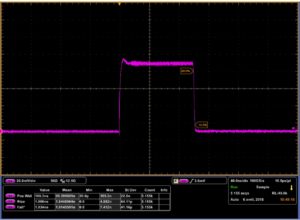

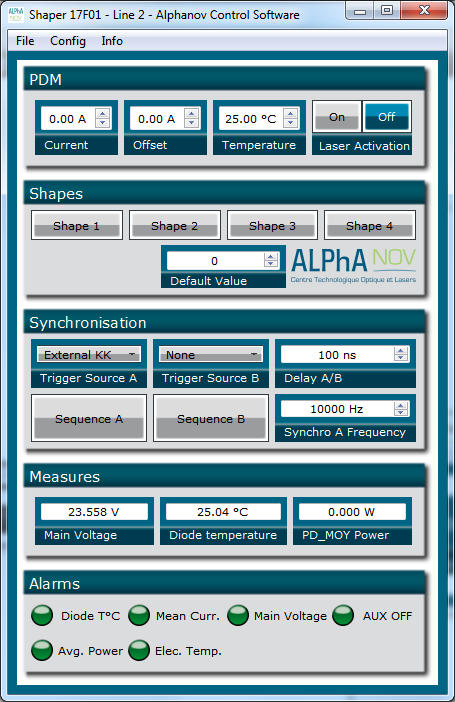

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration ((LabVIEW VIs, DLLs, Hexa, Python)
Applications of this driver include high energy laser seeding, LIDAR testing, etc.
All AeroDIODE products can be connected together with a single GUI interface which consolidates all module functions. This allows the users to save a lot of time.
This high speed laser diode driver works alone or in series with other products in our range like :
DFB or Bragg-based laser diodes such as lumentum or 3SP are perfectly well controlled.
Read our Tutorials to get a good overview of the capabilities of this high speed laser diode driver :

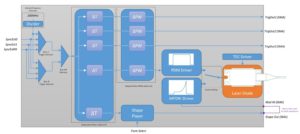

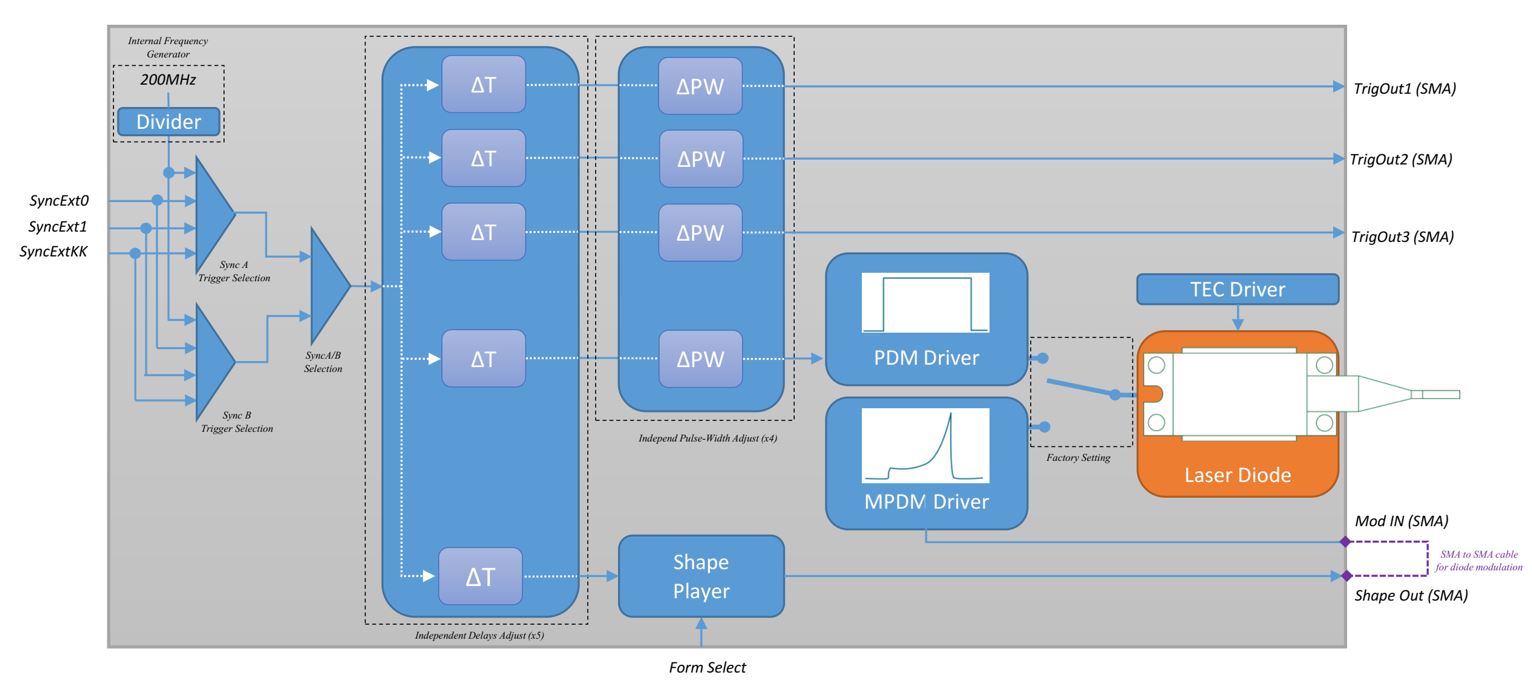

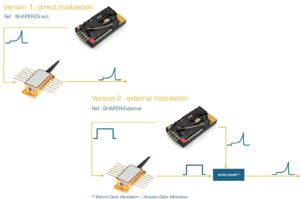

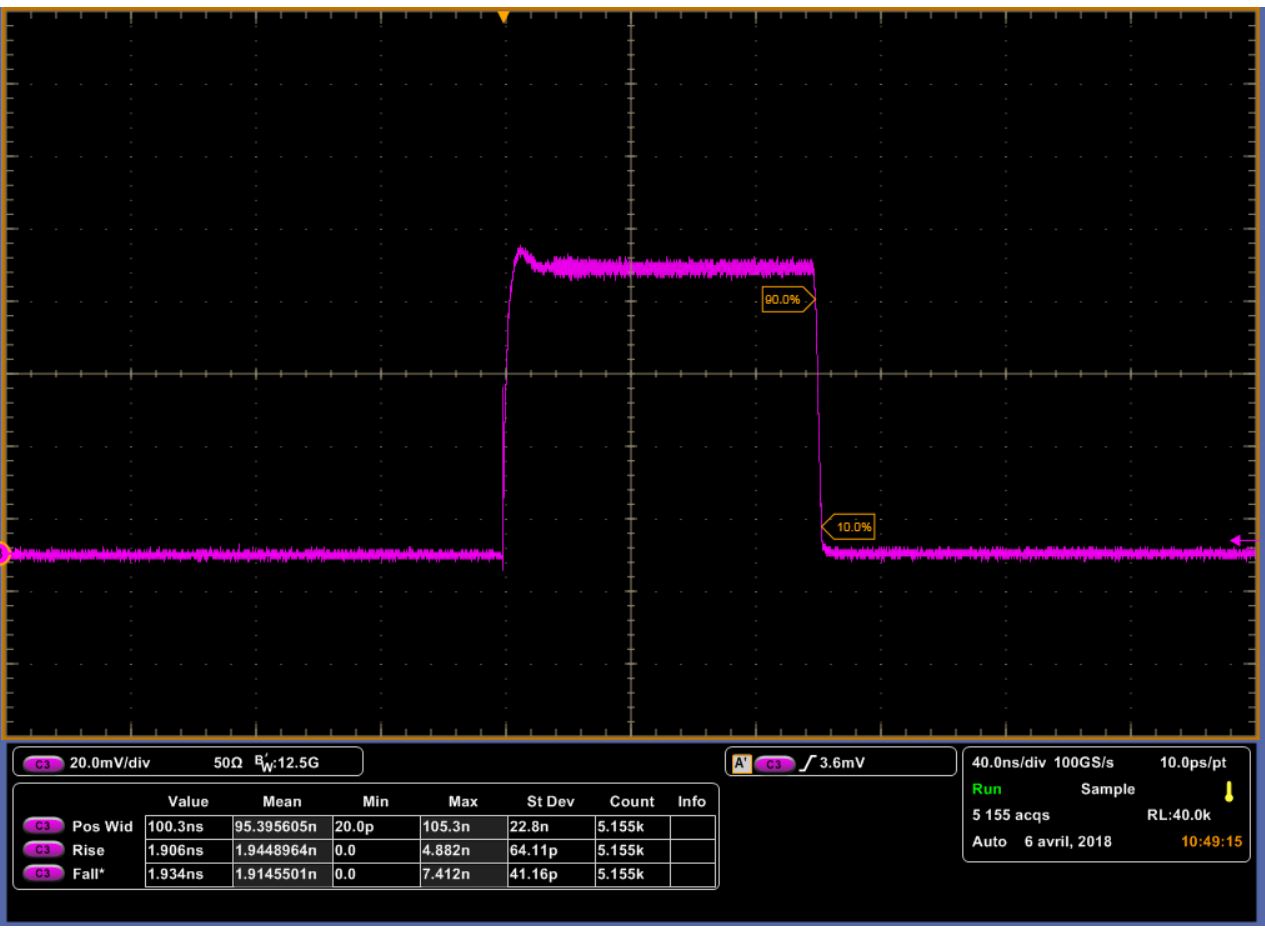

| Shaper-direct (Direct modulation of the laser diode) | Shaper-external (External modulation of the laser diode optical signal - see picture) |
||
|---|---|---|---|
| Laser diode driver | Pulse mode | User design pulse shape | Square pulse (1 ns to CW) |
| Peak current level | 0-1.6 A | 0-1.8 A | |
| Pulse duration | 0.5 ns - 8 µsec | 1 ns - CW | |
| Pulse timing resolution | 500 ps | ||
| Pulse current resolution | 30 µA | ||

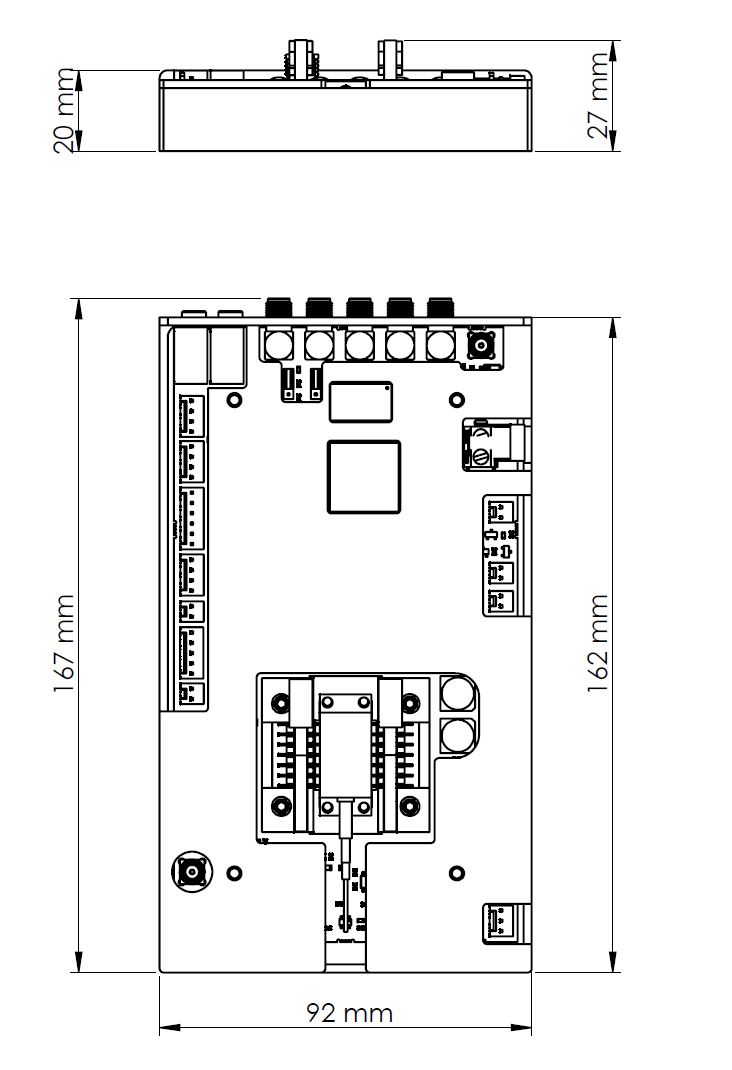

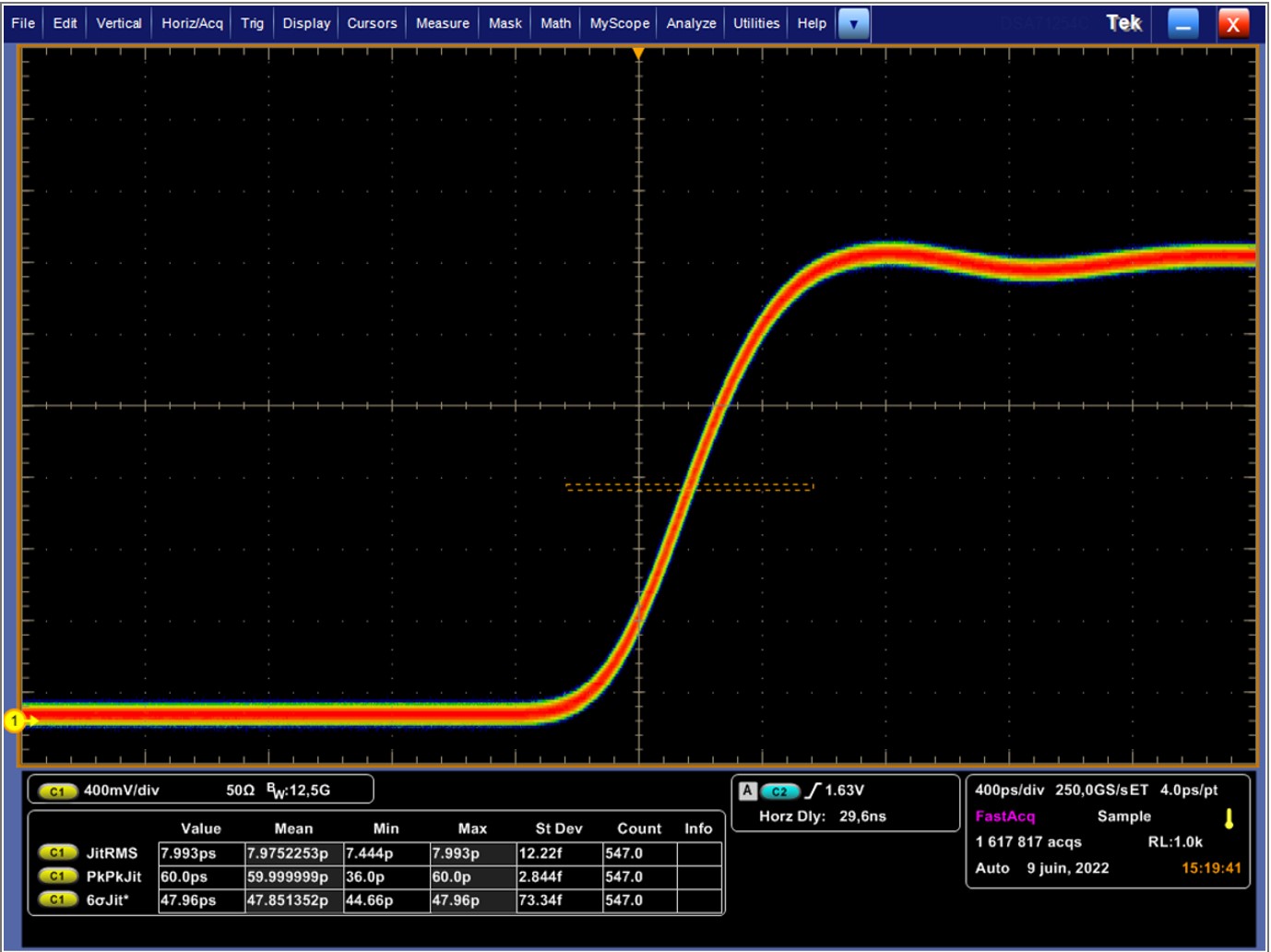

| Jitter pk-pk (internal trigger / external trigger / external trigger with 10 MHz synchronization clock) | < 100 ps / ±2.5 nsec / 60 ps (8 ps rms) | ||

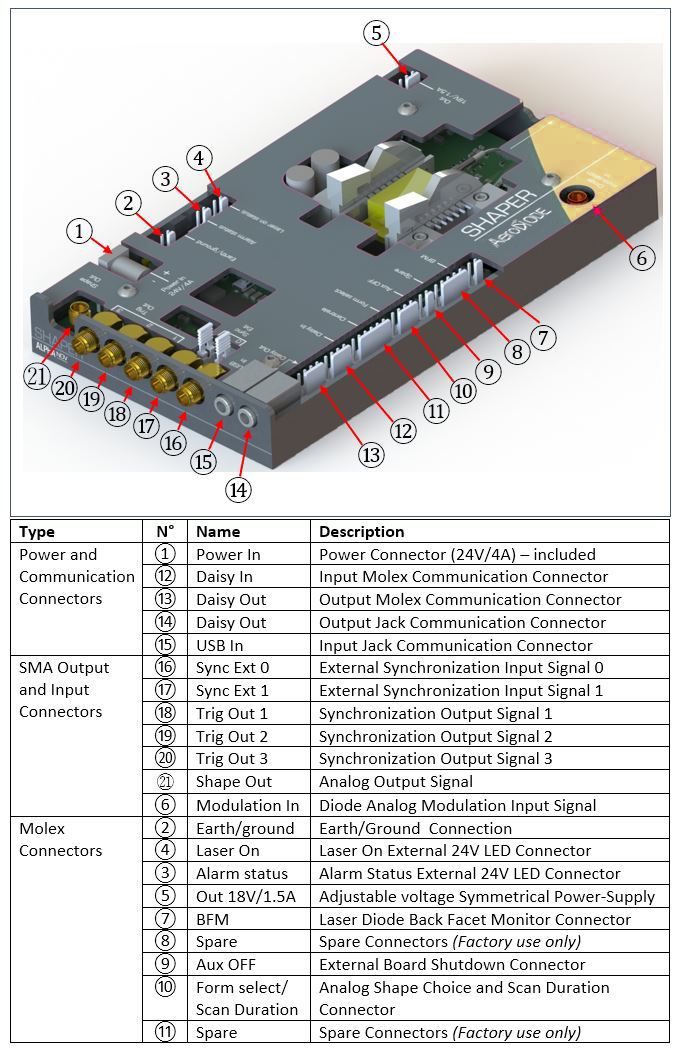

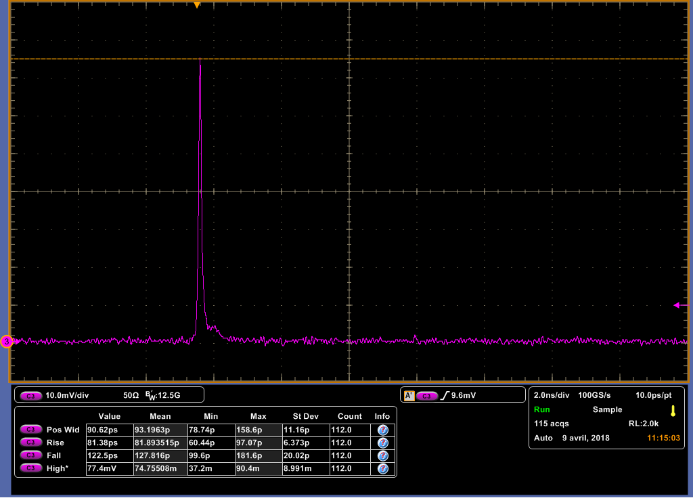

| Laser diode gain switch peak suppression function | Yes (user switchable and configurable) | No | |
| External modulator driver (EOM or AOM) : See our fiber modulator tutorial for more precision - see the picture for the external modulation principle. | EOM/AOM pulse duration (4000 step max) | N.A. | 0.5 ns - 8 µs |
| EOM/AOM pulse timing resolution | N.A. | 500 ps | |
| Output voltage | N.A. | 1 V (50 Ohm) / 5V (High-Z) | |
| Pulse delay generators outputs (external equipment synchronization) | Number of outputs | 3 | |
| Synchronization signals duration | 0 - several hours | ||
| Synchronization signal resolution | 1 ns | ||
| Output voltage | 3.3 V (50 Ohm) | ||
| Special functions | Configurable starting modes | 4 (OEM, previous settings etc.) | |
| Configurable GUI | 100% adjustable by expert user with several user modes (production user, maintenance user etc.) | ||
| Configurable output power supply | 0-18V adjustable voltage to drive any additional external board | ||
| General | Compatibilities & libraries | Window 7/10 ; Hexa, DLLs, LabVIEW | |
| Interface | USB or UART | ||
| Power supply | 24V / 4A (110V/220V adapter included) | ||
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | Version 1 : Direct modulation PN : Shaper-Direct | High speed laser diode driver; User designed nanosecond pulse shapes from integrated AWG ; Max current : 1600mA , max repetition rate : 20 MHz ; Pulse resolution : 500 picosecond ; Max pulse duration : 8 µsec | 4 995€ | 1 - 2 weeks | |||
| Version 2 : External modulation PN : Shaper-External | High speed laser diode and external modulator driver with user designed nanosecond pulse shapes from the integrated AWG : the driver generates a square pulse or CW laser diode signal and… Read more High speed laser diode and external modulator driver with user designed nanosecond pulse shapes from the integrated AWG : the driver generates a square pulse or CW laser diode signal and produces the external voltage signal to drive an external EOM (Electro Optic Modulator) or AOM (Acousto Optic Modulator). Max peak current (square laser diode pulse) : 1750 mA ; Max average current (laser diode) : 400 mA ; max voltage (EOM or AOM driver) : 1V or 5V. An additional external RF amplifier is supplied to reach the best performances with 5V output. Less | 4 995€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION-1 : Mounting set for optical tables PN : OPTION-1 | Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US… Read more Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US or Metric). The kit includes 12 mechanical pieces, 36 dedicated screws and 4 fiber optic mating sleeves to stack up to 4 AeroDIODE products. Several kits can be mounted the one on the other to stack up to 8 or 12 products. (click to enlarge the picture) Less | 895€ | Today |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
