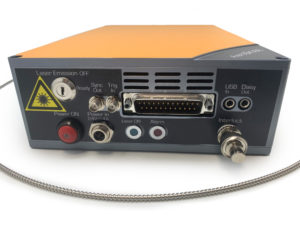

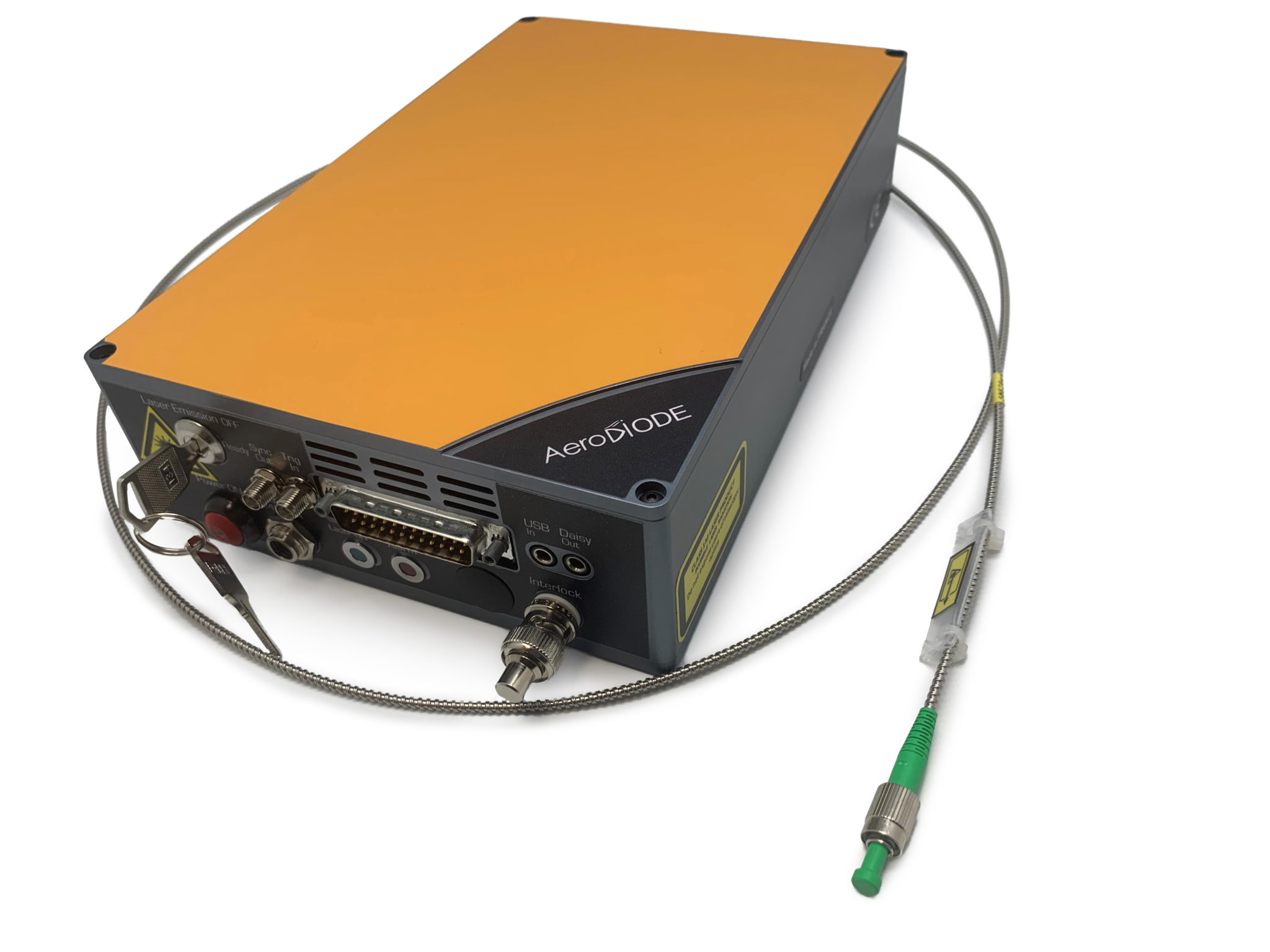

Laser seeder – SOA modulated turnkey laser seeder

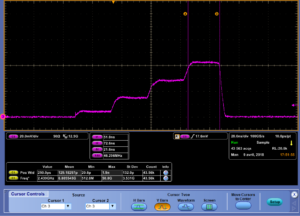

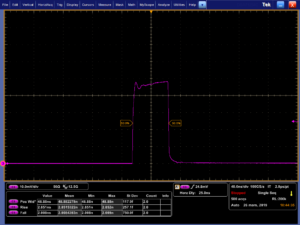

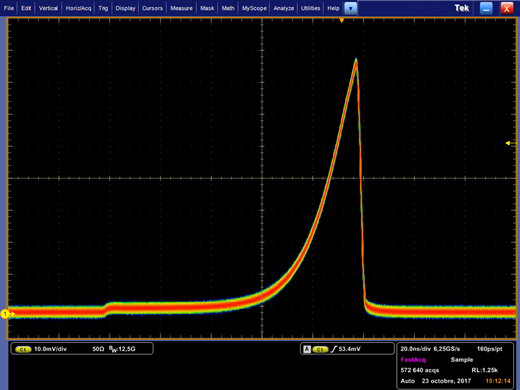

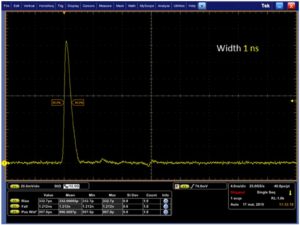

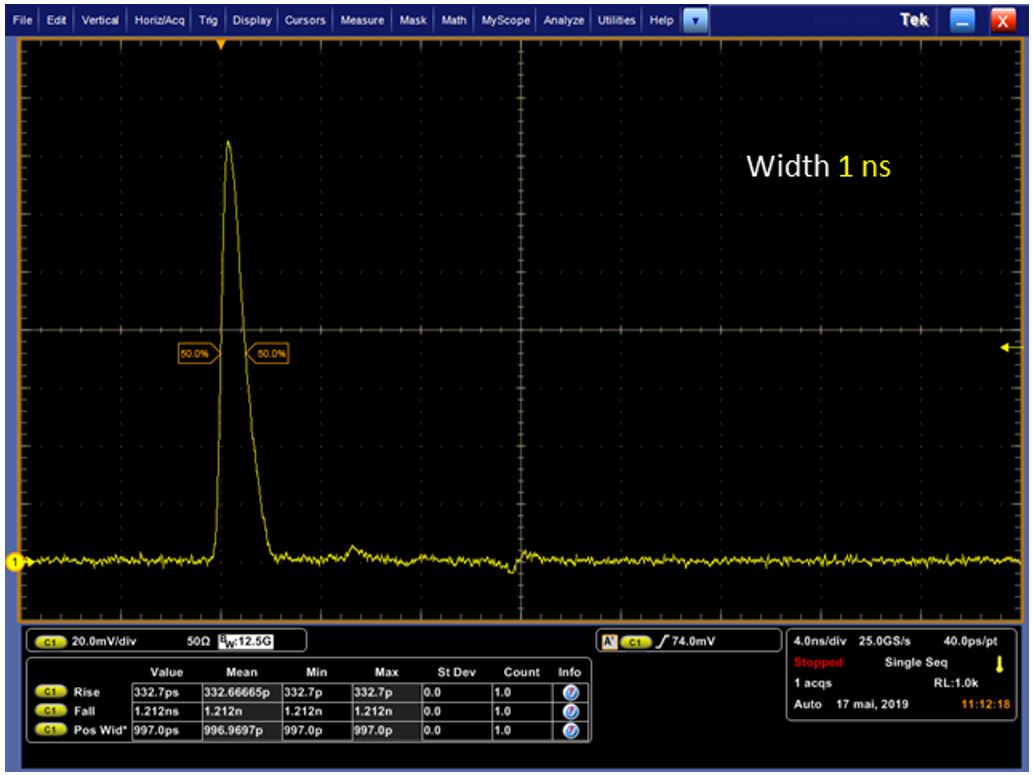

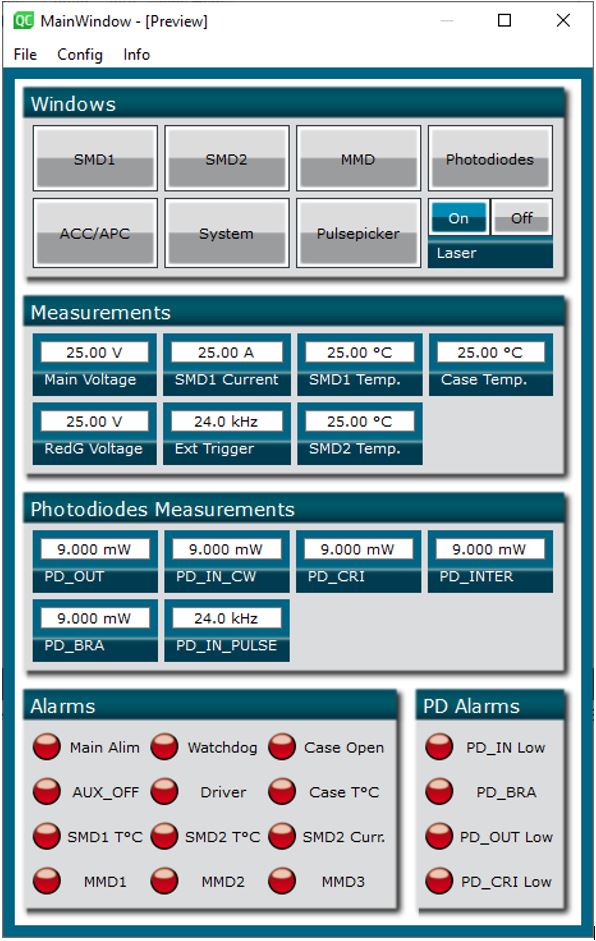

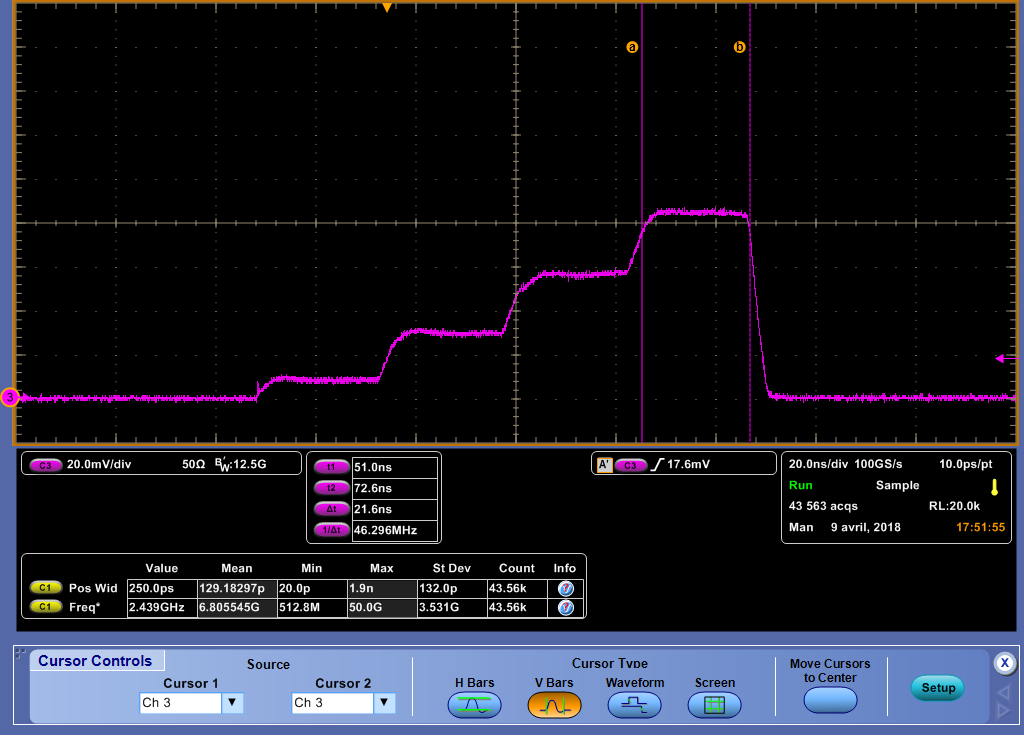

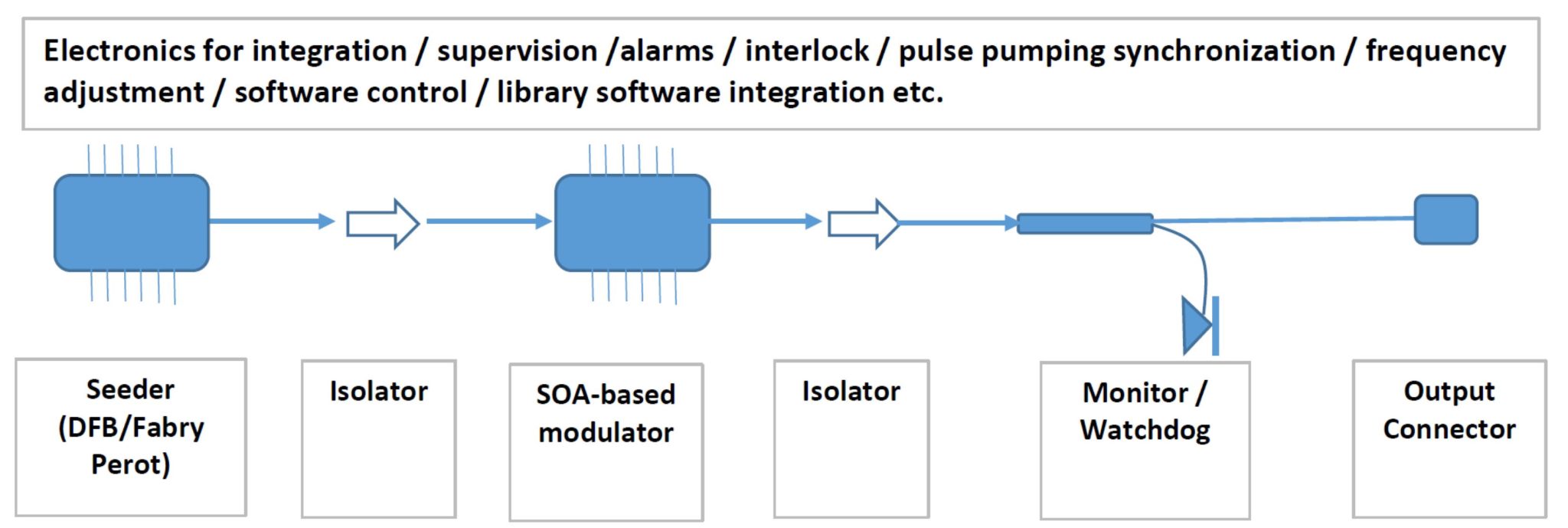

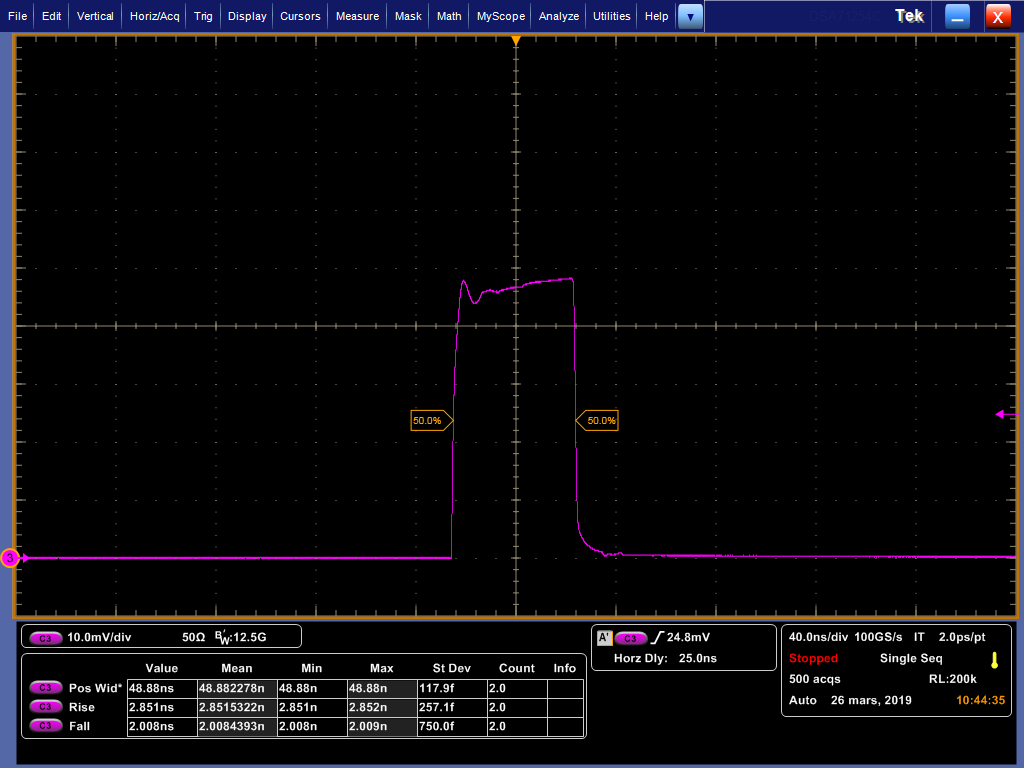

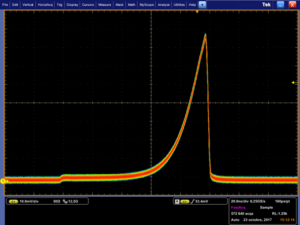

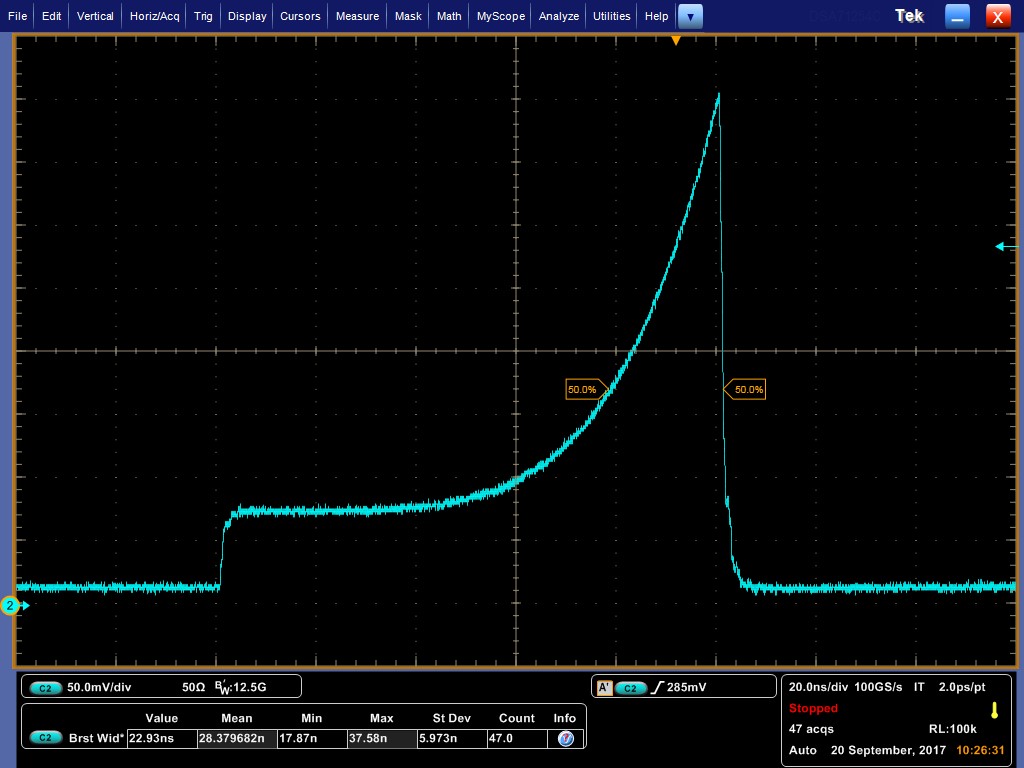

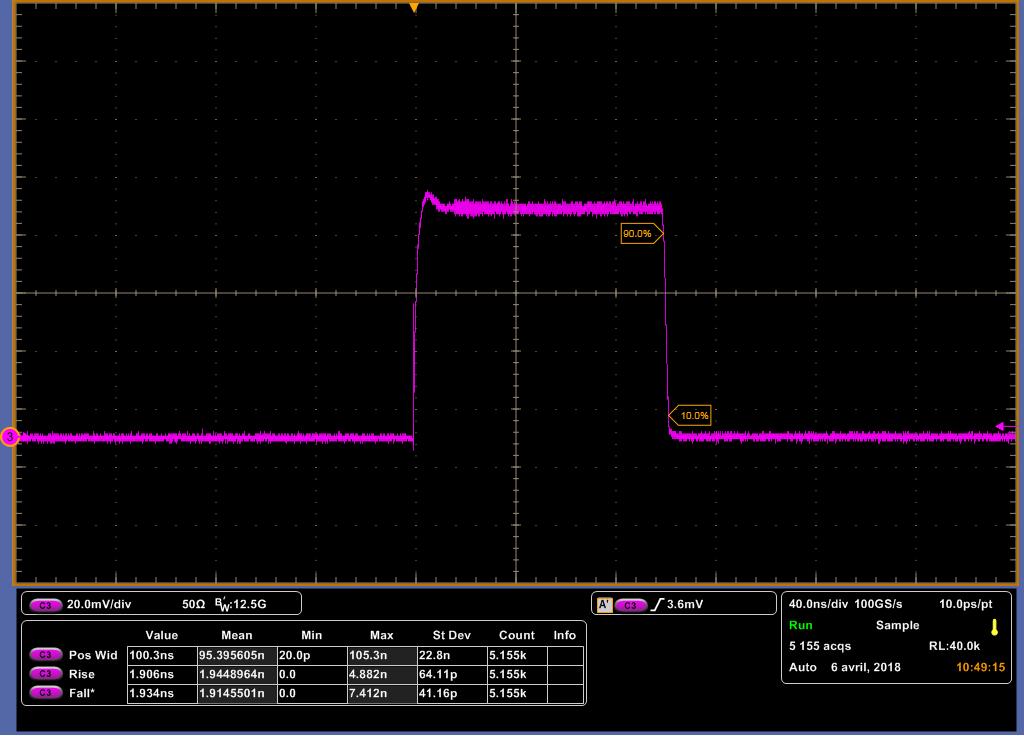

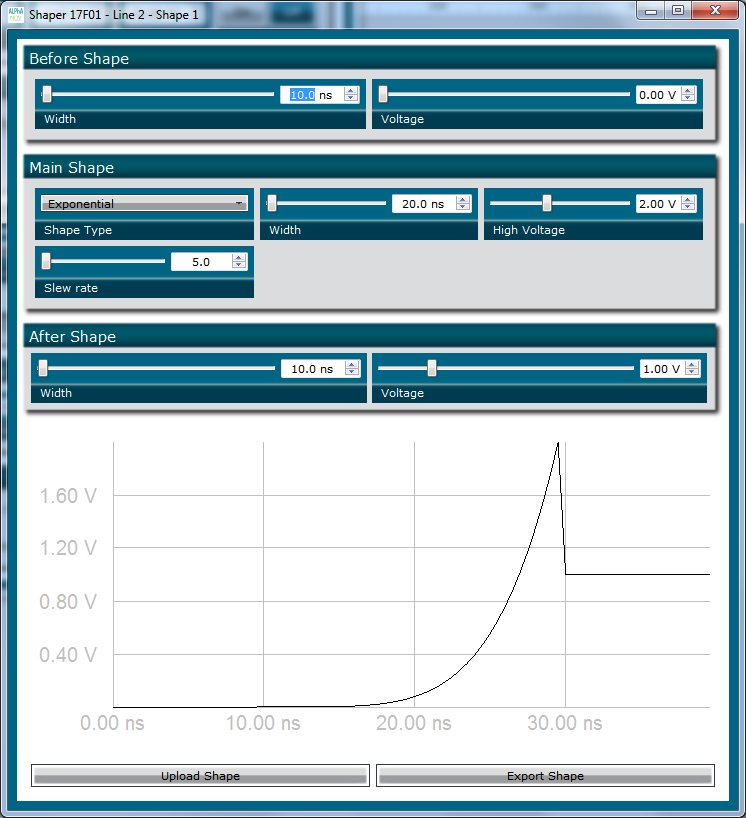

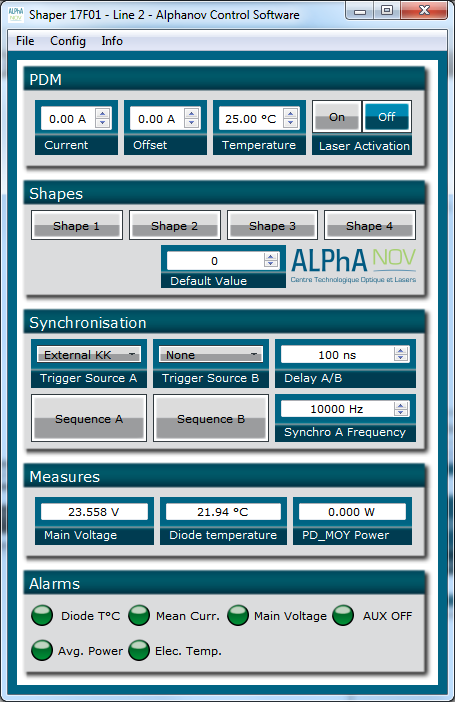

Laser seeder combining an efficient low noise laser diode at 785 nm and a Semiconductor Optical Amplifier (SOA) which modulates the light coming from the laser diode down to very short pulse. The output isolator is included. Special model with an embedded AWG (Arbitrary Waveform Generator) to allow the user to adjust precisely the temporal pule shape. Flexibility of 2 trigger modes. Pulse width range : 2ns up to 32µsec. AWG pulse resolution : 0.5ns. Electronic pulse dynamic range : 48dB. Max pulse peak power 100mW, inter-pulse extinction ratio of 65dB (typical values). Ultra-low - few ps range - Jitter from internal trigger. External triggering has a 2ns Jitter linked with the internal clock. Possibility to reach ultra low jitter level with external trigger when synchronizing the internal clock with a 10MHz reference clock. The product includes a compete GUI software and several Libraries (LabVIEW, Python, DLLs, Hexa etc.).

Laser seeder combining an efficient low noise DFB laser diode at 1030nm and a Semiconductor Optical Amplifier (SOA) which modulates the light coming from the laser diode down to very short pulse. The output isolator is included. Special model with an embedded AWG (Arbitrary Waveform Generator) to allow the user to adjust precisely the temporal pule shape. Flexibility of 2 trigger modes. Pulse width range : 2ns up to 32µsec. AWG pulse resolution : 0.5ns. Electronic pulse dynamic range : 48dB. Max pulse peak power 100mW, inter-pulse extinction ratio of 65 dB (typical values). Ultra-low - few ps range - Jitter from internal trigger. External triggering has a 2ns Jitter linked with the internal clock. Possibility to reach ultra low jitter level with external trigger when synchronizing the internal clock with a 10MHz reference clock. The product includes a compete GUI software and several Libraries (LabVIEW, Python, DLLs, Hexa etc.).

Laser seeder combining an efficient low noise DFB laser diode at 1053nm and a Semiconductor Optical Amplifier (SOA) which modulates the light coming from the laser diode down to very short pulse. The output isolator is included. Special model with an embedded AWG (Arbitrary Waveform Generator) to allow the user to adjust precisely the temporal pule shape. Flexibility of 2 trigger modes. Pulse width range : 2ns up to 32µsec. AWG pulse resolution : 0.5ns. Electronic pulse dynamic range : 48 dB. Max pulse peak power 100mW, inter-pulse extinction ratio of 65dB (typical values). Ultra-low - few ps range - Jitter from internal trigger. External triggering has a 2ns Jitter linked with the internal clock. Possibility to reach ultra low jitter level with external trigger when synchronizing the internal clock with a 10MHz reference clock. The product includes a compete GUI software and several Libraries (LabVIEW, Python, DLLs, Hexa etc.).

Laser seeder combining an efficient low noise DFB laser diode at 1064nm and a Semiconductor Optical Amplifier (SOA) which modulates the light coming from the laser diode down to very short pulse. The output isolator is included. Special model with an embedded AWG (Arbitrary Waveform Generator) to allow the user to adjust precisely the temporal pule shape. Flexibility of 2 trigger modes. Pulse width range : 2ns up to 32µsec. AWG pulse resolution : 0.5ns. Electronic pulse dynamic range : 48dB. Max pulse peak power 100mW, inter-pulse extinction ratio of 65dB (typical values). Ultra-low - few ps range - Jitter from internal trigger. External triggering has a 2ns Jitter linked with the internal clock. Possibility to reach ultra low jitter level with external trigger when synchronizing the internal clock with a 10MHz reference clock. The product includes a compete GUI software and several Libraries (LabVIEW, Python, DLLs, Hexa etc.).

Laser seeder combining an efficient low noise DFB laser diode at 1310nm and a Semiconductor Optical Amplifier (SOA) which modulates the light coming from the laser diode down to very short pulse. The output isolator is included. Special model with an embedded AWG (Arbitrary Waveform Generator) to allow the user to adjust precisely the temporal pule shape. Flexibility of 2 trigger modes. Pulse width range : 2ns up to 32µsec. AWG pulse resolution : 0.5ns. Electronic pulse dynamic range : 48 dB. Max pulse peak power 100 mW, inter-pulse extinction ratio of 65dB (typical values). Ultra-low - few ps range - Jitter from internal trigger. External triggering has a 2ns Jitter linked with the internal clock. Possibility to reach ultra low jitter level with external trigger when synchronizing the internal clock with a 10MHz reference clock. The product includes a compete GUI software and several Libraries (LabVIEW, Python, DLLs, Hexa etc.).

Laser seeder combining an efficient low noise DFB laser diode at 1550nm and a Semiconductor Optical Amplifier (SOA) which modulates the light coming from the laser diode down to very short pulse. The output isolator is included. Special model with an embedded AWG (Arbitrary Waveform Generator) to allow the user to adjust precisely the temporal pule shape. Flexibility of 2 trigger modes. Pulse width range : 2ns up to 32µsec. AWG pulse resolution : 0.5ns. Electronic pulse dynamic range : 48dB. Max pulse peak power 100mW, inter-pulse extinction ratio of 65dB (typical values). Ultra-low - few ps range - Jitter from internal trigger. External triggering has a 2ns Jitter linked with the internal clock. Possibility to reach ultra low jitter level with external trigger when synchronizing the internal clock with a 10MHz reference clock. The product includes a compete GUI software and several Libraries (LabVIEW, Python, DLLs, Hexa etc.).
