This high end turnkey low noise linear power supply is available with either a single, double or a triple voltage output. The standard stock items have respectively a 5V, double 2V/12V or a triple 5V/12V & 15V output. It is possible to order a special model with single or multiple voltage outputs in the 2-18V Voltage range. Scroll down to see all configurations and prices.
From: 1 295€
All shippings with DHL Express
Low noise linear power supply – Key Features (scroll down to see all configurations and prices) :
| Model | Datasheet | Number of voltage outputs | Output voltage | Max output current | Voltage accuracy (Typ/max) | Short circuit protection | Voltage noise density (down to) | Residual ripple (down to) | Dimensions (mm3) | Price |
|---|---|---|---|---|---|---|---|---|---|---|

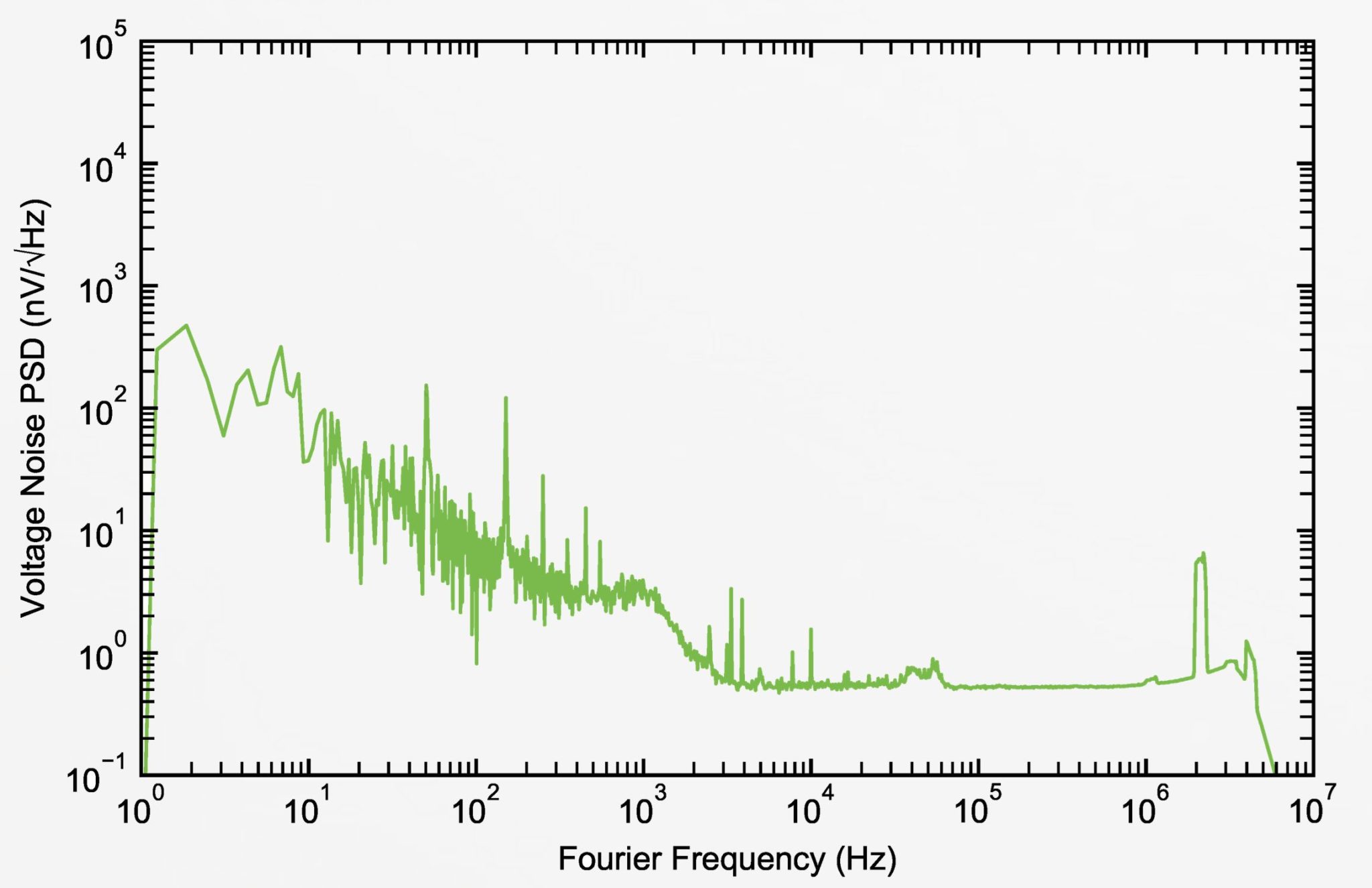

| UltraPS-1 | Datasheet | 1 | 5V or special | 3A | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 125*80*35 | Scroll down ! |
| UltraPS-2 | Datasheet | 2 | 2V/12V or special | 8A / 1.3A | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 107*66.5*29 | |
| UltraPS-3 | Datasheet | 3 | 5V / 12V / 15V or any special | 3A / 1.3A / 1.3 A (total 25W) | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 115*125*32 |
A key application of this low noise linear power supply includes the powering of key low noise active stabilization setup for ultra-narrow linewidth laser sources used , for example, in telecom or quantum optics domain.
This low noise linear power supply works alone or in series with other products in our range :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Model | Datasheet | Number of voltage outputs | Output voltage | Max output current | Voltage accuracy (Typ/max) | Short circuit protection | Voltage noise density (down to) | Residual ripple (down to) | Dimensions (mm3) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| UltraPS-1 | Datasheet | 1 | 5V or special | 3A | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 125*80*35 | Scroll down ! |
| UltraPS-2 | Datasheet | 2 | 2V/12V or special | 8A / 1.3A | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 107*66.5*29 | |
| UltraPS-3 | Datasheet | 3 | 5V / 12V / 15V or any special | 3A / 1.3A / 1.3 A (total 25W) | 0.4%/1% | Yes | 500pV/sqrtHz | 5µV rms (1Hz-1Mhz) | 115*125*32 |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

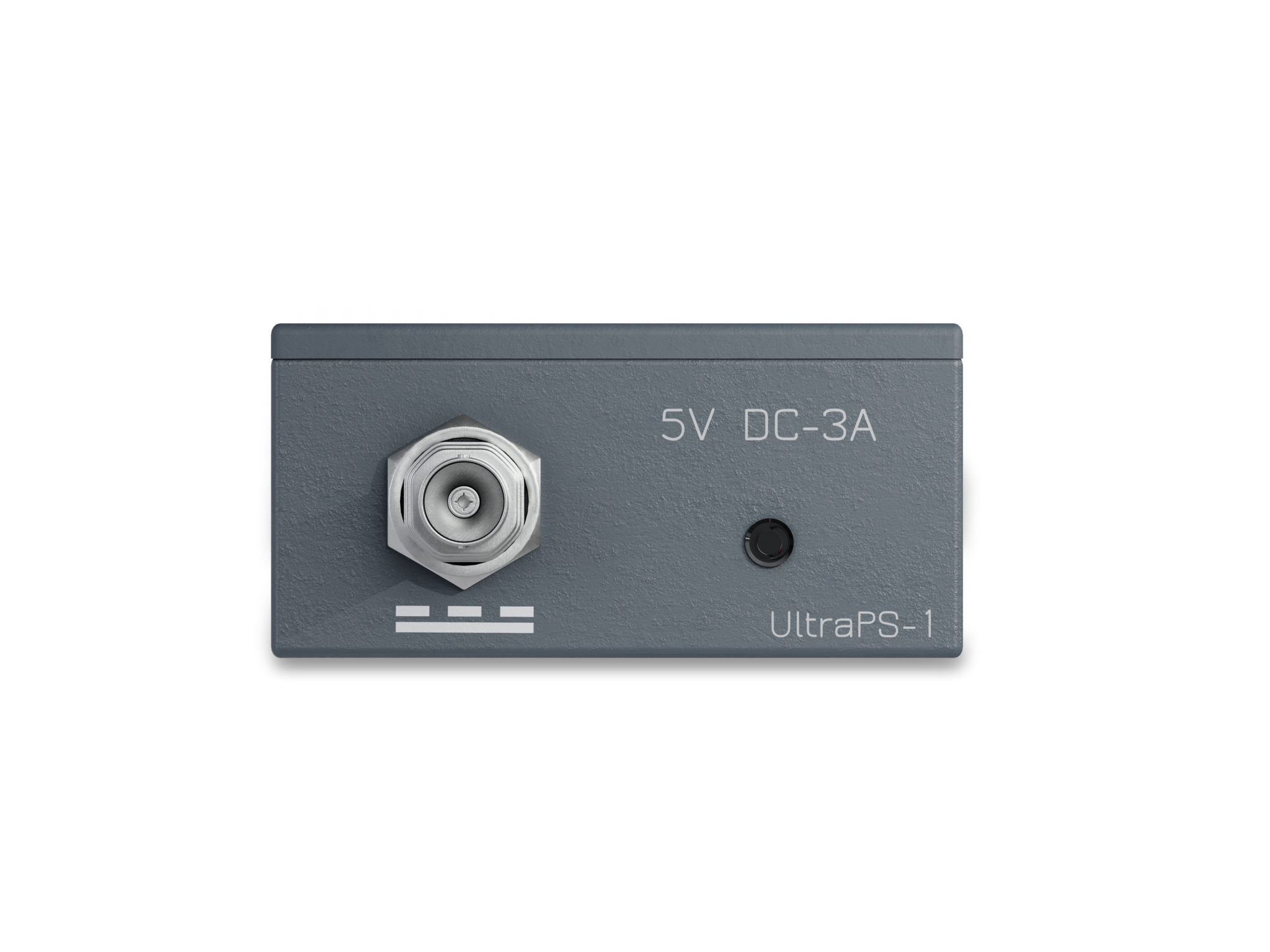

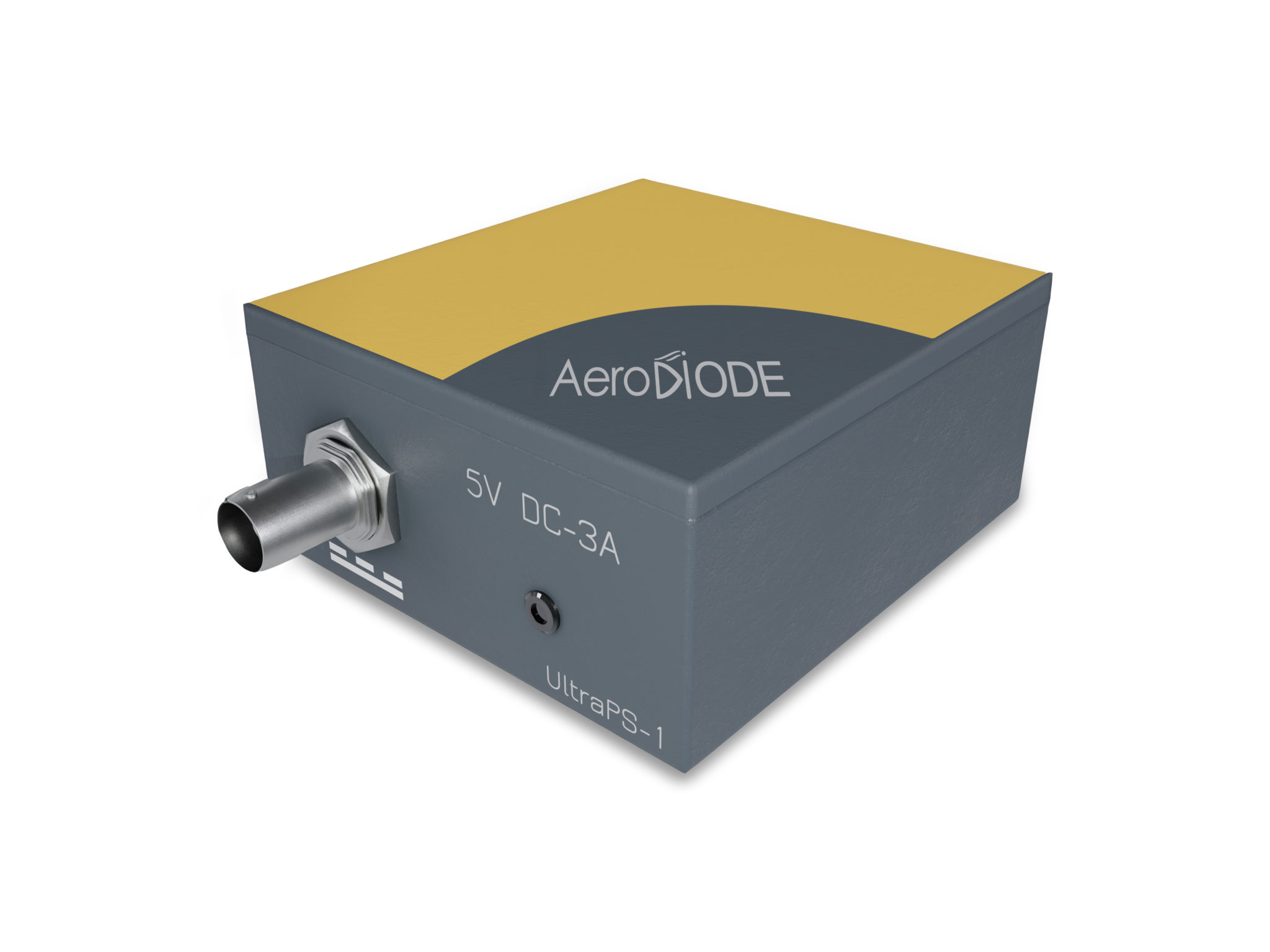

 | UltraPS-1 : Ultra low noise linear power supply; +5V single output version PN : UltraPS-1 | Single output +5V power supply with ultra low noise performance. Short circuit protection and bicilor LED for current limit indication. 100s pV range noise density and few µV range rms… Read more Single output +5V power supply with ultra low noise performance. Short circuit protection and bicilor LED for current limit indication. 100s pV range noise density and few µV range rms noise. Less | 1 295€ | 3 weeks | |||

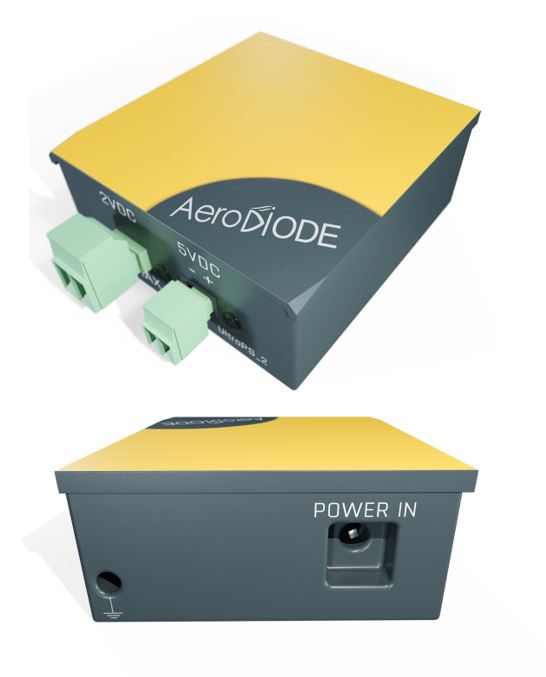

 | UltraPS-2 : Ultra low noise linear power supply; +2/+12V double output version PN : UltraPS-2 | Double output +2V/+12V power supply with ultra low noise performance. Short circuit protection and 3 bicolor LEDs for current limit indication. 100s pV range noise density and few µV range… Read more Double output +2V/+12V power supply with ultra low noise performance. Short circuit protection and 3 bicolor LEDs for current limit indication. 100s pV range noise density and few µV range rms noise. Less | 1 445€ | 3 weeks | |||

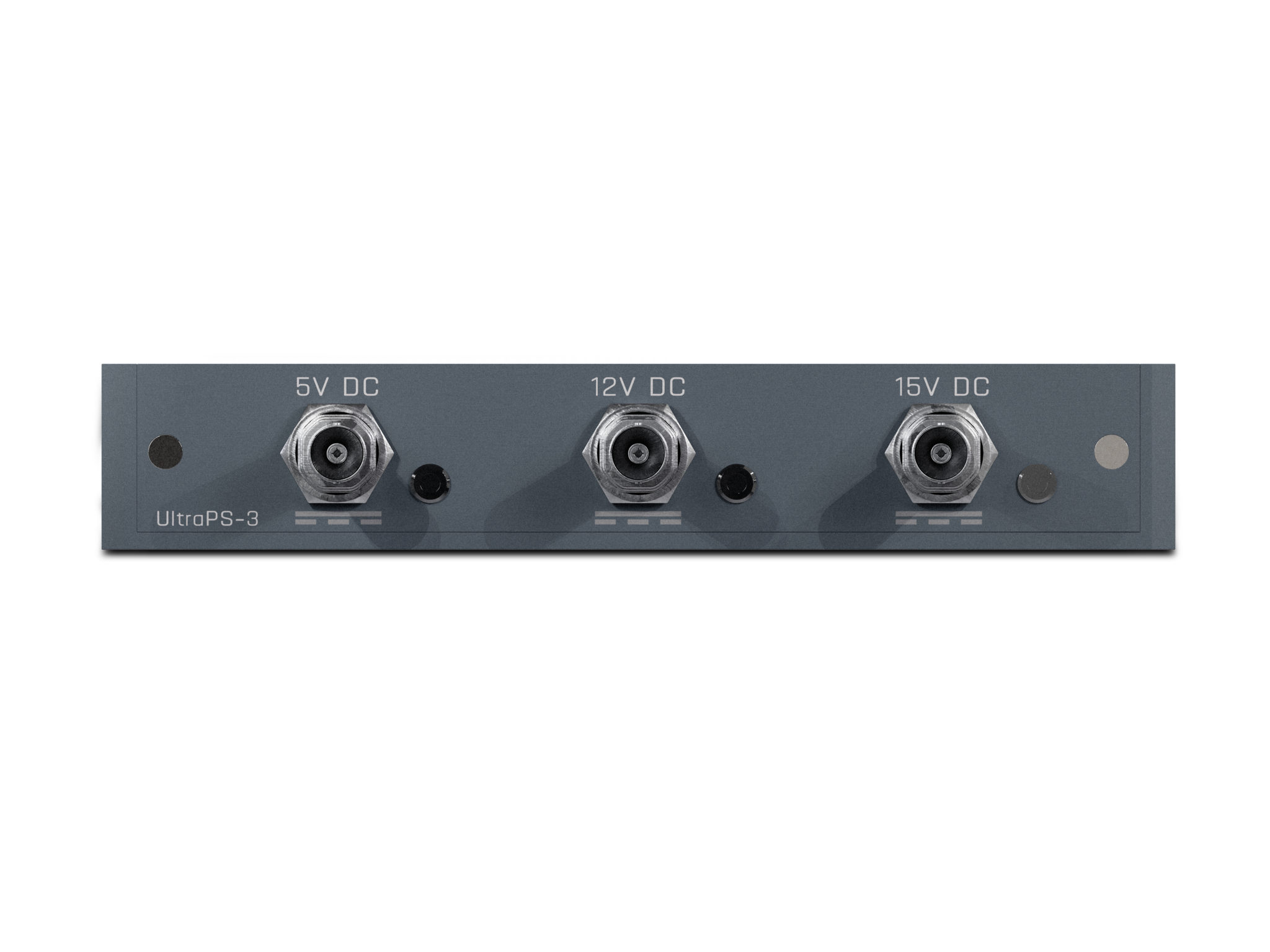

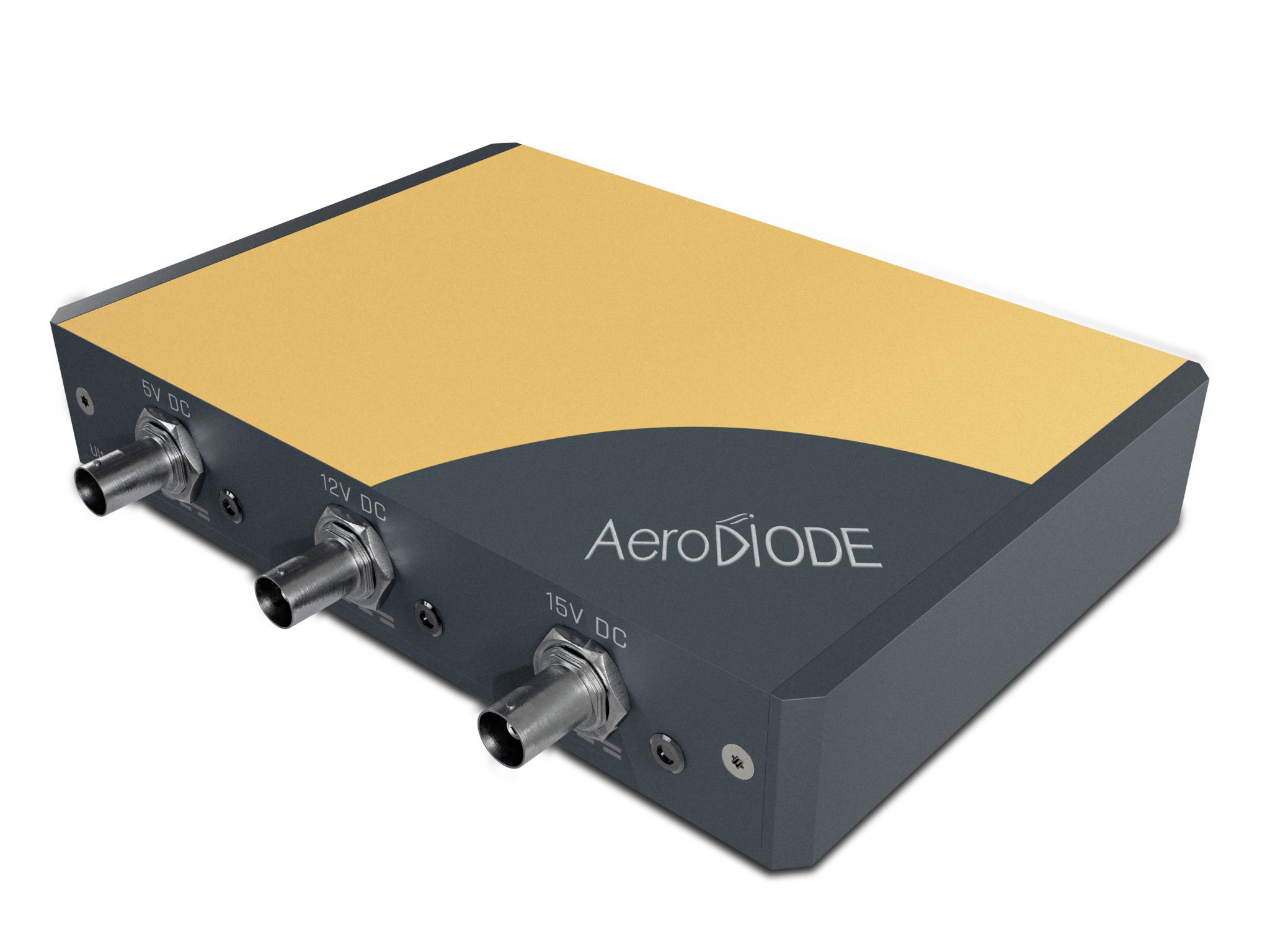

 | UltraPS-3 : Ultra low noise linear power supply; +5V/12V/15V triple output version PN : UltraPS-3 | Triple output +5V/+12V/+15V power supply with ultra low noise performance. Short circuit protection and 3 bicolor LEDs for current limit indication. 100s pV range noise density and few µV… Read more Triple output +5V/+12V/+15V power supply with ultra low noise performance. Short circuit protection and 3 bicolor LEDs for current limit indication. 100s pV range noise density and few µV range rms noise. 25W max total power Less | 1 945€ | 3 weeks | |||
| UltraPS-1S : Ultra low noise linear power supply - single output version with special voltage level PN : UltraPS-1S | Special low noise linear power supply with the voltage level specified by the customer in the range 2V-18V. 100s pV range noise density and few µV range rms noise… Read more Special low noise linear power supply with the voltage level specified by the customer in the range 2V-18V. 100s pV range noise density and few µV range rms noise. voltage precision <1%. Less | 1 495€ | 3 - 4 weeks | |||
| UltraPS-2S : Ultra low noise linear power supply - double output with 2 special voltage levels PN : UltraPS-2S | Triple output power supply with ultra low noise performance. Short circuit protection and 2 bicolor LEDs for current limit indication. The 2 voltage levels are specified by the customer in the range 2… Read more Triple output power supply with ultra low noise performance. Short circuit protection and 2 bicolor LEDs for current limit indication. The 2 voltage levels are specified by the customer in the range 2V-18V. Voltage precision <1%.100's pV range noise density and few µV range rms noise. The special connector is due to the high level of current of the low voltage output. Less | 1 695€ | 3 - 4 weeks | |||
| UltraPS-3S : Ultra low noise linear power supply - triple output with 3 special voltage levels PN : UltraPS-3S | Triple output power supply with ultra low noise performance. Short circuit protection and 3 bicolor LEDs for current limit indication. The 3 voltage levels are specified by the customer in the range 2… Read more Triple output power supply with ultra low noise performance. Short circuit protection and 3 bicolor LEDs for current limit indication. The 3 voltage levels are specified by the customer in the range 2V-18V. Voltage precision <1%.100's pV range noise density and few µV range rms noise. 25W max total power Less | 2 345€ | 3 - 4 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
