This pulsed laser diode driver delivers precision pulses which are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. It is compatible with most of the available laser diode form factors. Butterfly laser diodes are easily driven in CW or pulsed regime at any frequency and any duty cycle up to 250 MHz repetition rate.
From: 2 745€
All shippings with DHL Express

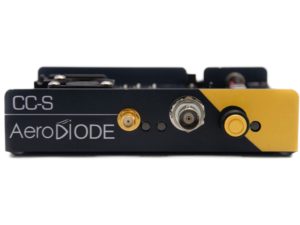

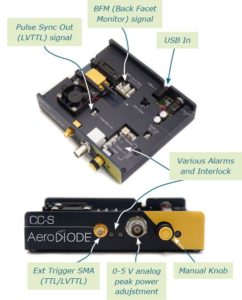

CCS is a very compact and modular pulsed laser diode driver. It is compatible with nearly any laser diode form factor.
This high speed driver can be used for laser seeding, LIDAR or 1D-3D-sensing testing, VCSEL evaluation, Fiber lasers etc.

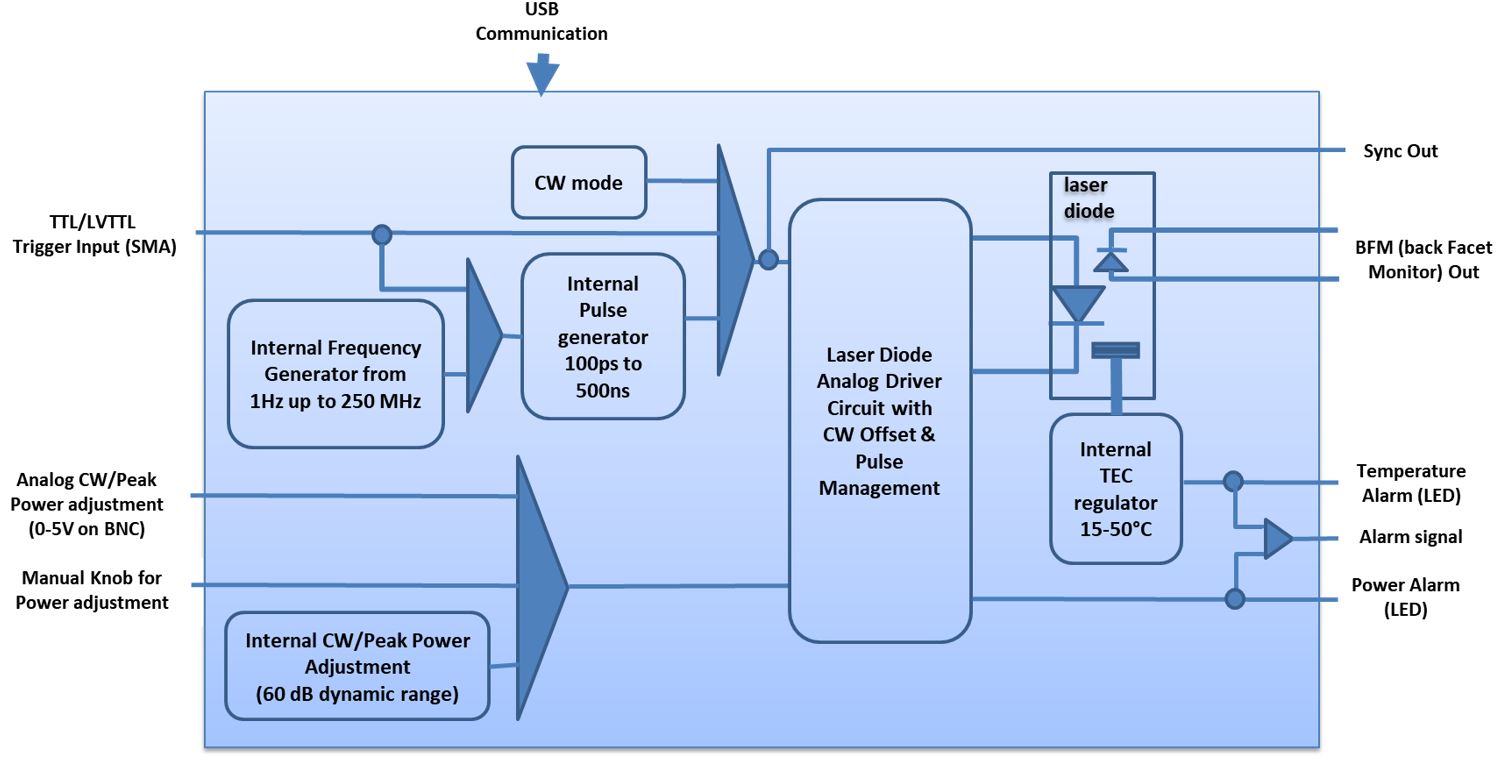

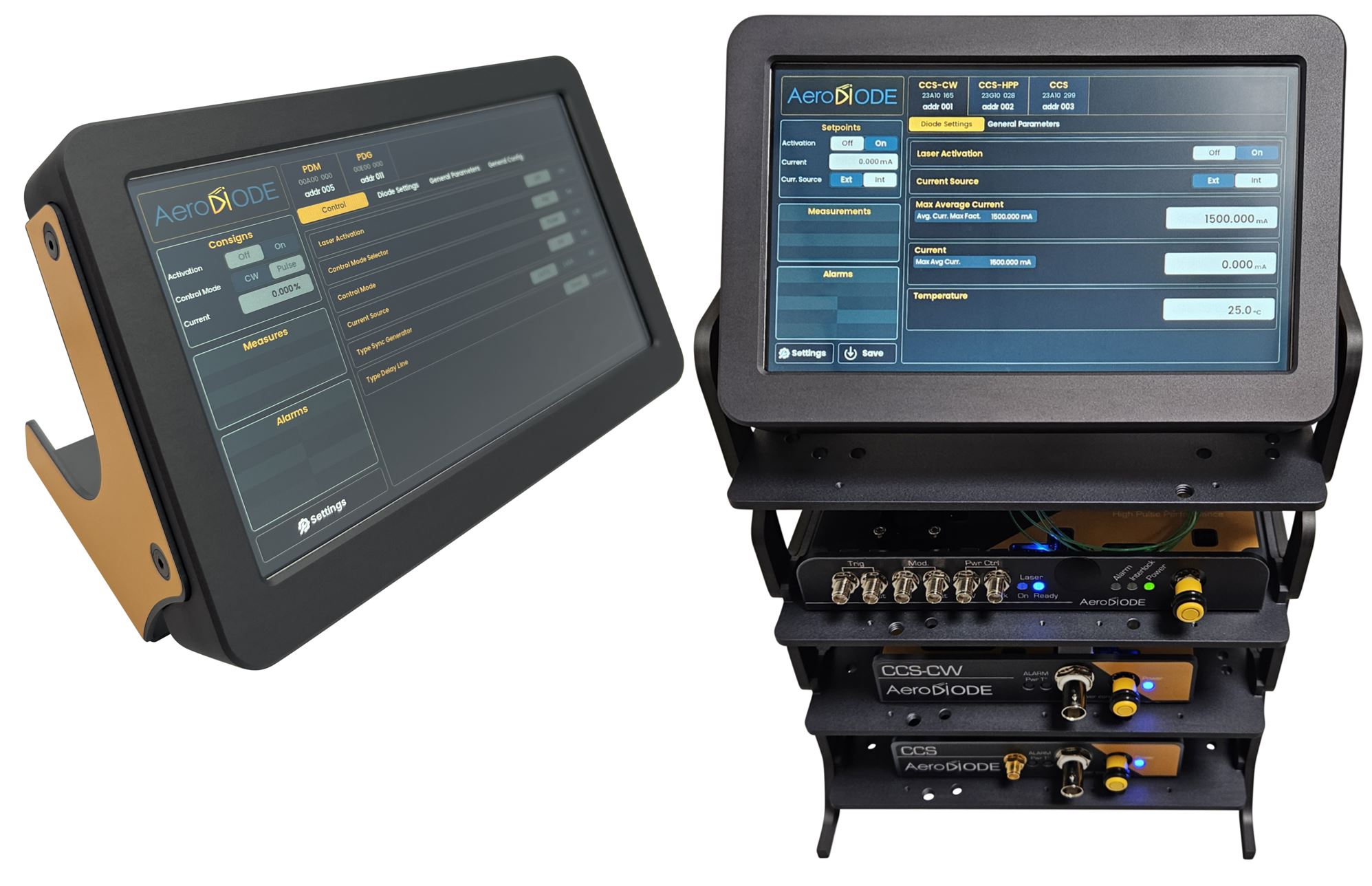

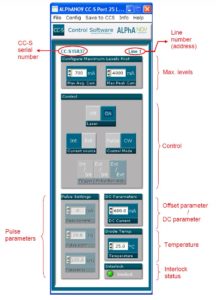

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.).
All AeroDIODE products can be connected together with a single GUI interface which consolidates all module functions. This allows the users to save a lot of time.
This pulsed laser diode driver works alone or in series with other products in our range like :
Butterfly laser diodes such as Lumentum  are easily driven in CW or pulsed regime from single shot up to 250 MHz repetition rate. See our Tutorial on fiber coupled laser diodes : Fiber-coupled laser diode basics
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is an Iso-9001-2015 certified company and a member of EPIC European industry association and “Route des Lasers” Cluster.
| CCS-std | CCS-HP (High Power) | CCS-UHP (Ultra High Power) | CCS-HPP (High Pulse Performance) | Shaper (User-design pulse shape - see special product page) |
|
|---|---|---|---|---|---|
| Output current - Pulse regime | 1.5 A | 3.5 A | 9A | 4A | 1.6 A |
| Output current - CW regime | 0.8 A | 1.5 A | 2 A | no | |
| Output voltage range | up to 4.8 V | up to 5/10 V | 1 - 24 V (adjustable) | up to 24 V | |
| Laser diode T° range | 15-50 °C | ||||

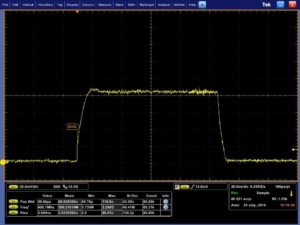

| Pulse duration (Ext pulse trigger) | 0.5 ns - CW | 0.5 ns - 8 µs | |||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | ||||
| Typ rise/fall time (TO/Butterfly/VCSEL) (1) | 1 / 3 / 0.5 (ns/A) | 0.5 / <1 / <0.5 (ns/A) | |||

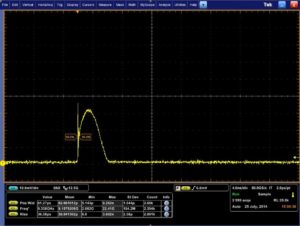

| Typ min pulse duration (Butterfly) | 1.5 ns | 5 ns | 1 ns | ||
| Internal rep rate adjustment | 1 Hz - 4 MHz | 1 Hz - 10 MHz | 1 Hz - 250 MHz | 1 Hz - 20 MHz | |
| Temporal Jitter (rms) | < 25 ps | < 8 ps | < 1.5 ns | ||
| Adj. CW offset in pulse regime | No | Yes | No | ||
| User design temporal pulse shape | No | Yes | |||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa - Labview - Python | ||||
| Dimensions (mm) | 130*119*28 | 170*107*27.5 | 167*92*27 | ||
| Power supply | 12 V (110 - 220 V adapter included) | 24 V (110 - 220 V adapter included) | |||
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 |
Standard version (1.5 A)
PN : CCS-std
|
Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. Standard version : 800 mA average /1500 mA peak / 4… Read more Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. Standard version : 800 mA average /1500 mA peak / 4 MHz Less |
2 745€ |
Today |
|||
|
High-Power version (3.5 A)
PN : CCS-HP
|
Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. High Power version : 800 mA average / 3.5A… Read more Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. High Power version : 800 mA average / 3.5A peak / 10 MHz Less |
3 895€ |
Today |
|||
|
Ultra-High-Power version (9 A)
PN : CCS-UHP
|
Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. Ultra High Power version : 1.5A average / 9… Read more Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. Ultra High Power version : 1.5A average / 9A peak / 10 MHz. Less |
4 895€ |
2 - 5 days |
|||
 |

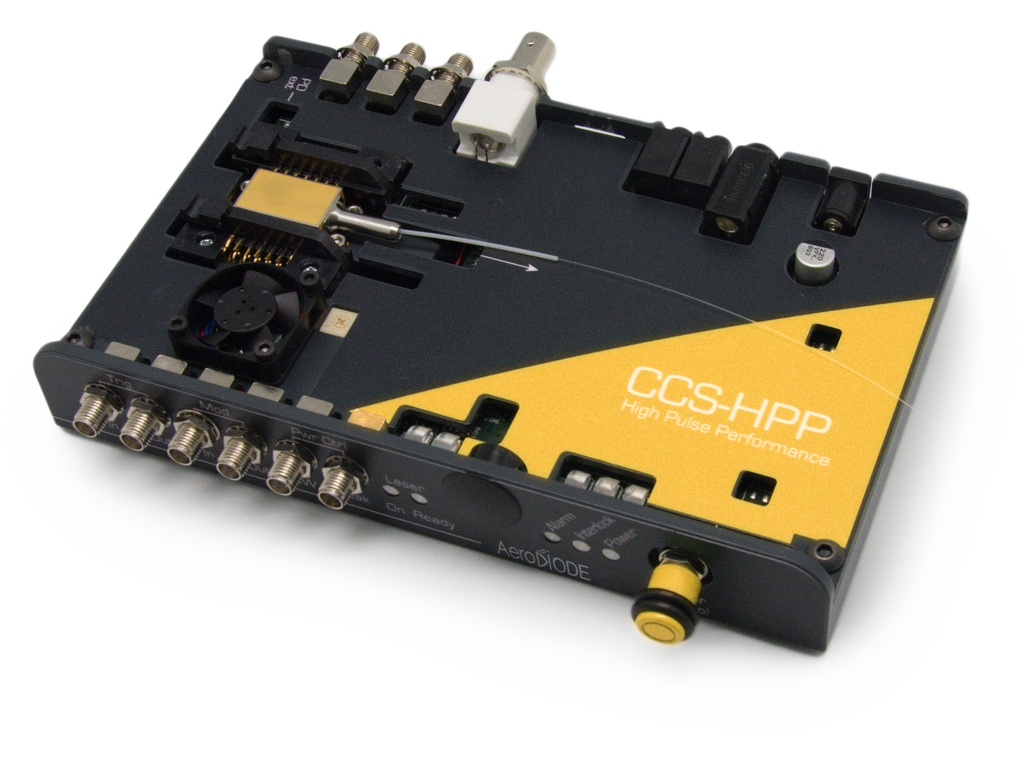

New: High-Pulse-Performance version (4 A)
PN : CCS-HPP
|
Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. High Pulse Performance version : 2 A CW / 4… Read more Pulsed & CW laser diode driver with TEC control ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. High Pulse Performance version : 2 A CW / 4 A peak / 250 MHz Less |
5 995€ |
2 - 5 days |
|||
Picture |
ShortPN |
Description |
Docs |
Price |
Avalaible |
Qty |
|
 |
Standard version (1.5 A) - board level
PN : CCS-std-OEM
|
Pulsed & CW laser diode driver with TEC control ; Standard version : 800 mA average /1500 mA peak / 4 MHz Read more Pulsed & CW laser diode driver with TEC control ; Standard version : 800 mA average /1500 mA peak / 4 MHz Less |
Contact Us |
||||
Picture |
ShortPN |
Description |
Docs |
Price |
Avalaible |
Qty |
|
 |
OPTION 1 : 250 MHz rep. rate for CCS-std or CCS-HP
PN : OPTION-1
|
CCS-HP is an interesting module which allows to increase the duty cycle up to 100%. It is possible to keep a 50% duty cycle up to very high repetition rate. This option… Read more CCS-HP is an interesting module which allows to increase the duty cycle up to 100%. It is possible to keep a 50% duty cycle up to very high repetition rate. This option lets the module reach 250 MHz in internal mode and, depending on the laser diode, it is also possible to reach higher repetition rates like 400 MHz in external mode. Contact us for more information. Less |
995€ |
Today |
|||
 |
OPTION-2 : mounting set for optical tables
PN : OPTION-2
|
Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US… Read more Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US or Metric). The kit includes 12 mechanical pieces, 36 dedicated screws and 4 fiber optic mating sleeves to stack up to 4 AeroDIODE products. Several kits can be mounted the one on the other to stack up to 8 or 12 products. (click to enlarge the picture) Less |
895€ |
Today |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
