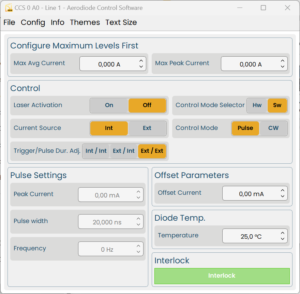

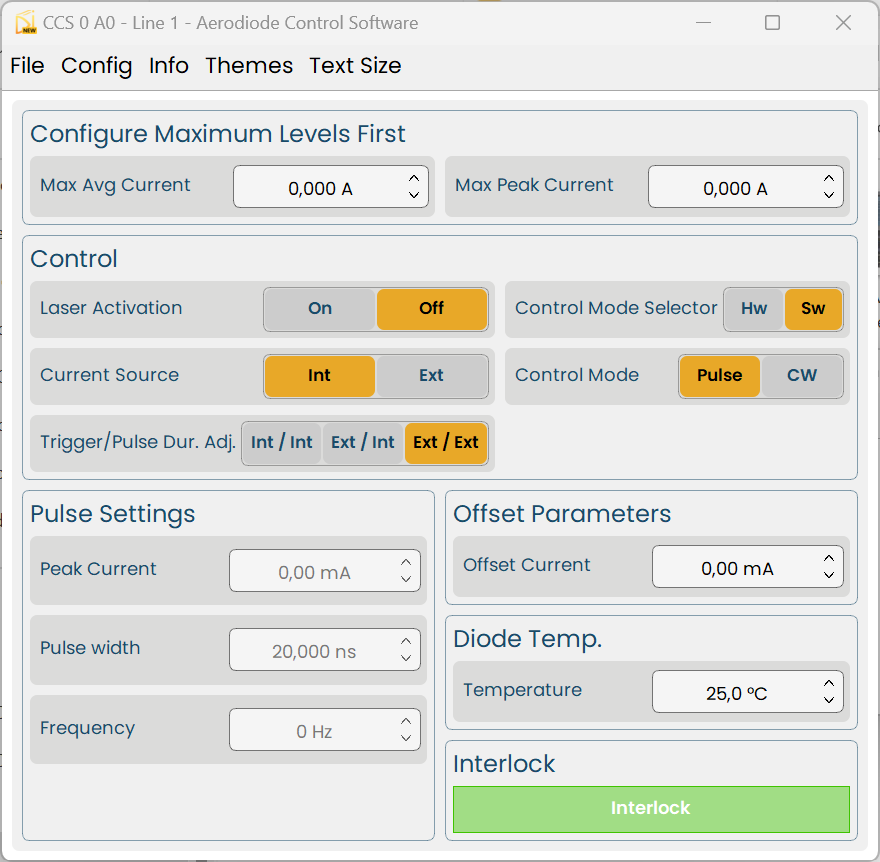

These SOA drivers are compatible with any SOA or BOA with butterfly form factor on the market. They are the most compact SOA drivers with such performances and this makes them an ideal tool for OEM integration into your product. All driver versions include a GUI control software and a wide choice of libraries for software integration (Labview, DLLs, Python, Hexa etc.).
From: 1 745€
All shippings with DHL Express
SOA/BOA drivers Key Features (scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
| 4 models available: | SOA-CW | SOA-CW-HP2 | SOA-UHP | SOA-std |
|---|---|---|---|---|
| CW or Pulsed ? | CW | CW | CW or Pulsed | CW or Pulsed |
| Max output current (CW regime) | 800mA | 1800mA | 5000mA | 800mA |
| Max output current (pulse regime) | NA | NA | 5000mA | 1500mA (3500mA on demand) |
| Switching speed (typ) | NA | NA | 5µsec | <1ns |
| SOA chip T° (TEC) regulation range | 15 – 50°C | 0 – 90°C | 15 – 50°C | 15 – 50°C |
| Temperature stability (typ.) | <10mK | <1mK | <10mK | <10mK |
| TEC current/voltage (up to) | ±1.5A / 3.8V | ±3A / 4.6V | ± 8A / 24V | ±1.5A / 3.8V |
| CW offset (in pulse mode) | NA | NA | No | Yes |
| Max repetition rate | NA | NA | 100kHz | 250MHz |
| Max output power (SOA choice dependant) | 23dBm | 26dBm | 30dBm | 23dBm |
| Interface/Compatibilities & Libraries | USB – Windows 7/11 – DLLs – Hexa – Labview – Python | |||
| Operating Voltage (*AC/DC power converter included) | 12V* | 24V* | 24V | 12V* |
| Dimensions (mm) | 110*126.8*28 | 170*107*17 | 180*94*66 | 110*126.8*28 |
Note that a separated product page is dedicated to our offer of SOA pulsed drivers.
These SOA Driver work alone or in series with other products in our range like:
See our detailed Tutorials on:
There SOA Driver are ideal solutions to drive most of the commercially available SOA Amplifiers (Semiconductor Optical Amplifiers).
| 4 models available: | SOA-CW | SOA-CW-HP2 | SOA-UHP | SOA-std |
|---|---|---|---|---|
| CW or Pulsed ? | CW | CW | CW or Pulsed | CW or Pulsed |
| Max output current (CW regime) | 800mA | 1800mA | 5000mA | 800mA |
| Max output current (pulse regime) | NA | NA | 5000mA | 1500mA (3500mA on demand) |
| Switching speed (typ) | NA | NA | 5µsec | <1ns |
| SOA chip T° (TEC) regulation range | 15 - 50°C | 0 - 90°C | 15 - 50°C | 15 - 50°C |
| Temperature stability (typ.) | <10mK | <1mK | <10mK | <10mK |
| TEC current/voltage (up to) | ±1.5A / 3.8V | ±3A / 4.6V | ± 8A / 24V | ±1.5A / 3.8V |
| CW offset (in pulse mode) | NA | NA | No | Yes |
| Max repetition rate | NA | NA | 100kHz | 250MHz |
| Max output power (SOA choice dependant) | 23dBm | 26dBm | 30dBm | 23dBm |
| Interface/Compatibilities & Libraries | USB - Windows 7/11 - DLLs - Hexa - Labview - Python | |||
| Operating Voltage (*AC/DC power converter included) | 12V* | 24V* | 24V | 12V* |
| Dimensions (mm) | 110*126.8*28 | 170*107*17 | 180*94*66 | 110*126.8*28 |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

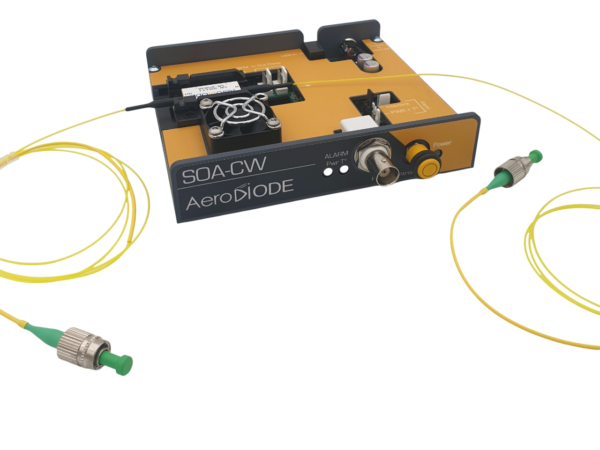

 | Standard version PN : SOA-CW | SOA CW Driver for Butterfly package SOAs (compatible with nearly all SOA models on the market) with TEC control & smart control (USB interface & Libraries). | 1 745€ | Today | |||
 | High-Power version PN : SOA-CW-HP | High power CW SOA driver for Butterfly package SOAs (compatible with nearly all SOA models on the market) with TEC control & smart control (USB interface & Libraries) Read more High power CW SOA driver for Butterfly package SOAs (compatible with nearly all SOA models on the market) with TEC control & smart control (USB interface & Libraries) Less | 3 195€ | 2 - 5 days | |||

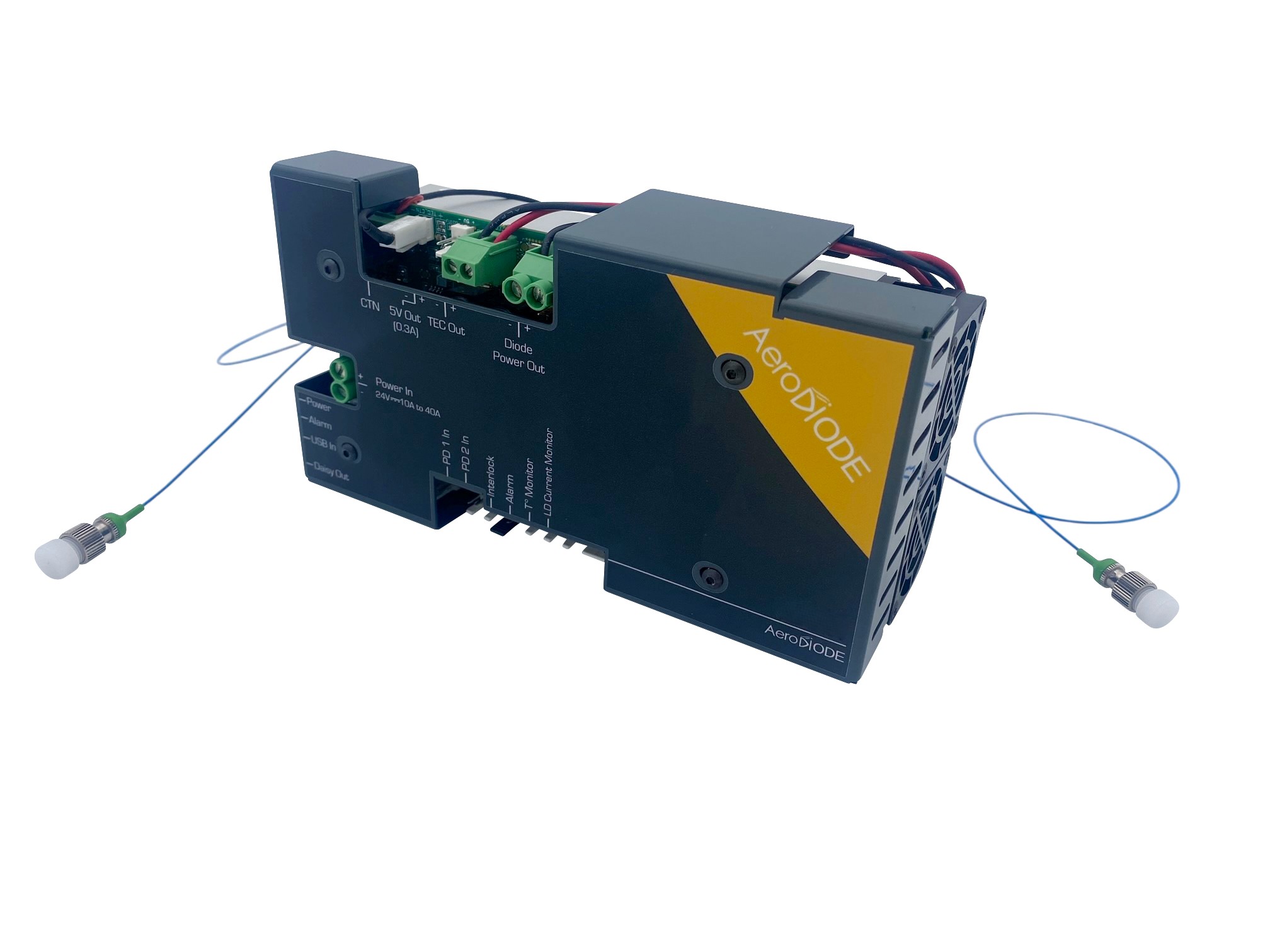

 | Ultra-High Power version PN : SOA-UHP | UHP (Ultra High Power) version for SOA/BOA up to 1000mW (max 10V - 13A). Includes 1*TEC cooler 30*30. Read more UHP (Ultra High Power) version for SOA/BOA up to 1000mW (max 10V - 13A). Includes 1*TEC cooler 30*30. Less | 4 995€ | 1 - 2 weeks | |||
 | Pulsed version PN : SOA-std | SOA pulsed & CW Driver for Butterfly package SOAs (compatible with nearly all SOA models on the market). Read more SOA pulsed & CW Driver for Butterfly package SOAs (compatible with nearly all SOA models on the market). Less | 2 995€ | Today | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : Mounting set for optical tables PN : Option-Mounting_Set | Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all AeroDIODE products and all optical tables on the market (US or… Read more Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all AeroDIODE products and all optical tables on the market (US or Metric). The kit includes 12 mechanical pieces, 36 dedicated screws and 4 fiber optic mating sleeves to stack up to 4 AeroDIODE products. Several kits can be mounted the one on the other to stack up to 8 or 12 products. (click to enlarge the picture) Less | 995€ | Today | |||
 | OPTION 2 : Multi-product GUI Touch screen PN : Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
