3 Fabry Perrot or DFB 1053 nm laser diode models are offered for short pulse or CW singlefrequency mode hop free applications. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1053nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. See our tutorial on fiber coupled laser diodes for more information about the Fabry Perrot and DFB technologies used here.
From: 1 495€
All shippings with DHL Express
1053nm laser diode Key Features (scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:
For laser diode alone, click on the models in the table below.
For turn-key “1053nm diode+driver” solutions, see the Specs here: 1053nm laser diode Datasheet
| Laser Diode model | Power (CW) | Technology | Special reports | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 120 mW | Butterfly Singlemode | 1053±5 nm (T° tunable) or (1053±1 nm with FBG Locking OPTION) | ~ 1 nm (0.2 nm with FBG locking OPTION) | 220 mA /1.4 V | 14 pin butterfly – type 1 | Yes – FC/APC | 5 µm singlemode Hi1060 (PM980 with PM OPTION) | Scroll down ! | |
| Model 2 | Datasheet | 300 mW | Butterfly Singlemode | 1053±5 nm (T° tunable) or (1053±1 nm with FBG Locking OPTION) | ~ 1 nm (0.2 nm with FBG locking OPTION) | 500 mA /1.5 V | 14 pin butterfly – type 1 | Yes – FC/APC | 5 µm singlemode Hi1060 (PM980 with PM OPTION) | ||
| Model 3 | Datasheet | 70 mW (DFB-single frequency) | Butterfly Singlemode Singlefrequency | Special linewidth test report | 1053±1 nm (tunable to Nd-YLF amplification wavelength) | ~100 kHz | 250 mA/1.5V | 14 pin butterfly – type 1 | Yes – FC/APC | 5 µm singlemode Hi1060 (PM980 with PM OPTION) |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python, LINUX etc.)
These 1053nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Complex systems, such as fiber lasers, can be quickly developed on this 1053nm laser diode module platform.
See our detailed tutorials :
AeroDIODE products leverage proprietary, cutting edge technologies which have been under development in the ALPhANOV technology center for over 15 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster.
| Laser Diode model | Power (CW) | Technology | Special reports | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 120 mW | Butterfly Singlemode | 1053±5 nm (T° tunable) or (1053±1 nm with FBG Locking OPTION) | ~ 1 nm (0.2 nm with FBG locking OPTION) | 220 mA /1.4 V | 14 pin butterfly - type 1 | Yes - FC/APC | 5 µm singlemode Hi1060 (PM980 with PM OPTION) | Scroll down ! | |
| Model 2 | Datasheet | 300 mW | Butterfly Singlemode | 1053±5 nm (T° tunable) or (1053±1 nm with FBG Locking OPTION) | ~ 1 nm (0.2 nm with FBG locking OPTION) | 500 mA /1.5 V | 14 pin butterfly - type 1 | Yes - FC/APC | 5 µm singlemode Hi1060 (PM980 with PM OPTION) | ||
| Model 3 | Datasheet | 70 mW (DFB-single frequency) | Butterfly Singlemode Singlefrequency | Special linewidth test report | 1053±1 nm (tunable to Nd-YLF amplification wavelength) | ~100 kHz | 250 mA/1.5V | 14 pin butterfly - type 1 | Yes - FC/APC | 5 µm singlemode Hi1060 (PM980 with PM OPTION) |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | Model 1 (120 mW) laser diode alone PN : 1053LD-1-0-0 | 1053nm butterfly laser diode alone . Up to 120mW CW. Hi1060 fiber output with FC/APC fiber connector. Compatible with OPTION : PM Fiber, OPTION 1 (Narrow emission with FBG), and OPTION 2 (3 mm… Read more 1053nm butterfly laser diode alone . Up to 120mW CW. Hi1060 fiber output with FC/APC fiber connector. Compatible with OPTION : PM Fiber, OPTION 1 (Narrow emission with FBG), and OPTION 2 (3 mm collimator) . Note : When OPTION 1 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 1053 nm wavelength is reached when stabilizing the laser diode chip around 10°C (All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 1 495€ | Today | |||
 | OPTION : PM fiber for model 1 PN : 1053LD-Option-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060 . Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060 . Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 250€ | Today | |||
 | Model 1 with "CCS-CW" driver PN : 1053LD-1-1-1 | Open CW driver with 1053nm butterfly laser diode and Hi1060 fiber output with FC/APC fiber connector. Up to 120 mW CW optical power. Compatible with OPTION (PM fiber), OPTION 1 (Narrow… Read more Open CW driver with 1053nm butterfly laser diode and Hi1060 fiber output with FC/APC fiber connector. Up to 120 mW CW optical power. Compatible with OPTION (PM fiber), OPTION 1 (Narrow emission spectrum with FBG) and OPTION 2 (3 mm collimator). Note : When OPTION 1 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 1053 nm wavelength is reached when stabilizing the laser diode chip around 10°C (All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 3 740€ | 2 - 5 days | |||

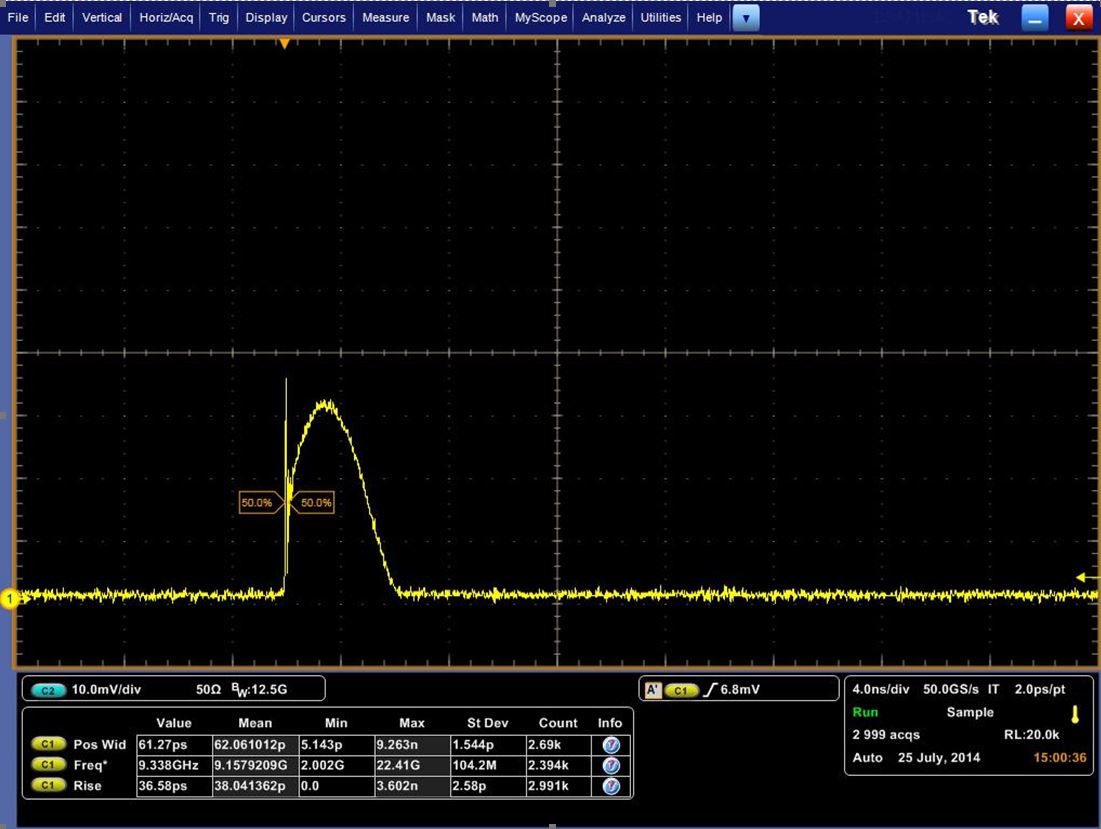

 | Model 1 with "CCS" driver PN : 1053LD-1-2-1 | Open Pulse & CW driver with 1053 nm butterfly laser diode and Hi1060 bare fiber output. Up to 120 mW CW optical power and 600 mW pulsed ; Down to 1.5 ns pulse duration ; Up… Read more Open Pulse & CW driver with 1053 nm butterfly laser diode and Hi1060 bare fiber output. Up to 120 mW CW optical power and 600 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION (PM fiber), OPTION 2 (3 mm collimator) and OPTION 3 (250 MHz version). Less | 4 740€ | 2 - 5 days | |||

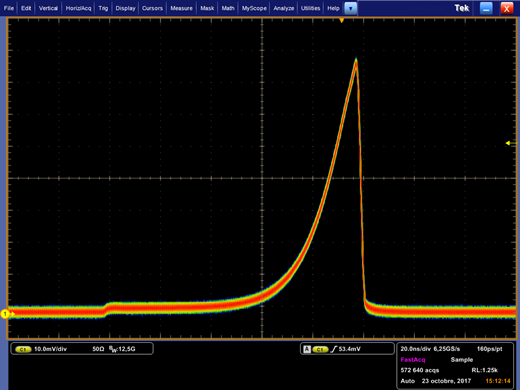

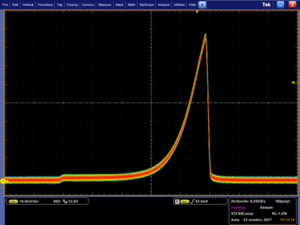

 | Model 1 with "Shaper" driver PN : 1053LD-1-3-1 | Open pulsed driver with 1053 nm butterfly singlemode laser diode with Hi1060 fiber and FC/APC connector. Up to 600 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µ… Read more Open pulsed driver with 1053 nm butterfly singlemode laser diode with Hi1060 fiber and FC/APC connector. Up to 600 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION (PM fiber) and OPTION 2 (3 mm collimator). Less | 6 490€ | 2 - 5 days | |||
 | Model 1 within "CCSI-CW" module PN : 1053LD-1-1-2 | Turn-key integrated CW laser diode module at 1053 nm. CW power up to 120 mW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION (PM fiber), OPTION 1 (Narrow… Read more Turn-key integrated CW laser diode module at 1053 nm. CW power up to 120 mW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION (PM fiber), OPTION 1 (Narrow emission spectrum with FBG), OPTION 2 (3 mm collimator) and OPTION 4 (Benchtop version). Note : When OPTION 1 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 1053 nm wavelength is reached when stabilizing the laser diode chip around 10°C (All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 4 940€ | 2 - 5 days | |||
| Model 1 within "CCSI" module PN : 1053LD-1-2-2 | Turn-key integrated laser diode module at 1053 nm for Pulse and CW emission. Hi1060 metal protected fiber output with FC/APC output connector. CW output power up to 120 mW and pulse… Read more Turn-key integrated laser diode module at 1053 nm for Pulse and CW emission. Hi1060 metal protected fiber output with FC/APC output connector. CW output power up to 120 mW and pulse up to 600 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION (PM fiber), OPTION 2 (3 mm collimator), OPTION 3 (250 MHz version) and OPTION 4 (Benchtop version). Less | 5 940€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (300 mW) laser diode alone PN : 1053LD-2-0-0 | 1053 nm butterfly laser diode alone . Up to 300 mW CW. Hi1060 fiber output with FC/APC fiber connector. Compatible with OPTION : PM Fiber, OPTION 1 (Narrow emission with FBG), and OPTION 2 (3 mm… Read more 1053 nm butterfly laser diode alone . Up to 300 mW CW. Hi1060 fiber output with FC/APC fiber connector. Compatible with OPTION : PM Fiber, OPTION 1 (Narrow emission with FBG), and OPTION 2 (3 mm collimator) . Note : When OPTION 1 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 1053 nm wavelength is reached when stabilizing the laser diode chip between 5 and 10°C (Hermetic module - All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 1 995€ | Today | |||
| OPTION : PM fiber for model 2 PN : 1053LD-Option-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060 . Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 2 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060 . Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 300€ | Today | |||
| Model 2 with "CCS-CW" driver PN : 1053LD-2-1-1 | Open CW driver with 1053 nm butterfly laser diode and Hi1060 fiber output with FC/APC fiber connector. Up to 300 mW CW optical power. Compatible with OPTION (PM fiber), OPTION 1 (Narrow… Read more Open CW driver with 1053 nm butterfly laser diode and Hi1060 fiber output with FC/APC fiber connector. Up to 300 mW CW optical power. Compatible with OPTION (PM fiber), OPTION 1 (Narrow emission spectrum with FBG) and OPTION 2 (3 mm collimator). Note : When OPTION 1 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 1053 nm wavelength is reached when stabilizing the laser diode chip between 5 and 10°C (Hermetic module - All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 4 240€ | 2 - 5 days | |||
| Model 2 with "CCS" driver PN : 1053LD-2-2-1 | Open Pulse & CW driver with 1053 nm butterfly laser diode and Hi1060 bare fiber output. Up to 300 mW CW optical power and 700 mW pulsed ; Down to 1.5 ns pulse duration ; Up… Read more Open Pulse & CW driver with 1053 nm butterfly laser diode and Hi1060 bare fiber output. Up to 300 mW CW optical power and 700 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION (PM fiber), OPTION 2 (3 mm collimator) and OPTION 3 (250 MHz version). Less | 5 240€ | 2 - 5 days | |||
| Model 2 with "Shaper" driver PN : 1053LD-2-3-1 | Open pulsed driver with 1053 nm butterfly singlemode laser diode with Hi1060 fiber and FC/APC connector. Up to 800 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µ… Read more Open pulsed driver with 1053 nm butterfly singlemode laser diode with Hi1060 fiber and FC/APC connector. Up to 800 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION (PM fiber) and OPTION 2 (3 mm collimator). Less | 6 990€ | 2 - 5 days | |||
| Model 2 within "CCSI-CW" module PN : 1053LD-2-1-2 | Turn-key integrated CW laser diode module at 1053 nm. CW power up to 300mW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION (PM fiber), OPTION 1 (Narrow… Read more Turn-key integrated CW laser diode module at 1053 nm. CW power up to 300mW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION (PM fiber), OPTION 1 (Narrow emission spectrum with FBG), OPTION 2 (3 mm collimator) and OPTION-4 (Benchtop version). Note : When OPTION 1 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 1053 nm wavelength is reached when stabilizing the laser diode chip between 5 and 10°C (Hermetic module - All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 5 440€ | 2 - 5 days | |||
| Model 2 within "CCSI" module PN : 1053LD-2-2-2 | Turn-key integrated laser diode module at 1053 nm for Pulse and CW emission up to 300 mW CW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION (PM… Read more Turn-key integrated laser diode module at 1053 nm for Pulse and CW emission up to 300 mW CW. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION (PM fiber), OPTION 1 (Narrow emission spectrum with FBG), OPTION 2 (3 mm collimator) and OPTION 4 (Benchtop version). Note : When OPTION 1 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 1053 nm wavelength is reached when stabilizing the laser diode chip between 5 and 10°C (Hermetic module - All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 6 440€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 3 (70 mW-DFB) laser diode alone PN : 1053LD-3-0-0 | 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode alone . Up to 70 mW CW. Hi1060 fiber output with FC/APC fiber connector. 250µm fiber protection buffer. Compatible… Read more 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode alone . Up to 70 mW CW. Hi1060 fiber output with FC/APC fiber connector. 250µm fiber protection buffer. Compatible with OPTION : PM Fiber and OPTION 2 (3 mm collimator) . ~100 kHz range linewidth. Note : A low noise driver is required for single-frequency narrow linewidth applications. Less | 2 995€ | Today | |||
 | OPTION : PM fiber for model 3 PN : 1053LD-Option-PM3 | With this OPTION, Model 3 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060 . Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 3 is offered with a polarization maintaining PM980 fiber instead of a standard Hi1060 . Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 650€ | Today | |||
 | Model 3 with "CCS-CW" driver PN : 1053LD-3-1-1 | 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode. Hi1060 - 900µm buffer fiber output with FC/APC fiber connector. Up to 70 mW CW optical power. Compatible… Read more 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode. Hi1060 - 900µm buffer fiber output with FC/APC fiber connector. Up to 70 mW CW optical power. Compatible with OPTION (PM fiber) and OPTION 2 (3 mm collimator). Less | 5 240€ | 2 - 5 days | |||

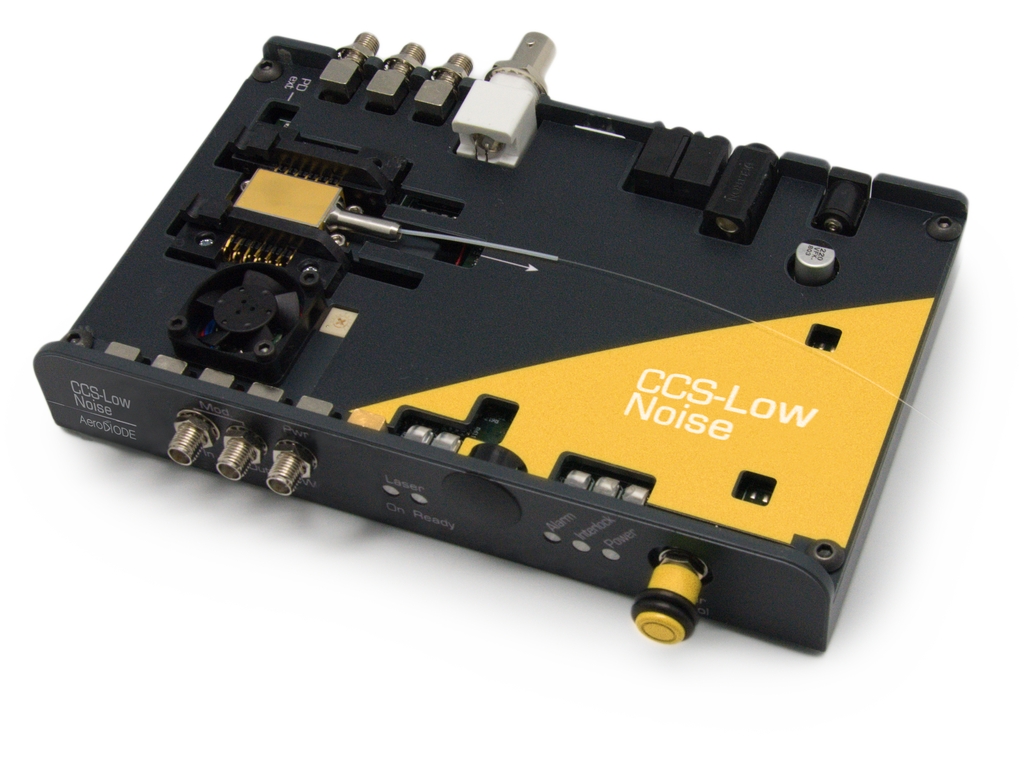

 | Model 3 with "CCS-Low Noise" driver PN : 1053LD-3-LN-1 | Open frame ultra-low noise CW driver with 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode with FC/APC fiber connector and 900µm fiber protection buffer. A… Read more Open frame ultra-low noise CW driver with 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode with FC/APC fiber connector and 900µm fiber protection buffer. A low noise driver is required for single-frequency narrow linewidth applications. Up to 70 mW CW optical power. Compatible with OPTION (PM fiber) and OPTION 2 (3 mm collimator). Less | 7 790€ | 2 - 5 days | |||
 | Model 3 with "CCS" driver PN : 1053LD-3-2-1 | Open Pulse & CW driver with 1053 nm butterfly singlefrequency DFB laser diode and Hi1060 FC/APC fiber connector. Up to 70 mW CW optical power and 100 mW pulsed ; Down to 1.5 ns… Read more Open Pulse & CW driver with 1053 nm butterfly singlefrequency DFB laser diode and Hi1060 FC/APC fiber connector. Up to 70 mW CW optical power and 100 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION (PM fiber), OPTION 2 (3 mm collimator) and OPTION 3 (250 MHz version). Less | 6 240€ | 2 - 5 days | |||
 | Model 3 with "Shaper" driver PN : 1053LD-3-3-1 | Open pulsed driver with 1053 nm butterfly singlemode DFB laser diode with Hi1060 fiber and FC/APC connector. Up to 100 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up… Read more Open pulsed driver with 1053 nm butterfly singlemode DFB laser diode with Hi1060 fiber and FC/APC connector. Up to 100 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION (PM fiber) and OPTION 2 (3 mm collimator). Less | 7 990€ | 2 - 5 days | |||

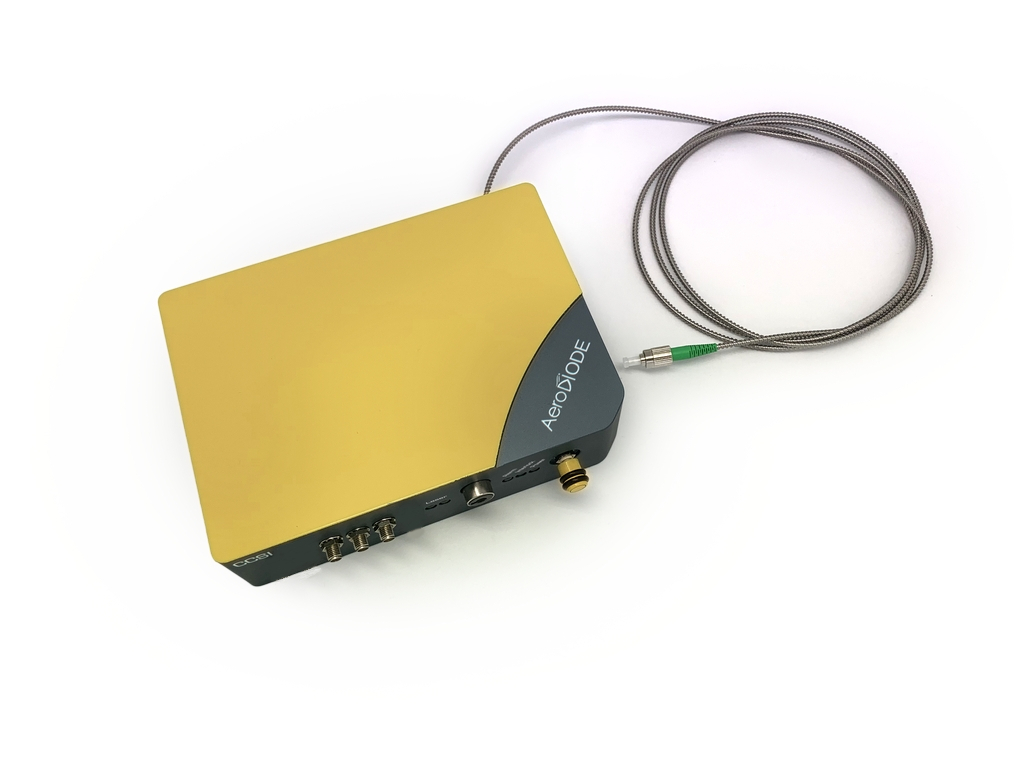

 | Model 3 within "CCSI-Low Noise" module PN : 1053LD-3-LN-2 | Turnkey integrated ultra-low noise CW driver with 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode with FC/APC fiber connector and metal protected output fiber protection… Read more Turnkey integrated ultra-low noise CW driver with 1053 nm butterfly singlefrequency DFB - mode hop free - singlemode laser diode with FC/APC fiber connector and metal protected output fiber protection buffer. A low noise driver is required for single-frequency narrow linewidth applications. Up to 70 mW CW optical power. Compatible with OPTION (PM fiber) and OPTION 2 (3 mm collimator). Less | 8 990€ | 2 - 5 days | |||
 | Model 3 within "CCSI" module PN : 1053LD-3-2-2 | Turn-key integrated DFB laser diode module at 1053 nm for Pulse and CW emission up to 70 mW CW and 100 mW pulsed. Hi1060 metal protected fiber output with FC/APC output connector… Read more Turn-key integrated DFB laser diode module at 1053 nm for Pulse and CW emission up to 70 mW CW and 100 mW pulsed. Hi1060 metal protected fiber output with FC/APC output connector. Compatible with OPTION (PM fiber), OPTION 2 (3 mm collimator) and OPTION 4 (Benchtop version). Less | 7 440€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : Narrow spectrum version (FBG-Fiber Bragg Grating) PN : 1053LD-Option-FBG_SM | With this OPTION, Model 1 or 2 are offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it is not possible… Read more With this OPTION, Model 1 or 2 are offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it is not possible to see it as the fiber has a 900 µm fiber buffer). The small back-reflection generated by the FBG allows to get a very stable and narrow emission spectrum at the center wavelength of 1053 nm. The center wavelength tolerance becomes 1053±1.0 nm instead of 1053±5 nm. It is not anymore possible to tune the wavelength by tuning the laser diode chip temperature as the FBG "locks" the wavelength at 1053 nm. Less | 595€ | 2 - 5 days | |||
 | OPTION 2 : Low Power Collimator COL001 PN : 1053LD-Option-Collimator_SM | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 495€ | 2 - 5 days | |||
 | OPTION 3 : 250MHz repetition rate PN : 1053LD-Option-250MHz_SM | Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | 2 - 5 days | |||
 | OPTION 4 : Benchtop version PN : 1053LD-Option-Benchtop_SM | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 2 - 5 days | |||
 | OPTION 5 : Multi-product GUI Touch screen PN : 1053LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
