The 520nm laser diode can reach high power in nanosecond pulse regime up to 60mW. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 520nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal.
From: 1 495€
All shippings with DHL Express
520nm laser diode Key Features (scroll down to see all configurations and prices) :
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
For turn-key “diode+driver” solutions, see the Specs Tab or click here: 520nm laser diode Datasheet
Laser Diode model | Datasheet | Power (CW) (Typ) | Power (Pulse) (Typ) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Form factor | Fiber connector | Output fiber core | Price |
---|---|---|---|---|---|---|---|---|---|---|
Model 1 | Datasheet | 25mW | up to 30mW | Butterfly singlemode Fabry-Pérot | 520 ± 10nm | ~1nm | 14 pin butterfly – type 1 | FC/APC | 2.5µm core Singlemode (NA=0.13) | Scroll down ! |
Model 2 | Datasheet | 50 mW (30 mW for PM model) | up to 60mW |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python (LINUX compatible) etc.)
These 520nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with standard drivers) :
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials:
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
Laser Diode model | Datasheet | Power (CW) (Typ) | Power (Pulse) (Typ) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Form factor | Fiber connector | Output fiber core | Price |
---|---|---|---|---|---|---|---|---|---|---|
Model 1 | Datasheet | 25mW | up to 30mW | Butterfly singlemode Fabry-Pérot | 520 ± 10nm | ~1nm | 14 pin butterfly - type 1 | FC/APC | 2.5µm core Singlemode (NA=0.13) | Scroll down ! |
Model 2 | Datasheet | 50 mW (30 mW for PM model) | up to 60mW |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
---|---|---|---|---|---|---|---|

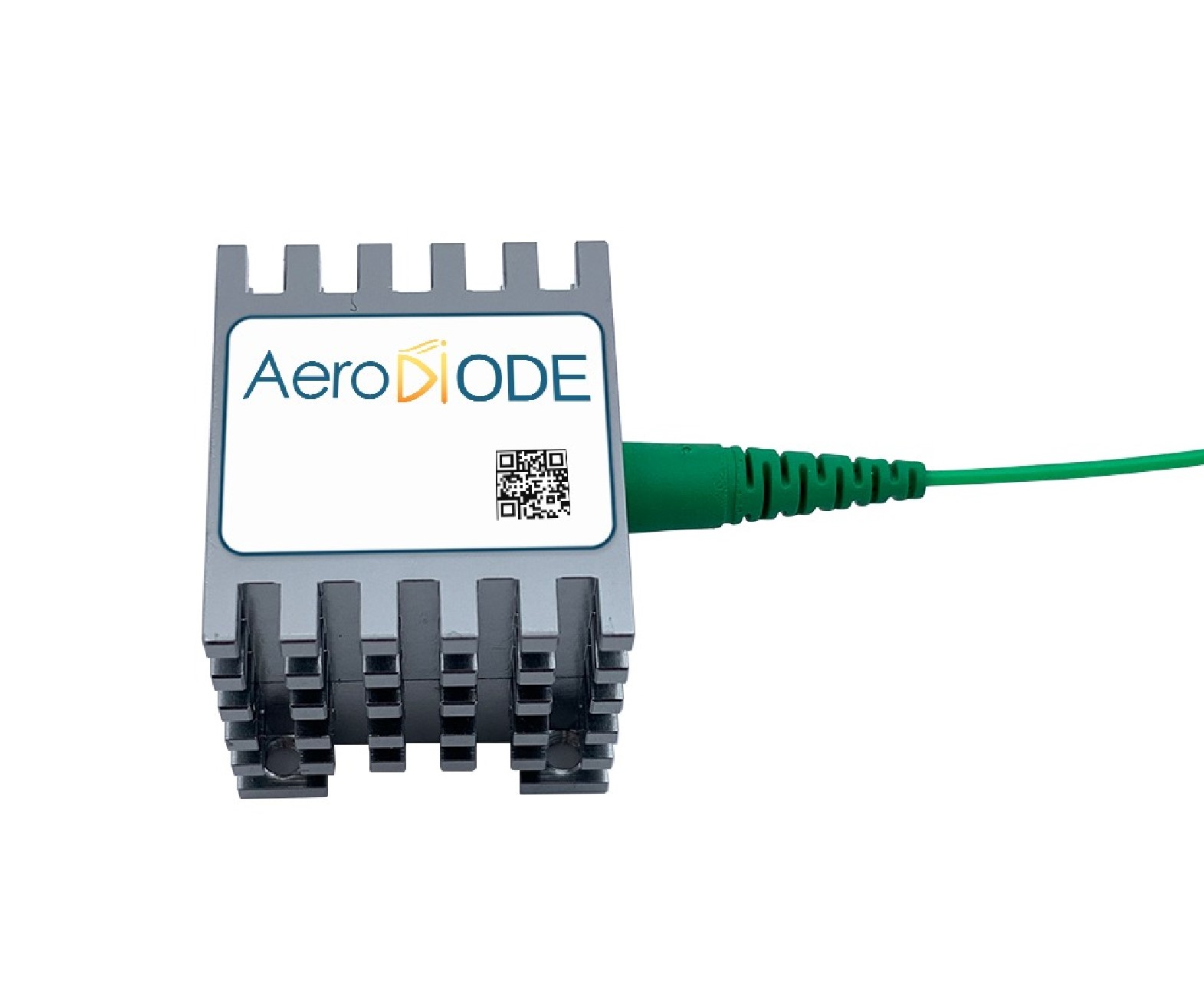

Model 1 (25mW) diode alone PN : 520LD-1-0-0 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. Up to 25mW CW and 30mW pulsed. Compatible with OPTION 1: PM Fiber… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. Up to 25mW CW and 30mW pulsed. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 1 495€ | Today | Max: Min: 1 Step: 1 | |||
OPTION : PM fiber for model 1 PN : 520LD-Option-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry)… Read more With this OPTION, Model 1 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). The max output power is typically ~20% less than the laser diode with no option. Less | 250€ | Today | Max: Min: 1 Step: 1 | |||
Model 1 (25mW) with open CW (TDLAS) driver PN : 520LD-1-TDLAS-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a low noise open-frame CW… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a low noise open-frame CW driver with high modulation bandwidth (300 kHz). Up to 25mW CW. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 5 490€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 1 (25mW) with open CW (ultra-low noise) driver PN : 520LD-1-LN-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on an ultra-low noise open-frame CW… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on an ultra-low noise open-frame CW driver. Up to 25mW CW. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 290€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||

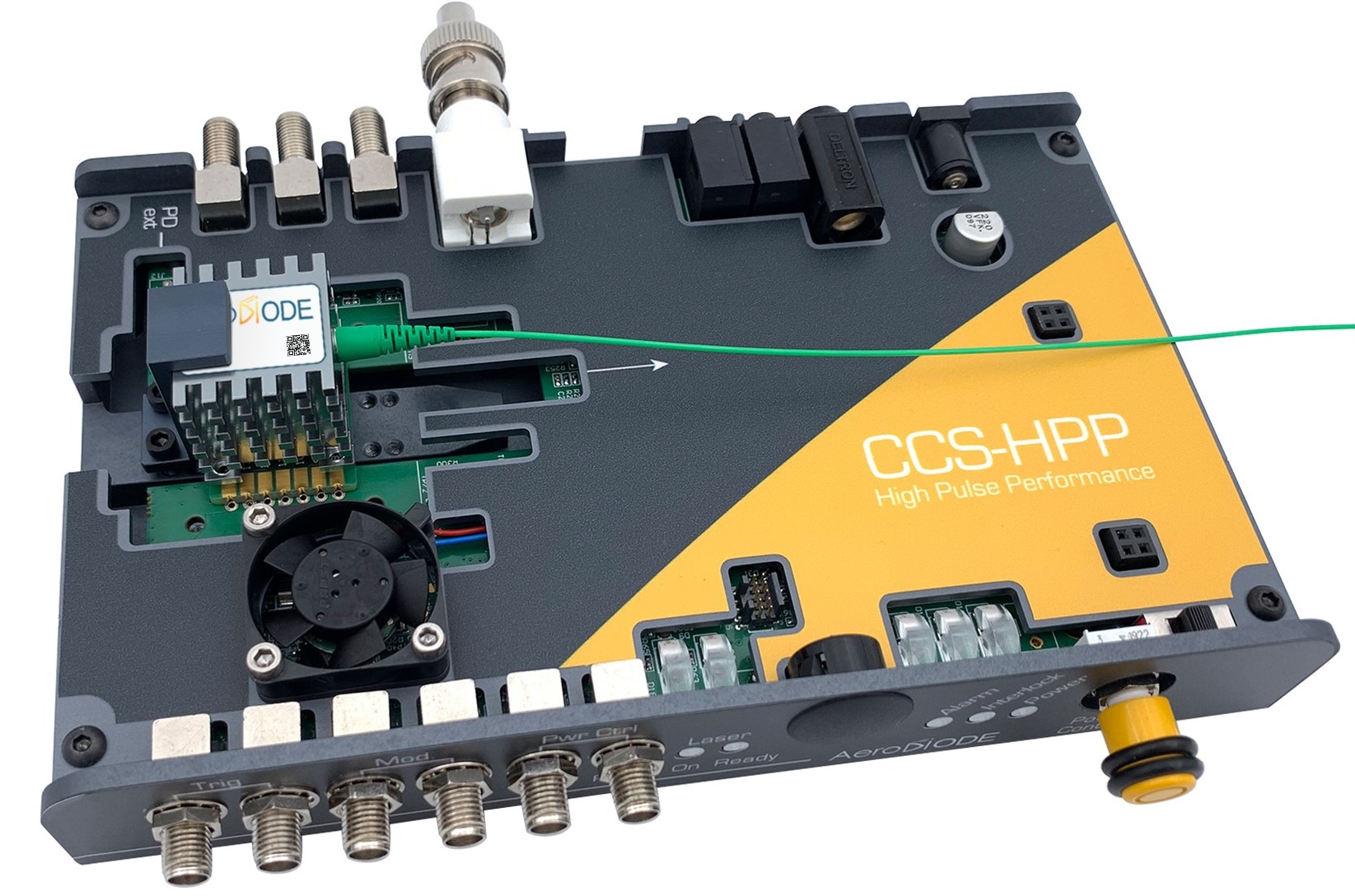

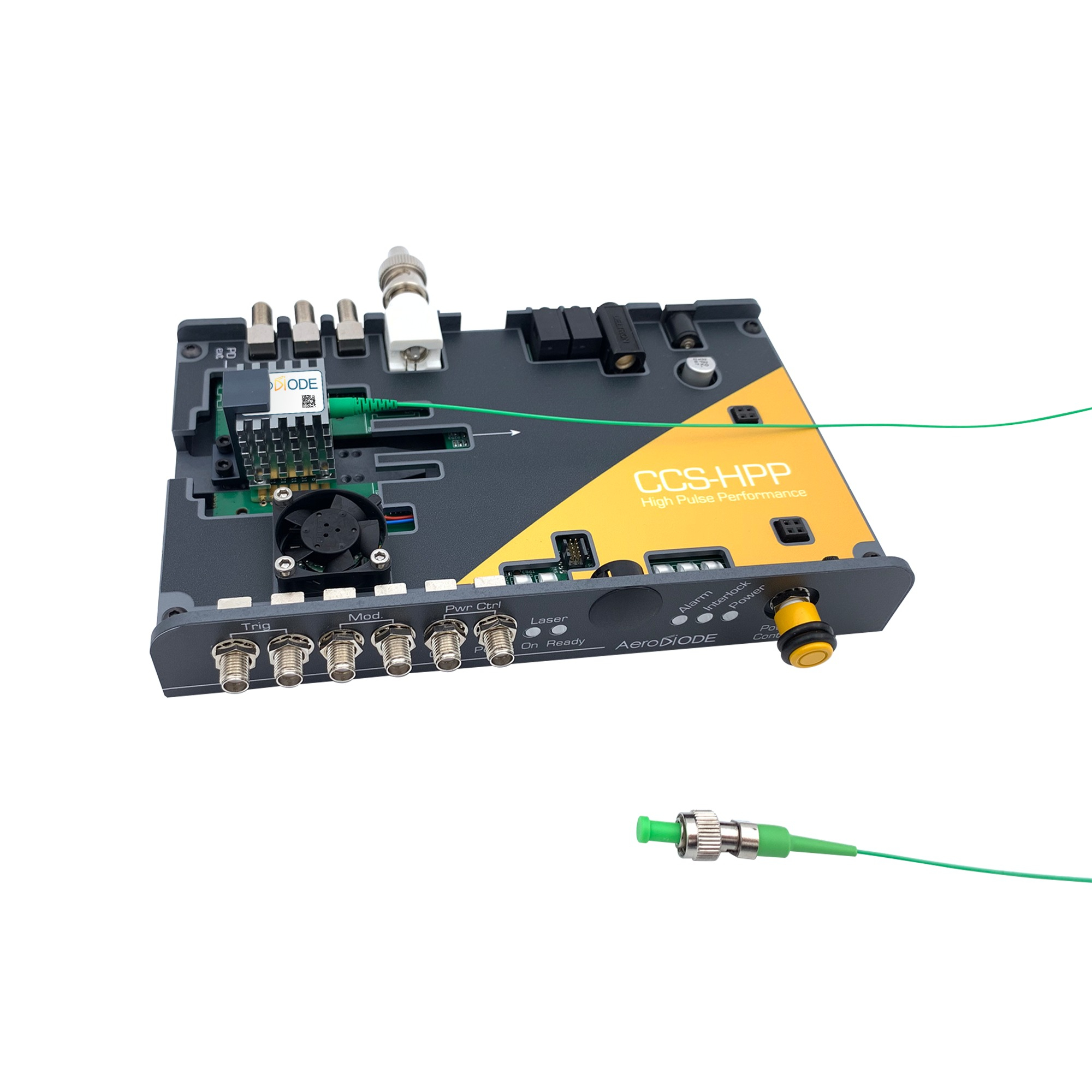

Model 1 (25mW) with open high pulse performance (HPP) pulsed&CW driver PN : 520LD-1-HPP-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a High Pulse Performance (HPP)… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a High Pulse Performance (HPP) pulse & CW open-frame driver. Up to 25mW CW and 30mW pulse. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 7 490€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||

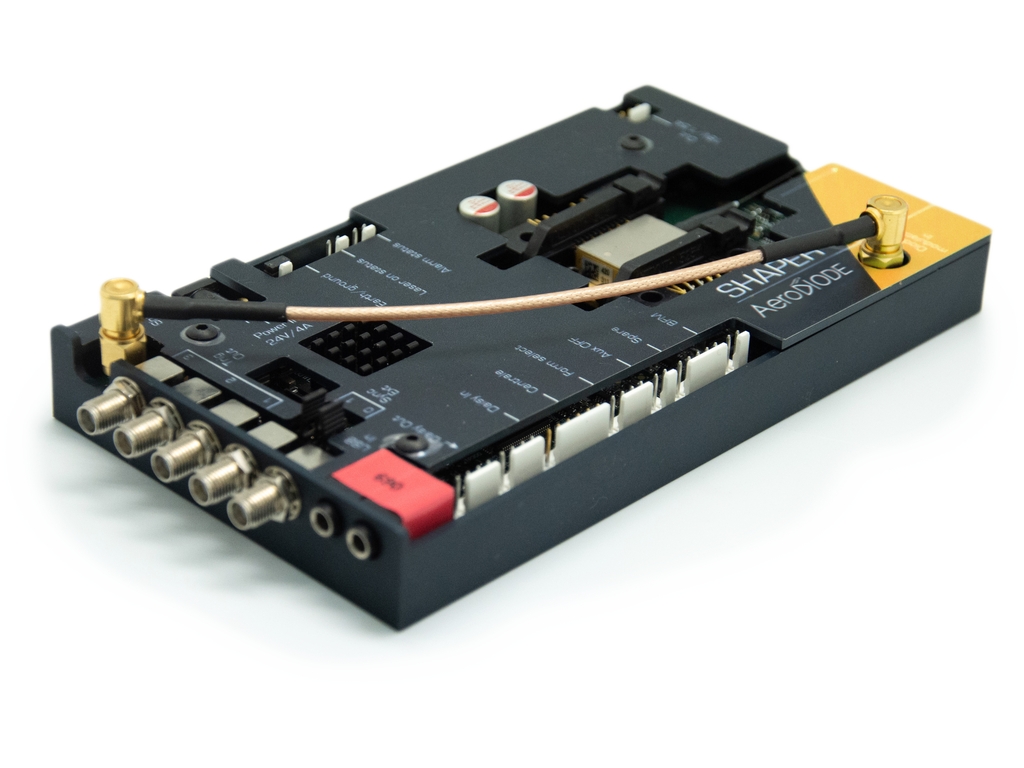

Model 1 (25mW) with open high speed pulsed driver (User design pulse shape version) PN : 520LD-1-SHAPER-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a high speed pulse driver… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a high speed pulse driver with user-design pulse shaping functionality with an embedded AWG. Down to 500ps step resolution. Up to 25mW pulse. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 490€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (25mW) within an integrated turn-key CW (TDLAS) driver PN : 520LD-1-TDLAS-2 | 520nm laser diode mounted within a low noise turn key integrated CW driver with high modulation bandwidth (300 kHz). Up to 25mW CW. 3mm well protected output fiber with FC/APC… Read more 520nm laser diode mounted within a low noise turn key integrated CW driver with high modulation bandwidth (300 kHz). Up to 25mW CW. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 690€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (25mW) within an integrated turn-key CW (ultra-low noise) driver PN : 520LD-1-LN-2 | 520nm laser diode mounted within a special ultra-low noise turn-key integrated CW driver. Up to 25mW CW. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM… Read more 520nm laser diode mounted within a special ultra-low noise turn-key integrated CW driver. Up to 25mW CW. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 7 490€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (25mW) within an integrated turn key high pulse performance (HPP) pulsed&CW driver PN : 520LD-1-HPP-2 | 520nm laser diode mounted within a High Pulse Performance (HPP) pulse & CW Turn-key integrated driver. Up to 25mW CW and 30mW pulse. 3mm well protected output fiber with FC/… Read more 520nm laser diode mounted within a High Pulse Performance (HPP) pulse & CW Turn-key integrated driver. Up to 25mW CW and 30mW pulse. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 8 690€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (25mW) within an integrated turn-key high speed pulsed driver (User design pulse shape version) PN : 520LD-1-SHAPER-2 | 520nm laser diode mounted within a turn-key integrated high speed pulse driver with user-design pulse shaping functionality with an embedded AWG. Down to 500ps step resolution. Up to 25mW pulse. 3… Read more 520nm laser diode mounted within a turn-key integrated high speed pulse driver with user-design pulse shaping functionality with an embedded AWG. Down to 500ps step resolution. Up to 25mW pulse. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber, and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 7 690€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 2 (50mW) diode alone PN : 520LD-2-0-0 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. Up to 50mW CW and 60mW pulsed. Compatible with OPTION 1: PM Fiber… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. Up to 50mW CW and 60mW pulsed. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 1 995€ | Today | Max: Min: 1 Step: 1 | |||
OPTION : PM fiber for model 2 PN : 520LD-Option-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry)… Read more With this OPTION, Model 2 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). The max output power is typically ~20% less than the laser diode with no option. Less | 300€ | Today | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) with open CW (TDLAS) driver PN : 520LD-2-TDLAS-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a low noise open-frame CW… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a low noise open-frame CW driver with high modulation bandwidth (300kHz). Up to 50mW CW. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 5 990€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) with open CW (ultra-low noise) driver PN : 520LD-2-LN-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on an ultra-low noise open-frame CW… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on an ultra-low noise open-frame CW driver. Up to 50mW CW. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 790€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) with open high pulse performance (HPP) pulsed&CW driver PN : 520LD-2-HPP-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a High Pulse Performance (HPP)… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a High Pulse Performance (HPP) pulse & CW open-frame driver. Up to 50mW CW and 60mW pulse. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 7 990€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) within an open high speed pulsed driver (User design pulse shape version) PN : 520LD-2-SHAPER-1 | 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a high speed pulse driver… Read more 520nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. The laser diode module is mounted on a high speed pulse driver with user-design pulse shaping functionality with an embedded AWG. Down to 500ps step resolution. Up to 60mW pulse. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 990€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) within an integrated turn-key CW (TDLAS) driver PN : 520LD-2-TDLAS-2 | 520nm laser diode mounted within a low noise turn key integrated CW driver with high modulation bandwidth (300kHz). Up to 50mW CW. 3mm well protected output fiber with FC/APC… Read more 520nm laser diode mounted within a low noise turn key integrated CW driver with high modulation bandwidth (300kHz). Up to 50mW CW. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 7 190€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) within an integrated turn-key CW (ultra-low noise) driver PN : 520LD-2-LN-2 | 520nm laser diode mounted within a special ultra-low noise turn-key integrated CW driver. Up to 50mW CW. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM… Read more 520nm laser diode mounted within a special ultra-low noise turn-key integrated CW driver. Up to 50mW CW. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 7 990€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) within an integrated turn key high pulse performance (HPP) pulsed&CW driver PN : 520LD-2-HPP-2 | 520 nm laser diode mounted within a High Pulse Performance (HPP) pulse & CW Turn-key integrated driver. Up to 50mW CW and 60mW pulse. 3mm well protected output fiber with FC/… Read more 520 nm laser diode mounted within a High Pulse Performance (HPP) pulse & CW Turn-key integrated driver. Up to 50mW CW and 60mW pulse. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 9 190€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (50mW) within an integrated turn-key high speed pulsed driver (User design pulse shape version) PN : 520LD-2-SHAPER-2 | 520nm laser diode mounted within a turn-key integrated high speed pulse driver with user-design pulse shaping functionality with an embedded AWG. Down to 500ps step resolution. Up to 60mW pulse. 3… Read more 520nm laser diode mounted within a turn-key integrated high speed pulse driver with user-design pulse shaping functionality with an embedded AWG. Down to 500ps step resolution. Up to 60mW pulse. 3mm well protected output fiber with FC/APC connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 8 190€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
OPTION 1 : Low Power Collimator COL009 PN : 520LD-Option-Collimator_SM | Small form factor 3 mm beam diameter optical collimator with AR coatings optimized for the laser diode wavelength. | 495€ | Today | Max: Min: 1 Step: 1 | |||
OPTION 2 : Multi-product GUI Touch screen PN : 520LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks | Max: Min: 1 Step: 1 |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
