The 1040 nm laser diode can reach high power in nanosecond pulse regime up to 1.2 W. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1040 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. See our tutorial on fiber coupled laser diodes for more information about the Fabry Perrot technology used here.
From: 1 695€
All shippings with DHL Express
1040nm laser diode Key Features (scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:
For laser diode alone, click on the models in the table below.
For turn-key “1040nm diode+driver” solutions, see the Specs here: 1040nm laser diode Datasheet
| Laser Diode model | Datasheets | Power (CW) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 120 mW | Butterfly Singlemode | 1040±2 nm (T° tunable) or (1040±0.5 nm with FBG Locking OPTION) | ~ 0.5 nm (~0.1 nm with FBG locking OPTION) | 230 mA /1.5 V | 14 pin butterfly – type 1 | Optional – FC/APC | PM980 or equivalent | Scroll down ! |
| Model 2 | Datasheet | 300 mW | Butterfly Singlemode | 1040±2 nm (T° tunable) or (1040±0.5 nm with FBG Locking OPTION) | ~ 0.5 nm (~0.1 nm with FBG locking OPTION) | 600 mA /1.6 V | 14 pin butterfly – type 1 | Optional – FC/APC | PM980 or equivalent | |
| Model 3 | Datasheet | 70 mW | Single frequency DFB | 1040±1 nm | ~ 200 kHz* | 220 mA /1.7 V | 14 pin butterfly – type 1 | Optional – FC/APC | HI1060 or equivalent PM980 if option PM |

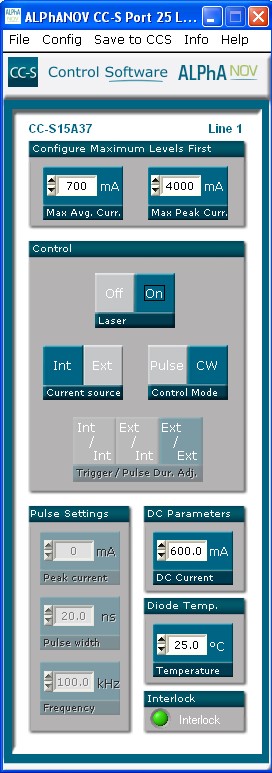

The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python, LINUX etc.)
These 1040nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials:
AeroDIODE products leverage proprietary, cutting edge technologies which have been under development in the ALPhANOV technology center for over 15 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Laser Diode model | Datasheets | Power (CW) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 120 mW | Butterfly Singlemode | 1040±2 nm (T° tunable) or (1040±0.5 nm with FBG Locking OPTION) | ~ 0.5 nm (~0.1 nm with FBG locking OPTION) | 230 mA /1.5 V | 14 pin butterfly - type 1 | Optional - FC/APC | PM980 or equivalent | Scroll down ! |
| Model 2 | Datasheet | 300 mW | Butterfly Singlemode | 1040±2 nm (T° tunable) or (1040±0.5 nm with FBG Locking OPTION) | ~ 0.5 nm (~0.1 nm with FBG locking OPTION) | 600 mA /1.6 V | 14 pin butterfly - type 1 | Optional - FC/APC | PM980 or equivalent | |
| Model 3 | Datasheet | 70 mW | Single frequency DFB | 1040±1 nm | ~ 200 kHz* | 220 mA /1.7 V | 14 pin butterfly - type 1 | Optional - FC/APC | HI1060 or equivalent PM980 if option PM |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

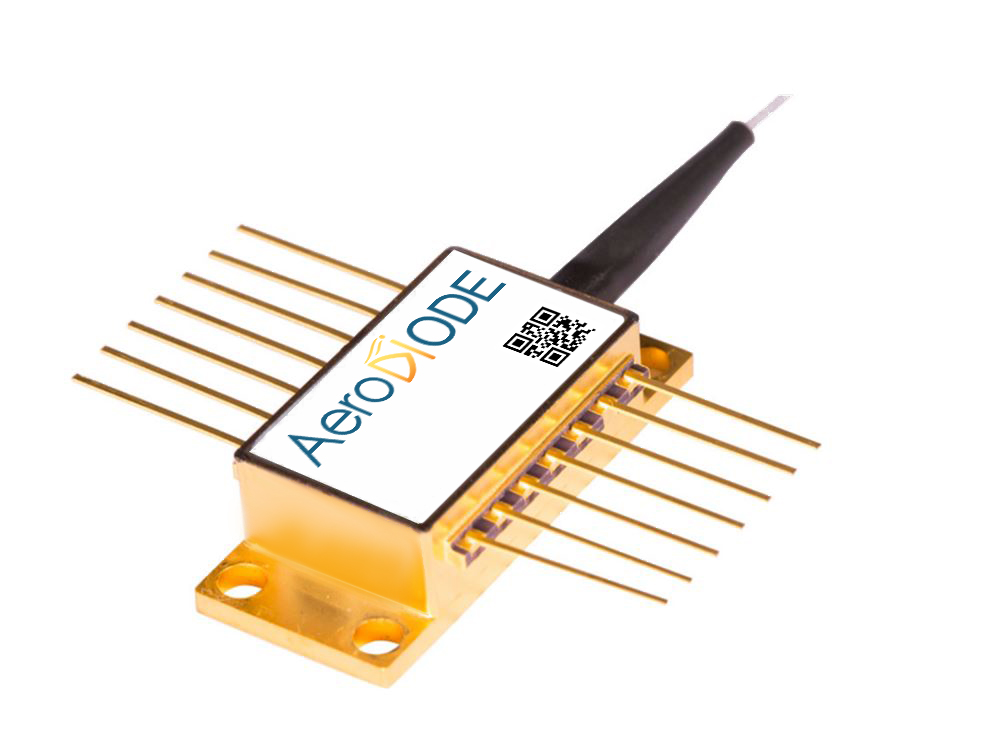

 | Model 1 (120 mW) laser diode alone PN : 1040LD-1-0-0 | 1040nm butterfly laser diode alone . Up to 120mW CW. PM980 bare fiber output. Compatible with OPTION 1 : FC/APC Fiber connector; OPTION 2 (Narrow emission with FBG), and… Read more 1040nm butterfly laser diode alone . Up to 120mW CW. PM980 bare fiber output. Compatible with OPTION 1 : FC/APC Fiber connector; OPTION 2 (Narrow emission with FBG), and OPTION-3 (3 mm collimator). Less | 1 695€ | Today | |||
 | Model 1 with "CCS-CW" driver PN : 1040LD-1-1-1 | Open CW driver with 1040 nm butterfly laser diode and PM980 fiber output with FC/APC fiber connector. Up to 120mW CW optical power. Compatible with OPTION-2 (Narrow emission spectrum with… Read more Open CW driver with 1040 nm butterfly laser diode and PM980 fiber output with FC/APC fiber connector. Up to 120mW CW optical power. Compatible with OPTION-2 (Narrow emission spectrum with FBG) and OPTION-3 (3 mm collimator). Less | 3 940€ | 2 - 5 days | |||

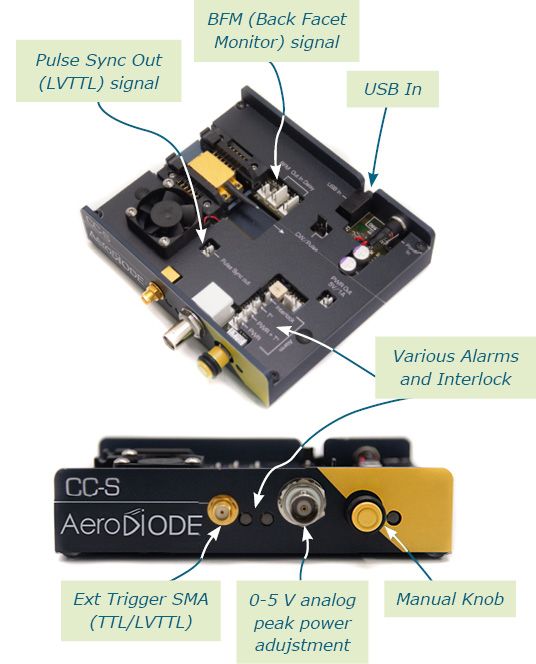

 | Model 1 with "CCS" driver PN : 1040LD-1-2-1 | Open Pulse & CW driver with 1040 nm butterfly laser diode and PM980 bare fiber output. Up to 120 mW CW optical power and typically 800 mW pulsed ; Down… Read more Open Pulse & CW driver with 1040 nm butterfly laser diode and PM980 bare fiber output. Up to 120 mW CW optical power and typically 800 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (FC/APC fiber connector), OPTION-3 (3 mm collimator) and OPTION-4 (250 MHz version). Less | 4 940€ | 2 - 5 days | |||
 | Model 1 with "Shaper" driver PN : 1040LD-1-3-1 | Open pulsed driver with 1040 nm butterfly singlemode laser diode with PM980 fiber and FC/APC connector. Up to typically 800 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution… Read more Open pulsed driver with 1040 nm butterfly singlemode laser diode with PM980 fiber and FC/APC connector. Up to typically 800 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION-3 (3 mm collimator). Less | 6 690€ | 2 - 5 days | |||
 | Model 1 within "CCSI-CW" module PN : 1040LD-1-1-2 | Turn-key integrated CW laser diode module at 1040 nm. CW power up to 120 mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (Narrow emission spectrum… Read more Turn-key integrated CW laser diode module at 1040 nm. CW power up to 120 mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (Narrow emission spectrum with FBG), OPTION-3 (3 mm collimator) and OPTION-4 (Benchtop version). Less | 5 140€ | 2 - 5 days | |||
| Model 1 within "CCSI" module PN : 1040LD-1-2-2 | Turn-key integrated laser diode module at 1040 nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 120 mW and… Read more Turn-key integrated laser diode module at 1040 nm for Pulse and CW emission. PM980 metal protected fiber output with FC/APC output connector. CW output power up to 120 mW and pulse up to 600 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-3 (3 mm collimator), OPTION-4 (250 MHz version) and OPTION-5 (Benchtop version). Less | 6 140€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 2 (300 mW) laser diode alone PN : 1040LD-2-0-0 | 1040nm butterfly laser diode alone . Up to 300mW CW. PM980 bare fiber output. Compatible with OPTION 1 : FC/APC fiber connector, OPTION 2 (Narrow emission with FBG), and OPTION-3… Read more 1040nm butterfly laser diode alone . Up to 300mW CW. PM980 bare fiber output. Compatible with OPTION 1 : FC/APC fiber connector, OPTION 2 (Narrow emission with FBG), and OPTION-3 (3 mm collimator). Less | 1 995€ | Today | |||
| Model 2 with "CCS-CW" driver PN : 1040LD-2-1-1 | Open CW driver with 1040 nm butterfly laser diode and PM980 fiber output with FC/APC fiber connector. Up to 300 mW CW optical power. Compatible with OPTION-2 (Narrow emission spectrum… Read more Open CW driver with 1040 nm butterfly laser diode and PM980 fiber output with FC/APC fiber connector. Up to 300 mW CW optical power. Compatible with OPTION-2 (Narrow emission spectrum with FBG) and OPTION-3 (3 mm collimator). Less | 4 240€ | 2 - 5 days | |||
| Model 2 with "CCS" driver PN : 1040LD-2-2-1 | Open Pulse & CW driver with 1040 nm butterfly laser diode and PM980 fiber output with FC/APC fiber connector. Up to 300 mW CW optical power and 700 mW pulsed… Read more Open Pulse & CW driver with 1040 nm butterfly laser diode and PM980 fiber output with FC/APC fiber connector. Up to 300 mW CW optical power and 700 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-3 (3 mm collimator) and OPTION-4 (250 MHz version). Less | 5 240€ | 2 - 5 days | |||
| Model 2 with "Shaper" driver PN : 1040LD-2-3-1 | Open pulsed driver with 1040 nm butterfly singlemode laser diode with PM980 fiber and FC/APC connector. Up to 800 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and… Read more Open pulsed driver with 1040 nm butterfly singlemode laser diode with PM980 fiber and FC/APC connector. Up to 800 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION-3 (3 mm collimator). Less | 6 990€ | 2 - 5 days | |||
| Model 2 within "CCSI-CW" module PN : 1040LD-2-1-2 | Turn-key integrated CW laser diode module at 1040 nm. CW power up to 300mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (Narrow emission spectrum with… Read more Turn-key integrated CW laser diode module at 1040 nm. CW power up to 300mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (Narrow emission spectrum with FBG), OPTION-3 (3 mm collimator) and OPTION-4 (Benchtop version). Less | 5 440€ | 2 - 5 days | |||
| Model 2 within "CCSI" module PN : 1040LD-2-2-2 | Turn-key integrated CW laser diode module at 1040 nm. CW power up to 300 mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (Narrow emission spectrum… Read more Turn-key integrated CW laser diode module at 1040 nm. CW power up to 300 mW. PM980 metal protected fiber output with FC/APC output connector. Compatible with OPTION-2 (Narrow emission spectrum with FBG), OPTION-3 (3 mm collimator) and OPTION-4 (Benchtop version). Less | 6 440€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 3 (70 mW) laser diode alone PN : 1040LD-3-0-0 | 1040nm butterfly laser diode alone with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW optical power out of a singlemode fiber.
Compatible with option: PM fiber and… Read more 1040nm butterfly laser diode alone with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW optical power out of a singlemode fiber.
Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 2 995€ | 1 - 2 weeks | |||
 | OPTION : PM Fiber for model 3 PN : 1040LD-Option-PM3 | With this OPTION, Model 3 is offered with a polarization maintaining PM980 fiber instead of a HI1060. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 3 is offered with a polarization maintaining PM980 fiber instead of a HI1060. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry).
Other options are described at the bottom of the page. Less | 650€ | 1 - 2 weeks | |||
 | Model 3 with "CCS-CW" driver PN : 1040LD-3-1-1 | Open CW driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW optical power out of a singlemode fiber.
Compatible with option:… Read more Open CW driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW optical power out of a singlemode fiber.
Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 5 240€ | 3 - 4 weeks | |||
 | Model 3 with "CCS-LN" driver PN : 1040LD-3-LN-1 | Open ultra low noise CW driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW optical power out of a singlemode… Read more Open ultra low noise CW driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW optical power out of a singlemode fiber.
A low noise driver is required for single-frequency applications.
Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 7 790€ | 3 - 4 weeks | |||
 | Model 3 with "CCS" driver PN : 1040LD-3-2-1 | Open Pulse & CW driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW and 105mW pulsed optical power out of… Read more Open Pulse & CW driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW and 105mW pulsed optical power out of a singlemode fiber.

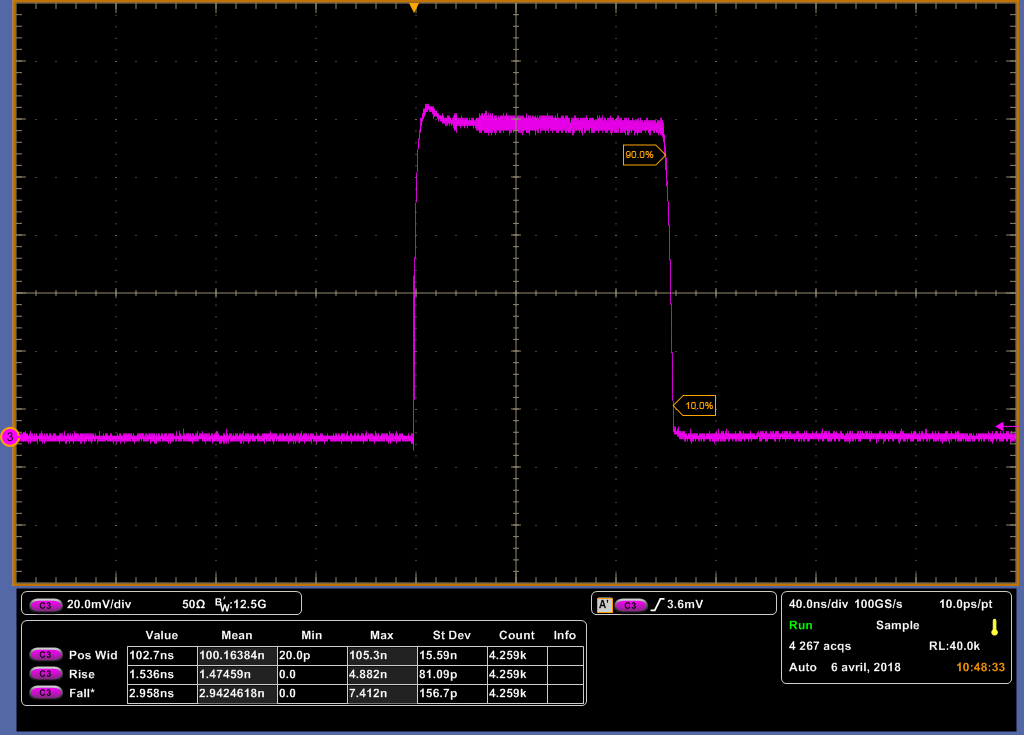

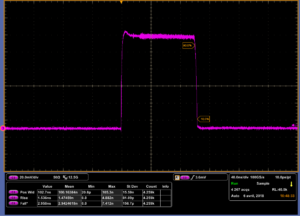

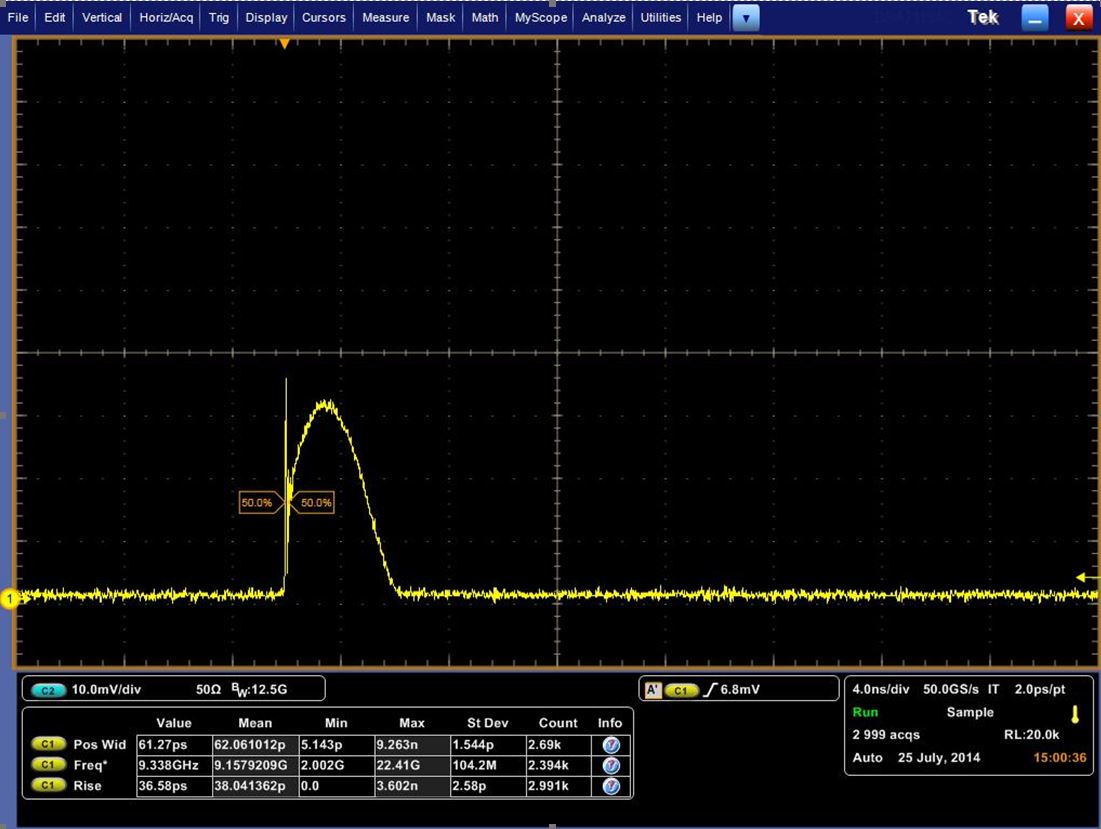

Down to 1.5ns pulse duration ; Up to 4MHz pulse repetition rate.
Compatible with option option: PM fiber, option 2: low power collimator and option 3: 250MHz version - see options below. Less | 6 240€ | 3 - 4 weeks | |||
 | Model 3 with "Shaper" driver PN : 1040LD-3-3-1 | Open Pulsed driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 105mW pulsed optical power.
User-design nanosecond pulse shape with 0.5ns resolution and… Read more Open Pulsed driver with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 105mW pulsed optical power.

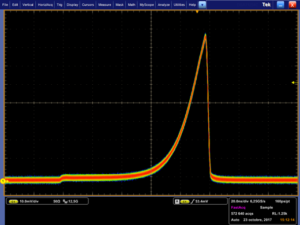

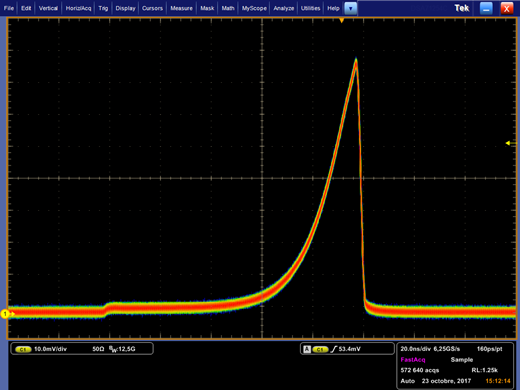

User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulse width (The AWG pulse generator is integrated).
Down to 1.5ns pulse duration. Up to 60MHz pulse repetition rate.
Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 7 990€ | 3 - 4 weeks | |||
 | Model 3 within "CCSI-CW" module PN : 1040LD-3-1-2 | Turn-key integrated CW laser diode module with 1040nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating.
Up to 70mW CW optical power out of a… Read more Turn-key integrated CW laser diode module with 1040nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating.
Up to 70mW CW optical power out of a singlemode fiber.
Compatible with option: PM fiber, option 2: low power collimator and option 4: bench-top version- see options below. Less | 6 440€ | 3 - 4 weeks | |||
 | Model 3 within "CCSI-LN" driver PN : 1040LD-3-LN-2 | Turn-key integrated ultra low noise CW laser diode module with 1040nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating.
Up to 70mW CW optical power out… Read more Turn-key integrated ultra low noise CW laser diode module with 1040nm butterfly laser diode with FC/APC fiber connector and 3mm fiber metal protection coating.
Up to 70mW CW optical power out of a singlemode fiber.
A low noise driver is required for single-frequency applications.
Compatible with option: PM fiber and option 2: low power collimator - see options below. Less | 8 990€ | 3 - 4 weeks | |||
| Model 3 within "CCSI" module PN : 1040LD-3-2-2 | Turn-key integrated laser diode module with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW and 105mW pulsed optical power out of… Read more Turn-key integrated laser diode module with 1040nm butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating.
Up to 70mW CW and 105mW pulsed optical power out of a singlemode fiber.
Down to 1.5ns pulse duration. Up to 10MHz pulse repetition rate.
Compatible with option: PM fiber, option 2: low power collimator, option 3: 250MHz version and option 4: bench-top version - see options below. Less | 7 440€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION-1 : Fiber connector PN : 1040LD-Option-Connector_SM | FC/APC fiber connector and 900µm fiber protection coating. This option is already included in all the diode+driver configurations. | 165€ | 2 - 5 days | |||
 | OPTION 2 : Narrow spectrum version (FBG-Fiber Bragg Grating) PN : 1040LD-Option-FBG_SM | With this OPTION, Model 1 or 2 are offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it… Read more With this OPTION, Model 1 or 2 are offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it is not possible to see it as the fiber has a 900 µm fiber buffer). The small back-reflection generated by the FBG allows to get a very stable and narrow emission spectrum at the center wavelength of 1040 nm. The center wavelength tolerance becomes 1040±0.5 nm instead of 1040±2 nm. It is not anymore possible to tune the wavelength by tuning the laser diode chip temperature as the FBG "locks" the wavelength at 1040 nm. Less | 595€ | 2 - 5 days | |||
 | OPTION 3 : Low Power Collimator COL001 PN : 1040LD-Option-Collimator_SM | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 495€ | 2 - 5 days | |||
 | OPTION 4 : 250MHz repetition rate PN : 1040LD-Option-250MHz_SM | Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | 2 - 5 days | |||
 | OPTION 5 : Benchtop version PN : 1040LD-Option-Benchtop_SM | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 2 - 5 days | |||
 | OPTION 6 : Multi-product GUI Touch screen PN : 1040LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
