These single mode 1330 nm laser diodes can reach high power in nanosecond pulse regime up to 200 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1330 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.
From: 1 345€
All shippings with DHL Express
Single-frequency 1330 nm laser diode Key Features (scroll down to see all configurations and prices) :
These laser diodes combined with our high end flexible pulsed laser diode driver are an ideal tool for LIDAR, Spectroscopy or 3D-sensing R&D teams. Time-Of-Flight experiments can be setup very rapidly with these complete flexible solutions. Combined with our Tombak pulse delay generator, it becomes easy to create a complete bench simulating any type of structured multiple Burst in the nanosecond range.
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Emission linewidth (typ)* | Power (Pulse – typical) | Current/ Voltage (typ) | Form factor | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 mW | DFB – singlemode | 1330 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) | <2 MHz* | 15 mW | 60 mA/1.6 V | 14 pin butterfly-type 1 with isolator | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent | Scroll down ! |
| Model 2 | Datasheet | 40 mW | < 200 kHz* | 60 mW | 140 mA/1.6 V | |||||
| Model 3 | Datasheet | 100 mW | 150 mW | 325 mA/1.8 V | ||||||
| Model 4 | Datasheet | 120 mW | 180 mW | 400 mA/2.0 V |
*Scroll down to see all configurations, prices and lead times. For best linewidth performances, an ultra-low noise driver is required. for example this one : low noise laser diode driver
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 1330 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
See our detailed tutorials for more information about the use of these 1330nm laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Emission linewidth (typ)* | Power (Pulse - typical) | Current/ Voltage (typ) | Form factor | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 mW | DFB - singlemode | 1330 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) | <2 MHz* | 15 mW | 60 mA/1.6 V | 14 pin butterfly-type 1 with isolator | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent | Scroll down ! |
| Model 2 | Datasheet | 40 mW | < 200 kHz* | 60 mW | 140 mA/1.6 V | |||||
| Model 3 | Datasheet | 100 mW | 150 mW | 325 mA/1.8 V | ||||||
| Model 4 | Datasheet | 120 mW | 180 mW | 400 mA/2.0 V |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | Model 1 (10 mW) PN : 1330LD-1-0-0 | 1330 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm -… Read more 1330 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 1 345€ | 3 - 4 weeks | |||
 | OPTION : PM fiber for Model 1 PN : OPTION-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 200€ | 3 - 4 weeks | |||
 | Model 1 (10 mW) with "CCS-CW" driver PN : 1330LD-1-1-1 | Open CW driver with 1330 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270… Read more Open CW driver with 1330 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 3 440€ | 3 - 4 weeks | |||
 | Model 1 (10 mW) with "CCS" driver PN : 1330LD-1-2-1 | Open Pulse & CW driver with 1330 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250… Read more Open Pulse & CW driver with 1330 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version - see below) ; Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 4 340€ | 3 - 4 weeks | |||
 | Model 1 (10 mW) with "Shaper" driver PN : 1330LD-1-3-1 | Open pulsed driver with 10 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 10 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 6 340€ | 3 - 4 weeks | |||

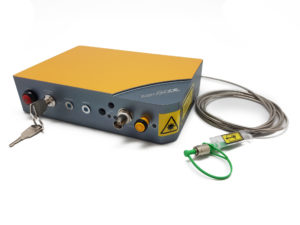

 | Model 1 (10 mW) within "CCSI-CW" module PN : 1330LD-1-1-2 | Turn-key integrated CW laser diode module at 1330nm. CW power up to 10 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (… Read more Turn-key integrated CW laser diode module at 1330nm. CW power up to 10 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (Benchtop version) see below. Less | 4 640€ | 3 - 4 weeks | |||
| Model 1 (10 mW) within "CCSI" module PN : 1330LD-1-2-2 | Turn-key integrated laser diode module at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (Benchtop version) - see below. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 5 540€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (40 mW) PN : 1330LD-2-0-0 | 1330 nm 40 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm -… Read more 1330 nm 40 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 1 995€ | 3 - 4 weeks | |||
| OPTION : PM fiber for Model 2 PN : OPTION-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 2 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 300€ | 3 - 4 weeks | |||
| Model 2 (40 mW) with "CCS-CW" driver PN : 1330LD-2-1-1 | Open CW driver with 1330 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version (select the Option) and… Read more Open CW driver with 1330 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 4 090€ | 3 - 4 weeks | |||
| Model 2 (40 mW) with "CCS" driver PN : 1330LD-2-2-1 | Open Pulse & CW driver with 1330 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 40 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1330 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 40 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 4 990€ | 3 - 4 weeks | |||
| Model 2 (40 mW) with "Shaper" driver PN : 1330LD-2-3-1 | Open pulsed driver with 40 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 40 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 6 990€ | 3 - 4 weeks | |||
| Model 2 (40 mW) within "CCSI-CW" module PN : 1330LD-2-1-2 | Turn-key integrated CW laser diode module at 1330 nm. CW power up to 40 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). and option 3 (… Read more Turn-key integrated CW laser diode module at 1330 nm. CW power up to 40 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). and option 3 (Benchtop version). Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 5 290€ | 3 - 4 weeks | |||
| Model 2 (40 mW) within "CCSI" module PN : 1330LD-2-2-2 | Turn-key integrated laser diode module at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 6 190€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 3 (100 mW) PN : 1330LD-3-0-0 | 1330 nm 100 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm -… Read more 1330 nm 100 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 2 695€ | 3 - 4 weeks | |||
| OPTION : PM fiber for model 3 PN : OPTION-PM3 | With this OPTION, Model 3 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 3 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 450€ | 3 - 4 weeks | |||
| Model 3 (100 mW) with "CCS-CW" driver PN : 1330LD-3-1-1 | Open CW driver with 1330 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 100 mW CW optical power. Also available in PM version (select the Option) and… Read more Open CW driver with 1330 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 100 mW CW optical power. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 4 790€ | 3 - 4 weeks | |||
| Model 3 (100 mW) with "CCS" driver PN : 1330LD-3-2-1 | Open Pulse & CW driver with 1330 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 100 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1330 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 100 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 5 690€ | 3 - 4 weeks | |||
| Model 3 (100 mW) with "Shaper" driver PN : 1330LD-3-3-1 | Open pulsed driver with 100 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 100 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 7 690€ | 3 - 4 weeks | |||
| Model 3 (100 mW) within "CCSI-CW" module PN : 1330LD-3-1-2 | Turn-key integrated CW laser diode module at 1330 nm. CW power up to 100 mW. SMF metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and… Read more Turn-key integrated CW laser diode module at 1330 nm. CW power up to 100 mW. SMF metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 5 990€ | 3 - 4 weeks | |||
| Model 3 (100 mW) within "CCSI" module PN : 1330LD-3-2-2 | Turn-key integrated laser diode module at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 100 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 100 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 6 890€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 4 (120 mW) with "CCS-CW" driver PN : 1330LD-4-0-0 | 1330 nm 120 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version - Select the option below. | 2 845€ | 3 - 4 weeks | |||
| OPTION : PM fiber for model 4 PN : OPTION-PM4 | With this OPTION, Model 4 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 4 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 500€ | 3 - 4 weeks | |||
| Model 4 (120 mW) PN : 1330LD-4-1-1 | Open CW driver with 1330 nm -choose your wavelength) butterfly laser diode and SMF fiber with FC/APC connector. Up to 120 mW CW optical power. Also available in PM version -… Read more Open CW driver with 1330 nm -choose your wavelength) butterfly laser diode and SMF fiber with FC/APC connector. Up to 120 mW CW optical power. Also available in PM version - select the option Less | 4 940€ | 3 - 4 weeks | |||
| Model 4 (120 mW) with "CCS" driver PN : 1330LD-4-2-1 | Open Pulse & CW driver with 1330 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 120 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1330 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 120 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version - select the option. Less | 5 840€ | 3 - 4 weeks | |||
| Model 4 (120 mW) with "Shaper" driver PN : 1330LD-4-3-1 | Open pulsed driver with 120 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 120 mW 1330 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version - select the option. Less | 7 840€ | 3 - 4 weeks | |||
| Model 4 (120 mW) within "CCSI-CW" module PN : 1330LD-4-1-2 | Turn-key integrated CW laser diode module at 1330 nm. CW power up to 120 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (… Read more Turn-key integrated CW laser diode module at 1330 nm. CW power up to 120 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM fiber version - select the option. Less | 6 140€ | 3 - 4 weeks | |||
| Model 4 (120 mW) within "CCSI" module PN : 1330LD-4-2-2 | Turn-key integrated laser diode at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 120 mW. Down to 1.5 ns… Read more Turn-key integrated laser diode at 1330 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 120 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM fiber version - select the option. Less | 7 040€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : 3 mm optical collimator PN : OPTION-1 | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 445€ | Today | |||
 | OPTION 2 : 250 MHz repetition rate PN : OPTION-2 | 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | 2 - 5 days | |||
 | OPTION 3 : Benchtop version for final user instead of OEM module PN : OPTION-3 | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 1 - 2 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
