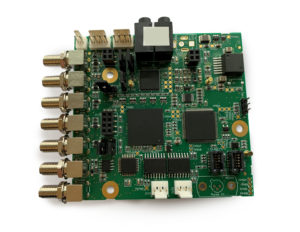

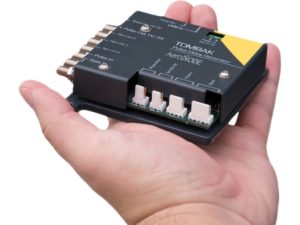

This pulse delay generator offers several operating modes including standalone generator, digital delay generator, frequency divider, burst generator, pulse-picker, voltage level converter and arbitrary waveform generator (AWG). It is often used in fiber modulation setup with EOMs, AOMs or SOAs. Applications include component testing, laser timing control, laser pulse-picking, camera synchronization from a photodiode signal etc. It is also available at board level for OEM integration into your products.
From: 1 295€
All shippings with DHL Express
Pulse delay generator Key features (scroll down to see all configurations and prices) :

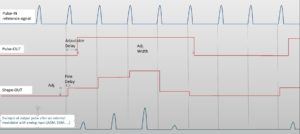

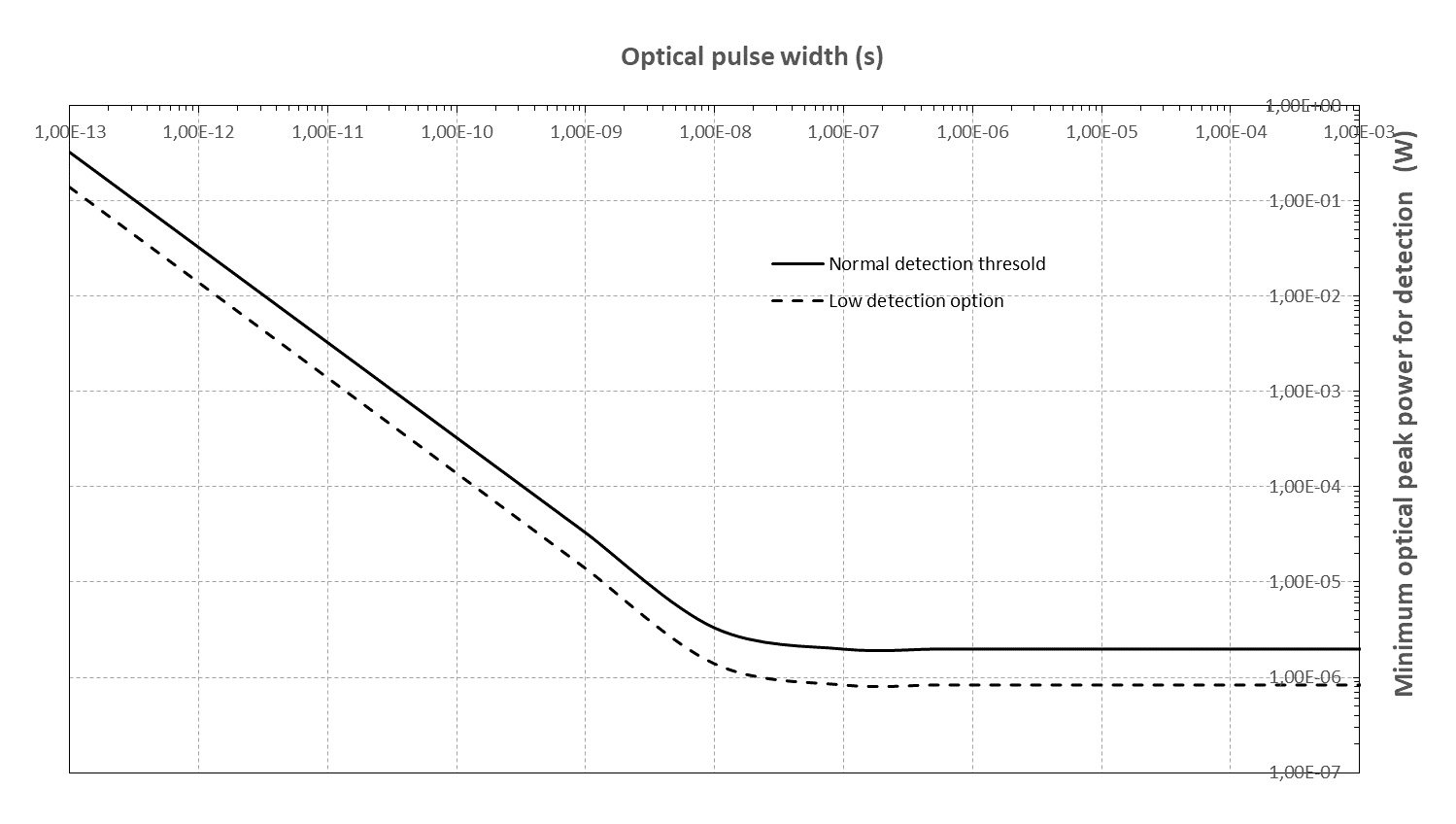

With its adjustable threshold detection level, TOMBAK pulse delay generator can detect weak signal levels coming from a photodiode.
The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)

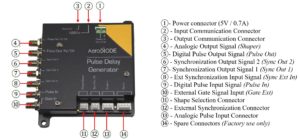

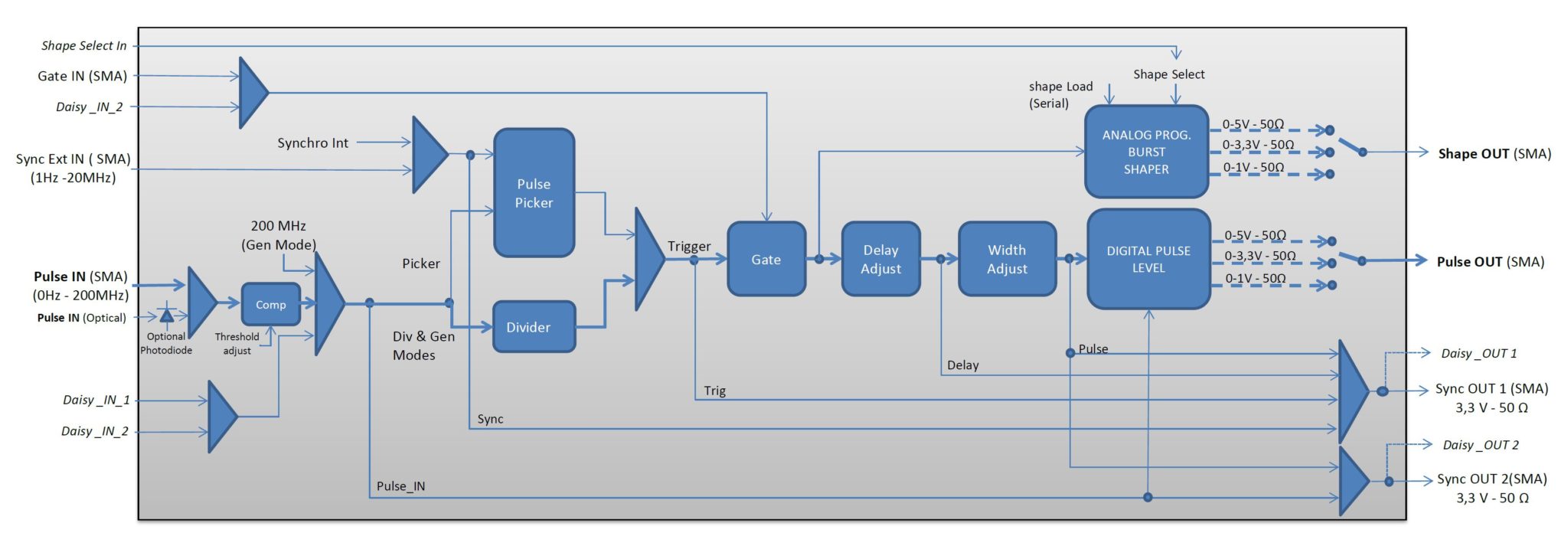

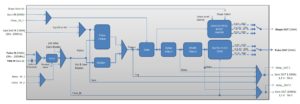

The synoptic detailed above is the most efficient way to understand the product (see the datasheet for more information or enlarge this synoptic by clicking of the associated image in the “picture” Tab).

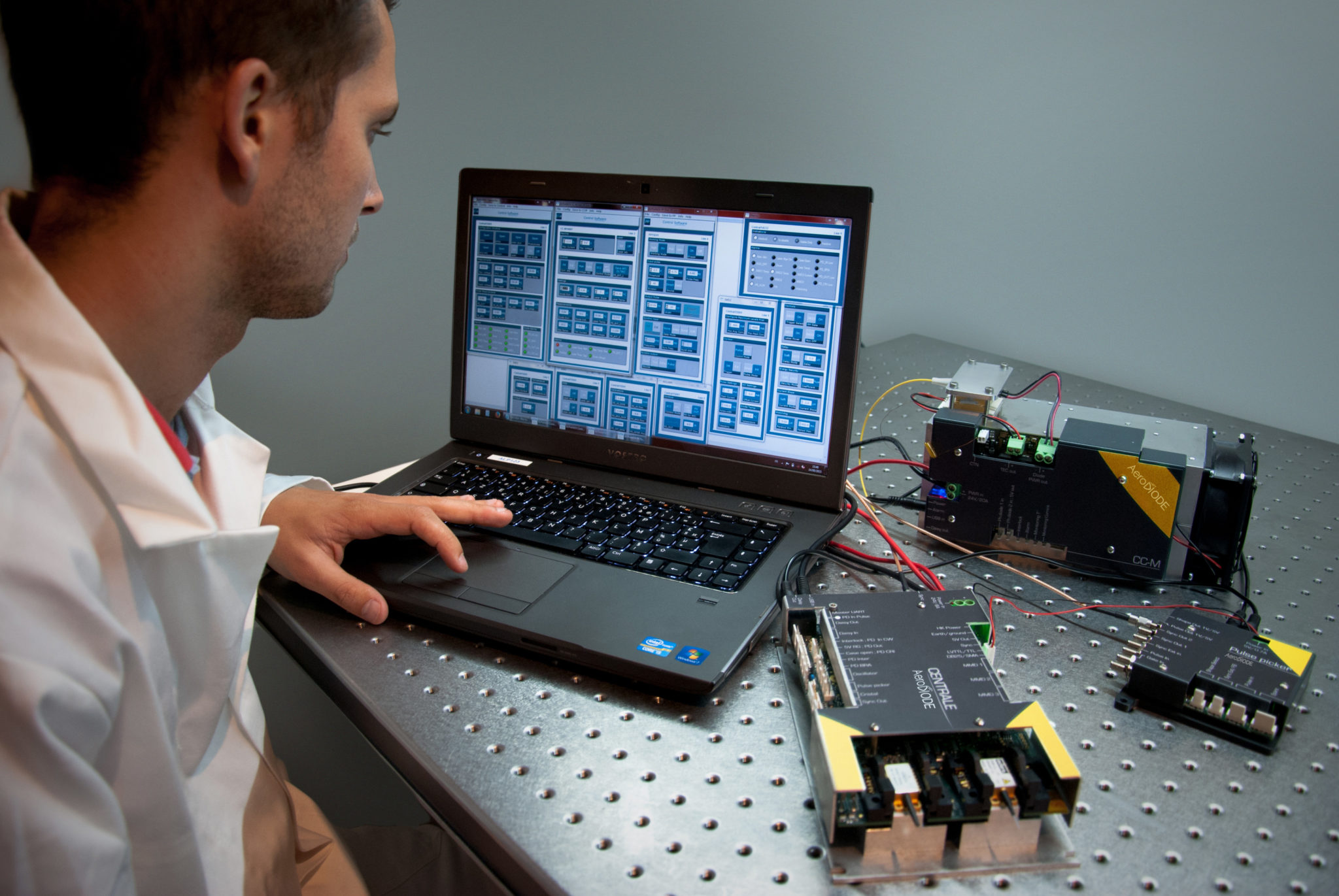

Tombak is part of our “Multiboard” laser driver and synchronization modules family which helps users save a lot of time in their R&D and integration work. It is ideal for synchronizing high speed cameras like phantom or iX-cameras. All the user cases are explained in this well detailed Operating_manual. Several application notes are also available in the “Documentation and libraries” window.

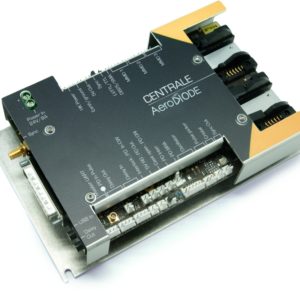

This pulse delay generator works alone or in series with other products in our range like :
The three other products pages of this synchronization tools range : Digital delay generator, Pulse Picker and Burst Shaper correspond to 3 alternative descriptions of this unique “swiss army knife” product.
| Pulse_out (SMA) : | |
| Output impedance | 50 Ohm (recommended) |
| Pulse width | 5 ns to >1000 s |
| Pulse width resolution | 2 ns |

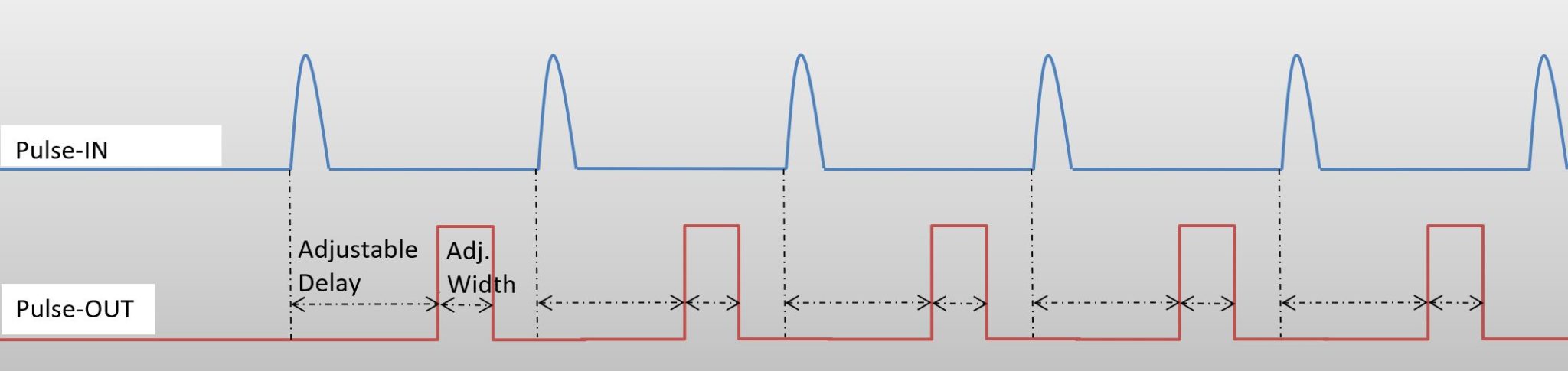

| Pulse delay | 10 ps to > 1000 s |
| Pulse delay resolution | 10 ps |
| Output levels (selected by user) | 1 V / 3.3 V / 5 V TTL |
| Pulse_IN (SMA) : | |
| Input voltage | 30 mV to 3.3 V (software adjustable detection threshold) |
| Max input rate | 200 MHz |
| Insertion delay | Down to 12 ns |
| Sync Ext / Gate inputs (SMA) : | |
| Input voltage | 30 mV to 3.3 V |
| Threshold | 1.2 V (fixed) |
| Max input rate | 20 MHz |
| Divider / prescaler : | |
| Division range | from 1 to 10^9 (selectable) |

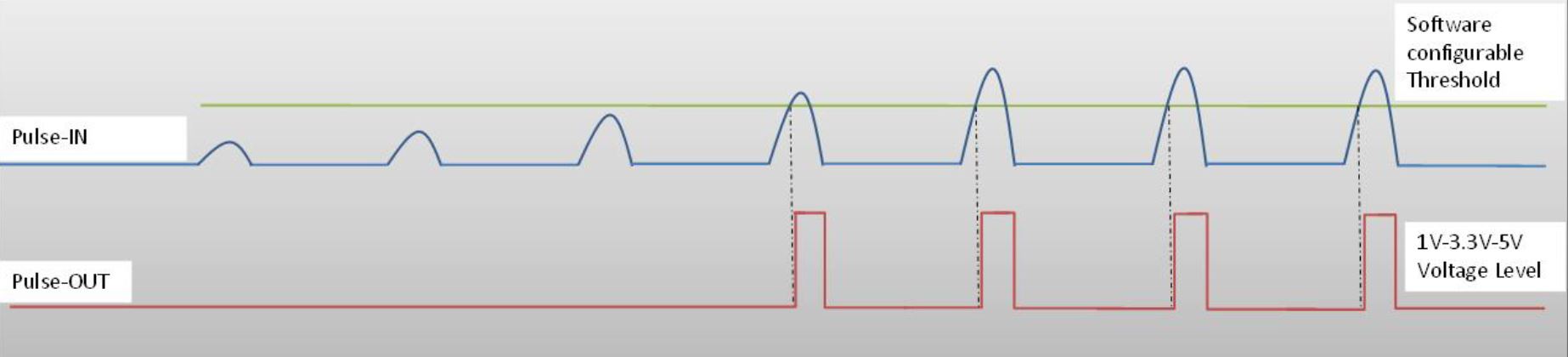

| Voltage converter : | |
| Max input frequency | 150 MHz |
| Jitter | < 30 ps |
| Pulse Picker : | |
| Max input/output frequency | 200 MHz / 20 MHz |

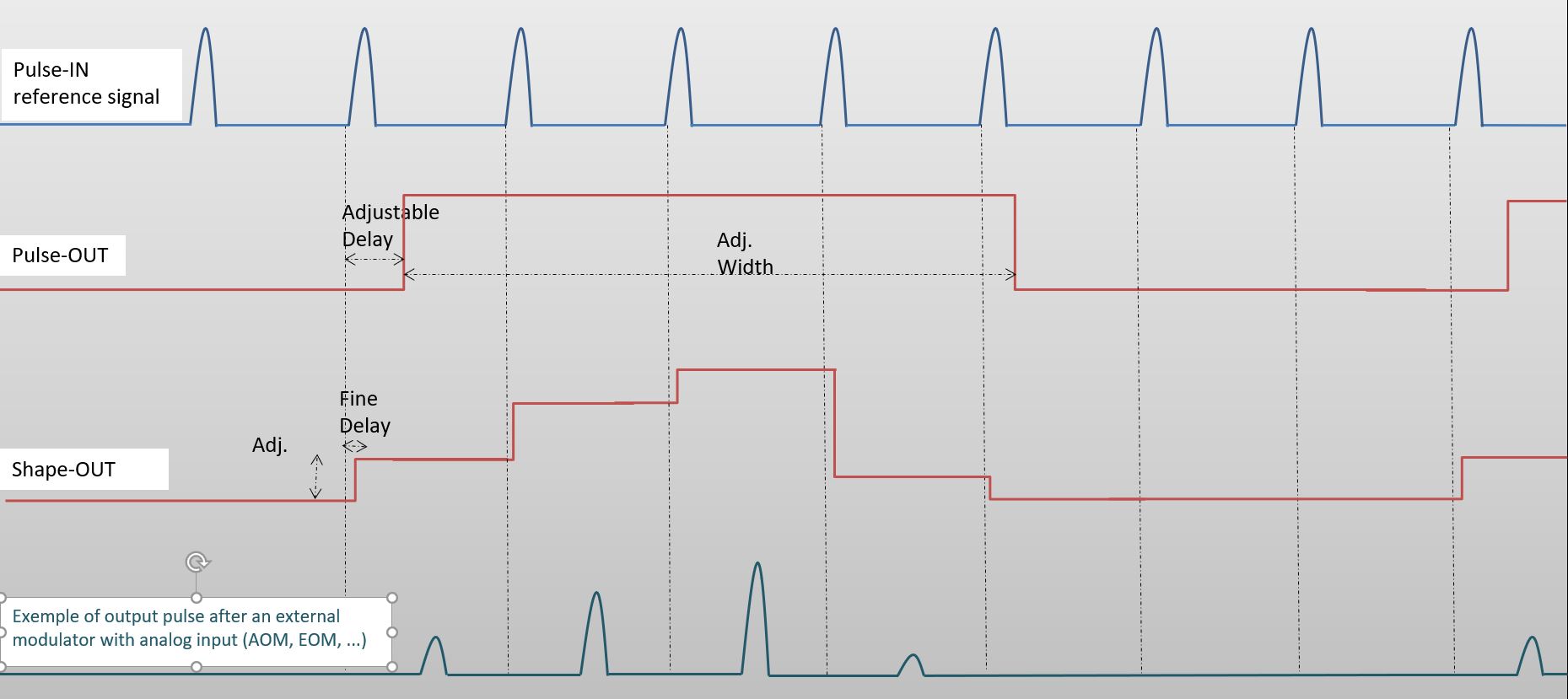

| Burst / Gate Generator : | |
| Number of pulses | 1 to 10^9 |
| Trigger-to-pulse delay | Adjustable |
| Intra-burst resolution | 5 ns |
| Compatibilities and Libraries : | Windows 7/10 ; DLLs, Hexa, LabVIEW, Python etc. |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | TOMBAK (pulse delay generator) PN : TOMBAK | TOMBAK Pulse delay generator : testing and timing control instrument for electronics, lasers and cameras. | 1 545€ | Today | |||

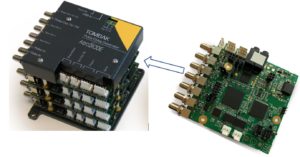

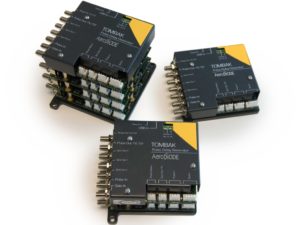

 | TOMBAK (pulse delay generator) - Additional stage PN : TOMBAK-AS | For complex synchronization or multiples synchronized output needs, order one or several of this additional board which will be mounted during the production process to generate a multiple stage Tombak (… Read more For complex synchronization or multiples synchronized output needs, order one or several of this additional board which will be mounted during the production process to generate a multiple stage Tombak (for example 2-stage, 4-stage, 6-stage). See the "daisy input/output" in the synopic above to understand how this works. This allows, for example, to generate any Burst and sub-burst complex timing signals. Less | 1 295€ | 2 - 5 days | |||
 | OPTION 1 : Board mounted photodiode visible range (Si) PN : Option-Photodiode_Si | High speed and low capacitance optional photodiode directly soldered on the board for fastest response time. 47 ps Rise Time, 400 - 1100 nm, Ø 0.25 mm Active Area, FC/PC Bulkhead | 445€ | 2 - 5 days | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| OPTION 2 : Board mounted photodiode IR-(InGaAs) PN : Option-Photodiode_InGaAs | High speed and low capacitance optional photodiode directly soldered on the board for fastest response time. InGaAs : 300 ps Rise Time, 800-1700 nm, Ø 0.12 mm Active Area, FC/PC Bulkhead | 445€ | 2 - 5 days | |||
 | OPTION 3 : Ultra-low detection threshold PN : Option-Ultra_Low_Detection | Optional special board for ultra-low adjustable detection threshold (5 mV typ. instead of 30 mV for standard version) | 895€ | 2 - 5 days | |||

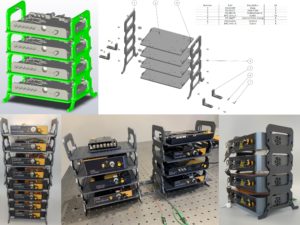

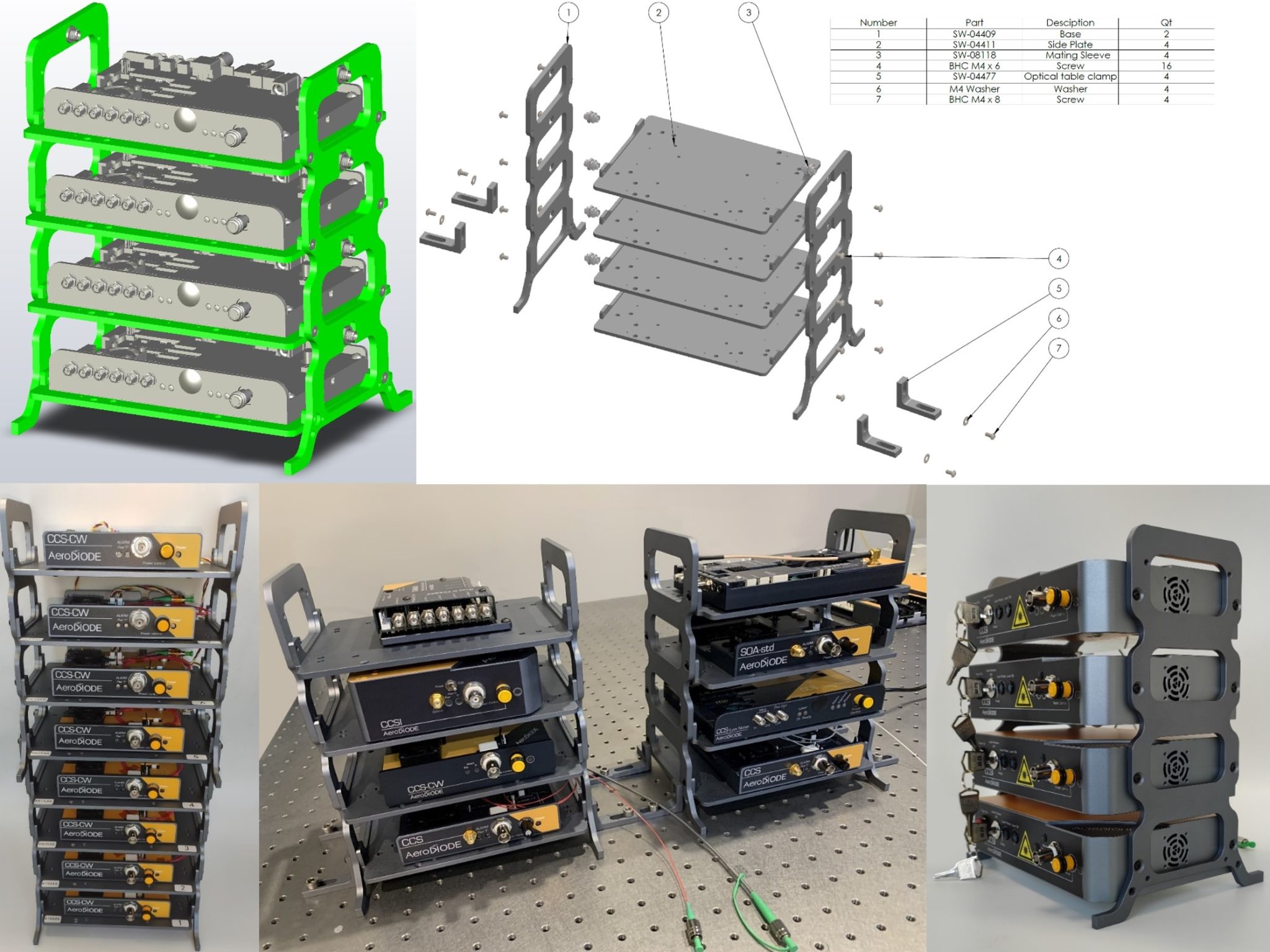

 | OPTION 4 : Mounting set for optical tables PN : Option-Mounting_Set | Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US… Read more Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US or Metric). The kit includes 12 mechanical pieces, 36 dedicated screws and 4 fiber optic mating sleeves to stack up to 4 AeroDIODE products. Several kits can be mounted the one on the other to stack up to 8 or 12 products. (click to enlarge the picture) Less | 895€ | Today | |||
 | OPTION 5 : Multi-product GUI Touch screen PN : Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 495€ | Contact Us |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
