The 830 nm laser diodes are offered in four different models with 2 with narrow emission linewidth. Most Turn-key diode + driver solutions are optimized for low noise CW emission or optimized pulsed performances with pulse width lengths down to 1 nanosecond. 1 multimode version has a specially narrow linewidth and 2 multimode versions are offered for CW emission up to 20 W in a 105 µm core multimode fiber.
From: 595€
All shippings with DHL Express
830 nm laser diode Key Features (Scroll down to see all configurations and prices) :
For turn-key “diode+driver” solutions, see the Specs here : 830nm laser diode Datasheet
| Laser Diode model | Power (CW/Pulse) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | |
|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 200 mW/400 mW | Butterfly – Singlemode & Single Frequency | 830±3 nm (T° tunable) or (830±0.5 nm with FBG Locking OPTION) | ~ 1 nm (0.2 nm with FBG locking OPTION) | 300 mA /1.7 V | 14 pin butterfly – type 1 | Yes – FC/APC | 5 µm singlemode Hi780 (PM780 with PM OPTION) |
| Model 2 | Datasheet | 600 mW | Butterfly multimode with VBG locking | 830±0.5 nm (VBG narrow linewidth technology) | < 0.5 nm | 1.1 A / 1.9 V | 14 pin butterfly – type 1 | Yes – FA/PC | 105 µm Multimode (NA=0.22) |
| Model 3 | Datasheet | 2 W | Multimode Single emitter | 830±3 nm | < 3.5 nm | 2.2 A /1.9 V | 30.9*17*7.7 | Yes – FC/PC | 50 µm Multimode (NA=0.22) |
| Model 4 | Datasheet | 20 W | Multimode multi-emitter | 830±3 nm | < 4.5 nm | 2.3 A / 22 V | 123.5*50*22 | Yes – SMA905 | 105 µm Multimode (NA=0.22) |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python, LINUX etc.)
These 830 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials :
AeroDIODE products leverage proprietary, cutting edge technologies which have been under development in the ALPhANOV technology center for over 15 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Laser Diode model | Power (CW/Pulse) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Nominal Current/Voltage (Typical values) | Form factor / dimensions | Fiber connector | Output fiber | |
|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 200 mW/400 mW | Butterfly - Singlemode & Single Frequency | 830±3 nm (T° tunable) or (830±0.5 nm with FBG Locking OPTION) | ~ 1 nm (0.2 nm with FBG locking OPTION) | 300 mA /1.7 V | 14 pin butterfly - type 1 | Yes - FC/APC | 5 µm singlemode Hi780 (PM780 with PM OPTION) |
| Model 2 | Datasheet | 600 mW | Butterfly multimode with VBG locking | 830±0.5 nm (VBG narrow linewidth technology) | < 0.5 nm | 1.1 A / 1.9 V | 14 pin butterfly - type 1 | Yes - FA/PC | 105 µm Multimode (NA=0.22) |
| Model 3 | Datasheet | 2 W | Multimode Single emitter | 830±3 nm | < 3.5 nm | 2.2 A /1.9 V | 30.9*17*7.7 | Yes - FC/PC | 50 µm Multimode (NA=0.22) |
| Model 4 | Datasheet | 20 W | Multimode multi-emitter | 830±3 nm | < 4.5 nm | 2.3 A / 22 V | 123.5*50*22 | Yes - SMA905 | 105 µm Multimode (NA=0.22) |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | Model 1 (200 mW) laser diode alone PN : 830LD-1-0-0 | 830 nm butterfly laser diode alone . Up to 200 mW CW. Hi780 fiber output with FC/APC fiber connector. Compatible with OPTION 1 : PM Fiber, OPTION 2 (Narrow emission with FBG), and OPTION-3 (3 mm… Read more 830 nm butterfly laser diode alone . Up to 200 mW CW. Hi780 fiber output with FC/APC fiber connector. Compatible with OPTION 1 : PM Fiber, OPTION 2 (Narrow emission with FBG), and OPTION-3 (3 mm collimator) . Note : When OPTION-2 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 830 nm wavelength is reached when stabilizing the laser diode chip at a given temperature between 15 and 35°C (All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 1 695€ | Today | |||
 | Model 1 with "CCS-CW" driver PN : 830LD-1-1-1 | Open CW driver with 830 nm butterfly laser diode and Hi780 fiber output with FC/APC fiber connector. Up to 200 mW CW optical power. Compatible with OPTION-1 (PM fiber), OPTION-2 (Narrow… Read more Open CW driver with 830 nm butterfly laser diode and Hi780 fiber output with FC/APC fiber connector. Up to 200 mW CW optical power. Compatible with OPTION-1 (PM fiber), OPTION-2 (Narrow emission spectrum with FBG) and OPTION-3 (3 mm collimator). Note : When OPTION-2 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 830 nm wavelength is reached when stabilizing the laser diode chip at a given temperature between 15 and 35°C (All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 3 790€ | Today | |||
 | Model 1 with "CCS" driver PN : 830LD-1-2-1 | Open Pulse & CW driver with 830 nm butterfly laser diode and Hi780 bare fiber output. Up to 200 mW CW optical power and 400 mW pulsed ; Down to 1.5 ns pulse duration ; Up… Read more Open Pulse & CW driver with 830 nm butterfly laser diode and Hi780 bare fiber output. Up to 200 mW CW optical power and 400 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (PM fiber), OPTION-3 (3 mm collimator) and OPTION-4 (250 MHz version). Less | 4 690€ | Today | |||
 | Model 1 with "Shaper" driver PN : 830LD-1-3-1 | Open pulsed driver with 830 nm butterfly singlemode laser diode with Hi780 fiber and FC/APC connector. Up to 400 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µ… Read more Open pulsed driver with 830 nm butterfly singlemode laser diode with Hi780 fiber and FC/APC connector. Up to 400 mW Pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with OPTION-1 (PM fiber) and OPTION-3 (3 mm collimator). Less | 6 690€ | Today | |||
 | Model 1 within "CCSI-CW" module PN : 830LD-1-1-2 | Turn-key integrated CW laser diode module at 830 nm. CW power up to 200 mW. HI780 metal protected fiber output with FC/APC output connector. Compatible with OPTION-1 (PM fiber), OPTION-2 (Narrow… Read more Turn-key integrated CW laser diode module at 830 nm. CW power up to 200 mW. HI780 metal protected fiber output with FC/APC output connector. Compatible with OPTION-1 (PM fiber), OPTION-2 (Narrow emission spectrum with FBG), OPTION-3 (3 mm collimator) and OPTION-4 (Benchtop version). Note : When OPTION-2 (FBG) is NOT Chosen, the laser diodes behaves as a standard Fabry-Perrot laser diode. The 830 nm wavelength is reached when stabilizing the laser diode chip at a given temperature between 15 and 35°C (All AeroDIODE drivers include an efficient laser diode chip temperature controller). Less | 4 990€ | Today | |||
| Model 1 within "CCSI" module PN : 830LD-1-2-2 | Turn-key integrated laser diode module at 830 nm for Pulse and CW emission. Hi780 metal protected fiber output with FC/APC output connector. CW output power up to 200 mW and pulse… Read more Turn-key integrated laser diode module at 830 nm for Pulse and CW emission. Hi780 metal protected fiber output with FC/APC output connector. CW output power up to 200 mW and pulse up to 400 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (PM fiber), OPTION-3 (3 mm collimator), OPTION-4 (250 MHz version) and OPTION-5 (Benchtop version). Less | 5 890€ | Today | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : PM fiber for Model 1 PN : OPTION-1 | With this OPTION, Model 1 is offered with a polarization maintaining PM780 fiber instead of a standard Hi780. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM780 fiber instead of a standard Hi780. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). The max power is 150 mW instead of 200 mW. Less | 250€ | Today | |||
 | OPTION 2 : Narrow spectrum version (FBG-Fiber Bragg Grating) PN : OPTION-2 | With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it is not possible to… Read more With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module (it is not possible to see it as the fiber has a 900 µm fiber buffer). The small back-reflection generated by the FBG allows to get a very stable and narrow emission spectrum at the center wavelength of 830 nm. The center wavelength tolerance becomes 830±1.0 nm instead of 830±5 nm. It is not anymore possible to tune the wavelength by tuning the laser diode chip temperature as the FBG "locks" the wavelength at 830 nm. The max output power is typically ~20% less than the laser diode with no option. Less | 495€ | 5 - 8 weeks | |||
 | OPTION 3 : 3 mm optical collimator PN : OPTION-3 | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 445€ | Today | |||
 | OPTION 4 : 250 MHz repetition rate PN : OPTION-4 | Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | Today | |||
 | OPTION 5 : Benchtop version PN : OPTION-5 | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (600 mW) laser diode alone PN : 830LD-2-0-0 | 830 nm butterfly laser diode alone . Narrow linewidth emission up to 600 mW CW. at 830±1 nm Multimode 105/125 µm fiber output with 900 µm buffer coating and FC/PC fiber connector. Compatible with OPTION-3… Read more 830 nm butterfly laser diode alone . Narrow linewidth emission up to 600 mW CW. at 830±1 nm Multimode 105/125 µm fiber output with 900 µm buffer coating and FC/PC fiber connector. Compatible with OPTION-3 above (3 mm collimator) - see above. A special VBG (Volume Bragg Grating) is included to reach a very stable narrow emission linewidth. Butterfly Type-1 Package. Less | 1 195€ | 5 - 8 weeks | |||
 | Model 2 with "CCS-Low Noise" driver PN : 830LD-2-LN-1 | Open Ultra-low noise CW driver with 830 nm butterfly laser diode and Multimode 105/125 µm fiber output with FC/PC fiber connector. Up to 600 mW CW optical power with narrow linewidth due… Read more Open Ultra-low noise CW driver with 830 nm butterfly laser diode and Multimode 105/125 µm fiber output with FC/PC fiber connector. Up to 600 mW CW optical power with narrow linewidth due to its own VBG (Volume Bragg Grating). Compatible with OPTION-3 above (3 mm collimator) -see the options above. Note : the ultra-low noise driver is selected here due to the narrow linewidth performances which are important for application such as Raman spectroscopy. Less | 5 990€ | 5 - 8 weeks | |||
| Model 2 with "CCS" driver PN : 830LD-2-2-1 | Open Pulse & CW driver with 830 nm butterfly laser diode and Multimode 105/125 µm fiber with a NA of 0.22. Up to 400 mW CW optical power and 600 mW pulsed; Down to 1.5 ns… Read more Open Pulse & CW driver with 830 nm butterfly laser diode and Multimode 105/125 µm fiber with a NA of 0.22. Up to 400 mW CW optical power and 600 mW pulsed; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-3 (3 mm collimator) and OPTION-4 (250 MHz version) - see above. NOTE : the max CW power is reduced due to the driver 800 mA max current (Configuration A). Another driver version can be provided as an alternative (same price) which is compatible with 600 mW power in CW, but cannot generate pulse width below 5 ns (Configuration B). You will be contacted for this choice. Less | 4 190€ | 5 - 8 weeks | |||
 | Model 2 within "CCSI-Low Noise" module PN : 830LD-2-LN-2 | Turn-key integrated CW laser diode module at 830 nm. Special ultra-low noise driver version for narrow linewidth emission up to 600 mW CW. at 830±0.5 nm Multimode 105/125 µm fiber output with 900 µm buffer… Read more Turn-key integrated CW laser diode module at 830 nm. Special ultra-low noise driver version for narrow linewidth emission up to 600 mW CW. at 830±0.5 nm Multimode 105/125 µm fiber output with 900 µm buffer coating and FC/PC fiber connector. Compatible with OPTION-3 (3 mm collimator) (see the options above). A special VBG (Volume Bragg Grating) is included to reach a very stable narrow emission linewidth for applications such as Raman spectroscopy. Less | 7 190€ | 5 - 8 weeks | |||
| Model 2 within "CCSI" module PN : 830LD-2-2-2 | Turn-key integrated laser diode module at 830 nm for Pulse and CW emission. Up to 400 mW CW optical power and 600 mW pulsed; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse… Read more Turn-key integrated laser diode module at 830 nm for Pulse and CW emission. Up to 400 mW CW optical power and 600 mW pulsed; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-3 (3 mm collimator), OPTION-4 (250 MHz version) and OPTION-5 (Benchtop version) (see the options above). NOTE : the max CW power is reduced due to the driver 800 mA max current (Driver configuration A). Another driver version can be provided as an alternative (same price and same form factor) which is compatible with 600 mW power in CW, but cannot generate pulse width below 5 ns (Driver configuration B). You will be contacted for this choice. Less | 5 390€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 3 (2 W ) laser diode alone PN : 830LD-3-0-0 | High power laser diode emitting up to 2 W at 830 nm out of a 50(core)/125/250/900 µm multimode laser diode (NA = 0.14). FC/PC optical connector output (SMA available on demand). Compatible with… Read more High power laser diode emitting up to 2 W at 830 nm out of a 50(core)/125/250/900 µm multimode laser diode (NA = 0.14). FC/PC optical connector output (SMA available on demand). Compatible with OPTION 6 : High Power Collimator (see below). Purchase orders under $1000/1000 € are subject to an automatic processing charge of 200 €/$ 250. Less | 595€ | Today | |||
 | Model 3 (2 W ) with "CCM" driver PN : 830LD-3-4-1 | Open CW driver with 830 nm multimode laser diode. Up to 2 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). FC/PC optical connector output (SMA available on… Read more Open CW driver with 830 nm multimode laser diode. Up to 2 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). FC/PC optical connector output (SMA available on demand). Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 4 290€ | 1 - 2 weeks | |||

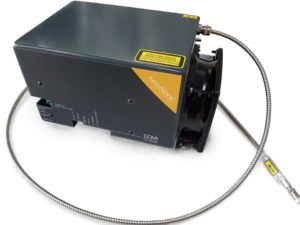

 | Model 3 (2 W ) with "CCMI" driver PN : 830LD-3-4-2 | Turn-key integrated CW driver with 830 nm multimode laser diode. Up to 2 W CW optical power out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). High power connector… Read more Turn-key integrated CW driver with 830 nm multimode laser diode. Up to 2 W CW optical power out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 6 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 490€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 4 (20 W ) laser diode alone PN : 830LD-4-0-0 | High power laser diode emitting up to 20 W at 830 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output (FC/PC available on demand). Compatible with… Read more High power laser diode emitting up to 20 W at 830 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output (FC/PC available on demand). Compatible with OPTION 6 : High Power Collimator (see below). Less | 2 995€ | Today | |||
| Model 4 (20 W ) with "CCM" driver PN : 830LD-4-4-1 | Open CW driver with 830 nm multimode laser diode. Up to 20 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output (FC/PC available on… Read more Open CW driver with 830 nm multimode laser diode. Up to 20 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output (FC/PC available on demand). Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 6 690€ | 1 - 2 weeks | |||
| Model 4 (20 W) within "CCMI" module PN : 830LD-4-4-2 | Turn-key integrated CW driver with 830 nm multimode laser diode. Up to 20 W CW optical power out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). SMA optical connector… Read more Turn-key integrated CW driver with 830 nm multimode laser diode. Up to 20 W CW optical power out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). SMA optical connector output (FC/PC available on demand). Compatible with OPTION 6 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 7 890€ | 1 - 2 weeks | |||
 | New : 830HPHS - High Power nanosecond PN : 830HPHS-1/2/3 | High power pulsed laser diode module emitting at 830 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 100 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ;… Read more High power pulsed laser diode module emitting at 830 +/- 5 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 100 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. Less | 11 995€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 6 : High Power Collimator PN : OPTION-6 | 12 mm beam high power collimator for SMA connectors. Compatible with laser diodes model 2 to 6 : laser diode alone or laser diode + driver solutions. | 495€ | 5 - 8 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
