This laser diode driver with integrated TEC control delivers low noise current which can be modulated by an external 0-5 V signal. It is available for any butterfly pinning (Type 1, Type 2, Type 2 Bias-T etc.). It is the most compact laser diode driver with such performances and this makes it an ideal tool for OEM integration into your product.
Product model :
From: 1 145€
All shippings with DHL Express
Laser diode driver Key features :
Applications of this laser diode driver includes non-destructive control, laser seeding etc.

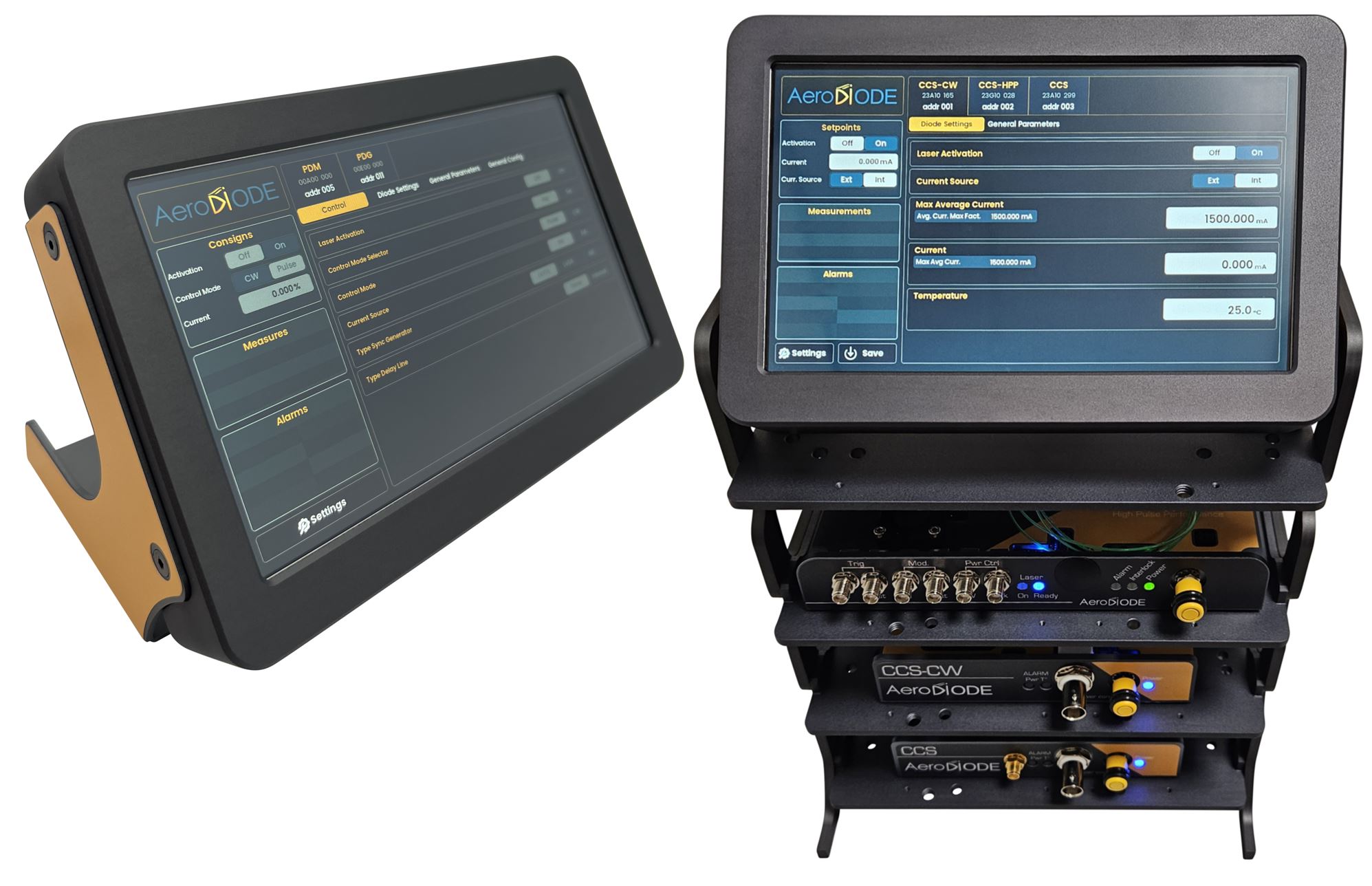

All AeroDIODE products can be controlled by any of the following four methods :

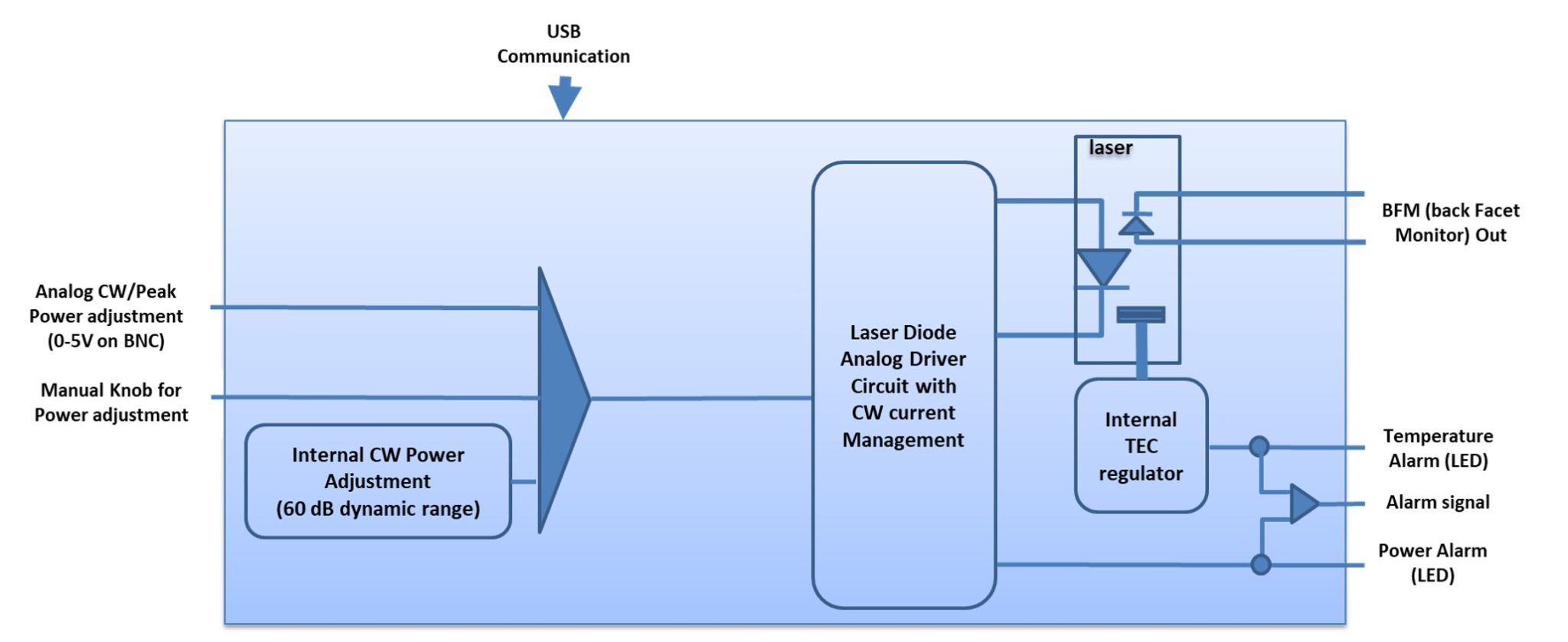

The integrated laser diode protection circuits protect your device under test at all times. A user set the current limit and a special temperature protection clamp both the bias current and the operating temperature. A soft-start current ramp protects the laser from the possibility of thermal shock or current surges. A special starting mode is available to avoid the need of using a computer for photonics system integration.
This laser diode driver works alone or in series with other products from our range including:

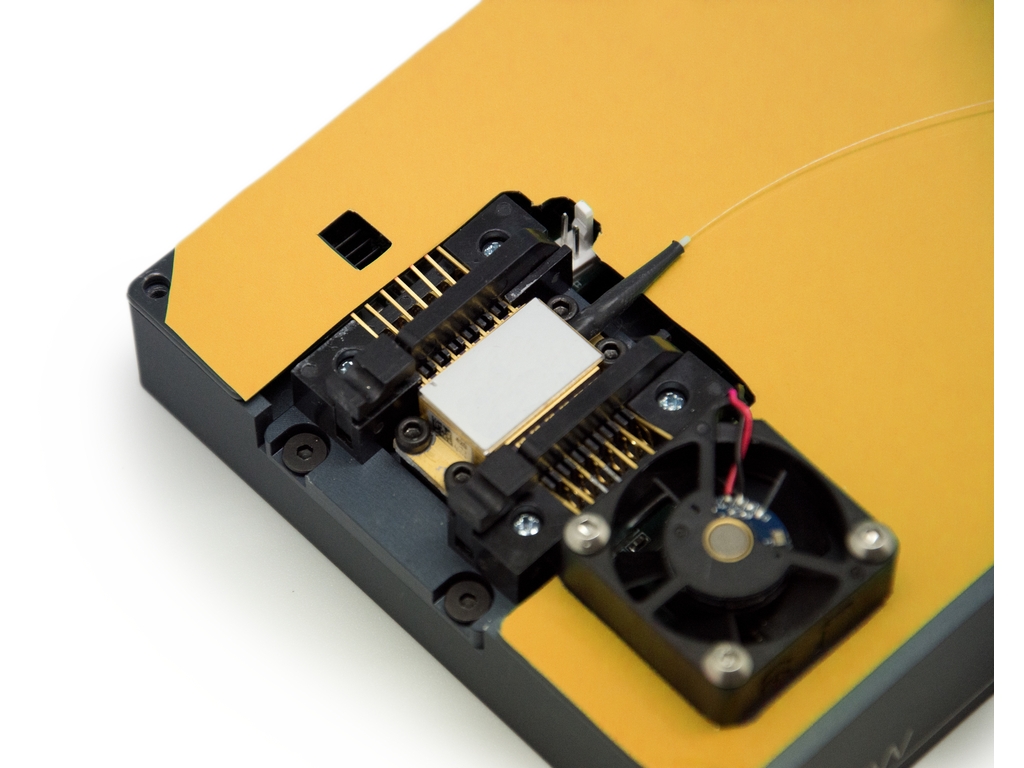

Complex systems, such as fiber lasers, can be quickly developed on this electronic modules platform. Butterfly Laser diodes such as photodigm or lumentum are perfectly well controlled. See our Tutorial on Fiber coupled laser diodes : Fiber-coupled laser diode basics

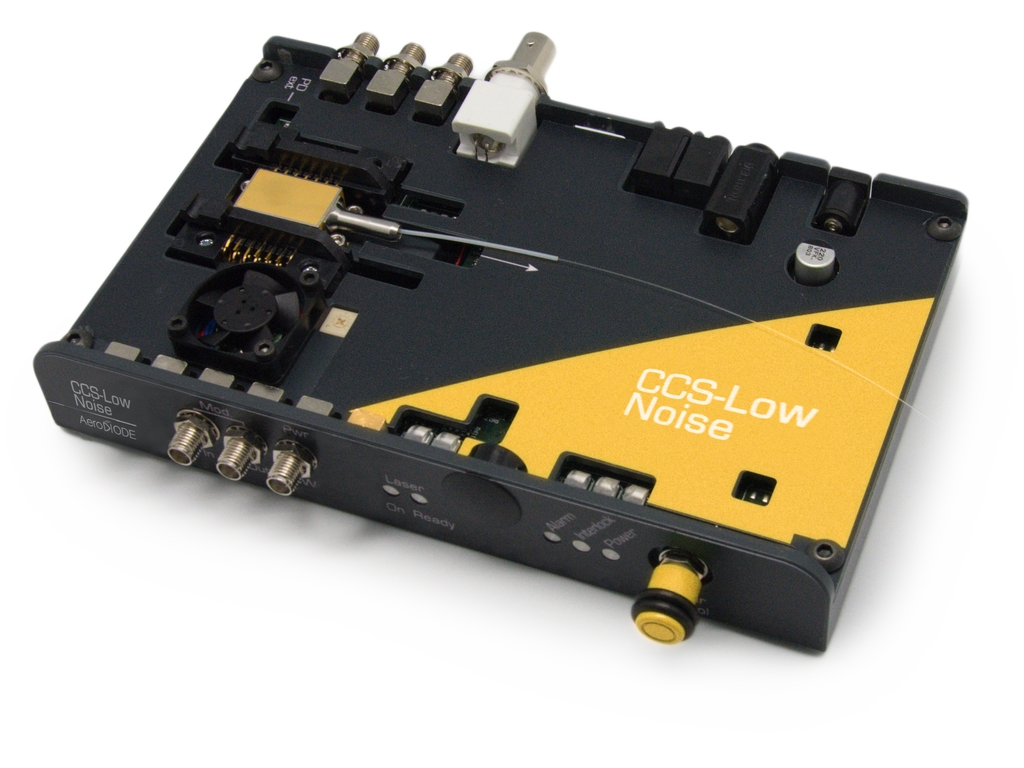

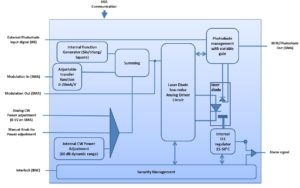

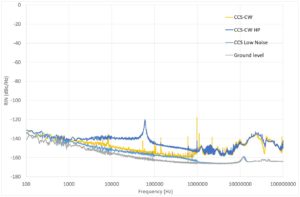

CCS-CW models | Low noise models | |||
---|---|---|---|---|
CCS-CW std (Standard version) | CCS-CW-HP2 (High Power version) | TDLAS (for modulation) | CCS-Low Noise (Ultra low noise version) |
|
Output current | 0 - 800 mA | 0 - 1800 mA | 0 - 1500 mA (Contact us for special 2500 mA version) |
|

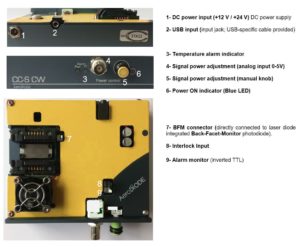

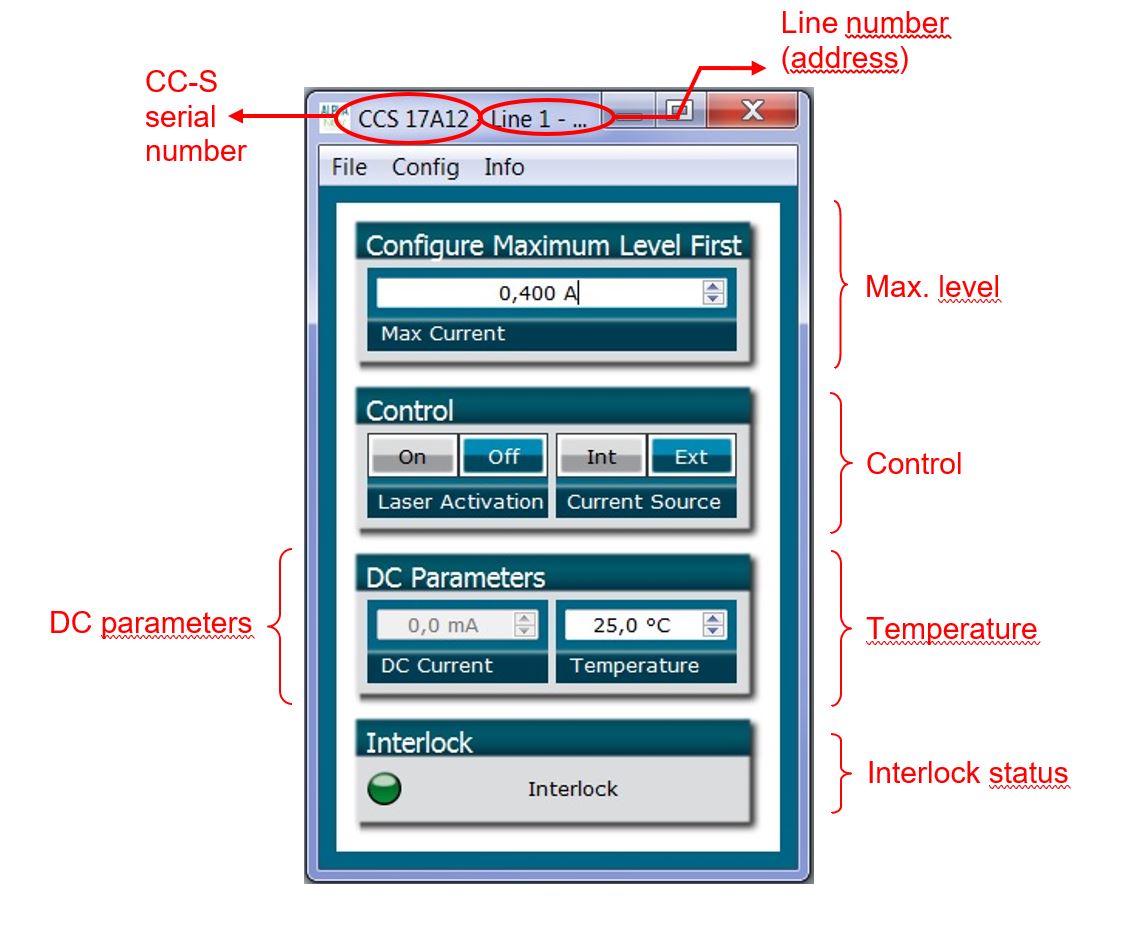

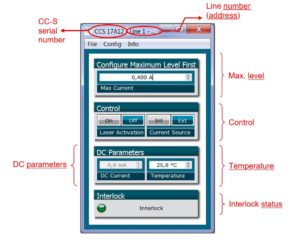

Set point resolution (@ 100 mA) | 25µA | |||
Output current modulation (External mode) | From external 0-5V | 0-20 mA/V (adjustable) | ||
Modulation bandwidth | 100 Hz | 100 Hz | 300 kHz | 200 Hz |
Output compliance voltage | 0 - 4.8 V | 0 - 24 V | 0 - 24 V | 0 - 5 V |
Laser diode T° range | 15 -50 °C | 0 - 90 °C | ||
Temperature stability (typ) | < 10 mK | < 1 mK | ||
TEC current/Voltage | +-1.5A / 3.8 V | +- 3A / 4.6V | ||
BFM (Back Facet Monitor) | BFM output connector only | Yes (variable gain) | ||
External photodiode monitoring | no | Yes (variable gain) | ||
Interface/GUI/libraries | USB - Windows XP/7/10 ; DLLs - Hexa - Labview - Python (windows or LINUX) | |||

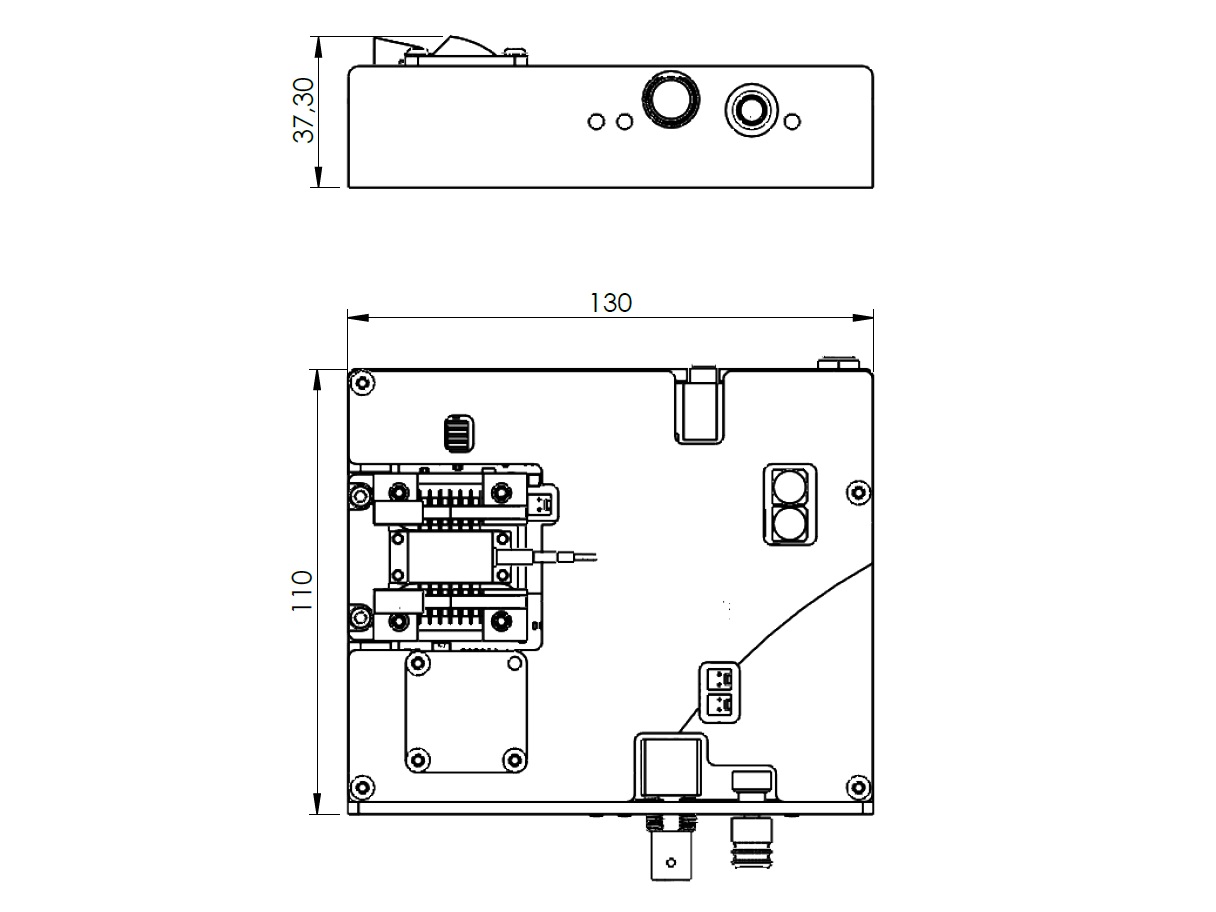

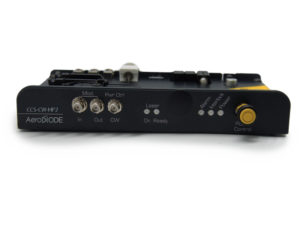

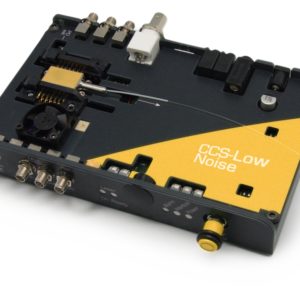

Dimensions (mm) | 130*126.8*32.5 | 170*126.8*32.5 | ||
Power supply | 12 V (110 - 220 V adaptator included) | 24 V (110-220 V adaptator included) |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
---|---|---|---|---|---|---|---|
Standard version PN : CCS-CW-std | 800 mA CW laser diode driver with TEC control & smart control (USB interface & Libraries) | 1 595€ | Today | Max: Min: 1 Step: 1 | |||
New High-Power version PN : CCS-CW-HP2 | 1800 mA CW laser diode driver with TEC control & smart control (USB interface & Libraries) - New generation with a better stability and a larger laser diode chip temperature regulation… Read more 1800 mA CW laser diode driver with TEC control & smart control (USB interface & Libraries) - New generation with a better stability and a larger laser diode chip temperature regulation range. Less | 2 495€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
High-end version PN : TDLAS | 1800 mA low noise laser diode driver with TEC control & smart control (USB interface & Libraries) - (contact us for special 2500 mA version) ; Many modulation functionalities ideal for Gas sensing… Read more 1800 mA low noise laser diode driver with TEC control & smart control (USB interface & Libraries) - (contact us for special 2500 mA version) ; Many modulation functionalities ideal for Gas sensing application. See the dedicated product pages "Low noise laser diode driver " and "TDLAS" Less | 3 795€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |

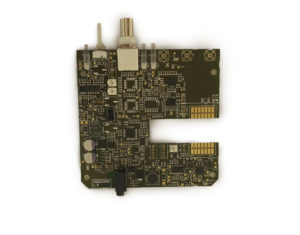

Standard version at board Level PN : CCS-CW-std-OEM | Board level 800 mA CW laser diode driver with TEC control & smart control (USB interface & Libraries) - Board levels drivers have a Minimum Order Quantity of 5 pieces. If you… Read more Board level 800 mA CW laser diode driver with TEC control & smart control (USB interface & Libraries) - Board levels drivers have a Minimum Order Quantity of 5 pieces. If you need an evaluation board, please select the standard module above and add "CCS-CW-std-OEM evaluation board" in the comment part when you order. Less | 1 145€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
New high Power version at board level PN : CCS-CW-HP2-OEM | New generation board level 1800 mA CW laser diode driver with TEC control & smart control (USB interface & Libraries) - Board levels drivers have a Minimum Order Quantity of 5 pieces… Read more New generation board level 1800 mA CW laser diode driver with TEC control & smart control (USB interface & Libraries) - Board levels drivers have a Minimum Order Quantity of 5 pieces. If you need an evaluation single board, please select the HP2 module above (CCS-CW-HP2) and add "CCS-CW-HP2-OEM evaluation board" in the comment part when you order. Less | 1 395€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
High end version at board level PN : TDLAS-OEM | Board level 1500 mA low noise laser diode driver with TEC control & smart control (USB interface & Libraries) - (contact us for special 2500 mA version) ; Many modulation functionalities ideal for… Read more Board level 1500 mA low noise laser diode driver with TEC control & smart control (USB interface & Libraries) - (contact us for special 2500 mA version) ; Many modulation functionalities ideal for Gas sensing application. See special product page "Low noise laser diode driver " and "TDLAS" - Board levels drivers have a Minimum Order Quantity of 5 pieces. If you need an evaluation board, please select the standard module above (TDLAS) and add "TDLAS-OEM evaluation board" in the comment part when you order. Less | 2 295€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |

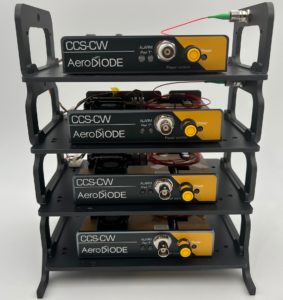

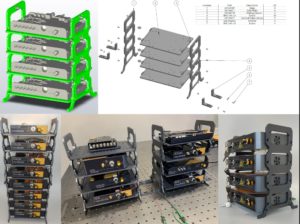

OPTION-1 : mounting set for optical tables PN : OPTION-1 | Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US… Read more Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all all AeroDIODE products and all optical tables on the market (US or Metric). The kit includes 12 mechanical pieces, 36 dedicated screws and 4 fiber optic mating sleeves to stack up to 4 AeroDIODE products. Several kits can be mounted the one on the other to stack up to 8 or 12 products (click to enlarge the picture). Less | 895€ | Today | Max: Min: 1 Step: 1 |
