These single mode 1310nm laser diodes can reach high power in nanosecond pulse regime up to 650mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1310nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.
From: 995€
All shippings with DHL Express
1310nm laser diode Key Features (scroll down to see all configurations and prices) :
The 1310nm laser diode combined with our high end flexible pulsed laser diode driver are an ideal tool for LIDAR, 3D-sensing, or special Telecom or Data-center components R&D teams.
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Emission linewidth (typ)* | Special linewidth test report | Power (Pulse – typical) | Current/ Voltage (typ) | Form factor | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|

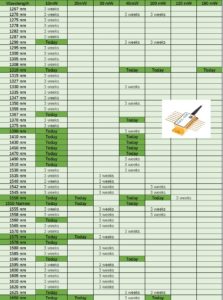

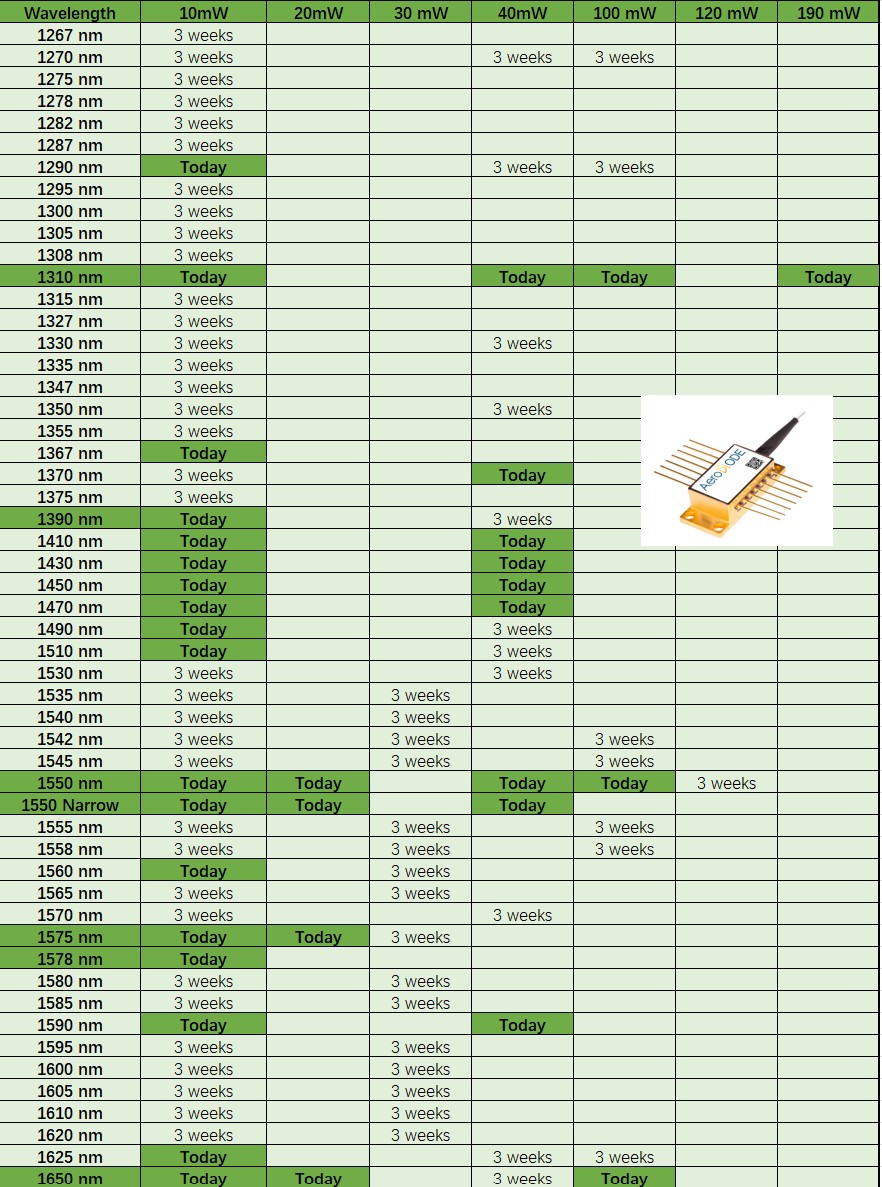

| Model 1 | Datasheet | 10 mW | DFB – singlemode | 1310 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) | <2 MHz* | 15 mW | 60 mA/1.6 V | 14 pin butterfly-type 1 with isolator | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent | Scroll down ! | |
| Model 2 | Datasheet | 40 mW | DFB – singlemode | < 200 kHz* | Linewidth test report | 60 mW | 140 mA/1.6 V | ||||
| Model 3 | Datasheet | 100 mW | DFB – singlemode | 1310 nm | < 100 kHz* | Linewidth test report | 150 mW | 325 mA/1.8 V | |||
| Model 4 | Datasheet | 190 mW | DFB – singlemode | 1310 nm | < 100 kHz* | 200 mW | 650 mA/2.4 V | ||||
| Model 5a | Datasheet | 300 mW | DFB – singlemode | 1310 nm | < 500 kHz* | 350 mW | 900 mA/ 2.8 V | ||||

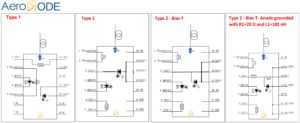

| Model 5b | Datasheet | 350 mW | Fabry-Pérot with optional Bragg grating | 1310 nm | ~5-10 nm ~0.1 nm with optional Bragg | 500 mW | 1200 mA/ 2.0 V | 14 pin butterfly-type 1 | Hi1060 or PM1300 | ||
| Model 6 | Datasheet | 500 mW | Fabry-Pérot with optional Bragg grating | 1310 nm | ~5-10 nm ~0.1 nm with optional Bragg | 650 mW | 1650 mA / 2.0 V |

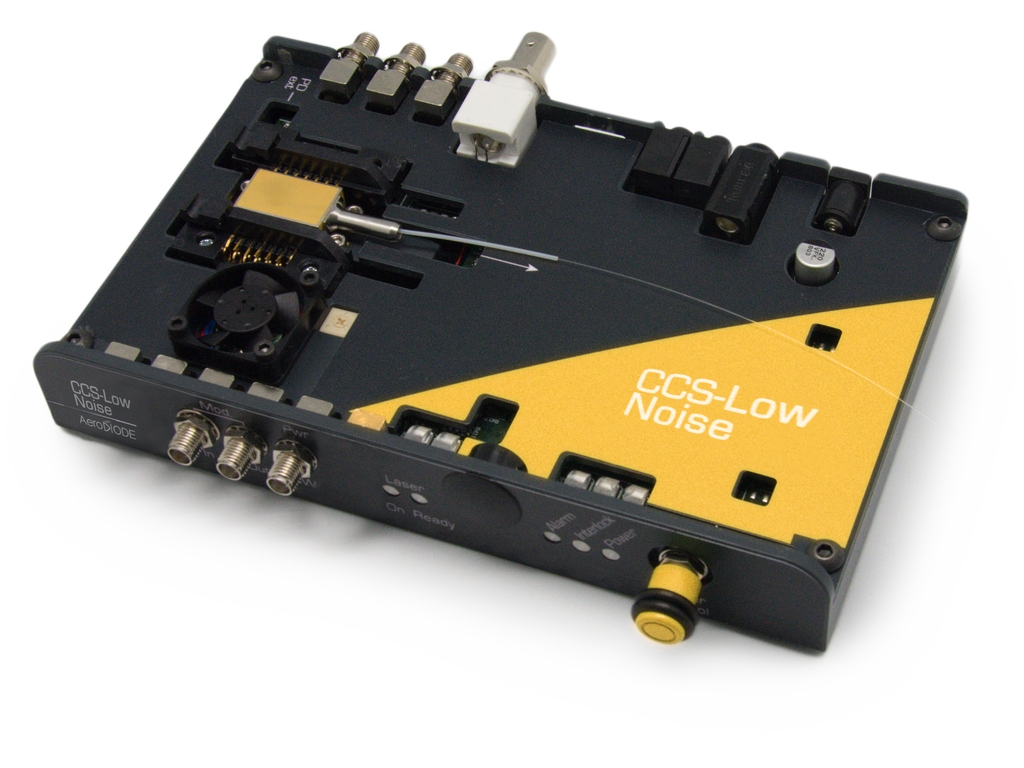

*Scroll down to see all configurations, prices and lead times. For best linewidth performances, an ultra-low noise driver is required. for example this one : low noise laser diode driver

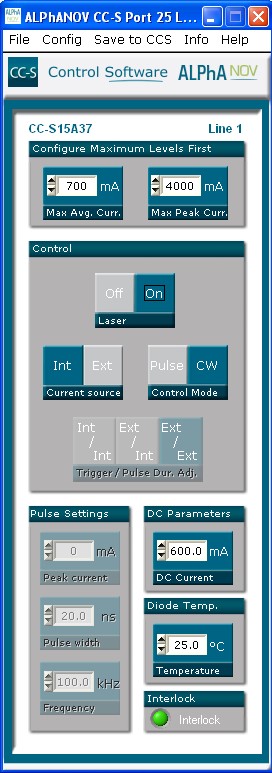

The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 1310nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Combined with our Tombak pulse delay generator, it becomes easy to create a complete bench simulating any type of structured multiple Burst in the nanosecond range.
See our detailed tutorials for more information about the use of these 1310nm laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 15 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
Scroll down to order online the various 1310 nm laser diode models.
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Emission linewidth (typ)* | Special linewidth test report | Power (Pulse - typical) | Current/ Voltage (typ) | Form factor | Output fiber core | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 mW | DFB - singlemode | 1310 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) | <2 MHz* | 15 mW | 60 mA/1.6 V | 14 pin butterfly-type 1 with isolator | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent | Scroll down ! | |
| Model 2 | Datasheet | 40 mW | DFB - singlemode | < 200 kHz* | Linewidth test report | 60 mW | 140 mA/1.6 V | ||||
| Model 3 | Datasheet | 100 mW | DFB - singlemode | 1310 nm | < 100 kHz* | Linewidth test report | 150 mW | 325 mA/1.8 V | |||
| Model 4 | Datasheet | 190 mW | DFB - singlemode | 1310 nm | < 100 kHz* | 200 mW | 650 mA/2.4 V | ||||
| Model 5a | Datasheet | 300 mW | DFB - singlemode | 1310 nm | < 500 kHz* | 350 mW | 900 mA/ 2.8 V | ||||
| Model 5b | Datasheet | 350 mW | Fabry-Pérot with optional Bragg grating | 1310 nm | ~5-10 nm ~0.1 nm with optional Bragg | 500 mW | 1200 mA/ 2.0 V | 14 pin butterfly-type 1 | Hi1060 or PM1300 | ||
| Model 6 | Datasheet | 500 mW | Fabry-Pérot with optional Bragg grating | 1310 nm | ~5-10 nm ~0.1 nm with optional Bragg | 650 mW | 1650 mA / 2.0 V |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | OPTION : PM fiber for Model 1 PN : OPTION-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 100€ | Today | |||
 | Model 1 (10 mW) PN : 1310LD-1-0-0 | 1310 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm -… Read more 1310 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 995€ | Today | |||
 | Model 1 (10 mW) with "CCS-CW" driver PN : 1310LD-1-1-1 | Open CW driver with 1310 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270… Read more Open CW driver with 1310 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 3 090€ | 2 - 5 days | |||

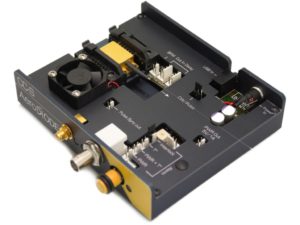

 | Model 1 (10 mW) with "CCS" driver PN : 1310LD-1-2-1 | Open Pulse & CW driver with 1310 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250… Read more Open Pulse & CW driver with 1310 nm 10 mW butterfly laser diode. SMF fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version - see below) ; Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 3 990€ | 2 - 5 days | |||

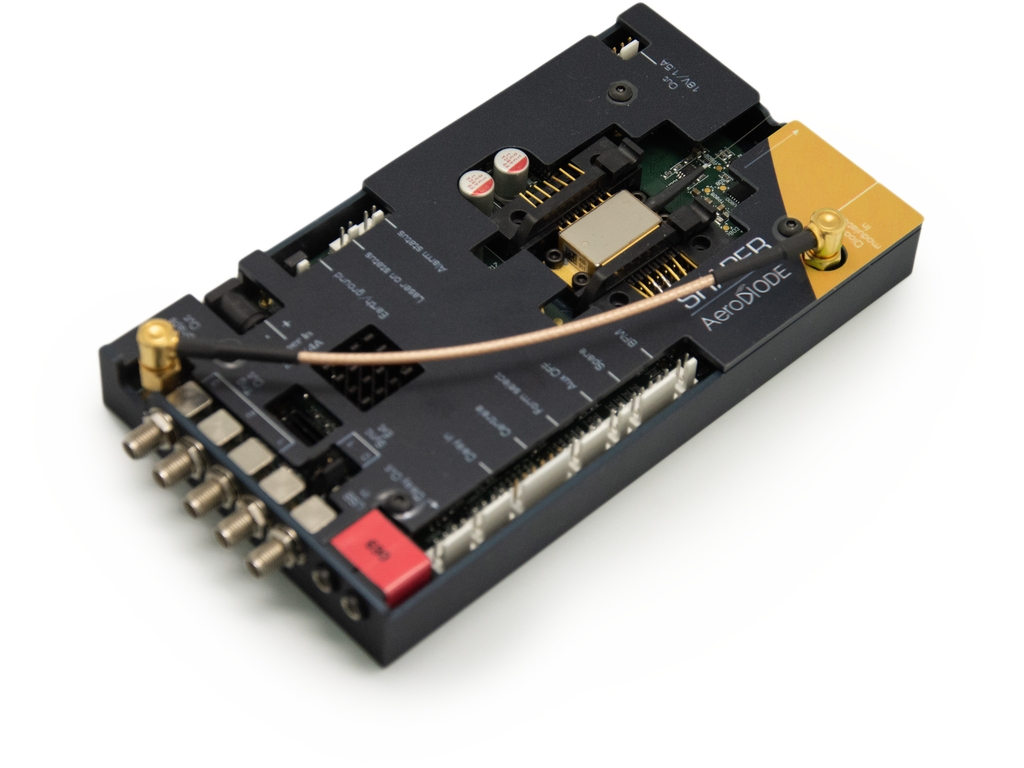

 | Model 1 (10 mW) with "Shaper" driver PN : 1310LD-1-3-1 | Open pulsed driver with 10 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 10 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 5 990€ | 1 - 2 weeks | |||
 | Model 1 (10 mW) within "CCSI-CW" module PN : 1310LD-1-1-2 | Turn-key integrated CW laser diode module at 1310 nm. CW power up to 10 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (… Read more Turn-key integrated CW laser diode module at 1310 nm. CW power up to 10 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (Benchtop version) see below. Less | 4 290€ | 1 - 2 weeks | |||

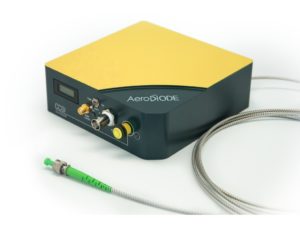

| Model 1 (10 mW) within "CCSI" module PN : 1310LD-1-2-2 | Turn-key integrated laser diode module at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (Benchtop version) - see below. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 5 190€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (40 mW) PN : 1310LD-2-0-0 | 1310 nm 40 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm -… Read more 1310 nm 40 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 1 345€ | Today | |||
| OPTION : PM fiber for Model 2 PN : OPTION-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 2 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 200€ | Today | |||
| Model 2 (40 mW) with "CCS-CW" driver PN : 1310LD-2-1-1 | Open CW driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version (select the Option) and… Read more Open CW driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 3 440€ | 2 - 5 days | |||
| Model 2 (40 mW) with "CCS" driver PN : 1310LD-2-2-1 | Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 40 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 40 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 4 340€ | 2 - 5 days | |||
 | Model 2 (40 mW) with "CCS-Low Noise" driver PN : 1310LD-2-LN-1 | Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version (select… Read more Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. See the dedicated driver page for more information about the driver performances. Less | 6 140€ | 2 - 5 days | |||
| Model 2 (40 mW) with "Shaper" driver PN : 1310LD-2-3-1 | Open pulsed driver with 40 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 40 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 6 340€ | 1 - 2 weeks | |||
| Model 2 (40 mW) within "CCSI-CW" module PN : 1310LD-2-1-2 | Turn-key integrated CW laser diode module at 1310 nm. CW power up to 40 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). and option 3 (… Read more Turn-key integrated CW laser diode module at 1310 nm. CW power up to 40 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). and option 3 (Benchtop version). Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 4 640€ | 1 - 2 weeks | |||
| Model 2 (40 mW) within "CCSI" module PN : 1310LD-2-2-2 | Turn-key integrated laser diode module at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 5 540€ | 1 - 2 weeks | |||

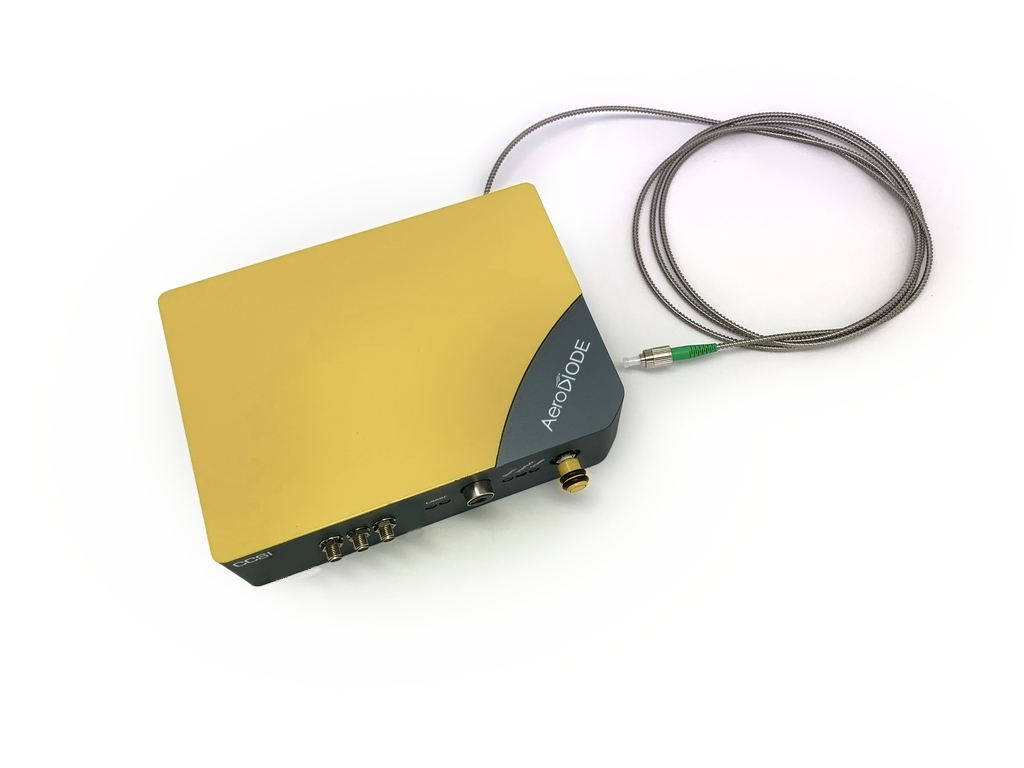

 | Model 2 (40 mW) within "CCSI-Low Noise" module PN : 1310LD-2-LN-2 | Turn-key integrated CW Ultra low noise laser diode module at 1310 nm. CW power up to 40 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm… Read more Turn-key integrated CW Ultra low noise laser diode module at 1310 nm. CW power up to 40 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. See the dedicated driver page for more information about the driver performances. Less | 7 340€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 3 (100 mW) PN : 1310LD-3-0-0 | 1310 nm 100 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm -… Read more 1310 nm 100 mW butterfly laser diode alone . SMF fiber with FC-APC connector. Also available in PM version (select the Option) and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special wavelength versions. Less | 2 195€ | Today | |||
| OPTION : PM fiber for model 3 PN : OPTION-PM3 | With this OPTION, Model 3 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 3 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 350€ | Today | |||
| Model 3 (100 mW) with "CCS-CW" driver PN : 1310LD-3-1-1 | Open CW driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 100 mW CW optical power. Also available in PM version (select the Option). | 4 290€ | 2 - 5 days | |||
| Model 3 (100 mW) with "CCS" driver PN : 1310LD-3-2-1 | Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 100 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 100 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version (select the Option). Less | 5 190€ | 2 - 5 days | |||
| Model 3 (100 mW) with "CCS-Low Noise" driver PN : 1310LD-3-LN-1 | Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 100 mW CW optical power. Also available in PM version (select… Read more Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 100 mW CW optical power. Also available in PM version (select the Option). See the dedicated driver page for more information about the driver performances. Less | 6 990€ | 2 - 5 days | |||
| Model 3 (100 mW) with "Shaper" driver PN : 1310LD-3-3-1 | Open pulsed driver with 100 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 100 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM version (select the Option). Less | 7 190€ | 2 - 5 days | |||
| Model 3 (100 mW) within "CCSI-CW" module PN : 1310LD-3-1-2 | Turn-key integrated CW laser diode module at 1310 nm. CW power up to 100 mW. SMF metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and… Read more Turn-key integrated CW laser diode module at 1310 nm. CW power up to 100 mW. SMF metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM version (select the Option). Less | 5 490€ | 1 - 2 weeks | |||
| Model 3 (100 mW) within "CCSI" module PN : 1310LD-3-2-2 | Turn-key integrated laser diode module at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 100 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 100 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM version (select the Option). Less | 6 390€ | 1 - 2 weeks | |||
| Model 3 (100 mW) within "CCSI-Low Noise" module PN : 1310LD-3-LN-2 | Turn-key integrated CW Ultra low noise laser diode DFB module at 1310 nm. CW power up to 100 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3… Read more Turn-key integrated CW Ultra low noise laser diode DFB module at 1310 nm. CW power up to 100 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). Also available in PM version (select the Option). See the dedicated driver page for more information about the driver performances. Less | 8 190€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 4 (190 mW) PN : 1310LD-4-0-0 | 1310 nm 190 mW butterfly DFB laser diode alone . SMF fiber with FC-APC connector. Also available in PM version - Select the option below. | 2 995€ | Today | |||
| OPTION : PM fiber for model 4 PN : OPTION-PM4 | With this OPTION, Model 4 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 4 is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 650€ | Today | |||
| Model 4 (190 mW) with "CCS-CW" driver PN : 1310LD-4-1-1 | Open CW driver with 1310 nm -choose your wavelength) butterfly laser diode and SMF fiber with FC/APC connector. Up to 190 mW CW optical power. Also available in PM version -… Read more Open CW driver with 1310 nm -choose your wavelength) butterfly laser diode and SMF fiber with FC/APC connector. Up to 190 mW CW optical power. Also available in PM version - select the option Less | 5 090€ | 2 - 5 days | |||
| Model 4 (190 mW) with "CCS" driver PN : 1310LD-4-2-1 | Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 190 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 190 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version - select the option. Less | 5 990€ | 2 - 5 days | |||
| Model 4 (190 mW) with "CCS-Low Noise" driver PN : 1310LD-4-LN-1 | Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 190 mW CW optical power. Also available in PM version (select… Read more Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 190 mW CW optical power. Also available in PM version (select the Option). See the dedicated driver page for more information about the driver performances. Less | 7 790€ | 2 - 5 days | |||
| Model 4 (190 mW) with "Shaper" driver PN : 1310LD-4-3-1 | Open pulsed driver with 190 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 190 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version - select the option. Less | 7 990€ | 1 - 2 weeks | |||
| Model 4 (190 mW) within "CCSI-CW" module PN : 1310LD-4-1-2 | Turn-key integrated CW laser diode module at 1310 nm. CW power up to 190 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (… Read more Turn-key integrated CW laser diode module at 1310 nm. CW power up to 190 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM fiber version - select the option. Less | 6 290€ | 1 - 2 weeks | |||
| Model 4 (190 mW) within "CCSI" module PN : 1310LD-4-2-2 | Turn-key integrated laser diode at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 190 mW. Down to 1.5 ns… Read more Turn-key integrated laser diode at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 190 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM fiber version - select the option. Less | 7 190€ | 1 - 2 weeks | |||
| Model 4 (190 mW) within "CCSI-Low Noise" module PN : 1310LD-4-LN-2 | Turn-key integrated CW Ultra low noise laser diode DFB module at 1310 nm. CW power up to 190 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3… Read more Turn-key integrated CW Ultra low noise laser diode DFB module at 1310 nm. CW power up to 190 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). Also available in PM version (select the Option). See the dedicated driver page for more information about the driver performances. Less | 8 990€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 5a (300 mW DFB) PN : 1310LD-5a-0-0 | 1310 nm 300mW butterfly DFB laser diode alone . SMF fiber with FC-APC connector. Also available in PM version - Select the option below. | 5 495€ | 3 - 4 weeks | |||
| OPTION : PM fiber for model 5a PN : OPTION-PM5a | With this OPTION, Model 5a is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the… Read more With this OPTION, Model 5a is offered with a polarization maintaining PM1300 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 850€ | 3 - 4 weeks | |||
| Model 5a (300 mW DFB) with "CCS-CW" driver PN : 1310LD-5a-1-1 | Open CW driver with 1310 nm -choose your wavelength) butterfly laser diode and SMF fiber with FC/APC connector. Up to 300 mW CW optical power. Also available in PM version -… Read more Open CW driver with 1310 nm -choose your wavelength) butterfly laser diode and SMF fiber with FC/APC connector. Up to 300 mW CW optical power. Also available in PM version - select the option Less | 7 590€ | 3 - 4 weeks | |||
| Model 5a (300 mW DFB) with "CCS" driver PN : 1310LD-5a-2-1 | Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 300 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Up to 300 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version - select the option. Less | 8 490€ | 3 - 4 weeks | |||
| Model 5a (300 mW DFB) with "CCS-Low Noise" driver PN : 1310LD-5a-LN-1 | Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 300 mW CW optical power. Also available in PM version (select… Read more Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 300 mW CW optical power. Also available in PM version (select the Option). See the dedicated driver page for more information about the driver performances. Less | 10 290€ | 3 - 4 weeks | |||
| Model 5a (300 mW DFB) with "Shaper" driver PN : 1310LD-5a-3-1 | Open pulsed driver with 300 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 300 mW 1310 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version - select the option. Less | 10 490€ | 3 - 4 weeks | |||
| Model 5a (300 mW DFB) within "CCSI-CW" module PN : 1310LD-5a-1-2 | Turn-key integrated CW laser diode module at 1310 nm. CW power up to 300 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (… Read more Turn-key integrated CW laser diode module at 1310 nm. CW power up to 300 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM fiber version - select the option. Less | 8 790€ | 3 - 4 weeks | |||
| Model 5a (300 mW DFB) within "CCSI" module PN : 1310LD-5a-2-2 | Turn-key integrated laser diode at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 300 mW. Down to 1.5 ns… Read more Turn-key integrated laser diode at 1310 nm for Pulse and CW emission. SMF metal protected fiber output with FC/APC output connector. CW output power up to 300 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM fiber version - select the option. Less | 9 690€ | 3 - 4 weeks | |||
| Model 5a (300 mW DFB) within "CCSI-Low Noise" module PN : 1310LD-5a-LN-2 | Turn-key integrated CW Ultra low noise laser diode DFB module at 1310 nm. CW power up to 300 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3… Read more Turn-key integrated CW Ultra low noise laser diode DFB module at 1310 nm. CW power up to 300 mW. SMF metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). Also available in PM version (select the Option). See the dedicated driver page for more information about the driver performances. Less | 11 490€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 5b (350 mW) PN : 1310LD-5b-0-0 | 1310 nm 350 mW butterfly Fabry-Pérot laser diode alone. SMF-Hi1060 fiber with FC-APC connector. Also available in PM version an also available with an optional Bragg grating (select the option below). | 3 495€ | 3 - 4 weeks | |||
| OPTION : PM fiber for model 5b PN : OPTION-PM5b | With this OPTION, Model 5 is offered with a polarization maintaining Panda PM1300 fiber instead of a standard Hi1060. Both the connector key and the light polarization are aligned along the… Read more With this OPTION, Model 5 is offered with a polarization maintaining Panda PM1300 fiber instead of a standard Hi1060. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 700€ | Today | |||
 | Model 5b (350 mW) with "CCS-CW-HP2" driver PN : 1310LD-5b-1-1 | Open CW driver with 1310nm butterfly laser diode and SMF-Hi1060 fiber with FC/APC connector. Up to 350mW CW optical power. Also available in PM version and also available with… Read more Open CW driver with 1310nm butterfly laser diode and SMF-Hi1060 fiber with FC/APC connector. Up to 350mW CW optical power. Also available in PM version and also available with a Bragg Grating wavelength stabilization (select the Option). Less | 5 990€ | 2 - 5 days | |||
| Model 5b (350 mW) with "CCS" driver PN : 1310LD-5b-2-1 | Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Fabry-Perot Technology. Up to 250mW CW optical power and 500mW pulsed ; Down to 1.5… Read more Open Pulse & CW driver with 1310 nm butterfly laser diode and SMF fiber output with FC-APC connector. Fabry-Perot Technology. Up to 250mW CW optical power and 500mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version - select the option. Less | 6 490€ | 2 - 5 days | |||
| Model 5b (350 mW) with "CCS-Low Noise" driver PN : 1310LD-5b-LN-1 | Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 350 mW CW optical power. Also available in PM version (select… Read more Open CW ultra low noise driver with 1310 nm butterfly laser diode and SMF fiber with FC/APC connector. Up to 350 mW CW optical power. Also available in PM version (select the Option). See the dedicated driver page for more information about the driver performances. Less |
