Semiconductor Optical Amplifier (SOA) : for CW or pulsed operation from 750 to 1550 nm

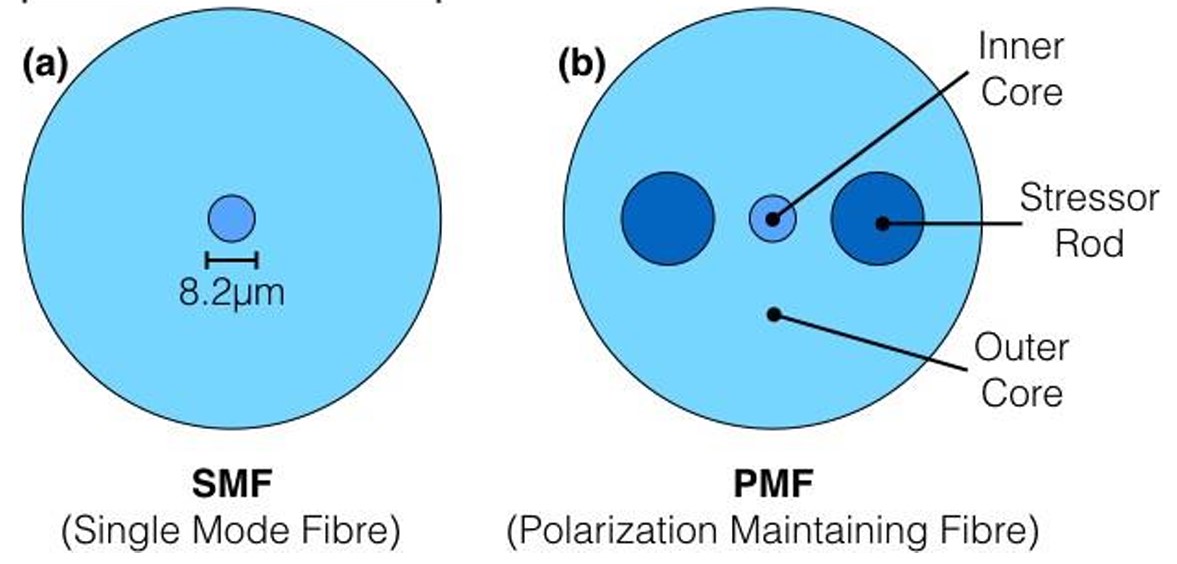

785 nm butterfly SOA optical amplifier (wavelength range 750-796 nm). PM780 - 250 µm buffer fiber with FC/APC connectors. Typical output power 18 dBm (65 mW) ; Small signal gain up to 32 dB. Compatible with OPTION-1 : high power isolator at 785 nm

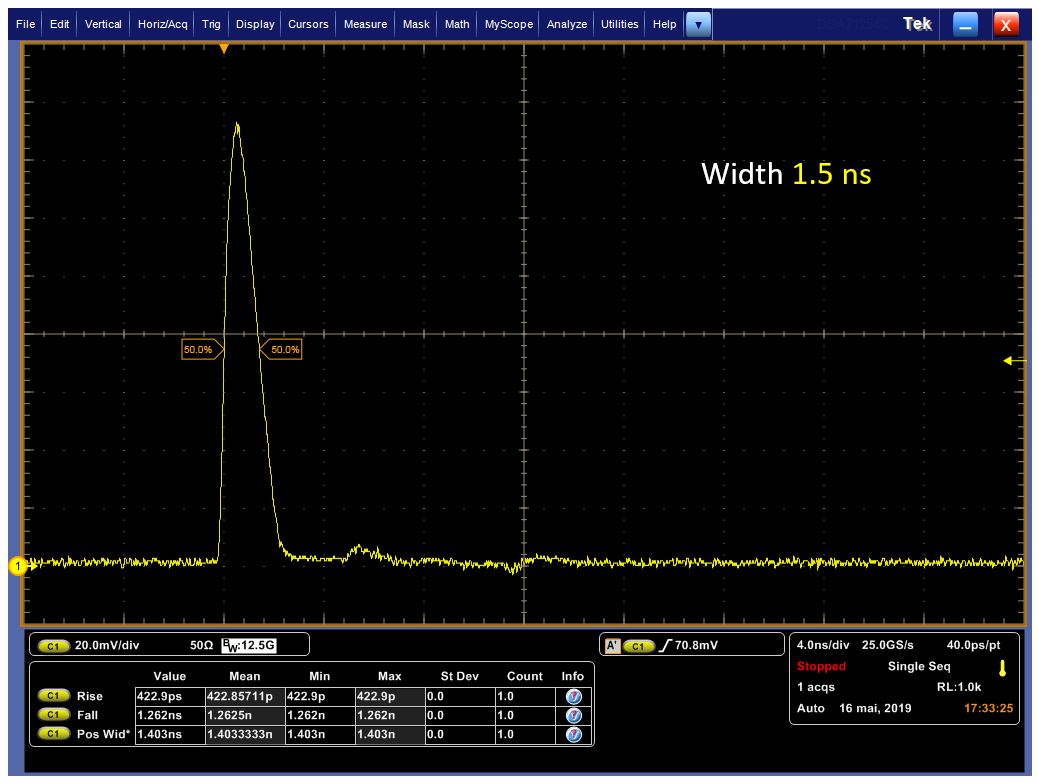

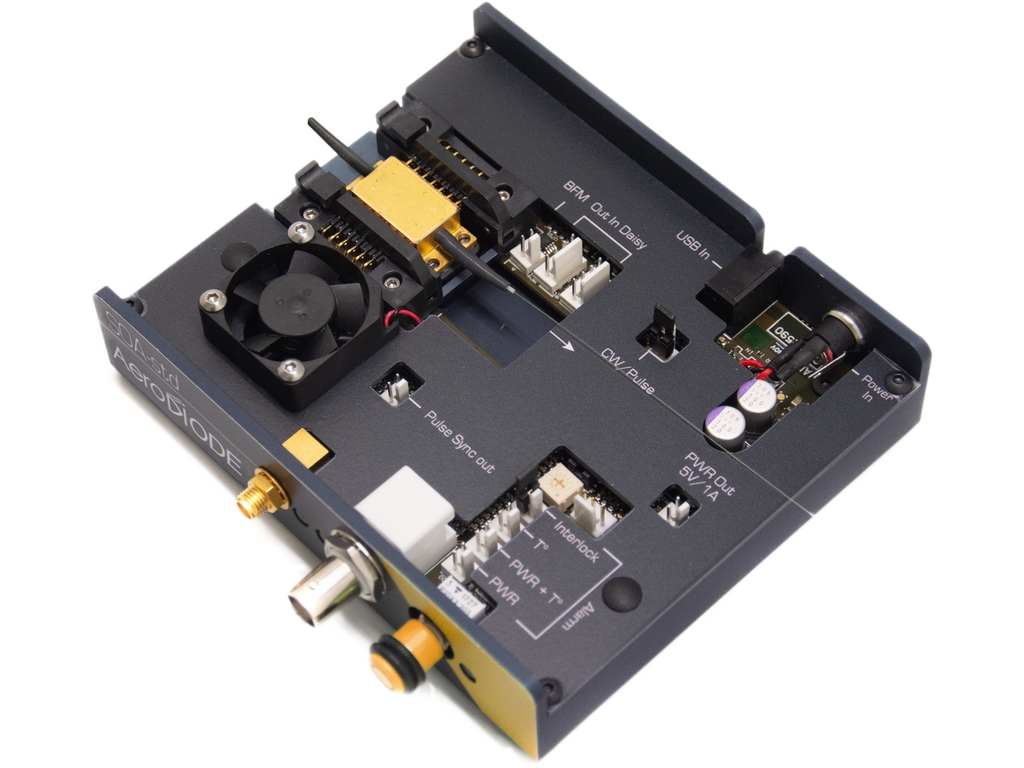

Open Pulse & CW driver with 785 nm butterfly SOA optical amplifier (wavelength range 750-796 nm). PM780 - 250 µm buffer fiber with FC/APC connectors. Down to 1.5 ns pulse duration ; Up to 10 MHz pulse repetition rate. Typical output power 18 dBm (65 mW) in CW and 23 dBm (200 mW) in pulse mode ; Small signal gain up to 32 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible with OPTION-1 : high power isolator at 785 nm.

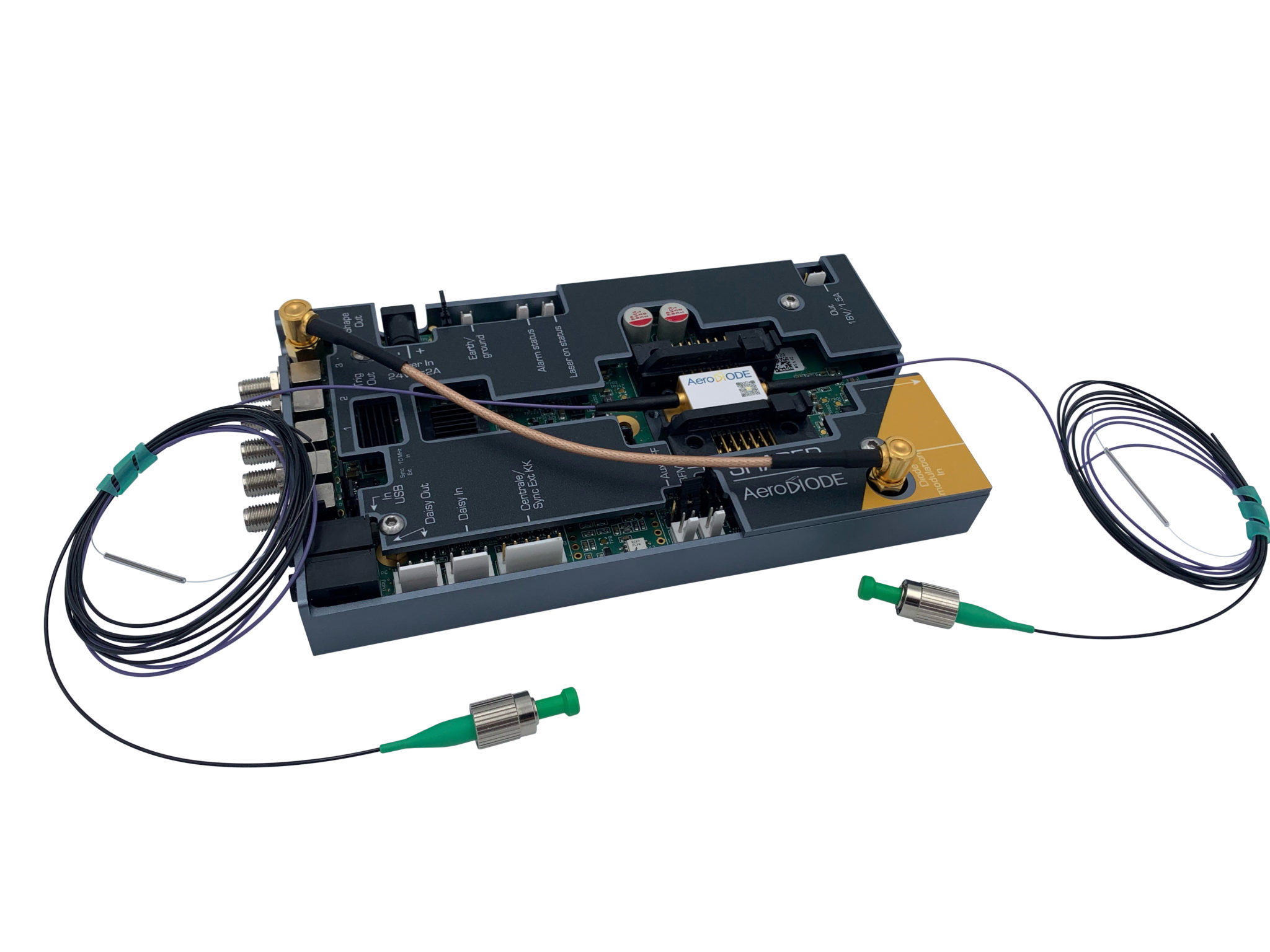

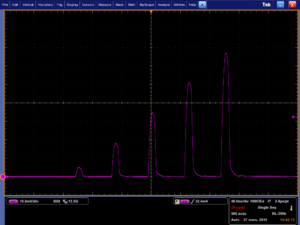

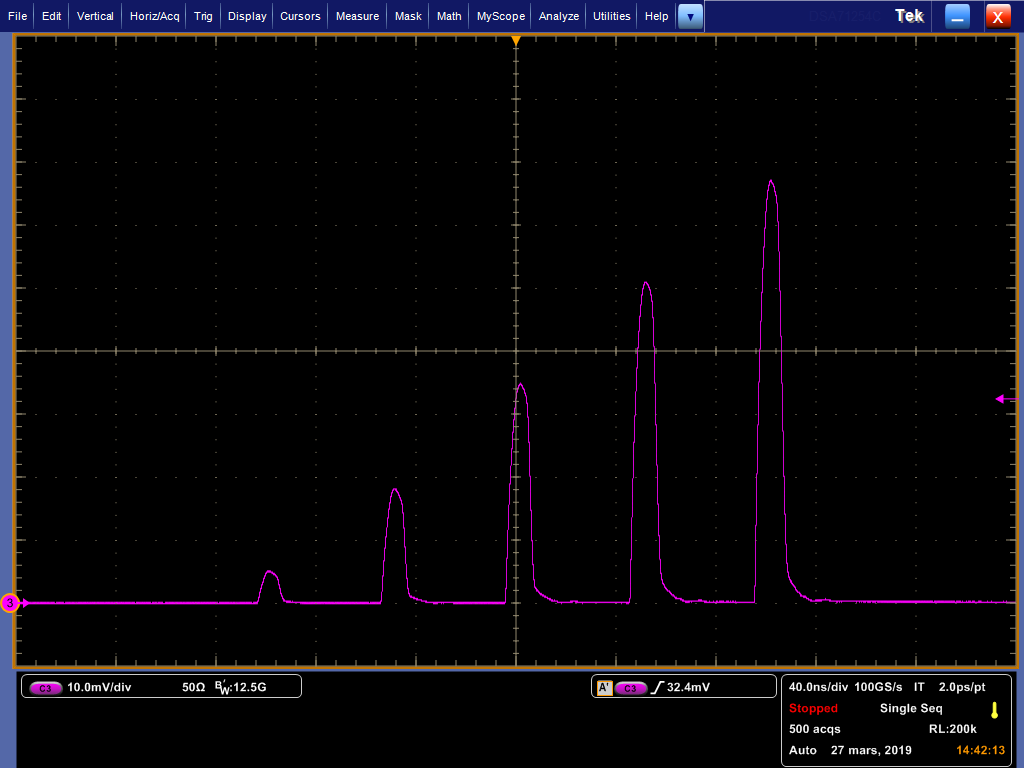

Open Pulsed driver with 785 nm butterfly SOA optical amplifier (wavelength range 750-796 nm). PM780 - 250 µm buffer fiber with FC/APC connectors. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Typical output power 23 dBm (200 mW) in pulse mode ; Small signal gain up to 32 dB. Compatible with OPTION-1 : high power isolator at 785 nm.

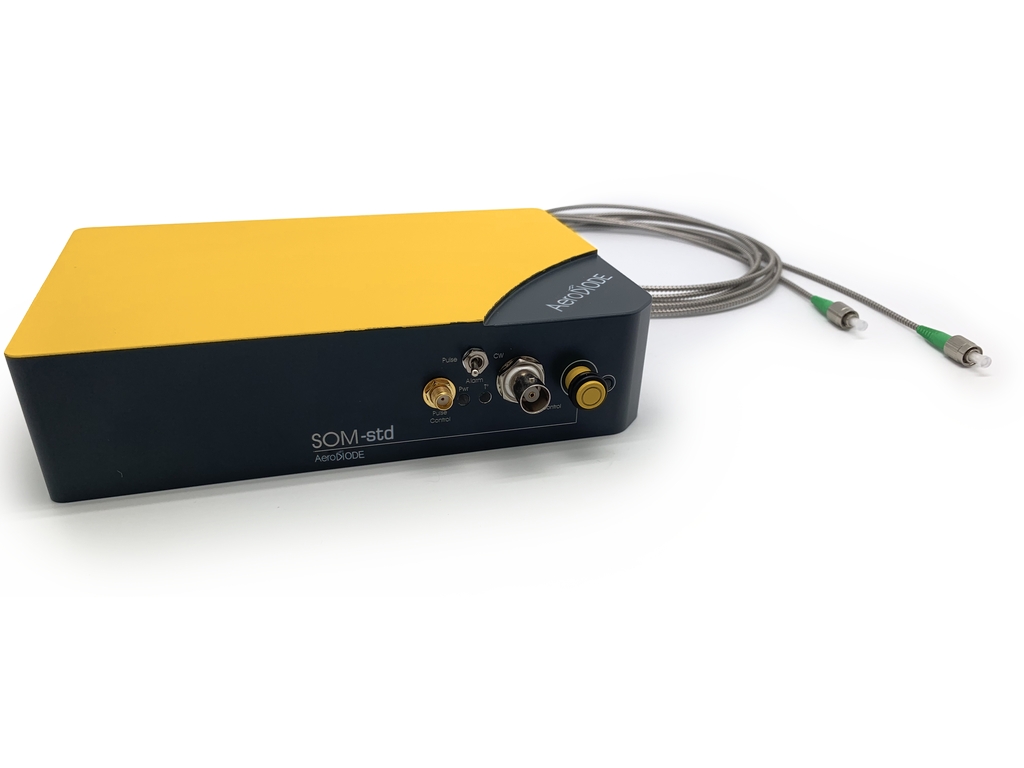

Turn-key integrated SOA module for amplification in either CW or pulsed (intensity modulation) mode with 785 nm SOA optical amplifier (wavelength range 750-796 nm). PM780 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. Down to 1.5 ns pulse duration ; Up to 10 MHz pulse repetition rate. Typical output power 18 dBm (65 mW) in CW and 23 dBm (200 mW) in pulse mode ; Small signal gain up to 32 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible with OPTION-1 : high power isolator at 785 nm.

Turn-key integrated SOA module for amplification in pulsed mode only (intensity modulation) with 785 nm SOA optical amplifier (wavelength range 750-796 nm). PM780 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Typical output power 23 dBm (200 mW) in pulse mode ; Small signal gain up to 32 dB. Compatible with OPTION-1 : high power isolator at 785 nm

Open Pulse & CW driver with 1030nm butterfly SOA optical amplifier (wavelength range 1020-1050nm). PM980 - 250 µm buffer fiber with FC/APC connectors. Down to 1.5 ns pulse duration ; Up to 10 MHz pulse repetition rate. Typical output power 22dBm (160mW) ; Small signal gain up to 37dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes.

Open Pulsed driver with 1030nm butterfly SOA optical amplifier (wavelength range 1020-1050nm). PM980 - 250µm buffer fiber with FC/APC connectors. User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Typical output power 24.5dBm (300mW) in pulse mode ; Small signal gain up to 37dB.

Turn-key integrated SOA module for amplification in either CW or pulsed (intensity modulation) mode with 1030nm SOA optical amplifier (wavelength range 1020-1050nm). PM980 fiber with FC/APC fiber connector and 3mm fiber metal protection coating. Down to 1.5ns pulse duration ; Up to 10MHz pulse repetition rate. Typical output power 22dBm (160mW) in CW and 24.5dBm (300mW) in pulse mode ; Small signal gain up to 37dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes.

Turn-key integrated SOA module for amplification in pulsed mode only (intensity modulation) with 1030nm SOA optical amplifier (wavelength range 1020-1050nm). PM980 fiber with FC/APC fiber connector and 3mm fiber metal protection coating. User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Typical output power 22dBm (160mW) in pulse mode ; Small signal gain up to 37dB.

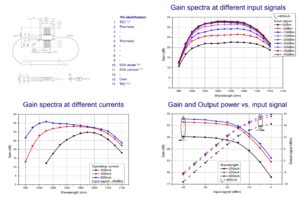

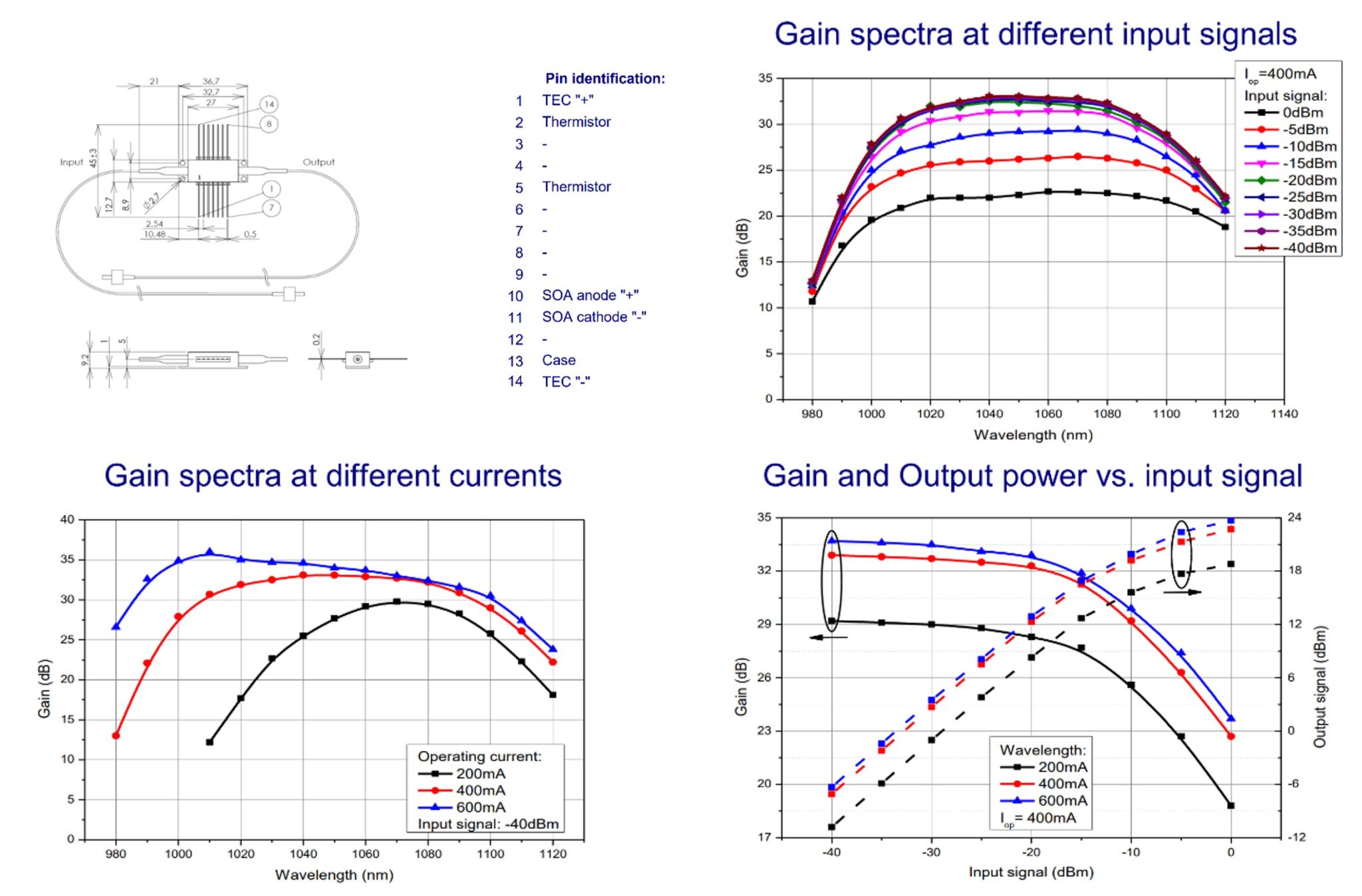

1064 or 1030 nm butterfly SOA optical amplifier (wavelength range 1000-1100 nm). PM980 - 250 µm buffer fiber with FC/APC connectors. Typical output power 20 dBm (100 mW) ; Small signal gain up to 33 dB. Compatible with OPTION 2 : standard isolator at SOA amplifier wavelength.

Open Pulse & CW driver with 1030/1064 nm butterfly SOA optical amplifier (wavelength range 1000-1100 nm). PM980 - 250 µm buffer fiber with FC/APC connectors. Down to 1.5 ns pulse duration ; Up to 10 MHz pulse repetition rate. Typical output power 20 dBm (100 mW) in CW and 23 dBm (200 mW) in pulse mode ; Small signal gain up to 33 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible with OPTION 2 : standard isolator at SOA amplifier wavelength.

Open Pulsed driver with 1030/1064 nm butterfly SOA optical amplifier (wavelength range 1000-1100 nm). PM980 - 250 µm buffer fiber with FC/APC connectors. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Typical output power 23 dBm (200 mW) in pulse mode ; Small signal gain up to 32 dB. Compatible with OPTION 2 : standard isolator at SOA amplifier wavelength.

Turn-key integrated SOA module for amplification in either CW or pulsed (intensity modulation) mode with 1030/1064 nm SOA optical amplifier (wavelength range 1000-1100 nm). PM980 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. Down to 1.5 ns pulse duration ; Up to 10 MHz pulse repetition rate. Typical output power 20 dBm (100 mW) in CW and 23 dBm (200 mW) in pulse mode ; Small signal gain up to 33 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible with OPTION 2 : standard isolator at SOA amplifier wavelength.

Turn-key integrated SOA module for amplification in pulsed mode only (intensity modulation) with 1030/1064 nm SOA optical amplifier (wavelength range 1000-1100 nm). PM980 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Typical output power 23 dBm (200 mW) in pulse mode ; Small signal gain up to 33 dB. Compatible with OPTION 2 : standard isolator at SOA amplifier wavelength.

1310 nm butterfly SOA optical amplifier (wavelength range 1270-1330 nm). PM1300 - 900 µm buffer fiber with FC/APC connectors. Typical output power 18 dBm (65 mW) ; Small signal gain up to 30 dB. Compatible with OPTION 2 : standard isolator at SOA amplifier wavelength.

Open CW driver with 1310 nm butterfly SOA optical amplifier (wavelength range 1270-1330 nm). PM1300 - 900 µm buffer fiber with FC/APC connectors. Typical output power 18 dBm (65 mW) ; Small signal gain up to 30 dB. Compatible with OPTION "SOA3PI" above (Polarization Independent device) and OPTION 2 : standard isolator at SOA amplifier wavelength.

Open Pulse & CW driver with 1310 nm butterfly SOA optical amplifier (wavelength range 1270-1330 nm). PM1300 - 900 µm buffer fiber with FC/APC connectors. HPP (High-Pulse-Performance) model. Down to 1.5 ns pulse duration ; Up to 250 MHz pulse repetition rate. Typical output power 18 dBm (65 mW) in CW and 20 dBm (100 mW) in pulse mode ; Small signal gain up to 30 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible OPTION "SOA3PI" above (Polarization Independent device) and with OPTION 2 : standard isolator at SOA amplifier wavelength.

Turn-key integrated SOA module for CW amplification with 1310 nm SOA optical amplifier (wavelength range 1270-1330 nm). PM1300 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. Typical output power 18 dBm (65 mW) ; Small signal gain up to 30 dB. Compatible with OPTION "SOA3PI" above (Polarization Independent device) and OPTION 2 : standard isolator at SOA amplifier wavelength.

Turn-key integrated SOA module for amplification in either CW or pulsed (intensity modulation) mode with 1310 nm SOA optical amplifier (wavelength range 1270-1330 nm). PM1300 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. HPP (High Pulse Performance) model. Down to 1.5 ns pulse duration ; Up to 250 MHz pulse repetition rate. Typical output power 18 dBm (65 mW) in CW and 20 dBm (100 mW) in pulse mode ; Small signal gain up to 30 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible with OPTION "SOA3PI" above (Polarization Independent device) and OPTION 2 : standard isolator at SOA amplifier wavelength.

Open CW driver with 1310nm butterfly SOA optical amplifier (wavelength range 1260-1320 nm). PM1300 - 900 µm buffer fiber with FC/APC connectors. UHP (High-Power-Performance) model. Typical output power 26dBm (400mW) ; Small signal gain up to 30dB.

Turn-key integrated SOA module for amplification in either CW or pulsed (intensity modulation) mode with 1310nm SOA optical amplifier (wavelength range 1260-1320 nm). PM1300 fiber with FC/APC fiber connector and 3mm fiber metal protection coating. HPP (High Pulse Performance) model. Down to 1.5ns pulse duration ; Up to 250MHz pulse repetition rate. Typical output power 23dBm (200mW) in CW and 24dBm (250mW) in pulse mode ; Small signal gain up to 30dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes.

1550 nm butterfly SOA optical amplifier (wavelength range 1520-1580 nm). PM1550 - 900 µm buffer fiber with FC/APC connectors. Typical output power 18 dBm (65 mW) ; Small signal gain up to 25 dB. Compatible with OPTION 2 : standard isolator at SOA amplifier wavelength.

Open CW driver with 1550 nm butterfly SOA optical amplifier (wavelength range 1520-1580 nm). PM1550 - 900 µm buffer fiber with FC/APC connectors. Typical output power 18 dBm (65 mW) ; Small signal gain up to 25 dB. Compatible with OPTION "SOA4PI" above (Polarization Independent device) and OPTION 2 : standard isolator at SOA amplifier wavelength.

Open Pulse & CW driver with 1550 nm butterfly SOA optical amplifier (wavelength range 1520-1580 nm). PM1550 - 900 µm buffer fiber with FC/APC connectors. HPP (High-Pulse-Performance) model. Down to 1.5 ns pulse duration ; Up to 250 MHz pulse repetition rate. Typical output power 18 dBm (65 mW) in CW and 20 dBm (100 mW) in pulse mode ; Small signal gain up to 25 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible with OPTION "SOA4PI" above (Polarization Independent device) and OPTION 2 : standard isolator at SOA amplifier wavelength.

Turn-key integrated SOA module for CW amplification with 1550 nm SOA optical amplifier (wavelength range 1520 - 1580 nm). PM1550 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. Typical output power 18 dBm (65 mW) ; Small signal gain up to 25 dB. Compatible with OPTION "SOA4PI" above (Polarization Independent device) and OPTION 2 : standard isolator at SOA amplifier wavelength.

Turn-key integrated SOA module for amplification in either CW or pulsed (intensity modulation) mode with 1550 nm SOA optical amplifier (wavelength range 1520-1580 nm). PM1550 fiber with FC/APC fiber connector and 3 mm fiber metal protection coating. HPP (High Pulse Performance) model. Down to 1.5 ns pulse duration ; Up to 250 MHz pulse repetition rate. Typical output power 18 dBm (65 mW) in CW and 20 dBm (100 mW) in pulse mode ; Small signal gain up to 25 dB. Flexibility of 3 trigger modes and 3 peak power adjustment modes. Compatible with OPTION "SOA4PI" above (Polarization Independent device) and OPTION 2 : standard isolator at SOA amplifier wavelength.

SOAs are sensitive to parasitic laser cavities. Especially a laser cavity can easily take place between a non-isolated input laser diode and the SOA. This must be avoided. It is recommended to add an isolator before and, sometimes, after the SOA. With this option, an isolator with FC/APC fiber connectors is provided at either 1064, 1310 or 1550 nm (depending on your SOA wavelength customer choice). The fiber is respectively PM980, PM1300 or PM1550. The isolation level is typically 35 dB, Insertion loss is typically <1.2 dB (max 1.5dB) for 1064 models or <0.35 dB for 1310 or 1550 nm models - The max optical power handling is 300 mW max. NOTE : for turn-key integrated modules, please specify if you want to have the isolator spliced within the product or supplied separately with its FC/APC connectors.

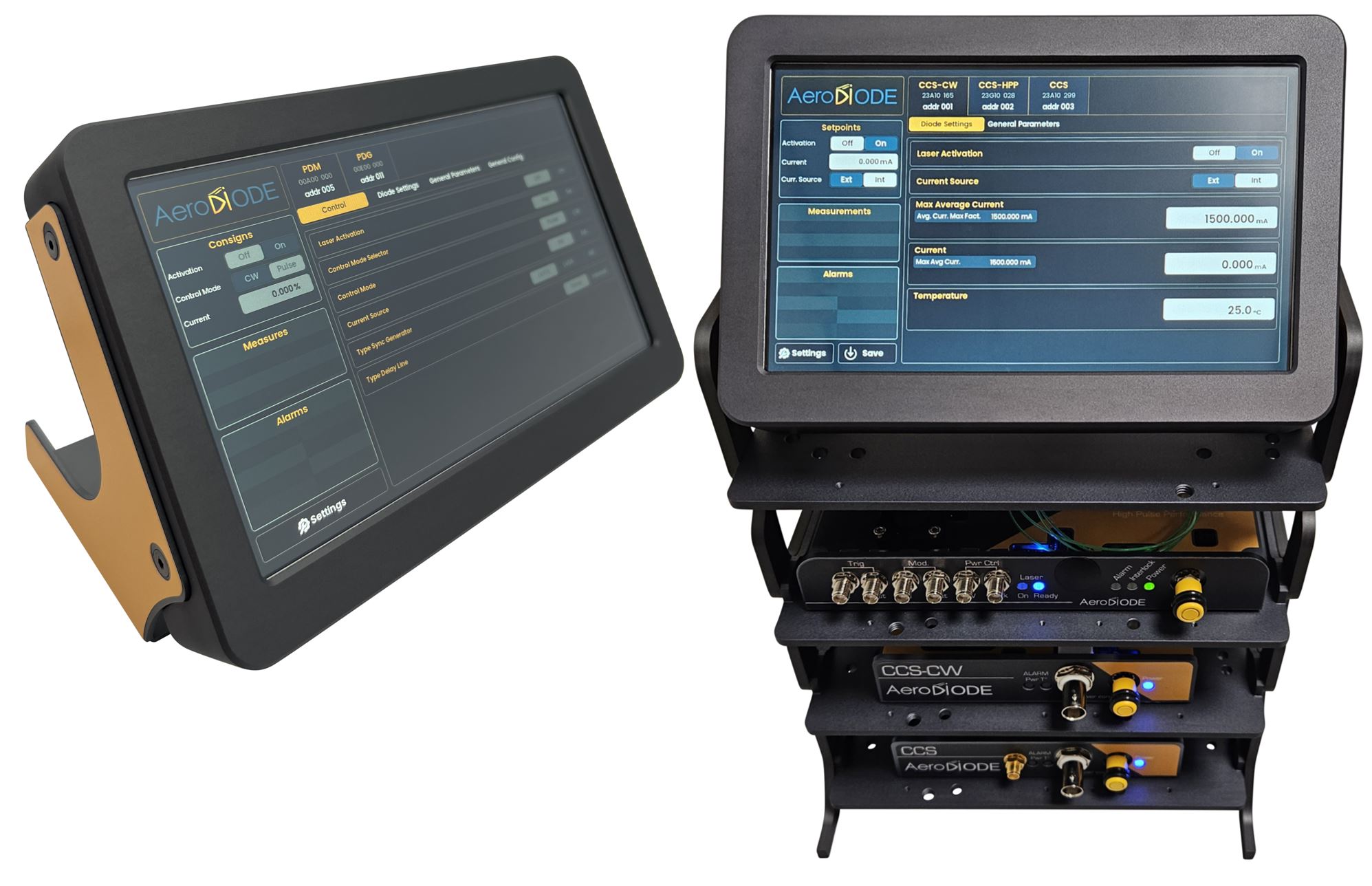

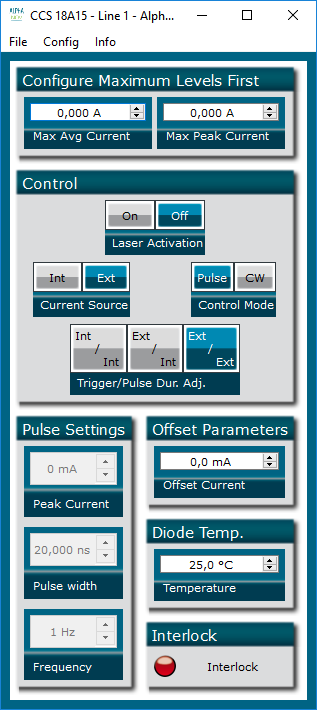

All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station.
