This SOA pulse driver delivers precision pulses which are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. SOA Amplifiers (Semiconductor Optical Amplifiers) driven in nanosecond pulse regime can be compared with AOMs, EOMs or direct laser diode modulators (see comparative table and our tutorial : fiber modulator basics). It is the only solution meeting all the constraints for a reliable, stable and efficient narrow emission linewidth fiber modulation.
From: 2 995€
All shippings with DHL Express
This SOA pulse driver is a very compact unit optimized for single-shot to CW performance with pulse width lengths down to 1 nanosecond.
Key Features (scroll down to see all configurations and prices) :
Note that other product pages are dedicated to our offer of:
The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
This SOA Pulsed Driver works alone or in series with other products in our range like :
See our detailed Tutorials on :
This Pulsed SOA Driver is an ideal solution to drive most of the commercially available SOA Amplifiers (Semiconductor Optical Amplifiers) like, for example, Innolume or Thorlabs.
| SOA-std | SOA-HPP (High Pulse Performance) | SOA-Shape (User design nanosecond pulse shape) | |
|---|---|---|---|
| Wavelength | Any wavelength to be selected between 700 nm and 1700 nm (see wavelength table on datasheet (last page) | ||
| Optical bandwidth (nm) | From 20 nm to 110 nm to be selected (see wavelength table on datasheet) | ||
| Extinction ration (dB, typ) | 50 dB | 40 dB | |
| Max input power | See wavelength table on datasheet (last page) | ||
| Switching speed (typ) | 1 ns | <1 ns | 2 ns |
| Dynamic range (up to) | 60 dB | 48 dB | |
| Small signal gain | From 22 to 40 dB (see wavelength table next page) | ||
| Trigger-to-pulse Jitter / internal trigger Jitter | <20 ps / <20 ps | <8 ps / <8 ps | <2 ns / <100 ps |
| Pulse shaping | On-Off only | Yes (500 ps resolution) | |
| CW offset (in pulse mode) | no | yes | no |
| Max pulse duration | Internal pulse generator : 500 ns / External pulse generator : <1 ns up to CW | 8 µsec | |
| Max repetition rate | 10 MHz | 250 MHz | 20 MHz |
| Compatibilities & Libraries | USB - Windows 7/10 ; DLLs - Hexa - Labview - Python | ||
| Dimensions (mm) | 190*150*45 | 208*100*37 | |
| Power supply | 12 V (110 - 220 V adaptator included) | 24 V (110-220 V adaptator included) | |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | HPP (High Pulse Performance) version PN : SOA-HPP | SOA pulsed & CW Driver for Type-1 Butterfly package SOAs (compatible with nearly all SOA models on the market). Max peak current : 3500 mA ; max average current : 1000 mA ; max repetition rate : 250… Read more SOA pulsed & CW Driver for Type-1 Butterfly package SOAs (compatible with nearly all SOA models on the market). Max peak current : 3500 mA ; max average current : 1000 mA ; max repetition rate : 250 MHz ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. Possibility to combine CW and Pulse emission. Less | 4 995€ | Today | |||
 | Standard version PN : SOA-std | SOA pulsed & CW Driver for Type-1 Butterfly package SOAs (compatible with nearly all SOA models on the market). Max peak current : 1500 mA ; max average current : 800 mA ; max repetition rate : 10… Read more SOA pulsed & CW Driver for Type-1 Butterfly package SOAs (compatible with nearly all SOA models on the market). Max peak current : 1500 mA ; max average current : 800 mA ; max repetition rate : 10 MHz ; Embedded short pulse generator with the flexibility of 3 trigger modes and 3 peak power adjustment modes. Less | 2 995€ | Today | |||

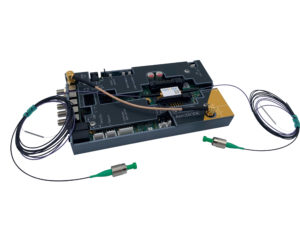

 | Pulse shaping version (user design temporal pulse shape) PN : SOA-Shape | SOA pulsed Driver for Type-1 SOAs (compatible with nearly all SOA models on the market). Embedded AWG to define the shape of the output modulated pulse. Min pulse resolution : 500 ps… Read more SOA pulsed Driver for Type-1 SOAs (compatible with nearly all SOA models on the market). Embedded AWG to define the shape of the output modulated pulse. Min pulse resolution : 500 ps, Pulse dynamic range : 48 dB ; Max peak current : 1600 mA ; Max pulse duration : 8 µsec ; max repetition rate : 20 MHz ; Less | 5 495€ | 2 - 5 days | |||
 | Ultra-High Power version with Tombak PN : SOA-UHP-Tombak | SOA pulsed & CW Driver for high power Butterfly package SOAs or BOAs. Embedded Tombak pulse delay generator with maximum synchronization flexibilities. Max current 5000 mA in CW or pulsed mode… Read more SOA pulsed & CW Driver for high power Butterfly package SOAs or BOAs. Embedded Tombak pulse delay generator with maximum synchronization flexibilities. Max current 5000 mA in CW or pulsed mode. High power TEC controller. Less | 6 690€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : Mounting set for optical tables PN : Option-Mounting_Set | Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all AeroDIODE products and all optical tables on the market (US or… Read more Special mounting set to assemble several AeroDIODE products together on an optical table. The set is compatible with all AeroDIODE products and all optical tables on the market (US or Metric). The kit includes 12 mechanical pieces, 36 dedicated screws and 4 fiber optic mating sleeves to stack up to 4 AeroDIODE products. Several kits can be mounted the one on the other to stack up to 8 or 12 products. (click to enlarge the picture) Less | 995€ | Today | |||
 | OPTION 2 : Multi-product GUI Touch screen PN : Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | Contact Us |
