The singlemode 1480 nm laser diodes are extremely stable and low noise in CW regime due to the DFB or Bragg-grating technologies. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1480nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal.
From: 1 345€
All shippings with DHL Express
1480 nm laser diode Key Features (Scroll-down to see all configurations and prices) :
These 1480nm laser diodes combined with our high end flexible driver such as our fiber laser laser diode driver are ideal tools for Er3+-ions pumping in EDFAs (Erbium-Doped fiber amplifiers), fiber lasers or other laser sources. The 1480 nm laser diode up to 30 W is ideal for R&D teams involved in various applications requiring thermal superficial laser matter interactions or IR camera lighting .
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Typical linewidth* | Power (Pulse – typical) | Current/ Voltage (typ) | Form factor | Fiber & connector | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 mW | DFB single-frequency | 1470 nm or 1490 nm | <2 MHz* | > 15 mW | 70 mA/1.6 V | 14 pin butterfly-type 1 with isolator (Other pin configuration available on demand) | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent ; FC/APC connector | Scroll-down ! |
| Model 2 | Datasheet | 40 mW | DFB single-frequency | 1470 nm or 1490 nm | <200 kHz* | > 60 mW | 300 mA/1.6 V | |||
| Model 3 | Datasheet | 400 mW | Bragg grating – singlemode | 1480 nm | < 2 nm | > 600 mW | 1300 mA/1.6 V | 14 pin butterfly-type 1 | ||
| Model 4 | Datasheet | 15 W | Multimode – Multiemitters | 1470 nm | 15 nm | 15 W | 8.5 A/12.5 V | 2 Pin (80*48*16 mm3) | 105 µm -NA=0.22 SMA905 connector |
|
| Model 5 | Datasheet | 30 W | Multimode – Multiemitters | 1470 nm | 20 nm | 30 W | 8.5 A/26 V | 2 Pin (80*80*25 mm3) |
*Scroll down to see all configurations, prices and lead times. For best linewidth performances, an ultra-low noise driver is required. for example this one : low noise laser diode driver
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 1480 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
See our detailed tutorials for more information about the use of these laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is an ISO-9001-2015 certified company and a member of EPIC European industry association and “Route des Lasers” cluster .
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Typical linewidth* | Power (Pulse - typical) | Current/ Voltage (typ) | Form factor | Fiber & connector | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 mW | DFB single-frequency | 1470 nm or 1490 nm | <2 MHz* | > 15 mW | 70 mA/1.6 V | 14 pin butterfly-type 1 with isolator (Other pin configuration available on demand) | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent ; FC/APC connector | Scroll-down ! |
| Model 2 | Datasheet | 40 mW | DFB single-frequency | 1470 nm or 1490 nm | <200 kHz* | > 60 mW | 300 mA/1.6 V | |||
| Model 3 | Datasheet | 400 mW | Bragg grating - singlemode | 1480 nm | < 2 nm | > 600 mW | 1300 mA/1.6 V | 14 pin butterfly-type 1 | ||
| Model 4 | Datasheet | 15 W | Multimode - Multiemitters | 1470 nm | 15 nm | 15 W | 8.5 A/12.5 V | 2 Pin (80*48*16 mm3) | 105 µm -NA=0.22 SMA905 connector |
|
| Model 5 | Datasheet | 30 W | Multimode - Multiemitters | 1470 nm | 20 nm | 30 W | 8.5 A/26 V | 2 Pin (80*80*25 mm3) |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|
 | Model 1 (10 mW) PN : 1470LD-1-0-0 | 1470 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION below) and also available at any other wavelengths between 1270 and 1650… Read more 1470 nm 10 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION below) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Less | 1 345€ | Today | |||
 | OPTION : PM fiber for Model 1 PN : OPTION-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 200€ | Today | |||
 | Model 1 (10 mW) with "CCS-CW" driver PN : 1470LD-1-1-1 | Open CW driver with 1470 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION above) and also available at any other… Read more Open CW driver with 1470 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Less | 3 440€ | 2 - 5 days | |||
 | Model 1 (10 mW) with "CCS" driver PN : 1470LD-1-2-1 | Open Pulse & CW driver with 1470 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 1 (3… Read more Open Pulse & CW driver with 1470 nm 10 mW butterfly laser diode. SMF28 fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 1 (3 mm collimator) and OPTION 2 (250 MHz version - see below). See OPTION 1-4 at the bottom of the page ; Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Less | 4 340€ | 2 - 5 days | |||
 | Model 1 (10 mW) with "Shaper" driver PN : 1470LD-1-3-1 | Open pulsed driver with 10 mW 1470 nm laser diode. Up to 15 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is… Read more Open pulsed driver with 10 mW 1470 nm laser diode. Up to 15 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Less | 6 340€ | 2 - 5 days | |||

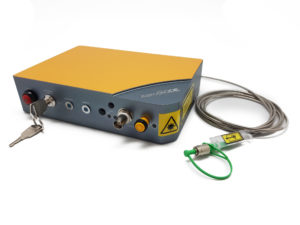

 | Model 1 (10 mW) within "CCSI-CW" module PN : 1470LD-1-1-2 | Turn-key integrated CW laser diode module at 1480 nm. CW power up to 10 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (… Read more Turn-key integrated CW laser diode module at 1480 nm. CW power up to 10 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (Benchtop version) - Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. Less | 4 640€ | 1 - 2 weeks | |||
| Model 1 (10 mW) within "CCSI" module PN : 1470LD-1-2-2 | Turn-key integrated laser diode module at 1480 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1480 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), OPTION-2 (250 MHz version) and OPTION-3 (Benchtop version). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Less | 5 540€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (40 mW) PN : 1470LD-2-0-0 | 1470 nm 40 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION below) and also available at any other wavelengths between 1270 and 1650… Read more 1470 nm 40 mW butterfly laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION below) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Less | 2 195€ | Today | |||
| OPTION : PM fiber for Model 2 PN : OPTION-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 2 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 250€ | 3 - 4 weeks | |||
| Model 2 (40 mW) with "CCS-CW" driver PN : 1470LD-2-1-1 | Open CW driver with 1470 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM fiber version (see the OPTION… Read more Open CW driver with 1470 nm butterfly laser diode and SMF28 fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Less | 4 290€ | 2 - 5 days | |||
| Model 2 (40 mW) with "CCS" driver PN : 1470LD-2-2-1 | Open Pulse & CW driver with 1470 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 40 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1470 nm butterfly laser diode and SMF28 fiber output with FC-APC connector. Up to 40 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 1 (3 mm collimator) and OPTION 2 (250 MHz version). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Less | 5 190€ | 2 - 5 days | |||
| Model 2 (40 mW) with "Shaper" driver PN : 1470LD-2-3-1 | Open pulsed driver with 40 mW 1470 nm laser diode. Up to 60 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is… Read more Open pulsed driver with 40 mW 1470 nm laser diode. Up to 60 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Less | 7 190€ | 2 - 5 days | |||
| Model 2 (40 mW) within "CCSI-CW" module PN : 1470LD-2-1-2 | Turn-key integrated CW laser diode module at 1470 nm. CW power up to 40 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and… Read more Turn-key integrated CW laser diode module at 1470 nm. CW power up to 40 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (Benchtop version). Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. Less | 5 490€ | 1 - 2 weeks | |||
| Model 2 (40 mW) within "CCSI" module PN : 1470LD-2-2-2 | Turn-key integrated laser diode module at 1470 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Down to 1.5… Read more Turn-key integrated laser diode module at 1470 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), OPTION-2 (250 MHz version) and OPTION-3 (benchtop version). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Less | 6 390€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 3 (400 mW) PN : 1480LD-3-0-0 | 1480 nm 400 mW butterfly laser diode alone . PM1550 (or equivalent) fiber with FC-APC connector. Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Also available at… Read more 1480 nm 400 mW butterfly laser diode alone . PM1550 (or equivalent) fiber with FC-APC connector. Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Also available at any wavelength between 1420 and 1500 nm. Less | 2 195€ | Today | |||
| Model 3 (400 mW) with "CCS-CW" driver PN : 1480LD-3-1-1 | Open CW driver with 1480 nm butterfly laser diode and PM1550 (eq) fiber with FC/APC connector. Up to 400 mW CW optical power. Compatible with OPTION-1 (3 mm collimator). Also available at… Read more Open CW driver with 1480 nm butterfly laser diode and PM1550 (eq) fiber with FC/APC connector. Up to 400 mW CW optical power. Compatible with OPTION-1 (3 mm collimator). Also available at any other wavelengths between 1420 and 1500 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. Less | 4 290€ | 2 - 5 days | |||
| Model 3 (400 mW) with "CCS" driver PN : 1480LD-3-2-1 | Open Pulse & CW driver with 1480 nm butterfly laser diode and PM1550 fiber output with FC-APC connector. Up to 400 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4… Read more Open Pulse & CW driver with 1480 nm butterfly laser diode and PM1550 fiber output with FC-APC connector. Up to 400 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator) and OPTION-2 (250 MHz version). See OPTION 1-4 at the bottom of the page ; Also available at any other wavelengths between 1420 and 1500 nm (contact us for any special wavelength need). Less | 5 190€ | 2 - 5 days | |||
| Model 3 (400 mW) with "Shaper" driver PN : 1480LD-3-3-1 | Open pulsed driver with 400 mW 1480 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns… Read more Open pulsed driver with 400 mW 1480 nm laser diode. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available at any other wavelengths between 1420 and 1500 nm (contact us for any special wavelength need). Compatible with OPTION-1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. Less | 7 190€ | 1 - 2 weeks | |||
| Model 3 (400 mW) within "CCSI-CW" module PN : 1480LD-3-1-2 | Turn-key integrated CW laser diode module at 1480 nm. CW power up to 400 mW. PM1550 (eq) metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator)… Read more Turn-key integrated CW laser diode module at 1480 nm. CW power up to 400 mW. PM1550 (eq) metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available at any other wavelengths between 1420 and 1500 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. Less | 5 490€ | 1 - 2 weeks | |||
| Model 3 (400 mW) within "CCSI" module PN : 1480LD-3-2-2 | Turn-key integrated laser diode module at 1480 nm for Pulse and CW emission. PM1550 (eq) metal protected fiber output with FC/APC output connector. CW output power up to 400 mW. Down… Read more Turn-key integrated laser diode module at 1480 nm for Pulse and CW emission. PM1550 (eq) metal protected fiber output with FC/APC output connector. CW output power up to 400 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), option-2 (250 MHz version) and OPTION-3 (benchtop version). See OPTION 1-4 at the bottom of the page. Also available at any other wavelengths between 1420 and 1500 nm (contact us for any special wavelength need). Less | 6 390€ | 1 - 2 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 4 (15 W) PN : 1470LD-4-0-0 | High power laser diode emitting up to 15 W at 1470 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 4 : High Power Collimator (see… Read more High power laser diode emitting up to 15 W at 1470 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 4 : High Power Collimator (see below) Less | 4 995€ | Today | |||
 | Model 4 (15 W) with "CCM" high power driver PN : 1470LD-4-4-1 | Open CW driver with 1470 nm multimode laser diode. Up to 15 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 4 : High… Read more Open CW driver with 1470 nm multimode laser diode. Up to 15 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 4 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 7 495€ | 1 - 2 weeks | |||
 | Model 4 (15 W) within CCMI driver PN : 1470LD-4-4-2 | Turn-key integrated CW driver with 1470 nm multimode laser diode. Up to 15 W CW optical power out of a 105 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector… Read more Turn-key integrated CW driver with 1470 nm multimode laser diode. Up to 15 W CW optical power out of a 105 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 4 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 8 895€ | 1 - 2 weeks | |||
 | New : HPHS - High Power nanosecond PN : 1470HPHS-1/2/3 | High power pulsed laser diode module emitting at 1470 +/- 20 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 35 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ;… Read more High power pulsed laser diode module emitting at 1470 +/- 20 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 35 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. Less | 13 995€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | Model 5 (30 W) PN : 1470LD-5-0-0 | High power laser diode emitting up to 30 W at 1470 nm (min 25 W/Typical 28 W) out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 4 :… Read more High power laser diode emitting up to 30 W at 1470 nm (min 25 W/Typical 28 W) out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 4 : High Power Collimator (see below) Less | 6 995€ | 5 - 8 weeks | |||
| Model 5 (30 W) with "CCM" high power driver PN : 1470LD-5-4-1 | Open CW driver with 1470 nm multimode laser diode. Up to 30 W CW optical power (min 25 W/Typical 28 W) out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output… Read more Open CW driver with 1470 nm multimode laser diode. Up to 30 W CW optical power (min 25 W/Typical 28 W) out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 4 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 9 995€ | 5 - 8 weeks | |||
| Model 5 (30 W) within CCMI driver PN : 1470LD-5-4-2 | Turn-key integrated CW driver with 1470 nm multimode laser diode. Up to 30 W CW optical power (min 25 W/Typical 28 W) out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (… Read more Turn-key integrated CW driver with 1470 nm multimode laser diode. Up to 30 W CW optical power (min 25 W/Typical 28 W) out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 4 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 10 495€ | 5 - 8 weeks | |||
| New : HPHS - High Power nanosecond PN : 1470HPHS-1/2/3 | High power pulsed laser diode module emitting at 1470 +/- 20 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 35 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ;… Read more High power pulsed laser diode module emitting at 1470 +/- 20 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 35 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. Less | 13 995€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : 3 mm optical collimator PN : OPTION-1 | Small form factor 3 mm optical collimator with AR coatings. (laser diodes models 1-3 only) | 445€ | 2 - 5 days | |||
 | OPTION 2 : 250 MHz repetition rate PN : OPTION-2 | 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. (laser diode models 1-3) | 995€ | 2 - 5 days | |||
 | OPTION 3 : Benchtop version for final user instead of OEM module PN : OPTION-3 | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only (laser diodes models 1-3) Less | 495€ | 1 - 2 weeks | |||
 | OPTION 4 : high power collimator PN : OPTION-4 | 10 mm beam high power collimator for SMA connectors. Compatible with laser diodes model 4 : laser diode alone or laser diode + driver solutions. | 495€ | 2 - 5 days |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
