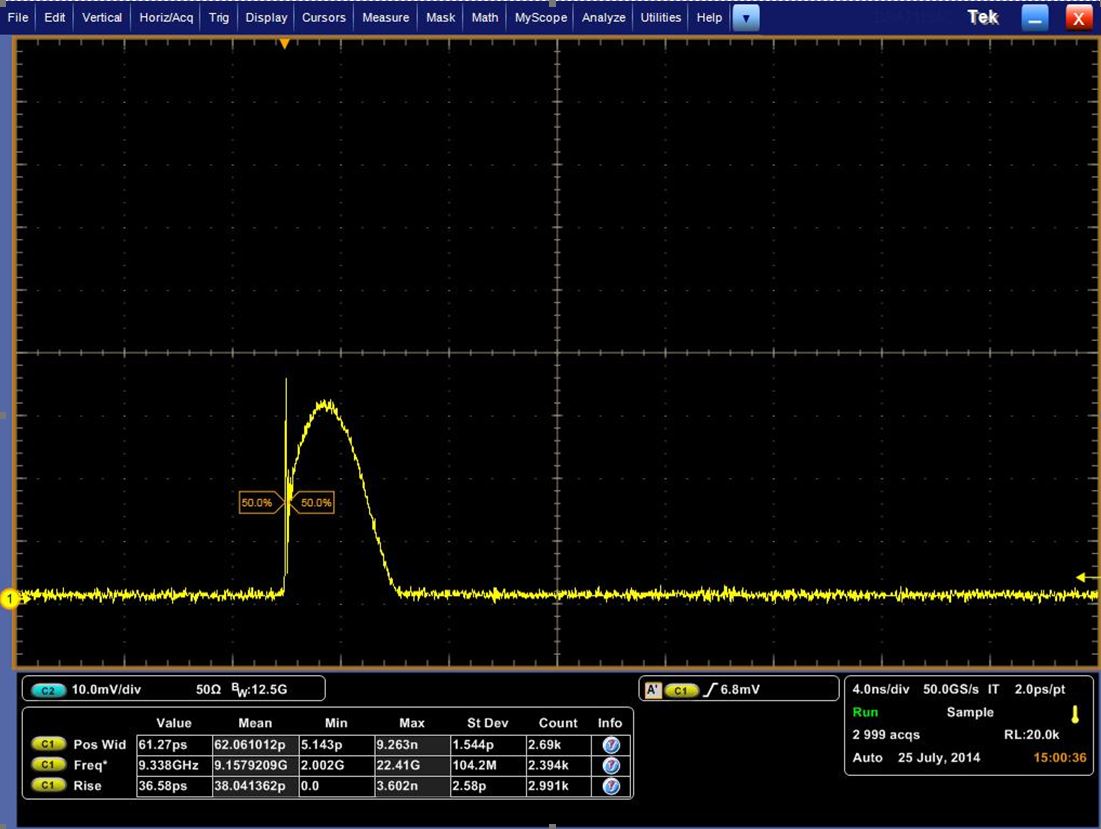

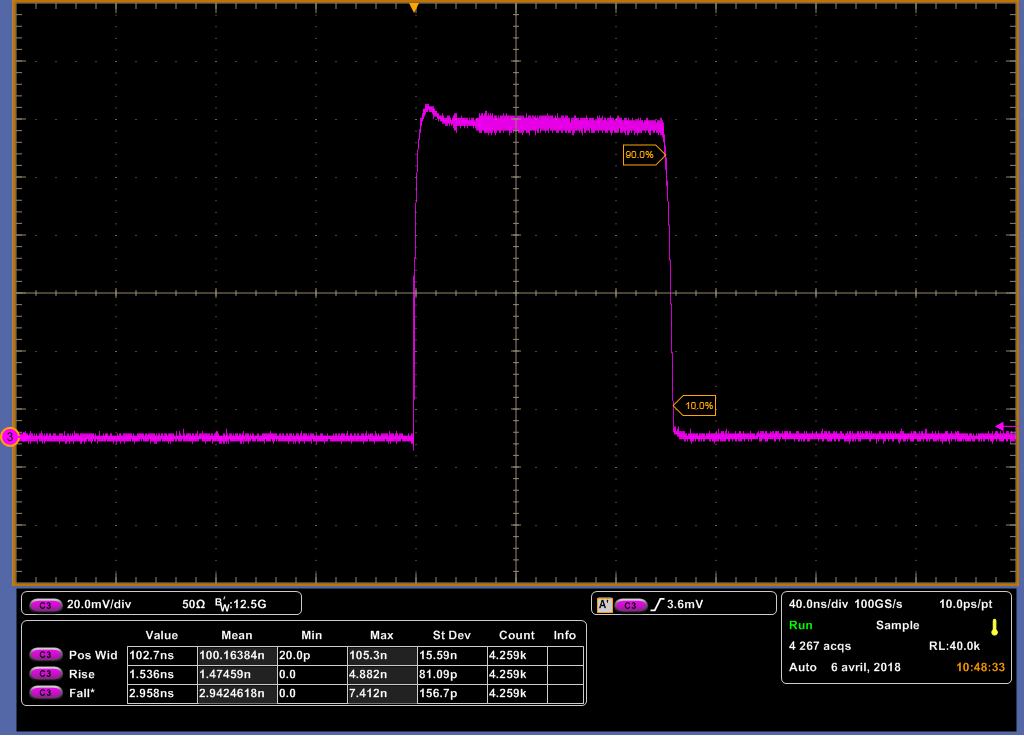

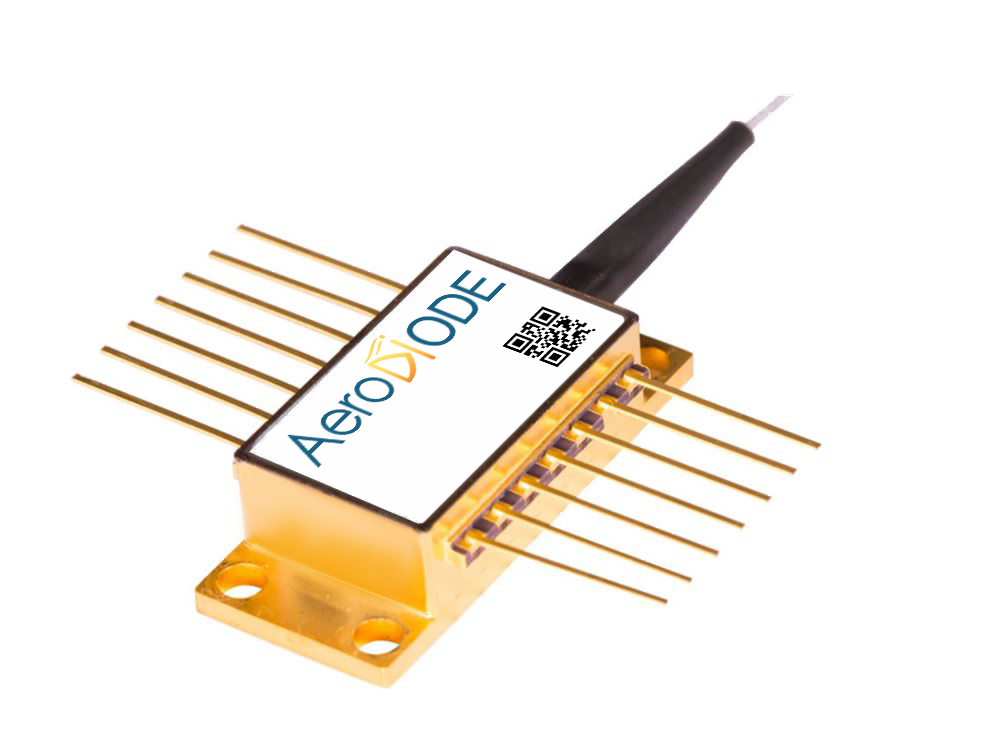

The single mode 1595 nm laser diodes can reach high power in nanosecond pulse regime up to 30 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1595 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.
From: 1 345€
All shippings with DHL Express
1595 nm laser diode Key Features (scroll down to see all configurations and prices) :
These 1595nm laser diodes combined with our high end flexible pulsed laser diode driver are an ideal tool for telecom, fiber lasers, LIDAR, 3D-sensing, spectroscopy or quantum R&D teams.
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Typical linewidth* | Power (Pulse – typical) | Current/ Voltage (typ) | Form factor | Fiber & connector | Price |
|---|---|---|---|---|---|---|---|---|---|---|

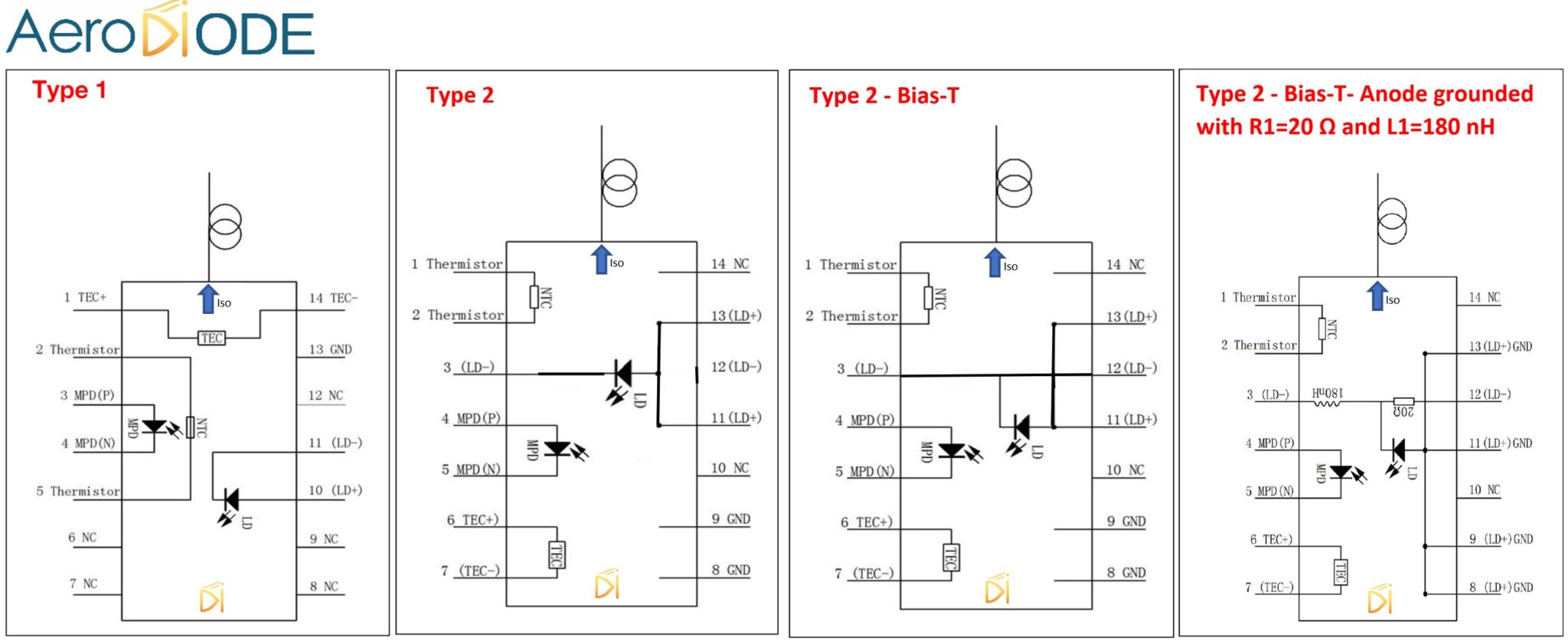

| Model 1 | Datasheet | 10 mW | DFB single-frequency | 1595 nm | 1 MHz | 20 mW | 60 mA/1.6 V | 14 pin butterfly-type 1 with isolator (Other pin or isolator configuration available on demand) | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent FC/APC connector | Scroll down ! |
| Model 2 | Datasheet | 30 mW | DFB single-frequency | 1595 nm | 200 kHz | 44 mW | 200 mA/1.8 V |
For best linewidth performances, an ultra-low noise driver is required. A diode+ CW driver with ultra-low noise performances solution is offered below for model 2. The ultra-low noise driver can also be purchased separately. See this page : low noise laser diode driver

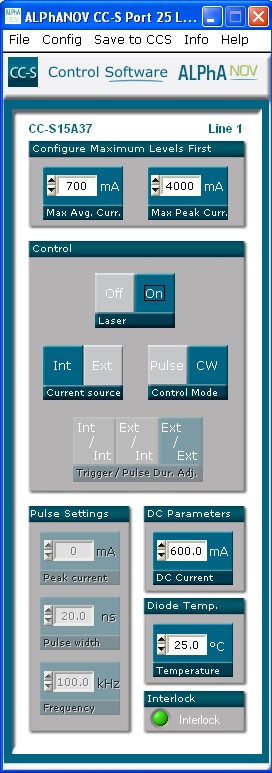

The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 1595 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Combined with our TOMBAK pulse delay generator, it becomes easy to create a complete bench simulating any type of structured multiple Burst in the nanosecond range.
See our detailed tutorials for more information about the use of these 1595nm laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Laser Diode model | Datasheet | Power (CW) | Technology | Center Wavelength | Typical linewidth* | Power (Pulse - typical) | Current/ Voltage (typ) | Form factor | Fiber & connector | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| Model 1 | Datasheet | 10 mW | DFB single-frequency | 1595 nm | 1 MHz | 20 mW | 60 mA/1.6 V | 14 pin butterfly-type 1 with isolator (Other pin or isolator configuration available on demand) | 9 µm singlemode Corning SMF28 or PM15-U25D or equivalent FC/APC connector | Scroll down ! |
| Model 2 | Datasheet | 30 mW | DFB single-frequency | 1595 nm | 200 kHz | 44 mW | 200 mA/1.8 V |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

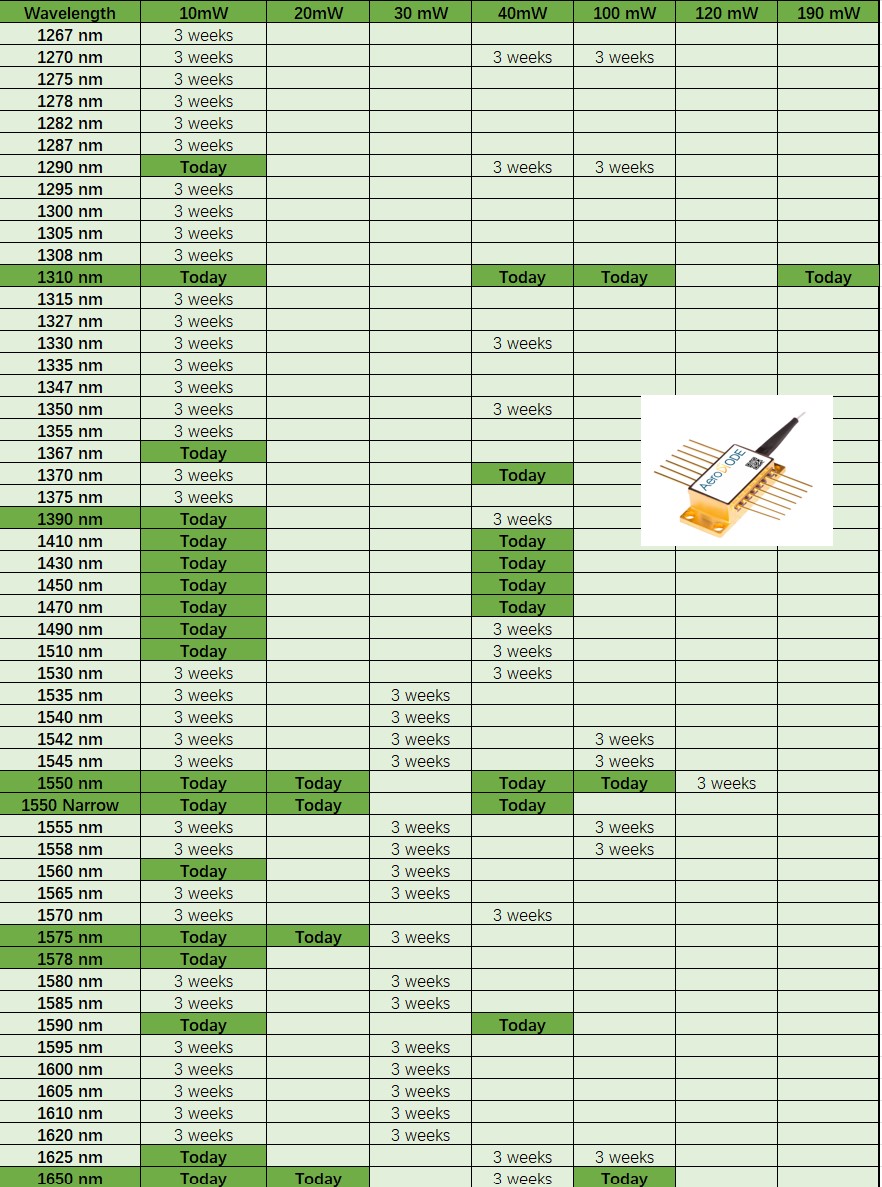

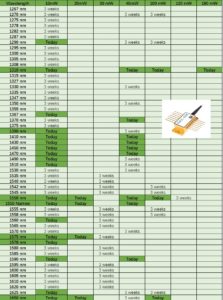

 | Model 1 (10 mW) PN : | 1565 nm 10 mW butterfly DFB laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us… Read more 1565 nm 10 mW butterfly DFB laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 1 345€ | 3 weeks | |||

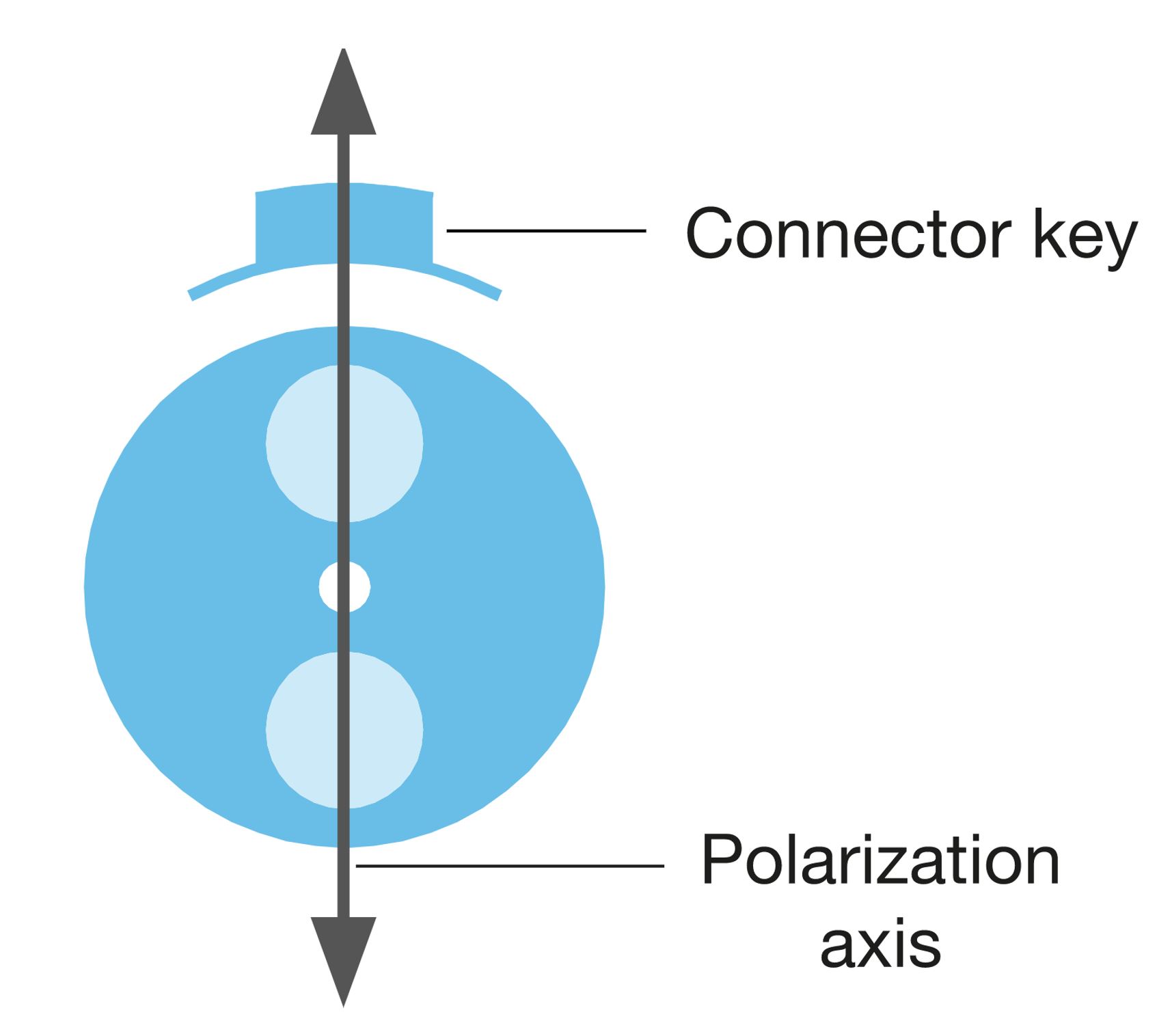

 | OPTION : PM fiber for model 1 PN : OPTION-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 1 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 200€ | 3 weeks | |||
 | Model 1 (10 mW) with "CCS-CW" driver PN : | Open-frame CW driver with 1565 nm 10 mW butterfly DFB laser diode. SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm… Read more Open-frame CW driver with 1565 nm 10 mW butterfly DFB laser diode. SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 3 440€ | 3 - 4 weeks | |||

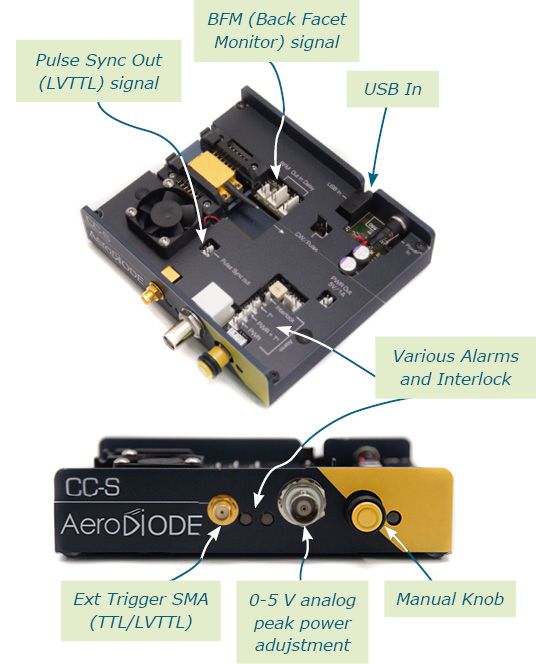

 | Model 1 (10 mW) with "CCS" driver PN : | Open-frame Pulse & CW driver with 1565 nm 10 mW butterfly DFB laser diode. SMF28 fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with… Read more Open-frame Pulse & CW driver with 1565 nm 10 mW butterfly DFB laser diode. SMF28 fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version - see below) ; Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 4 340€ | 3 - 4 weeks | |||

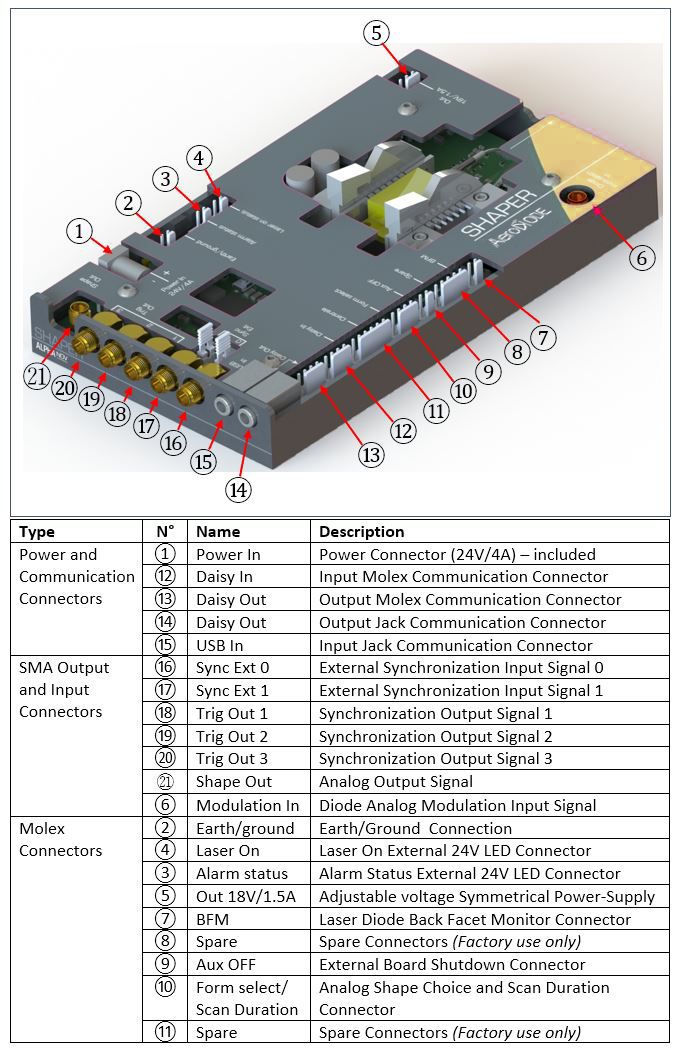

 | Model 1 (10 mW) with "Shaper" driver PN : | Open-frame pulsed driver with 10 mW 1565 nm DFB laser diode. Up to 20 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator… Read more Open-frame pulsed driver with 10 mW 1565 nm DFB laser diode. Up to 20 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions Less | 6 340€ | 3 - 4 weeks | |||
 | Model 1 (10 mW) within "CCSI-CW" module PN : | Turn-key integrated CW DFB laser diode module at 1565 nm. CW power up to 10 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and… Read more Turn-key integrated CW DFB laser diode module at 1565 nm. CW power up to 10 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (Benchtop version) see below - Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 4 640€ | 3 - 4 weeks | |||
| Model 1 (10 mW) within "CCSI" module PN : | Turn-key integrated DFB laser diode module at 1565 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down… Read more Turn-key integrated DFB laser diode module at 1565 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (Benchtop version) - see below. Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 5 540€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Model 2 (30 mW) PN : | 1565 nm 30 mW butterfly DFB laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us… Read more 1565 nm 30 mW butterfly DFB laser diode alone . SMF28 fiber with FC-APC connector. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 1 995€ | 3 weeks | |||
| OPTION : PM fiber for model 2 PN : OPTION-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow… Read more With this OPTION, Model 2 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Less | 300€ | 3 weeks | |||
| Model 2 (30 mW) with "CCS-CW" driver PN : | Open-frame CW driver with 1565 nm butterfly DFB laser diode and SMF28 fiber with FC/APC connector. Up to 30 mW CW optical power. Also available in PM version and also available… Read more Open-frame CW driver with 1565 nm butterfly DFB laser diode and SMF28 fiber with FC/APC connector. Up to 30 mW CW optical power. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 4 090€ | 3 - 4 weeks | |||
| Model 2 (30 mW) with "CCS" driver PN : | Open-frame Pulse & CW driver with 1565 nm butterfly DFB laser diode and SMF28 fiber output with FC-APC connector. Up to 30 mW CW optical power ; Down to 1.5 ns pulse duration ; Up… Read more Open-frame Pulse & CW driver with 1565 nm butterfly DFB laser diode and SMF28 fiber output with FC-APC connector. Up to 30 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 2 (250 MHz version) ; Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 4 990€ | 3 - 4 weeks | |||

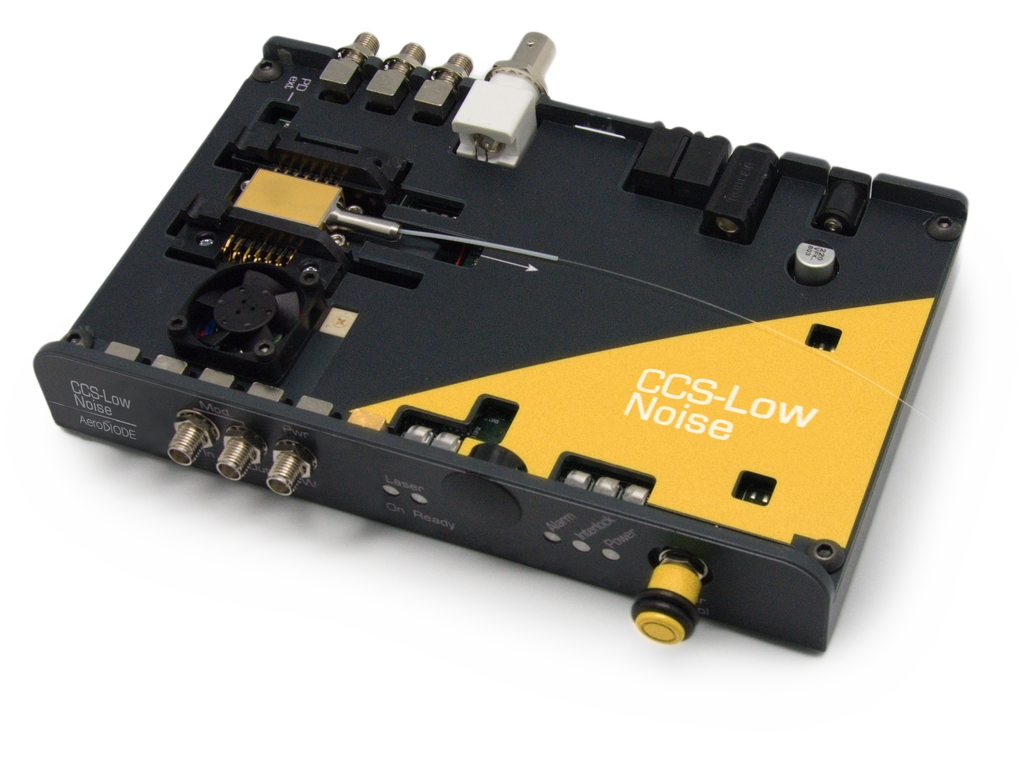

 | Model 2 (30 mW) with "CCS-Low noise" driver PN : | Open-frame CW Ultra-low noise driver for best linewidth performances with 1565 nm butterfly DFB laser diode and SMF28 fiber with FC/APC connector. Up to 30 mW CW optical power. Also available… Read more Open-frame CW Ultra-low noise driver for best linewidth performances with 1565 nm butterfly DFB laser diode and SMF28 fiber with FC/APC connector. Up to 30 mW CW optical power. Also available in PM version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these special versions. Less | 6 790€ | 3 - 4 weeks | |||
| Model 2 (30 mW) with "Shaper" driver PN : | Open-frame pulsed driver with 30 mW 1565 nm DFB laser diode. Up to 30 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator… Read more Open-frame pulsed driver with 30 mW 1565 nm DFB laser diode. Up to 30 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 6 990€ | 3 - 4 weeks | |||
| Model 2 (30 mW) within "CCSI-CW" module PN : | Turn-key integrated CW DFB laser diode module at 1565 nm. CW power up to 30 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator)… Read more Turn-key integrated CW DFB laser diode module at 1565 nm. CW power up to 30 mW. SMF28 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). and option 3 (Benchtop version). Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 5 290€ | 3 - 4 weeks | |||
| Model 2 (30 mW) within "CCSI" module PN : | Turn-key integrated DFB laser diode module at 1565 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 30 mW. Down… Read more Turn-key integrated DFB laser diode module at 1565 nm for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 30 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Also available in PM fiber version and also available at any other wavelengths between 1270 and 1650 nm - contact us for these versions. Less | 6 190€ | 3 - 4 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
 | OPTION 1 : 3 mm optical collimator PN : OPTION-1 | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 445€ | 2 - 5 days | |||
 | OPTION 2 : 250 MHz repetition rate PN : OPTION-2 | 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 995€ | 3 - 4 weeks | |||
 | OPTION 3 : Bench-top version for final user instead of OEM module PN : OPTION-3 | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 495€ | 3 - 4 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
