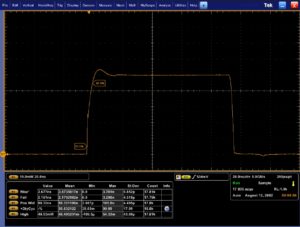

The 660nm laser diode can reach high power up to 150mW for singlemode models or up to 10W for the multimode version . Most Turn-key singlemode diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 660nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal.
From: 1 495€
All shippings with DHL Express
660nm laser diode Key Features (scroll down to see all configurations and prices):
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:
For laser diode alone, click on the models in the table below.
For turn-key “660nm diode+driver” solutions, see the Specs here: 660nm laser diode Datasheet.
Laser Diode model | Datasheet | Power (CW) | Power (pulse) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Form factor | Output fiber | Price |
---|---|---|---|---|---|---|---|---|---|
Model 1 | Datasheet | 50mW | 120mW | Butterfly singlemode Fabry-Pérot | 660 ± 10nm | ~1nm | 14 pin butterfly – type 1 | 3.5µm core Singlemode (NA=0.13) | Scroll down ! |
Model 2 | Datasheet | 100mW | 150mW | 3.5µm core Singlemode (NA=0.13) |
|||||
Model 3 | Datasheet | 10W | 10W | Multimode Fabry-Pérot (Multi-emitter) | 665 ± 5nm | ~ 4nm | 80*48*16 mm3 | 105µm(Core)/125/900 |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python (LINUX compatible) etc.)
These 660nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with standard drivers):
Complex systems, such as fiber lasers, can be quickly developed on this module platform.
See our detailed tutorials:
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
Laser Diode model | Datasheet | Power (CW) | Power (pulse) | Technology | Center Wavelength (25°C) | Emission Bandwidth (typ) | Form factor | Output fiber | Price |
---|---|---|---|---|---|---|---|---|---|
Model 1 | Datasheet | 50mW | 120mW | Butterfly singlemode Fabry-Pérot | 660 ± 10nm | ~1nm | 14 pin butterfly - type 1 | 3.5µm core Singlemode (NA=0.13) | Scroll down ! |
Model 2 | Datasheet | 100mW | 150mW | 3.5µm core Singlemode (NA=0.13) |
|||||
Model 3 | Datasheet | 10W | 10W | Multimode Fabry-Pérot (Multi-emitter) | 665 ± 5nm | ~ 4nm | 80*48*16 mm3 | 105µm(Core)/125/900 |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
---|---|---|---|---|---|---|---|
Model 1 (50mW) diode alone PN : 660LD-1-0-0 | 660nm laser diode alone. Up to 50mW CW and 120mW pulsed. 3.5µm core (NA=0.13) fiber output with and FC/APC fiber connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm… Read more 660nm laser diode alone. Up to 50mW CW and 120mW pulsed. 3.5µm core (NA=0.13) fiber output with and FC/APC fiber connector. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 1 495€ | Today | Max: Min: 1 Step: 1 | |||
OPTION : PM fiber for Model 1 PN : 660LD-Option-PM1 | With this OPTION, Model 1 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry)… Read more With this OPTION, Model 1 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). The max output power is typically ~20% less than the laser diode with no option. Less | 250€ | Today | Max: Min: 1 Step: 1 | |||
Model 1 (50mW) with open CW driver PN : 660LD-1-1-1 | Open CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 50mW CW optical power. Compatible with OPTION 1: PM Fiber, and OPTION 2: 3… Read more Open CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 50mW CW optical power. Compatible with OPTION 1: PM Fiber, and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 3 740€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 1 (50mW) with open pulse and CW driver PN : 660LD-1-2-1 | Open Pulse and CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 50mW CW optical power and 120mW pulsed. Down to 1.5… Read more Open Pulse and CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 50mW CW optical power and 120mW pulsed. Down to 1.5ns pulse duration ; up to 10MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 4 740€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 1 (50mW) with open high speed pulsed driver (User design pulse shape version) PN : 660LD-1-SHAPER-1 | Open Pulsed driver with 660nm laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 120mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µ… Read more Open Pulsed driver with 660nm laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 120mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulse width (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 490€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (50mW) within an integrated turn-key CW driver PN : 660LD-1-1-2 | Turn-key integrated laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 50mW CW optical power. Compatible with OPTION 1: PM Fiber… Read more Turn-key integrated laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 50mW CW optical power. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 4 940€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (50mW) within an integrated turn-key Pulse and CW driver PN : 660LD-1-2-2 | Turn-key integrated Pulse and CW laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 50mW CW optical power and 120mW… Read more Turn-key integrated Pulse and CW laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 50mW CW optical power and 120mW pulsed. Down to 1.5ns pulse duration. Up to 4MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 5 940€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (50mW) within an integrated turn-key high speed pulsed driver (User design pulse shape version) PN : 6600LD-1-SHAPER-2 | Turn-key integrated pulsed laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 120mW pulsed ; User-design nanosecond pulse shape with 0.5ns… Read more Turn-key integrated pulsed laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 120mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulse-width (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 7 690€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 2 (100mW) diode alone PN : 660LD-2-0-0 | 660nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. Up to 100mW CW and 150mW pulsed. Compatible with OPTION 1: PM Fiber… Read more 660nm laser diode fiber coupled in a singlemode fiber with 900µm protection buffer and FC/APC fiber connector. Up to 100mW CW and 150mW pulsed. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 1 995€ | Today | Max: Min: 1 Step: 1 | |||
OPTION : PM fiber for Model 2 PN : 660LD-Option-PM2 | With this OPTION, Model 2 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry)… Read more With this OPTION, Model 2 is offered with a polarization maintaining fiber. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). The max output power is typically ~20% less than the laser diode with no option. Less | 300€ | Today | Max: Min: 1 Step: 1 | |||
Model 2 (100mW) with open CW driver PN : 660LD-2-1-1 | Open CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 100mW CW optical power. Compatible with OPTION 1: PM Fiber, and OPTION 2: 3… Read more Open CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 100mW CW optical power. Compatible with OPTION 1: PM Fiber, and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 4 240€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2 (100mW) with open "pulse and CW" driver PN : 660LD-2-2-1 | Open Pulse and CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 100mW CW optical power and 150mW pulsed. Down to 1.5… Read more Open Pulse and CW driver with 660nm butterfly laser diode and 3.5µm core (NA=0.13) fiber with FC/APC connector. Up to 100mW CW optical power and 150mW pulsed. Down to 1.5ns pulse duration ; up to 10MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 5 240€ | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2 (100mW) within an open high speed pulsed driver (User design pulse shape version) PN : 660LD-2-SHAPER-1 | Open Pulsed driver with 660nm laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 150mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µ… Read more Open Pulsed driver with 660nm laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 150mW pulsed ; User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulse width (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 990€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (100mW) within an integrated turn-key CW driver PN : 660LD-2-1-2 | Turn-key integrated laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 100mW CW optical power. Compatible with OPTION 1: PM Fiber… Read more Turn-key integrated laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 100mW CW optical power. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 5 440€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (100mW) within an integrated turn-key pulse and CW driver PN : 660LD-2-2-2 | Turn-key integrated Pulse and CW laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 100mW CW optical power and 150mW… Read more Turn-key integrated Pulse and CW laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 100mW CW optical power and 150mW pulsed. Down to 1.5ns pulse duration. Up to 4MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 6 440€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2 (100mW) within an integrated turn-key high speed pulsed driver (User design pulse shape version) PN : 660LD-2-SHAPER-2 | Turn-key integrated pulsed laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 150mW pulsed. User-design nanosecond pulse shape with 0.5ns… Read more Turn-key integrated pulsed laser diode module with 660nm laser diode, FC/APC fiber connector and 3mm fiber metal protection coating. Up to 150mW pulsed. User-design nanosecond pulse shape with 0.5ns resolution and up to 8µs pulse-width (The AWG pulse generator is integrated). Down to 1.5ns pulse duration. Up to 20MHz pulse repetition rate. Compatible with OPTION 1: PM Fiber and OPTION 2: 3mm Low Power Optical Collimator (see below). Less | 8 190€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 3 (10W) diode alone PN : 660LD-3-0-0 | High power laser diode emitting up to 10 W at 665 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 3 : High Power Collimator (see… Read more High power laser diode emitting up to 10 W at 665 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. Compatible with OPTION 3 : High Power Collimator (see below). Less | 1 495€ | Today | Max: Min: 1 Step: 1 | |||
Model 3 (10W) with open pulse and CW driver PN : 660LD-3-4-1 | Open CW driver with 665 nm multimode laser diode. Up to 10 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 3 : High… Read more Open CW driver with 665 nm multimode laser diode. Up to 10 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 3 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 190€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||

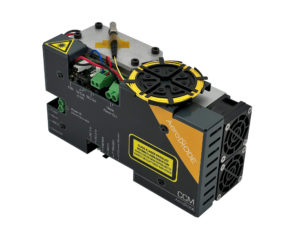

Model 3 (10W) with integrated pulse and CW driver PN : 660LD-3-4-2 | Turn-key integrated CW driver with 665 nm multimode laser diode. Up to 10 W CW optical power out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). SMA optical connector… Read more Turn-key integrated CW driver with 665 nm multimode laser diode. Up to 10 W CW optical power out of a 105 µm core / 3 mm metal protected Jacket multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 3 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 6 390€ | 3 - 4 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
OPTION 1 : Low Power Collimator COL007 & COL011 PN : 660LD-Option-Collimator_SM | Small form factor 3mm beam diameter optical collimator with AR coatings optimized for the laser diode wavelength. | 495€ | Today | Max: Min: 1 Step: 1 | |||
OPTION 2 : High Power Collimator COL006 PN : 660LD-Option-Collimator_MM | 12mm beam high power collimator for SMA connectors. Compatible with laser diode model 3: laser diode alone or laser diode + driver solutions. CCMI integrated drivers already have a SMA connectors. | 545€ | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
OPTION 3 : Multi-product GUI Touch screen PN : 660LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 645€ | 5 - 8 weeks | Max: Min: 1 Step: 1 |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
