These 1064nm laser diode can reach high output power in nanosecond pulse regime up to 2W. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1064nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 3 high power multimode versions are also offered for CW or pulse emission at this wavelength up to 100W.
From: 795 USD
All shippings with DHL Express
1064nm laser diode Key Features (scroll down to see all versions and prices):
These 1064nm laser diodes are offered in 8 versions:
Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
Product Datasheets:
For laser diode alone, click on the models in the table below.
For turn-key “1064nm diode+driver” solutions, see the Specs here: 1064nm laser diode Datasheet.
Laser Diode model | Datasheet | Special test report | Max Power (CW) | Technology | Wavelength | Typical linewidth (FWHM – CW mode) | Power (Pulse) | Nominal Levels (CW) Typical values | Form factor | Output fiber core | Price |
---|---|---|---|---|---|---|---|---|---|---|---|
1 | Datasheet | 700 mW | Standard | 1064±2 nm (chip regulated at >~30°C) | ~ 1-3 nm | up to 1500 mW | 1200 mA/1.7 V | 14 pin butterfly – type 1 | PM – 6 µm singlemode | Scroll down ! | |
2a | Datasheet | 200 mW | DFB (optimized for pulsing) | 1063.5 ±1 nm | MHz range | up to 500 mW | 400 mA/1.7 V | 10 pin butterfly – type 1 | PM – 6 µm singlemode | ||
2b | Datasheet | 200 mW | DFB (optimized for CW emission) | 1064.0 +-1 nm | ~ 200 kHz | up to 500 mW | 400 mA/1.7 V | 10 pin butterfly – type 1 | PM – 6 µm singlemode | ||
2c | Datasheet | Linewidth report | 70 mW | DFB (optimized for CW emission with mode hop free performance) | 1064.0 +-1 nm | ~100 kHz | up to 100 mW | 250 mA/1.5 V | 14 pin butterfly | PM – 6 µm singlemode | |
3 | Datasheet | 650 mW | Ultra Broad FBG | 1064 ±2 nm | > 2 nm | up to 2000 mW | 1100 mA/1.5 V | 10 pin butterfly – type 1 | PM – 6 µm singlemode | ||
4 | Datasheet | 9 W | Multimode | 1064 ±7 nm | 3.5 nm | up to 9 W | 11 A / 1.7 V | 2 Pin Multimode (30*17 mm) | 105 µm Multimode (NA=0.22) | ||
5 | Datasheet | 25 W | Multimode | 1064 ±7 nm | 4.5 nm | up to 25 W | 10 A / 4.8 V | 2 Pin Multimode (66.5*36 mm) | 105 µm Multimode (NA=0.22) | ||
6 | Datasheet | 100 W | Multimode | 1064 ±7 nm | 4.5 nm | up to 100 W | 10 A / 21 V | 2 Pin Multimode (123 * 63 * 22 mm) | 105 µm Multimode (NA=0.22) |
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.).
Note : “Fabry-Perot” 1064 nm laser diode like diode model 1 have a broad spectrum of 1-3 nm. Selecting the FBG option makes its wavelength narrower and very stable. Be aware that Fabry-Perot with Bragg gratings laser diodes take several tens of nanosecond to lock on the Bragg grating : the wavelength bandwidth is broader at the beginning of the pulse. Choose laser diode model 2a if you need a narrow emission all along the pulse duration.
These 1064nm laser diodes & turn-key solutions work also in series with other products in our range like (see ordering information below for the various configurations with standard drivers):
Complex systems, such as fiber lasers, DPSS or other free space light sources, Raman or other spectroscopy experiments can be quickly developed on this module platform.
See our detailed tutorials:
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster.
Laser diode + driver solutions technical performances : | ||||||
---|---|---|---|---|---|---|
Laser Diode version : | Laser Driver version : | |||||
CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version) | Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) | Pulse & CW Driver -HP version - (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) | User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs) | Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version) |
||
Output Power CW regime (typ) | 1-Fabry-Perot | 700 mW | 400 mW | No (only pulse) | Not compatible | |
2a-DFB (optimized for pulsing) | 200 mW | 200 mW | ||||
2b-DFB (optimized for CW emission) | 200 mW | 200 mW | ||||
3-Broad Bragg | 650 mW | 500 mW | 500 mW | |||
4-Multimode (9 W) | Not compatible | 9 W | ||||
5-Multimode (25 W) | Not compatible | 25 W | ||||
6-Multimode (100 W) | Not compatible | 100 W | ||||
Output power Pulse regime (typ) | 1 - Fabry-Perot | No | 700 mW | 1500 mW | 700 mW | No |
2a-DFB (optimized for pulsing) | 500 mW min (700 mW typ) | |||||
2b-DFB (optimized for CW emission) | 500 mW min (700 mW typ) | |||||
3 - Broad FBG | 950 mW | 1500 mW | 1000 mW | |||
4- Multimode (9 W) | Not applicable | 10 W | ||||
5- Multimode (25 W) | Not applicable | 25 W | ||||
6- Multimode (100 W) | Not applicable | 100 W | ||||
User design nanosecond pulse shape (integrated AWG) | Any | No (On-Off driver only) | Yes (embedded AWG) | Yes but only with external analog signal | ||
Laser diode T° range | 15 - 50 °C | 15 - 40 °C | ||||
Pulse duration (Ext pulse trigger) | CW only | 0.5 ns - CW | 0.5 ns - 5 µs | 10 µs - CW | ||
Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | No | ||||
Typ rise/Fall time ; Min pulse duration | 3 (ns/A) ; 1.5 ns | < 1 (ns/A) ; 1.5 ns | few µsec | |||
Internal rep rate adjustment | 1 Hz - 4 MHz | 1 Hz - 10 MHz (250 MHz Optional) | 1 Hz - 20 MHz | No | ||
Temporal jitter | < 25 ps | < 8 ps | < 2 ns | |||
Adjustable CW current offset in pulse regime | No | Yes | No | Yes (extrenal mode) | ||
Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
---|---|---|---|---|---|---|---|
Model 1 (Fabry-Perot) diode alone PN : 1064LD-1-0-0 | 1064nm butterfly laser diode. Up to 700mW CW. Compatible with option-1 (fiber connector), option-2 (3 mm beam collimator) and OPTION-6 (Narrow emission spectrum with FBG) | 2 295 USD | Today | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with open CW driver PN : 1064LD-1-1-1 | Open CW driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 700 mW CW optical power out of a singlemode fiber. Compatible with… Read more Open CW driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 700 mW CW optical power out of a singlemode fiber. Compatible with option-2 (3 mm beam collimator) and OPTION-6 (Narrow spectrum with FBG). Less | 6 290 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with open Pulsed & CW driver (standard version) PN : 1064LD-1-2-1 | Open Pulse & CW driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 400 mW CW optical power and 700 mW pulsed ; Down to 1.5… Read more Open Pulse & CW driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 400 mW CW optical power and 700 mW pulsed ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option-3 (250 MHz version) and OPTION-6 (Narrow emission spectrum with Bragg grating). Less | 5 590 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with open Pulsed & CW driver (HP version) PN : 1064LD-1-3-1 | Open Pulse & CW driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 400 mW CW optical power and 1500 mW pulsed ; Down to 1.5… Read more Open Pulse & CW driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 400 mW CW optical power and 1500 mW pulsed ; Down to 1.5 ns pulse duration ; up to 10 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator) and option-3 (250 MHz version). Less | 6 890 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with open high speed pulsed driver (User design pulse shape version) PN : 1064LD-1-5-1 | Open Pulsed driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 700 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up… Read more Open Pulsed driver with 1064 nm butterfly laser diode, FC/APC fiber connector and 900µm fiber protection coating. Up to 700 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator) and option-6 (Narrow emission spectrum with Bragg grating). Less | 8 290 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with integrated CW driver PN : 1064LD-1-1-2 | Turn-key integrated laser diode module with 1064 nm butterfly laser diode, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 700 mW CW optical power. Compatible with option-2 (3 mm… Read more Turn-key integrated laser diode module with 1064 nm butterfly laser diode, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 700 mW CW optical power. Compatible with option-2 (3 mm beam collimator), option 4 (Bench-top version), option 5 (fiber isolator) and option 6 (Narrow emission with Bragg grating). Less | 7 640 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with integrated Pulsed & CW driver (standard version) PN : 1064LD-1-2-2 | Turn-key integrated laser diode module with 1064 nm butterfly laser diode, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 400 mW CW optical power and 700 mW pulsed ; Down… Read more Turn-key integrated laser diode module with 1064 nm butterfly laser diode, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 400 mW CW optical power and 700 mW pulsed ; Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option 3 (250 MHz version), option 4 (Bench-top version), option 5 (fiber isolator) and option 6 (narrow emission spectrum with Bragg grating). Less | 6 940 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with integrated Pulsed & CW driver (HP version) PN : 1064LD-1-3-2 | Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 400 mW CW optical power and 1500… Read more Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 400 mW CW optical power and 1500 mW pulsed ; Down to 1.5 ns pulse duration ; up to 10MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option 3 (250 MHz version), option 4 (Bench-top version), option 5 (fiber isolator) and option 6 (Narrow emission spectrum with Bragg grating. Less | 8 240 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 1 (Fabry-Perot) with integrated high speed pulsed driver (User design pulse shape version) PN : 1064LD-1-5-2 | Turn-key integrated pulsed laser diode module with 1064 nm butterfly laser diode, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 700 mW pulsed ; User-design nanosecond pulse shape with 0.5… Read more Turn-key integrated pulsed laser diode module with 1064 nm butterfly laser diode, FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 700 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse-width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with option-2 (3 mm collimator), option-5 (fiber isolator) and option-6 (Narrow emission spectrum with Bragg grating). Less | 9 640 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 2a (DFB for pulsing) diode alone PN : 1064LD-2a-0-0 | 1064 nm DFB laser diode optimized for short pulse emission. Up to 200 mW CW, 500 mW pulse ; ~ MHz range bandwidth in CW. Compatible with option-1 (fiber connector) and option-2 (3 mm beam collimator)… Read more 1064 nm DFB laser diode optimized for short pulse emission. Up to 200 mW CW, 500 mW pulse ; ~ MHz range bandwidth in CW. Compatible with option-1 (fiber connector) and option-2 (3 mm beam collimator). Note : these 1064 nm laser diodes are not adapted for applications where mode hopping in CW mode is a critical point. Less | 2 995 USD | Today | Max: Min: 1 Step: 1 | |||
Model 2b (DFB for CW narrow linewidth) diode alone PN : 1064LD-2b-0-0 | 1064 nm DFB laser diode optimized for CW narrow linewith emission. Up to 200 mW CW, 500 mW pulse ; ~ 200 kHz linewidth in CW with our ultra-low noise driver. Compatible with option-1 (fiber connector)… Read more 1064 nm DFB laser diode optimized for CW narrow linewith emission. Up to 200 mW CW, 500 mW pulse ; ~ 200 kHz linewidth in CW with our ultra-low noise driver. Compatible with option-1 (fiber connector) and option-2 (3 mm beam collimator). Less | 3 195 USD | Today | Max: Min: 1 Step: 1 | |||
Model 2c (DFB for CW narrow linewidth and mode hop free performances) diode alone PN : 1064LD-2c-0-0 | 1064 nm DFB laser diode optimized for CW narrow linewidth emission. Up to70 mW CW, 100 mW pulse. ~ 100 kHz linewidth mode hop free performance in CW with our ultra-low noise driver. Compatible… Read more 1064 nm DFB laser diode optimized for CW narrow linewidth emission. Up to70 mW CW, 100 mW pulse. ~ 100 kHz linewidth mode hop free performance in CW with our ultra-low noise driver. Compatible with option-2 (3 mm beam collimator). Less | 3 595 USD | Today | Max: Min: 1 Step: 1 | |||
Model 2b (DFB-high power) with open CW driver PN : 1064LD-2b-1-1 | Open CW driver with 1064 nm DFB laser diode (Model 2b optimised for CW emission) with FC/APC fiber connector and 900µm fiber protection coating. Up to 200 mW CW optical power… Read more Open CW driver with 1064 nm DFB laser diode (Model 2b optimised for CW emission) with FC/APC fiber connector and 900µm fiber protection coating. Up to 200 mW CW optical power out of a singlemode fiber. Compatible with option-2 (3 mm beam collimator). Less | 5 740 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2a (DFB) with open Pulsed & CW driver (standard version) PN : 1064LD-2a-2-1 | Open Pulse & CW driver with 1064 nm DFB laser diode (Model 2a optimized for pulsing) with FC/APC fiber connector and 900µm fiber protection coating. Up to 200 mW CW optical… Read more Open Pulse & CW driver with 1064 nm DFB laser diode (Model 2a optimized for pulsing) with FC/APC fiber connector and 900µm fiber protection coating. Up to 200 mW CW optical power and 500 mW pulsed ; Down to 1.5 ns pulse duration ; up to 4 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option 3 (250 MHz version). Less | 6 290 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2a (DFB) with open high speed pulsed driver (User design pulse shape version) PN : 1064LD-2a-5-1 | Open pulsed driver with 1064 nm DFB laser diode (model 2a optimized for pulsing) with FC/APC fiber connector and 900µm fiber protection coating. Up to 500 mW pulsed ; User design nanosecond… Read more Open pulsed driver with 1064 nm DFB laser diode (model 2a optimized for pulsing) with FC/APC fiber connector and 900µm fiber protection coating. Up to 500 mW pulsed ; User design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (the AWG pulse generator is included). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator). Less | 8 990 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2b or 2c (DFB) with ultra-low-noise open CW driver PN : 1064LD-2b or 2c-LN-1 | Open Ultra-low noise CW driver with 1064nm DFB butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating : the customer can choose either model 2b high power… Read more Open Ultra-low noise CW driver with 1064nm DFB butterfly laser diode with FC/APC fiber connector and 900µm fiber protection coating : the customer can choose either model 2b high power or model 2c with mode hop free performance - both models are optimized for narrow linewidth in CW. A low noise driver is required for narrow linewidth single-frequency applications. Up to 200mW in CW for model 2b or 70mW CW optical power out of a singlemode fiber for model 2c. Compatible with option-2 (3 mm beam collimator). Less | 8 890 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 2b (DFB-high power) with integrated CW driver PN : 1064LD-2b-1-2 | Turn-key integrated CW laser module with 1064 nm DFB laser diode (model 2b optimized for CW emission) with FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 200 mW… Read more Turn-key integrated CW laser module with 1064 nm DFB laser diode (model 2b optimized for CW emission) with FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 200 mW CW optical power. Compatible with option-2 (3 mm collimator). Compatible with option-2 (3 mm beam collimator), option 4 (Bench-top version) and option 5 (fiber isolator). Less | 7 090 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2a (DFB) with integrated Pulsed & CW driver (standard version) PN : 1064LD-2a-2-2 | Turn-key integrated pulse & CW laser module with 1064 nm DFB laser diode (model 2a optimized for pulsing) with FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 200… Read more Turn-key integrated pulse & CW laser module with 1064 nm DFB laser diode (model 2a optimized for pulsing) with FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 200 mW CW optical power and 500 mW pulsed ; Down to 1.5 ns pulse duration ; up to 4 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option 3 (250 MHz version), option 4 (Bench-top version) and option 5 (fiber isolator). Less | 7 640 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2a (DFB) with integrated high speed pulsed driver (User design pulse shape version) PN : 1064LD-2a-5-2 | Turn-key integrated pulsed laser diode module with 1064 nm DFB laser diode (model 2a optimized for pulsing) with FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 500 mW… Read more Turn-key integrated pulsed laser diode module with 1064 nm DFB laser diode (model 2a optimized for pulsing) with FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 500 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator) and option 5 (fiber isolator). Less | 9 995 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 2b or 2c (DFB) with integrated ultra-low-noise CW driver PN : 1064LD-2b or 2c-LN-2 | Turn-key integrated CW laser module with 1064 nm DFB laser diode with FC/APC fiber connector and 3 mm fiber metal protection coating : the customer can choose either model 2b high power… Read more Turn-key integrated CW laser module with 1064 nm DFB laser diode with FC/APC fiber connector and 3 mm fiber metal protection coating : the customer can choose either model 2b high power or model 2c with mode hop free performance - both models are optimized for narrow linewidth in CW. A low noise driver is required for single-frequency applications. Up to 200mW in CW for model 2b or 70mW CW optical power out of a singlemode fiber for model 2c. Typical emission bandwidth : 100 kHz. Compatible with option-2 (3 mm beam collimator). Less | 10 240 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 3 (Broad Bragg) diode alone PN : 1064LD-3-0-0 | 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). Average power 500 mW ; Peak power >1800 mW ; option-1 (fiber connector) and option-2 (3 mm beam collimator). | 2 795 USD | Today | Max: Min: 1 Step: 1 | |||
Model 3 (Broad Bragg) with open CW driver PN : 1064LD-3-1-1 | Open CW driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up to 650mW… Read more Open CW driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up to 650mW CW optical power out of a singlemode fiber. Emission bandwidth : > 2 nm in CW. Compatible with option-2 (3 mm beam collimator). Less | 6 790 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 3 (Broad Bragg) with open Pulsed & CW driver (standard version) PN : 1064LD-3-2-1 | Open Pulse & CW driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up… Read more Open Pulse & CW driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up to 500 mW CW optical power and 950 mW pulsed ; Down to 1.5 ns pulse duration ; up to 4 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator) and option 3 (250 MHz version). Note : this laser diode version is based on a Fabry-Perot technology with external Bragg grating. The laser pulse takes ~100 ns to lock on the Bragg Wavelength. Short pulses have a significantly boader bandwidth than 1 nm. Less | 6 090 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 3 (Broad Bragg) with open Pulsed & CW driver (HP version) PN : 1064LD-3-3-1 | Open Pulse & CW driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up… Read more Open Pulse & CW driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up to 500 mW CW optical power and 1800 mW pulsed ; Down to 1.5 ns pulse duration ; up to 10 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option 3 (250 MHz version). Less | 7 390 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 3 (Broad Bragg) with open high speed pulsed driver (User design pulse shape version) PN : 1064LD-3-5-1 | Open Pulsed driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up to 1000 mW… Read more Open Pulsed driver with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm) with FC/APC fiber connector and 900µm fiber protection coating. Up to 1000 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator). Less | 8 790 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 3 (BroadBragg) with integrated CW driver PN : 1064LD-3-1-2 | Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating. Up… Read more Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 650 mW CW optical power. Compatible with option-2 (3 mm beam collimator), option 4 (Bench-top version) and option 5 (fiber isolator). Less | 8 140 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 3 (Broad Bragg) with integrated Pulsed & CW driver (standard version) PN : 1064LD-3-2-2 | Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating. Up… Read more Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 500 mW CW optical power and 950 mW pulsed ; Down to 1.5 ns pulse duration ; up to 4 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option 3 (250 MHz version), option 4 (Bench-top version) and option 5 (fiber isolator). Less | 7 440 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 3 (Broad Bragg) with integrated Pulsed & CW driver (HP version) PN : 1064LD-3-3-2 | Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating. Up… Read more Turn-key integrated laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 500 mW CW optical power and 1800 mW pulsed ; Down to 1.5 ns pulse duration ; up to 10 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator), option 3 (250 MHz version), option 4 (Bench-top version) and option 5 (fiber isolator). Less | 8 740 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Model 3 (Broad Bragg) with integrated high speed pulsed driver (User design pulse shape version) PN : 1064LD-3-5-2 | Turn-key integrated pulsed laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating… Read more Turn-key integrated pulsed laser diode module with 1064 nm butterfly laser diode with Bragg grating and broad emission bandwidth (> 2 nm). FC/APC fiber connector and 3 mm fiber metal protection coating. Up to 1000 mW pulsed ; User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulsewidth (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Compatible with option-2 (3 mm beam collimator) and option 5 (fiber isolator). Less | 9 995 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 4 (9 W Multimode) diode alone PN : 1064LD-4-0-0 | High power laser diode emitting up to 9 W at 1064 nm out of a 105/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 optical connector. Compatible with OPTION 6 : High Power Collimator (see below)… Read more High power laser diode emitting up to 9 W at 1064 nm out of a 105/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 optical connector. Compatible with OPTION 6 : High Power Collimator (see below). Purchase orders under $1000/1000 € are subject to an automatic processing charge of 200 €/$ 250. Less | 795 USD | Today | Max: Min: 1 Step: 1 | |||

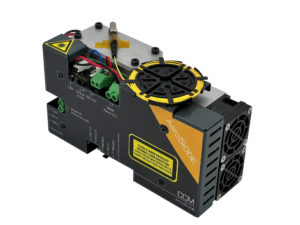

Model 4 (9 W Multimode) with open CW driver with special air cooling PN : 1064LD-4-6-1 | Open CW driver with 1064 nm multimode laser diode. Up to 9 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 connector. Compatible with OPTION 6 : High Power Collimator (… Read more Open CW driver with 1064 nm multimode laser diode. Up to 9 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 connector. Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 5 090 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||

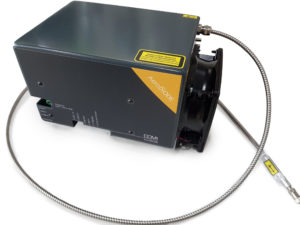

Model 4 (9 W Multimode) with integrated CW driver with special air cooling PN : 1064LD-4-6-2 | Turn-key integrated CW driver with 1064 nm multimode laser diode. Up to 9 W CW optical power out of a 105 µm / 3 mm metal protected Jacket multimode fiber (NA=0.22). High power connector is… Read more Turn-key integrated CW driver with 1064 nm multimode laser diode. Up to 9 W CW optical power out of a 105 µm / 3 mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 6 490 USD | 3 - 4 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 5 (25 W Multimode) diode alone PN : 1064LD-5-0-0 | High power laser diode emitting up to 25 W at 1064 nm out of a 105/125/250/900 µm multimode laser diode (NA = 0.22) with SMA905 optical connector. Compatible with OPTION 6 : High Power Collimator (see below). | 1 795 USD | Today | Max: Min: 1 Step: 1 | |||
Model 5 (25 W Multimode) with open CW driver with special air cooling PN : 1064LD-5-6-1 | Open CW driver with 1064 nm multimode laser diode. Up to 25 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 connector. Compatible with OPTION 6 : High Power Collimator (… Read more Open CW driver with 1064 nm multimode laser diode. Up to 25 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 connector. Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 6 090 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
Model 5 (25 W Multimode) with integrated CW driver with special air cooling PN : 1064LD-5-6-2 | Open CW driver with 1064 nm multimode laser diode. Up to 25 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 connector. Compatible with OPTION 6 : High Power Collimator (… Read more Open CW driver with 1064 nm multimode laser diode. Up to 25 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 connector. Compatible with OPTION 6 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 7 490 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
Model 6 (100 W Multimode) diode alone PN : 1064LD-6-0-0 | High power laser diode emitting up to 100 W at 1064 nm out of a 105/125/250/900 µm multimode laser diode (NA = 0.22) with bare fiber output (no optical connector). Compatible with OPTION 7 : High Power… Read more High power laser diode emitting up to 100 W at 1064 nm out of a 105/125/250/900 µm multimode laser diode (NA = 0.22) with bare fiber output (no optical connector). Compatible with OPTION 7 : High Power Collimator (see below) and OPTION 8 : High Power Connector Less | 4 095 USD | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 6 (100 W Multimode) with open CW driver with special air cooling PN : 1064LD-6-6-1 | Open CW driver with 1064 nm multimode laser diode. Up to 100 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 high power connector. Compatible with OPTION 7 : High… Read more Open CW driver with 1064 nm multimode laser diode. Up to 100 W CW optical power out of a 105/125/250/900 µm multimode fiber (NA=0.22) with SMA905 high power connector. Compatible with OPTION 7 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 8 390 USD | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Model 6 (100 W Multimode) with integrated CW driver with special air cooling PN : 1064LD-6-6-2 | Turn-key integrated CW driver with 1064nm multimode laser diode. Compatible with OPTION 7:… Read more Turn-key integrated CW driver with 1064nm multimode laser diode. Compatible with OPTION 7: High Power Collimator (see below). NOTE: CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. Less | 9 790 USD | 5 - 8 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
New : HPHS - High power nanosecond multimode PN : 1064HPHS-1/2/3 | High power pulsed laser diode module emitting at 1064 +/- 10 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 80 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ;… Read more High power pulsed laser diode module emitting at 1064 +/- 10 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 80 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. Less | 11 795 USD | 9 - 12 weeks | Max: Min: 1 Step: 1 | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
OPTION 1 : Fiber connector PN : 1064LD-Option-Connector_SM | FC/APC fiber connector and 900µm fiber protection coating. For Models 1-3 laser diode alone only. This option is already included in all the diode+driver configurations. | 195 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
OPTION 2 : Fiber Bragg Grating for model 1 PN : 1064LD-Option-FBG_SM | With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module. The small back-reflection generated by… Read more With this OPTION, Model 1 is offered with a FBG (Fiber Bragg Grating) situated within the fiber at about 1 m from the laser diode butterfly module. The small back-reflection generated by the FBG allows to get a very stable and narrow emission spectrum at the center wavelength of 1064 nm. The center wavelength tolerance becomes 1064.4±0.5 nm instead of 1064±2 nm. It is not anymore possible to tune the wavelength by tuning the laser diode chip temperature as the FBG "locks" the wavelength at 1064 nm. The spectrum and polarization are more stable when using a Bragg grating. Note that the FBG takes a few 10's ns to lock the wavelength. A very short pulse may not be locked efficiently during the first part of the pulse and the wavelength is the same as if there was no FBG during this part of the pulse. Less | 745 USD | 3 - 4 weeks | Max: Min: 1 Step: 1 | |||
OPTION 3 : Low Power Collimator COL001 PN : 1064LD-Option-Collimator_SM | Small form factor 3 mm beam diameter optical collimator with AR coatings. | 545 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
OPTION 4 : 250MHz repetition rate PN : 1064LD-Option-250MHz_SM | Optional 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. | 1 195 USD | 2 - 5 days | Max: Min: 1 Step: 1 | |||
OPTION 5 : Benchtop version PN : 1064LD-Option-Benchtop_SM | All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on… Read more All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front panel etc. This option is available for CCSI and CCSI-CW integrated modules only. Less | 695 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
OPTION 6 : 1064nm fiber isolator PN : 1064LD-Option-Isolator | Adding an isolator if often necessary especially when considering systems like fiber lasers with one or several amplifying stages. | 695 USD | 1 - 2 weeks | Max: Min: 1 Step: 1 | |||
OPTION 7 : High Power Collimator COL004 PN : 1064LD-Option-Collimator_MM | 12 mm beam high power collimator for SMA connectors. Focal length : f=37 mm. AR treatment covering 960-1150 nm. High damage threshold in CW and pulse mode. Compatible with laser diodes model 4… Read more 12 mm beam high power collimator for SMA connectors. Focal length : f=37 mm. AR treatment covering 960-1150 nm. High damage threshold in CW and pulse mode. Compatible with laser diodes model 4 and 5 : laser diode alone or laser diode + driver solutions. Less | 645 USD | Today | Max: Min: 1 Step: 1 | |||
OPTION 8 : High Power Connector PN : 1064LD-Option-Connector_MM | Special SMA high power connector for multimode laser diodes. Compatible with laser diodes with 50-450 W optical power. | 1 245 USD | 3 - 4 weeks | Max: Min: 1 Step: 1 | |||
OPTION 9 : Multi-product GUI Touch screen PN : 1064LD-Option-Touch_Screen | All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one… Read more All AeroDIODE products are supplied with a global GUI software and can therefore be simultaneously controlled using any windows laptop. This option adds an additional touch screen to control one or more AeroDIODE products locally without the help of a computer. This embedded-computer-free microcontroller-based product meets all IT security constraints. It also acts as an Ethernet relay to be able to control all the connected products from a remote computer station. Less | 1 695 USD | 5 - 8 weeks | Max: Min: 1 Step: 1 |
