The 1-hour course module enables the student to assess the photodiode sensor gain, sensitivity, and saturation level. The 2-hour module teaches the student how to measure a short pulse laser and its repetition rate as well as evaluate the limiting parameters and potential measurements artifacts. The 3-hour module provides students with an overview of laser diode noise analysis and coherence measurements.
From: 4 495€
All shippings with DHL Express
Detection of light is one of the most important tasks in photonics application and research. These photodiode educational kits allow the student to discover the various complexities linked with low noise and fast characterization of light emitted from laser diodes. The 3 available modules have different objectives, but they all contribute to providing a solid technical overview of measurement constraints and potential measurements artifacts encountered when working with photodiodes. The 3 available kits share similar drivers and photodiodes. The course modules were designed to enable an educator to order the complete set, which provides a well-designed program to build sequentially any of the 3 student work plans described below. Each work plan includes a student guide document to guide the student through the material supplied with the education kit module.
These educational kits from AeroDIODE are designed for students, researchers and engineers who are involved in optics related fields. They are based on AeroDIODE products and technology. They enable the student to set up and characterize laser diode emission, modulation and photodiode detection. They also enable the student to learn the fundamentals of photonic architectures such as laser cavities, interferometers, and MOPA / master oscillator power amplifier architectures.
| Version | Student work duration | Datasheet | Title | Résumé | Synoptic | Content | Laser Class | Price |
|---|---|---|---|---|---|---|---|---|

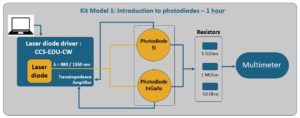

| Kit Model 1 | 1 hour | Datasheet | Introduction to photodiodes | Evaluate the sensor gain and sensitivity, compare Si and InGaAs detectors, measure sensor saturation, handle the impedance load charge variation, estimate the dark current intensity. | Synoptic | What’s in the box ? | 1M | Scroll down ! |
| Kit Model 2 | 2 hours | Datasheet | Optical pulse measurements | Handle the impedance load charge variation with/without transimpedance amplifier, measure a laser pulse and monitor the pulse width and the repetition rate), evaluate the rise / fall time of laser diode pulses, estimate the bandwidth, evaluate the laser diode Back Facet Monitoring (internal photodiode) | Synoptic | What’s in the box ? | 1M | |
| Kit Model 3 | 3 hours | Datasheet | Intensity noise and coherence length measurements | Evaluate the laser diode relative intensity noise, build a Mach-Zehnder interferometer setup, measure the laser diode coherence length with a fiber spool, work with Fourier frequency and logarithmic scales (power spectral density). | Synoptic | What’s in the box ? | 1M |
The kits include a laser diode driver with GUI control and various power and/or wavelength sensors. They offer a thorough overview of the various skills required when handling lasers and fiber optics technologies.
The photodiode education kits from AeroDIODE are part of a multi-category education kit offering dedicated to hands-on laser and photonic education. Each category has its own dedicated product page:
Each educational kit category shown above (Laser Emission | Detection | Modulation | Optical Fiber) is offered in three versions: 1-hour, 2-hours, or one-half day course modules. AeroDIODE educational kits include both the educational material hardware and a student instruction document template.
To follow laser safety regulations, all kits are classified as either Laser Class 1M or Class 3R. A guide is provided along with each of the kits to detail safety processes, set-up instructions, and course-related questions.
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the well known ALPhANOV technology center for over 15 years. AeroDIODE is a member of EPIC European industry association and “Route des Lasers” cluster .
| Version | Student work duration | Datasheet | Title | Résumé | Synoptic | Content | Laser Class | Price |
|---|---|---|---|---|---|---|---|---|
| Kit Model 1 | 1 hour | Datasheet | Introduction to photodiodes | Evaluate the sensor gain and sensitivity, compare Si and InGaAs detectors, measure sensor saturation, handle the impedance load charge variation, estimate the dark current intensity. | Synoptic | What's in the box ? | 1M | Scroll down ! |
| Kit Model 2 | 2 hours | Datasheet | Optical pulse measurements | Handle the impedance load charge variation with/without transimpedance amplifier, measure a laser pulse and monitor the pulse width and the repetition rate), evaluate the rise / fall time of laser diode pulses, estimate the bandwidth, evaluate the laser diode Back Facet Monitoring (internal photodiode) | Synoptic | What's in the box ? | 1M | |
| Kit Model 3 | 3 hours | Datasheet | Intensity noise and coherence length measurements | Evaluate the laser diode relative intensity noise, build a Mach-Zehnder interferometer setup, measure the laser diode coherence length with a fiber spool, work with Fourier frequency and logarithmic scales (power spectral density). | Synoptic | What's in the box ? | 1M |
Picture | Short descritption / PN | Description | Documents | Price (ex VAT) | Avalaible | Qty | |
|---|---|---|---|---|---|---|---|

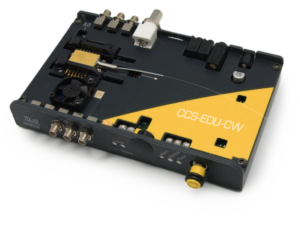

 | Photodiode Educational Kit Model 1 (1 Hour module) PN : EDUKIT-1 | "Technical Introduction to Photodiodes Module". This hands-on learning solution allows students to evaluate photodiode sensor gain, sensitivity and saturation level. The Model-1 includes 2 laser diodes, 2 fiber coupled photodiodes (Si and… Read more "Technical Introduction to Photodiodes Module". This hands-on learning solution allows students to evaluate photodiode sensor gain, sensitivity and saturation level. The Model-1 includes 2 laser diodes, 2 fiber coupled photodiodes (Si and InGaAs), an AeroDIODE laser diode driver unit Model "CCS-EDU-CW", a Multimeter and several additional components to enable the student to perform the one-hour module Less | 4 495€ | 5 - 8 weeks | |||
 | Photodiode Educational Kit model 2 (2 Hours module) PN : EDUKIT-2 | "Optical Pulse Measurement Module". This hands-on learning solution allows students to fully characterize a laser diode optical pulse. The kit includes 1 laser diode, 1 fiber coupled photodiode (InGaAs), an AeroDIODE laser… Read more "Optical Pulse Measurement Module". This hands-on learning solution allows students to fully characterize a laser diode optical pulse. The kit includes 1 laser diode, 1 fiber coupled photodiode (InGaAs), an AeroDIODE laser diode driver unit Model "CCS-EDU-PULSE" which offers nanosecond range pulses to CW, and several additional components to enable the student to perform the two-hour module. The oscilloscope part is offered as an option below. Less | 4 495€ | 5 - 8 weeks | |||
 | Photodiode Educational Kit model 3 (3 Hours module) PN : EDUKIT-3 | "Intensity Noise and Coherence Length Measurement Module". This hands-on learning solution enables students to evaluate the laser diode RIN (relative intensity noise), build a Mach-Zehnder interferometer, and measure the laser… Read more "Intensity Noise and Coherence Length Measurement Module". This hands-on learning solution enables students to evaluate the laser diode RIN (relative intensity noise), build a Mach-Zehnder interferometer, and measure the laser diode coherence length. The kit includes 2 fiber coupled laser diodes, 2 fiber coupled photodiodes (Si and InGaAs), an AeroDIODE laser diode driver unit Model "CCS-EDU-PULSE" which offers nanosecond range pulses to CW, and several additional components to enable the student to perform the two-hour module. The oscilloscope part is offered as an option below. Less | 8 995€ | 5 - 8 weeks | |||
Picture | ShortPN | Description | Docs | Price | Avalaible | Qty | |
| Photodiode Educational Kit Model 123 (complete solution) PN : EDUKIT-123 | "The Complete Photodiode Education Module". This KIT contains all the elements to perform the 3 students work plan described above. The various pieces can be reorganized as described in the manual… Read more "The Complete Photodiode Education Module". This KIT contains all the elements to perform the 3 students work plan described above. The various pieces can be reorganized as described in the manual to reorganize the working setup and allow to perform alternatively the three work plans (1H, 2H and 3H). Less | 10 995€ | 5 - 8 weeks |
