The singlemode 1550 nm laser diodes can reach high power in nanosecond pulse regime up to 500 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse duration down to 1 nanosecond. The 1550nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.
From: 995€
All shippings with DHL Express
Single frequency 1550 nm laser diode Key Features (Scroll-down to see all configurations and prices) :
These 1550nm laser diode combined with our high end flexible pulsed laser diode driver are an ideal tool for LIDAR or 3D-sensing R&D teams. TOF (Time-Of-Flight) experiments can be setup very rapidly with these complete flexible solutions.
The two multimode models up to 30 W are ideal tools for R&D teams involved in applications requiring thermal superficial laser matter interactions, IR camera lighting or Er3+ ions pumping.
| Laser Diode model | Datasheet | Power (CW) | Test report | Technology | Center Wavelength | Typical linewidth* | Power (Pulse – typical) | Current/ Voltage (typ) | Form factor | Fiber & connector | Price |
|---|---|---|---|---|---|---|---|---|---|---|---|

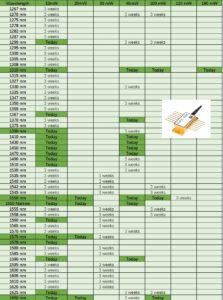

| Model 1 | Datasheet | 10 mW | DFB single-frequency | 1550 nm or choose any wavelength from 1270 to 1655 nm (see the table in the picture Tab) | <2 MHz | 15 mW | 70 mA/1.6 V | 14 pin butterfly-type 1 with isolator | 9 µm singlemode Corning SMF28 or PM1550 or equivalent ; FC/APC connector | Scroll down ! | |
| Model 2 | Datasheet | 40 mW | Test report | DFB single-frequency | <200 kHz | 60 mW | 300 mA/1.6 V | ||||
| Model 3 | Datasheet | 100 mW | DFB single-frequency | 1550 nm | 150 mW | 650 mA/1.8 V | |||||
| Model 3b | Datasheet | 150 mW | DFB single-frequency | 1550 nm | 225 mW | 750 mA/1.9 V | |||||
| Model 4 | Datasheet | 400 mW | Bagg grating based- singlemode | Choose any wavelength from 1420 to 1500 nm | < 2 nm | 600 mW | 1500 mA/2.0 V | 14 pin butterfly-type 1 | |||
| Model 5 | Datasheet | 20 mW (ultra narrow) | Test report | DFB – single-frequency with special ultra-narrow linewidth | 1550 nm | < 50 kHz | 30 mW | 170 mA/1.6 V | 14 pin butterfly-type 1 with isolator | ||
| Model 6 | Datasheet | 40 mW (ultra narrow) | Test report | 1550 nm | < 50 kHz | 60 mW | 350 mA/1.6 V | ||||
| Model 7 | Datasheet | 15 W | Multimode Multi-emitters | 1550 nm | 15 nm | 15 W | 8.5 A/12.5 V | 2 Pin (80*48*16) | 105 µm – NA=0.22 ; SMA905 connector |
*Scroll down to see all configurations, prices and lead times. For best linewidth performances, an ultra-low noise driver is required. for example this one : low noise laser diode driver
The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python etc.)
These 1550 nm laser diode & turn-key solutions work also in series with other products in our range like (see the ordering information below for the various configurations with several driver models) :
Combined with our pulse delay generator called “TOMBAK”, it becomes easy to create a complete bench simulating any type of structured multiple Burst in the nanosecond range (see some examples in the pictures window).
See our detailed tutorials for more information about the use of these laser diodes :
AeroDIODE products leverage proprietary, cutting edge technology which has been under development in the ALPhANOV technology center for over 12 years. AeroDIODE is an ISO-9001-2015 company and a member of EPIC European industry association and “Route des Lasers” cluster .
| 1550 nm Laser diode + driver solutions : | |||||
|---|---|---|---|---|---|
| 1550 nm Laser Diode version : | Laser Driver version : | ||||
| CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version) | Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) | User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs) | Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version) |
||
| Output Power (CW regime (typ) | 1- Singlemode 10 mW | 10 mW | No | ||
| 2- Singlemode 40 mW | 40 mW | No | |||
| 3 - singlemode 100 mW | 100 mW | No | |||
| 3b- Singlemode 150 mW | 150 mW | No | |||
| 4- singlemode 400 mW | 400 mW | No | |||
| 5 & 6 : singlemode 20/40 mW ultra-narrow linewidth | 20/40 mW | NO | |||
| 7 & 8 : Multimode 15/30 W | No | 15/30 W | |||
| Output power - Pulse regime (typ) | 1 - Singlemode 10 mW | No | 15 mW | ||
| 2- Singlemode 40 mW | No | 60 mW | |||
| 3 - singlemode 100 mW | No | 150 mW | |||
| 4- singlemode 400 mW | No | 600 mW | 400 mW | ||
| 5 & 6 : singlemode 20 mW/40 mW ultra-narrow linewidth | No | 30/55 mW | |||
| 7 & 8 : Multimode 15 W/30 W | No | 15/30 W | |||
| User design nanosecond pulse shape (integrated AWG) | No (CW driver) | No (On-Off driver) | Yes | No | |
| Laser diode T° range | 15 - 50 °C | 15 - 40 °C | |||
| Pulse duration (Ext pulse trigger) | 0.5 ns - CW | 0.5 ns - 8 µs | 10 µs - CW | ||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | No | |||
| Typ rise/fall time ; Min pulse duration | 3 (ns/A) ; 1.5 ns | < 1 (ns/A) ; 1 ns | few µsec | ||
| Internal rep rate adjustment | 1 Hz - 4 MHz (250 MHz option) | 1 Hz - 20 MHz | No | ||
| Temporal jitter | < 20 ps | < 2 ns (<10 ps with clock synchronization) | |||
| Adjustable CW current offset in pulse regime | (Optional) | No | Yes (external mode) | ||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python | ||||
Part NumberDescriptionAvalaible | Add to cart |
|---|---|
Ref: Model 1 (10 mW), Shipping: Today, PN: 1550LD-1-0-0 1550 nm 10 mW butterfly DFB laser diode alone with internal isolator. SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION below) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator) and OPTION 4 (special package for very short pulses). See OPTION 1-5 at the bottom of the page. Today | |
Ref: OPTION : PM fiber for Model 1, Shipping: Today, PN: OPTION-PM1 With this OPTION, Model 1 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Today | |
Ref: Model 1 (10 mW) with "CCS-CW" driver, Shipping: 2 - 5 days, PN: 1550LD-1-1-1 Open frame CW driver with 1550 nm 10 mW butterfly DFB laser diode with internal isolator. SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 1 (10 mW) with "CCS" driver, Shipping: 2 - 5 days, PN: 1550LD-1-2-1 Open frame Pulse & CW driver with 1550 nm 10 mW butterfly DFB laser diode with internal isolator. SMF28 fiber with FC-APC connector ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 1 (3 mm collimator), OPTION 2 (250 MHz version - see below) and OPTION 4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page ; Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 2 - 5 days | |
Ref: Model 1 (10 mW) with "Shaper" driver, Shipping: 2 - 5 days, PN: 1550LD-1-3-1 Open frame pulsed driver with 10 mW 1550 nm DFB laser diode with internal isolator. Up to 15 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator) and OPTION 4 (special package for very short pulses). See OPTION 1-5 at the bottom of the page. 2 - 5 days | |
Ref: Model 1 (10 mW) within "CCSI-CW" module, Shipping: 1 - 2 weeks, PN: 1550LD-1-1-2 Turn-key integrated CW DFB laser diode module at 1550 nm with internal isolator. CW power up to 10 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (Benchtop version) see below - Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. 1 - 2 weeks | |
Ref: Model 1 (10 mW) within "CCSI" module, Shipping: 1 - 2 weeks, PN: 1550LD-1-2-2 Turn-key integrated DFB laser diode module at 1550 nm with internal isolator for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 10 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), OPTION-2 (250 MHz version), OPTION-3 (Benchtop version) and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 1 - 2 weeks | |
Ref: Model 2 (40 mW), Shipping: Today, PN: 1550LD-2-0-0 1550 nm 40 mW butterfly DFB laser diode alone with internal isolator. SMF28 fiber with FC-APC connector. Also available in PM fiber version (see the OPTION below) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator) and OPTION 4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. Today | |
Ref: OPTION : PM fiber for Model 2, Shipping: Today, PN: OPTION-PM2 With this OPTION, Model 2 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Today | |
Ref: Model 2 (40 mW) with "CCS-CW" driver, Shipping: 2 - 5 days, PN: 1550LD-2-1-1 Open frame CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber with FC/APC connector. Up to 40 mW CW optical power. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 2 (40 mW) with "CCS" driver, Shipping: 2 - 5 days, PN: 1550LD-2-2-1 Open frame Pulse & CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber output with FC-APC connector. Up to 40 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 1 (3 mm collimator), OPTION 2 (250 MHz version) and OPTION 4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. ; Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 2 - 5 days | |
Ref: Model 2 (40 mW) with "Shaper" driver, Shipping: 2 - 5 days, PN: 1550LD-2-3-1 Open frame pulsed driver with 40 mW 1550 nm DFB laser diode with internal isolator. Up to 60 mW pulsed. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION 1 (3 mm collimator) and OPTION 4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 2 (40 mW) within "CCSI-CW" module, Shipping: 1 - 2 weeks, PN: 1550LD-2-1-2 Turn-key integrated CW DFB laser diode module at 1550 nm with internal isolator. CW power up to 40 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). and option 3 (Benchtop version). Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. 1 - 2 weeks | |
Ref: Model 2 (40 mW) within "CCSI" module, Shipping: 1 - 2 weeks, PN: 1550LD-2-2-2 Turn-key integrated DFB laser diode module at 1550 nm with internal isolator for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 40 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), OPTION-2 (250 MHz version), OPTION-3 (benchtop version) and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 1 - 2 weeks | |
Ref: Model 3 (100 mW), Shipping: Today, PN: 1550LD-3-0-0 1550 nm 100 mW butterfly DFB laser diode alone with internal isolator. SMF28 fiber with FC-APC connector. Compatible with OPTION 1 (3 mm collimator) and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION below) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Today | |
Ref: OPTION : PM fiber for Model 3, Shipping: Today, PN: OPTION-PM3 With this OPTION, Model 3 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Today | |
Ref: Model 3 (100 mW) with "CCS-CW" driver, Shipping: 2 - 5 days, PN: 1550LD-3-1-1 Open frame CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber with FC/APC connector. Up to 100 mW CW optical power. Compatible with OPTION-1 (3 mm collimator). Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 3 (100 mW) with "CCS" driver, Shipping: 2 - 5 days, PN: 1550LD-3-2-1 Open frame Pulse & CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber output with FC-APC connector. Up to 100 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), OPTION-2 (250 MHz version) and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page ; Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 2 - 5 days | |
Ref: Model 3 (100 mW) with "Shaper" driver, Shipping: 2 - 5 days, PN: 1550LD-3-3-1 Open frame pulsed driver with 100 mW 1550 nm DFB laser diode with internal isolator. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION-1 (3 mm collimator) and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 3 (100 mW) within "CCSI-CW" module, Shipping: 1 - 2 weeks, PN: 1550LD-3-1-2 Turn-key integrated CW DFB laser diode module at 1550 nm with internal isolator. CW power up to 100 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. 1 - 2 weeks | |
Ref: Model 3 (100 mW) within "CCSI" module, Shipping: 1 - 2 weeks, PN: 1550LD-3-2-2 Turn-key integrated DFB laser diode module at 1550 nm with internal isolator for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 100 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), option-2 (250 MHz version), OPTION-3 (benchtop version) and OPTION 4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 1 - 2 weeks | |
Ref: Model 3b (150 mW), Shipping: Today, PN: 1550LD-3b-0-0 1550 nm 150 mW butterfly DFB laser diode alone with internal isolator. SMF28 fiber with FC-APC connector. Compatible with OPTION 1 (3 mm collimator), and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION PM below). Today | |
Ref: OPTION : PM fiber for Model 3b, Shipping: Today, PN: OPTION-PM3b With this OPTION, Model 3 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Today | |
Ref: Model 3b (150 mW) with "CCS-CW" driver, Shipping: 2 - 5 days, PN: 1550LD-3b-1-1 Open frame CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber with FC/APC connector. Up to 150 mW CW optical power. Compatible with OPTION-1 (3 mm collimator). Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 3b (150 mW) with "CCS" driver, Shipping: 2 - 5 days, PN: 1550LD-3b-2-1 Open frame Pulse & CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber output with FC-APC connector. Up to 150 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), OPTION-2 (250 MHz version), and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page ; Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 2 - 5 days | |
Ref: Model 3b (150 mW) with "Shaper" driver, Shipping: 2 - 5 days, PN: 1550LD-3b-3-1 Open frame pulsed driver with 150 mW 1550 nm DFB laser diode with internal isolator. User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). Compatible with OPTION-1 (3 mm collimator) and OPTION-4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 3b (150 mW) within "CCSI-CW" module, Shipping: 3 weeks, PN: 1550LD-3b-1-2 Turn-key integrated CW DFB laser diode module at 1550 nm with internal isolator. CW power up to 150 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). See OPTION 1-4 at the bottom of the page. 3 weeks | |
Ref: Model 3b (150 mW) within "CCSI" module, Shipping: 3 weeks, PN: 1550LD-3b-2-2 Turn-key integrated DFB laser diode module at 1550 nm with internal isolator for Pulse and CW emission. SMF28 metal protected fiber output with FC/APC output connector. CW output power up to 150 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with OPTION-1 (3 mm collimator), option-2 (250 MHz version), OPTION-3 (benchtop version) and OPTION 4 (special package for very short pulses). See OPTION 1-4 at the bottom of the page. Also available in PM fiber version (see the OPTION above) and also available at any other wavelengths between 1270 and 1650 nm (contact us for any special wavelength need). 3 weeks | |
Ref: Model 4 (400 mW), Shipping: Today, PN: 1450LD-4-0-0 1420-1500 nm (choose your wavelength) 400 mW butterfly laser diode alone (stock items are generally available at 1424 nm, 1456 nm, 1480 nm and 1495 nm). PM1550 fiber with FC-APC connector. Compatible with OPTION 1 (3 mm collimator). Today | |
Ref: Model 4 (400 mW) with "CCS-CW" driver, Shipping: 2 - 5 days, PN: 1450LD-4-1-1 Open frame CW driver with 1420-1500 nm -choose your wavelength) butterfly laser diode (stock items are generally available at 1424 nm, 1456 nm, 1480 nm and 1495 nm) and PM1550 fiber with FC/APC connector. Up to 400 mW CW optical power. Compatible with OPTION 1 (3 mm collimator). See OPTION 1-4 at the bottom of the page. 2 - 5 days | |
Ref: Model 4 (400 mW) with "CCS" driver, Shipping: 2 - 5 days, PN: 1450LD-4-2-1 Open frame Pulse & CW driver with 1420-1500 nm - (choose your wavelength) butterfly laser diode and PM1550 fiber output with FC-APC connector (stock items are generally available at 1424 nm, 1456 nm, 1480 nm and 1495 nm). Up to 400 mW CW optical power ; Down to 1.5 ns pulse duration ; Up to 4 MHz pulse repetition rate. Compatible with OPTION 1 (3 mm collimator) and OPTION 2 (250 MHz version) ; Note : This high power laser diode version is based on a Fabry-Perot technology with external Bragg grating. The laser pulse takes ~200 ns to lock on the Bragg Wavelength. Short pulses may have a significantly different wavelength. 2 - 5 days | |
Ref: Model 4 (400 mW) with "Shaper" driver, Shipping: 2 - 5 days, PN: 1450LD-4-3-1 Open frame pulsed driver with 400 mW 1420-1500 nm laser diode (choose your wavelength - stock items are generally available at 1424 nm, 1456 nm, 1480 nm and 1495 nm) with PM1550 fiber output . User-design nanosecond pulse shape with 0.5 ns resolution and up to 8 µs pulse width (The AWG pulse generator is integrated). Down to 1.5 ns pulse duration. Up to 20 MHz pulse repetition rate. Note : This high power laser diode version is based on a Fabry-Perot technology with external Bragg grating. The laser pulse takes ~200 ns to lock on the Bragg Wavelength. Short pulses may have a significantly different wavelength. Compatible with OPTION 1 (3 mm collimator). 2 - 5 days | |
Ref: Model 4 (400 mW) within "CCSI-CW" module, Shipping: 1 - 2 weeks, PN: 1450LD-4-1-2 Turn-key integrated CW laser diode module at 1420-1500 nm (choose your wavelength - stock items are generally available at 1424 nm, 1456 nm, 1480 nm and 1495 nm). CW power up to 400 mW. PM1550 metal protected PM fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator) and option 3 (benchtop version). See OPTION 1-4 at the bottom of the page. 1 - 2 weeks | |
Ref: Model 4 (400 mW) within "CCSI" module, Shipping: 1 - 2 weeks, PN: 1450LD-4-2-2 Turn-key integrated laser diode at 1420-1500 nm (choose your wavelength - stock items are generally available at 1424 nm, 1456 nm, 1480 nm and 1495 nm) for Pulse and CW emission. PM1550 metal protected fiber output with FC/APC output connector. CW output power up to 400 mW. Down to 1.5 ns pulse duration. Up to 4 MHz pulse repetition rate. Compatible with option-1 (3 mm collimator), option-2 (250 MHz version) and option 3 (benchtop version). Note : This high power laser diode version is based on a Fabry-Perot technology with external Bragg grating. The laser pulse takes ~200 ns to lock on the Bragg Wavelength. Short pulses may have a significantly different wavelength. 1 - 2 weeks | |
Ref: Model 5 (20 mW narrow linewidth), Shipping: Today, PN: 1550LD-5-0-0 1550 nm 20 mW butterfly laser diode alone with internal isolator. SMF28 fiber with FC-APC connector. Special DFB version with ultra-narrow emission linewidth and low RIN and phase noise. Also available in PM fiber version (see the OPTION below) . Compatible with OPTION 1 (3 mm collimator). Today | |
Ref: OPTION : PM fiber for Model 5, Shipping: Today, PN: OPTION-PM5 With this OPTION, Model 5 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Today | |
Ref: Model 5 (20 mW narrow linewidth) with "CCS-Low Noise" driver, Shipping: 2 - 5 days, PN: 1550LD-5-LN-1 Open frame ultra-low noise CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber with FC/APC connector. Up to 20 mW low noise CW optical power. Compatible with OPTION 1 (3 mm collimator) . Also available in PM fiber version (see the OPTION above). 2 - 5 days | |
Ref: Model 5 (20 mW narrow linewidth) within "CCSI-Low Noise" module, Shipping: 1 - 2 weeks, PN: 1550LD-5-LN-2 Turn-key integrated CW DFB laser diode module at 1550 nm with internal isolator and Ultra-low noise performances. CW power up to 40 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). Also available in PM fiber version (see the OPTION above). 1 - 2 weeks | |
Ref: Model 6 (40 mW narrow linewidth), Shipping: Today, PN: 1550LD-6-0-0 1550 nm 40 mW butterfly laser diode alone with internal isolator. SMF28 fiber with FC-APC connector. Special DFB version with ultra-narrow emission linewidth and low RIN and phase noise. Also available in PM fiber version (see the OPTION below) . Compatible with OPTION 1 (3 mm collimator). Today | |
Ref: OPTION : PM fiber for Model 6, Shipping: Today, PN: OPTION-PM6 With this OPTION, Model 6 is offered with a polarization maintaining PM1550 fiber instead of a standard SMF28. Both the connector key and the light polarization are aligned along the slow axis (standard configuration in our industry). Today | |
Ref: Model 6 (40 mW narrow linewidth) with "CCS-Low Noise" driver, Shipping: 2 - 5 days, PN: 1550LD-6-LN-1 Open frame Ultra-low noise CW driver with 1550 nm butterfly DFB laser diode with internal isolator and SMF28 fiber with FC/APC connector. Up to 40 mW low noise CW optical power. Compatible with OPTION 1 (3 mm collimator) . Also available in PM fiber version (see the OPTION above). 2 - 5 days | |
Ref: Model 6 (40 mW narrow linewidth) within "CCSI-Low Noise" module, Shipping: 1 - 2 weeks, PN: 1550LD-6-LN-2 Turn-key integrated CW DFB laser diode module at 1550 nm with Ultra-low noise performances with internal isolator. CW power up to 40 mW. SMF28 metal protected fiber output with FC/APC output connector. Compatible with option-1 (3 mm collimator). Also available in PM fiber version (see the OPTION above). 1 - 2 weeks | |
Ref: OPTION 1 : 3 mm optical collimator, Shipping: 2 - 5 days, PN: OPTION-1 Small form factor 3 mm beam diameter optical collimator with AR coatings. 2 - 5 days | |
Ref: OPTION 2 : 250 MHz repetition rate, Shipping: 2 - 5 days, PN: OPTION-2 250 MHz internal pulse generator (instead of 4 MHz or 10 MHz) for "Pulse & CW" laser diode drivers and "Pulse & CW" laser diode modules only. 2 - 5 days | |
Ref: OPTION 3 : Benchtop version for final user instead of OEM module, Shipping: 1 - 2 weeks, PN: OPTION-3 All our modules are ideal products for OEM integration. This option adds more functionalities when the product is used as a benchtop : Key for the user, On/Off switch on the front face etc. This option is available for CCSI and CCSI-CW integrated modules only. 1 - 2 weeks | |
Ref: OPTION 4 : Special package for very short pulses, Shipping: 3 - 4 weeks, PN: OPTION-4 With this option, the Butterfly package is modified to reduce its inductance level to allow a slightly faster rise and fall time. In this case the Butterfly diode is compatible with all AeroDIODE drivers but may not be compatible with "type-1" pinning compatible drivers from other companies. This OPTION is relevant when the user targets pulses of less than 5 ns duration. 3 - 4 weeks | |
Ref: Model 7 (15 W), Shipping: 5 - 8 weeks, PN: 1550LD-7-0-0 High power laser diode emitting up to 15 W at 1550 nm out of a 105(core)/125/250/900 µm multimode laser diode (NA = 0.22). SMA optical connector output. 5 - 8 weeks | |
Ref: Model 7 (15 W) with CCM open frame driver, Shipping: 5 - 8 weeks, PN: 1550LD-7-4-1 Open CW driver with 1550 nm multimode laser diode. Up to 15 W CW optical power out of a 105(core)/125/250/900 µm multimode fiber (NA=0.22). SMA optical connector output. Compatible with OPTION 5 : High Power Collimator (see below). NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 5 - 8 weeks | |
Ref: Model 7 (15 W) within CCMI turn-key module, Shipping: 5 - 8 weeks, PN: 1550LD-7-4-2 Turn-key integrated CW driver with 1550 nm multimode laser diode. Up to 15 W CW optical power out of a 105 µm core / 3mm metal protected Jacket multimode fiber (NA=0.22). High power connector is included. Compatible with OPTION 5 : high power collimator. NOTE : CCM and CCMI are 24 V powered devices. Contact us if you want us to suggest a compatible power supply. 5 - 8 weeks | |
Ref: New : HPHS - High Power nanosecond, Shipping: 9 - 12 weeks, PN: HPHS-1/2/3 High power pulsed laser diode module emitting at 1550 +/- 20 nm - Min/Max pulse width : 1 ns/2000 ns ; peak power up to 35 W - Max Duty Cycle : 0.01% to 10% ; Fiber connector : SMA905 ; Adjustable pulse width down to 1 ns ; Adjustable peak power ; Flexibility of 3 trigger modes ; NOTE the price here is indicative - follow the link to the dedicated product page to see all sub-versions, prices and lead times. 9 - 12 weeks | |
Ref: OPTION 5 : High Power collimator, Shipping: 1 - 2 weeks, PN: OPTION 5 12 mm beam high power collimator for SMA connectors. Compatible with laser diodes model 7 and 8 : laser diode alone or laser diode + driver solutions. 1 - 2 weeks |
To receive your quotation instantaneously by email, please add products to cart and follow instructions.
(Note : by following this instant quote process on this shopping site, American customers can select to receive this instant quote from our US-based partner Research Lab Source. RLS offers the same price & delivery as Aerodiode and is a registered vendor in most university and government research lab purchasing)
